PathScan® Phospho-PDGF Receptor α/β (panTyr) Sandwich ELISA Antibody Pair #7307

Filter:
  • ELISA

Inquiry Info. # 7307

Please see our recommended alternatives.

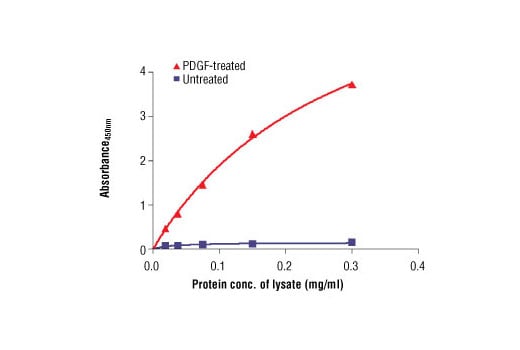

    Supporting Data

    REACTIVITY H M
    Application Key:
    • ELISA-ELISA
    Species Cross-Reactivity Key:
    • H-Human
    • M-Mouse

    Product Information

    Product Usage Information

    Antibody pairs have been optimized using recommended buffers, reagents, plates and the included protocol. Solutions should be made fresh daily.

    Storage

    Capture and detection antibodies are stored at 4°C. HRP-linked secondary reagent is stored at -20°C.

    Protocol

    Product Description

    CST's PathScan® Phospho-PDGF Receptor α/β (panTyr) Sandwich ELISA Antibody Pair is being offered as an economical alternative to our PathScan® Phospho-PDGF Receptor α/β (panTyr) Sandwich ELISA Kit #7235. Capture and Detection Antibodies (100X stocks) and HRP-Conjugated Streptavidin (1000X stock) are supplied. Sufficient reagents are supplied for 4 x 96 well ELISAs. The PDGFRα/β Rabbit Capture Antibody is coated in PBS overnight in a 96 well microplate. After blocking, cell lysates are added followed by Biotinylated Phospho-Tyrosine Mouse Detection Antibody and HRP-conjugated Streptavidin. HRP substrate (TMB) is added for color development. The magnitude of the absorbance for this developed color is proportional to the quantity of phospho-PDGFRα/β protein.
    *Antibodies in this kit are custom formulations specific to the kit.
    MW (kDa) 195

    Specificity / Sensitivity

    For Antibody Pair specificity and sensitivity, please refer to the corresponding PathScan® Sandwich ELISA Kit. Note: This antibody pair detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

    Species Reactivity:

    Human, Mouse

    Background

    Platelet derived growth factor (PDGF) family proteins exist as several disulphide-bonded, dimeric isoforms (PDGF AA, PDGF AB, PDGF BB, PDGF CC, and PDGF DD) that bind in a specific pattern to two closely related receptor tyrosine kinases, PDGF receptor α (PDGFRα) and PDGF receptor β (PDGFRβ). PDGFRα and PDGFRβ share 75% to 85% sequence homology between their two intracellular kinase domains, while the kinase insert and carboxy-terminal tail regions display a lower level (27% to 28%) of homology (1). PDGFRα homodimers bind all PDGF isoforms except those containing PDGF D. PDGFRβ homodimers bind PDGF BB and DD isoforms, as well as the PDGF AB heterodimer. The heteromeric PDGF receptor α/β binds PDGF B, C, and D homodimers, as well as the PDGF AB heterodimer (2). PDGFRα and PDGFRβ can each form heterodimers with EGFR, which is also activated by PDGF (3). Various cells differ in the total number of receptors present and in the receptor subunit composition, which may account for responsive differences among cell types to PDGF binding (4). Ligand binding induces receptor dimerization and autophosphorylation, followed by binding and activation of cytoplasmic SH2 domain-containing signal transduction molecules, such as GRB2, Src, GAP, PI3 kinase, PLCγ, and NCK. A number of different signaling pathways are initiated by activated PDGF receptors and lead to control of cell growth, actin reorganization, migration, and differentiation (5). Tyr751 in the kinase-insert region of PDGFRβ is the docking site for PI3 kinase (6). Phosphorylated pentapeptides derived from Tyr751 of PDGFRβ (pTyr751-Val-Pro-Met-Leu) inhibit the association of the carboxy-terminal SH2 domain of the p85 subunit of PI3 kinase with PDGFRβ (7). Tyr740 is also required for PDGFRβ-mediated PI3 kinase activation (8).

    Alternate Names

    cell based assay; cell-based assay; PDGF Receptor; PDGFRA; PDGFRB; sandwich elisa; screening

    For Research Use Only. Not for Use in Diagnostic Procedures.
