IL-2 (JES6-5H4) Rat mAb (PE Conjugate)
抗体偶联物
单克隆抗体

IL-2 (JES6-5H4) Rat mAb (PE Conjugate) #87412

Citations (0)
Filter:
  1. F

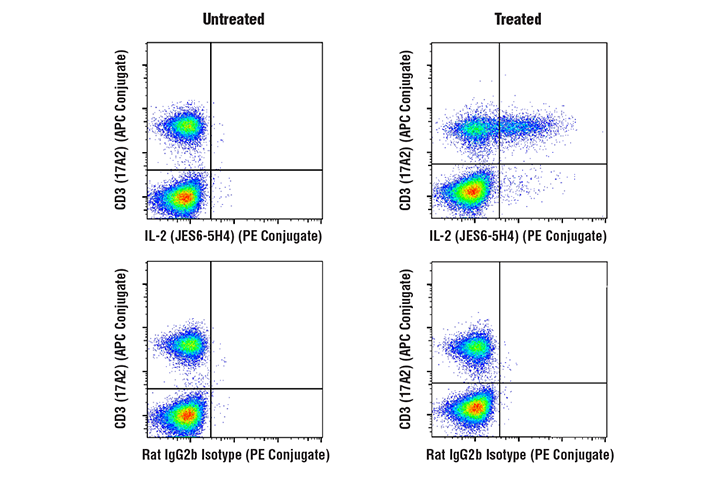

Flow cytometric analysis of C57BL/6 spleen cells, untreated (left column) or treated with Cell Stimulation Cocktail (without Protein Transport Inhibitors) (500X) #29255 (5 hr; right column), using IL-2 (JES6-5H4) Rat mAb (PE Conjugate) (top row) or concentration-matched Rat (LTF-2) mAb IgG2b Isotype Control (PE Conjugate) #27426 (bottom row), and co-stained with CD3 (17A2) Rat mAb (APC Conjugate) #24265.

Supporting Data

REACTIVITY M
SENSITIVITY Endogenous
MW (kDa)
Source/Isotype Rat IgG2b kappa

Application Key:

  • WB-Western Blot
  • IP-Immunoprecipitation
  • IHC-Immunohistochemistry
  • ChIP-Chromatin Immunoprecipitation
  • C&R-CUT&RUN
  • C&T-CUT&Tag
  • DB-Dot Blot
  • eCLIP-eCLIP
  • IF-Immunofluorescence
  • F-Flow Cytometry

Species Cross-Reactivity Key:

  • H-Human
  • M-Mouse
  • R-Rat
  • Hm-Hamster
  • Mk-Monkey
  • Vir-Virus
  • Mi-Mink
  • C-Chicken
  • Dm-D. melanogaster
  • X-Xenopus
  • Z-Zebrafish
  • B-Bovine
  • Dg-Dog
  • Pg-Pig
  • Sc-S. cerevisiae
  • Ce-C. elegans
  • Hr-Horse
  • GP-Guinea Pig
  • Rab-Rabbit
  • All-All Species Expected

Product Description

This Cell Signaling Technology antibody is conjugated to PE and tested in-house for direct flow cytometric analysis in mouse cells.

Product Usage Information

For optimal flow cytometry results, we recommend 0.06 μg of antibody per test.

Application Dilution
Flow Cytometry (Fixed/Permeabilized) 1:300

Storage

Supplied in 10 mM NaH2PO4, 150 mM NaCl, 0.09% NaN3, 0.1% gelatin, pH 7.2. This product is stable for 12 months when stored at 4ºC. Do not aliquot the antibody. Protect from light. Do not freeze.

Protocol

PRINT

View >Collapse >

Flow Cytometry Triton™ X-100 Permeabilization Protocol for Directly Conjugated Antibodies

A. Solutions and Reagents

All reagents required for this protocol may be efficiently purchased together in our Intracellular Flow Cytometry Kit (Triton™ X-100) #51995, or individually using the catalog numbers listed below.

NOTE: Prepare solutions with reverse osmosis deionized (RODI) or equivalent grade water.

  1. 1X Phosphate Buffered Saline (PBS): To prepare 1 L 1X PBS: add 100 ml 10X PBS (#12528) to 900 ml water, mix.
  2. 4% Formaldehyde, Methanol-Free (#47746)
  3. Cell Permeabilization Buffer: Purchase ready-to-use (#39487) or to prepare 10 ml, add 30 µl Triton™ X-100 to 10 ml Antibody Dilution Buffer. Store at 4°C.
  4. Antibody Dilution Buffer: Purchase ready-to-use Flow Cytometry Antibody Dilution Buffer (#13616), or to prepare 100 ml dissolve 0.5 g Bovine Serum Albumin (BSA) (#9998) in 100 ml 1X PBS. Store at 4°C.

NOTE: When including fluorescent cellular dyes in your experiment (including viability dyes, DNA dyes, etc.), please refer to the dye product page for the recommended protocol. Visit www.cellsignal.com for a full listing of cellular dyes validated for use in flow cytometry.

B. Fixation and Permeabilization

NOTE: Adherent cells or tissue should be dissociated and in single-cell suspension prior to fixation.

NOTE: Optimal centrifugation conditions will vary depending upon cell type and reagent volume. Generally, 150-300g for 1-5 minutes will be sufficient to pellet the cells.

NOTE: If using whole blood, lyse red blood cells and wash by centrifugation prior to fixation.

NOTE: Antibodies targeting CD markers or other extracellular proteins may be added prior to fixation if the epitope is disrupted by formaldehyde and/or Triton™ X-100. The antibodies will remain bound to the target of interest during the fixation and permeabilization process. Conduct a small-scale experiment if you are unsure.

  1. Pellet cells by centrifugation and remove supernatant.
  2. Resuspend cells in approximately 100 µl 4% formaldehyde per 1 million cells. Mix well to dissociate pellet and prevent cross-linking of individual cells.
  3. Fix for 15 min at room temperature (20-25°C).
  4. Wash by centrifugation with excess 1X PBS. Discard supernatant in appropriate waste container.
  5. Resuspend cells in approximately 100 µl Cell Permeabilization Buffer per million cells.
  6. Incubate for 10 minutes at room temperature.
  7. Proceed with staining or store cells at 4°C in PBS overnight.

C. Immunostaining

NOTE: Count cells using a hemocytometer or alternative method.

  1. Aliquot desired number of cells into tubes or wells. (Generally, 5x105 to 1x106 cells per assay).
  2. Centrifuge cells and discard supernatant.
  3. Resuspend cells in 100 µl of diluted antibody conjugates, prepared in Antibody Dilution Buffer at a recommended dilution or as determined via titration.
  4. Incubate for 1 hr at room temperature (20-25°C). Protect from light.
  5. Wash by centrifugation in Antibody Dilution Buffer or 1X PBS. Discard supernatant. Repeat.
  6. Resuspend cells in 1X PBS and analyze on flow cytometer.

posted January 2017

revised June 2020

Protocol Id: 1344

Specificity / Sensitivity

IL-2 (JES6-5H4) Rat mAb (PE Conjugate) recognizes endogenous levels of total IL-2 protein. This antibody detects an epitope within the intracellular domain.

Species Reactivity:

Mouse

Source / Purification

This monoclonal antibody was purified from tissue culture supernatant via affinity chromatography. The purified antibody was conjugated under optimal conditions, with unreacted dye removed from the preparation.

Background

Interleukin-2 (IL-2) is a T cell stimulatory cytokine best known for inducing T cell proliferation and NK cell proliferation and activation (1,2). IL-2 also promotes peripheral development of regulatory T cells (Tregs) (3,4). Conversely, IL-2 is involved in the activation-induced cell death (AICD) that is observed post T cell expansion by increasing levels of Fas on CD4+ T cells (5). The effects of IL-2 are mediated through a trimeric receptor complex consisting of IL-2Rα, IL-2Rβ, and the common gamma chain, γc (1,2). IL-2Rα binds exclusively to IL-2 with low affinity and increases the binding affinity of the whole receptor complex including IL-2Rβ and γc subunits. IL-15 also binds to IL-2Rβ (1,2). γc is used by other cytokines, including IL-4, IL-7, IL-9, IL-15, and IL-21 (1,2). Binding of IL-2 initiates signaling cascades involving Jak1, Jak3, Stat5, and the PI3K/Akt pathways (1,2).

The JES6-5H4 antibody is widely used as a marker of IL-2 induced T cell proliferation and NK cell proliferation and activation (6).
