Product Information

Product Usage Information

Cells are lysed in a urea-containing buffer, cellular proteins are digested by proteases, and the resulting peptides are purified by reversed-phase solid-phase extraction. Peptides are then subjected to immunoaffinity purification using a PTMScan® Motif Antibody conjugated to protein A agarose beads. Unbound peptides are removed through washing, and the captured PTM-containing peptides are eluted with dilute acid. Reversed-phase purification is performed on microtips to desalt and separate peptides from antibody prior to concentrating the enriched peptides for LC-MS/MS analysis. CST recommends the use of PTMScan® IAP Buffer #9993 included in the kit.

Storage

Antibody beads supplied in IAP buffer containing 50% glycerol. Store at -20°C. Do not aliquot the antibody.

Product Description

PTMScan® Technology employs a proprietary methodology from Cell Signaling Technology (CST) for peptide enrichment by immunoprecipitation using a specific bead-conjugated antibody in conjunction with liquid chromatography (LC) tandem mass spectrometry (MS/MS) for quantitative profiling of post-translational modification (PTM) sites in cellular proteins. These include phosphorylation (PhosphoScan®), ubiquitination (UbiScan®), acetylation (AcetylScan®), and methylation (MethylScan®), among others. PTMScan® Technology enables researchers to isolate, identify, and quantitate large numbers of post-translationally modified cellular peptides with a high degree of specificity and sensitivity, providing a global overview of PTMs in cell and tissue samples without preconceived biases about where these modified sites occur. For more information on PTMScan® Proteomics Services, please visit https://www.cellsignal.com/services/index.html.

Background

As an integral part of the machinery of cellular function, proteins undergo regulation by a variety of post-translational modifications. One of the most prevalent and widely studied PTMs is Serine/Threonine phosphorylation. A few prominent kinases targeting a handful of substrate consensus motifs account for a majority of the tens of thousands of known and predicted sites on more than 13,000 human proteins (1-3). Cell Signaling Technology has developed phospho-Ser/Thr motif antibodies for proteomic profiling of kinase substrates. These include, among others, substrates of Akt, AMPK, MAPK, CDK, PKA, PKC, and CKII.

  1. Pearson, R.B. and Kemp, B.E. (1991) Methods Enzymol 200, 62-81.
  2. Rao, R.S. and Møller, I.M. (2012) Biochim Biophys Acta 1824, 405-12.
  3. Goel, R. et al. (2012) Mol Biosyst 8, 453-63.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
AcetylScan is a registered trademark of Cell Signaling Technology, Inc.
MethylScan is a registered trademark of Cell Signaling Technology, Inc.
PhosphoScan is a registered trademark of Cell Signaling Technology, Inc.
UbiScan is a registered trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Revision 4
#25081

PTMScan® Phospho-Ser/Thr Motif [pS/T] Kit

PTMScan® Phospho-Ser/Thr Motif [pS/T] Kit: Image 1 Expand Image
图表显示了一项使用581 条非重复 Lys-C/胰蛋白酶肽进行的 PhosphoScan® LC-MS/MS 实验中磷酸肽基序的基本分布,这种肽由经 Calyculin A #9902(10 nM,30 分钟)处理且用 PTMScan® Phospho-Ser/Thr Motif [pS/T] Immunoaffinity Beads 进行免疫沉淀的 293T 细胞产生。

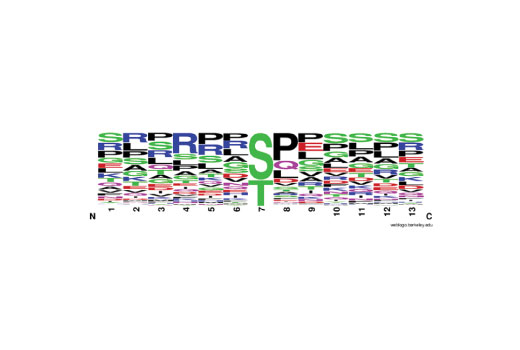

PTMScan® Phospho-Ser/Thr Motif [pS/T] Kit: Image 2 Expand Image
使用经 Calyculin A #9902(10 nM,30 分钟)处理且用 PTMScan® Phospho-Ser/Thr Motif [pS/T] Immunoaffinity Beads 进行免疫沉淀的 293T 细胞产生 581 条非重复 Lys-C/胰蛋白酶肽,对其进行 PhosphoScan® LC-MS/MS 实验可产生基序标识。该基序标识表明氨基酸在数据组中指定位置的相对丰度。
