Revision 1

#56674

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
CTGF (D8Z8U) Rabbit mAb8664120 µl35 kDaRabbit IgG
CYR61 (D4H5D) XP® Rabbit mAb1447920 µl41 kDaRabbit IgG
IGFBP3 (D1U9C) Rabbit mAb2586420 µl40 kDaRabbit IgG
Integrin β2 (D4N5Z) Rabbit mAb7366320 µl95 kDaRabbit IgG
Survivin (71G4B7) Rabbit mAb280820 µl16 kDaRabbit IgG
Axl (C89E7) Rabbit mAb866120 µl138 kDaRabbit IgG
Pan-TEAD (D3F7L) Rabbit mAb1329520 µl50, 53, 55, 60 kDaRabbit IgG
Lamin B2 (D8P3U) Rabbit mAb1225520 µl68 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The YAP/TAZ Transcriptional Targets Antibody Sampler Kit provides an economical means of detecting proteins whose transcription is subject to regulation by the transcriptional co-activators YAP and/or TAZ. The kit provides enough antibody to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

YAP and TAZ (WWTR1) are transcriptional co-activators that play a central role in the Hippo Signaling pathway that regulates cell, tissue and organ growth. Under growth conditions, YAP and TAZ are translocated to the nucleus, where they interact with DNA-binding transcription factors (e.g., Transcriptional Enhanced Activation Domain [TEAD] proteins) to regulate the expression of genes that control fundamental aspects of cell function, such as proliferation and cell survival (1). A number of genes have been experimentally confirmed as targets of transcriptional regulation by YAP and TAZ. These include the extracellular matrix proteins CTGF, CYR61, and integrin β2 (2-4), the inhibitor of apoptosis protein (IAP) survivin (5), the mechano-sensitive nuclear envelope protein Lamin B2 (6), and the oncogenic receptor tyrosine kinase Axl (7).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Lamin B2 (D8P3U) Rabbit mAb.
undefined Image 1: YAP/TAZ Transcriptional Targets Antibody Sampler Kit

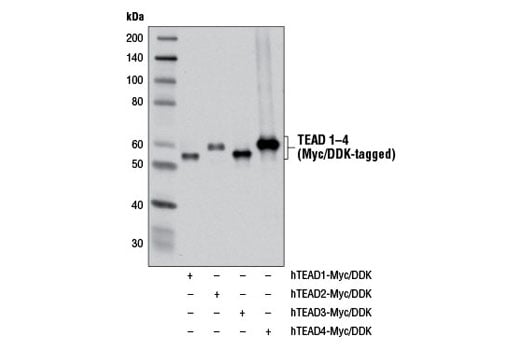

Western blot analysis of extracts from COS-7 cells transfected with a construct expressing either Myc/DDK-tagged full-length human TEAD1 (hTEAD1-Myc/DDK;+), Myc/DDK-tagged full-length human TEAD2 (hTEAD2-Myc/DDK;+), Myc/DDK-tagged full-length human TEAD3 (hTEAD3-Myc/DDK;+), or Myc/DDK-tagged full-length human TEAD4 (hTEAD4-Myc/DDK;+), using TEAD1 (D9X2L) Rabbit mAb #12292 (A), TEAD2 Antibody #8870 (B), TEAD3 Antibody (C), or Pan-TEAD (D3F7L) Rabbit mAb #13295 (D).
undefined Image 2: YAP/TAZ Transcriptional Targets Antibody Sampler Kit

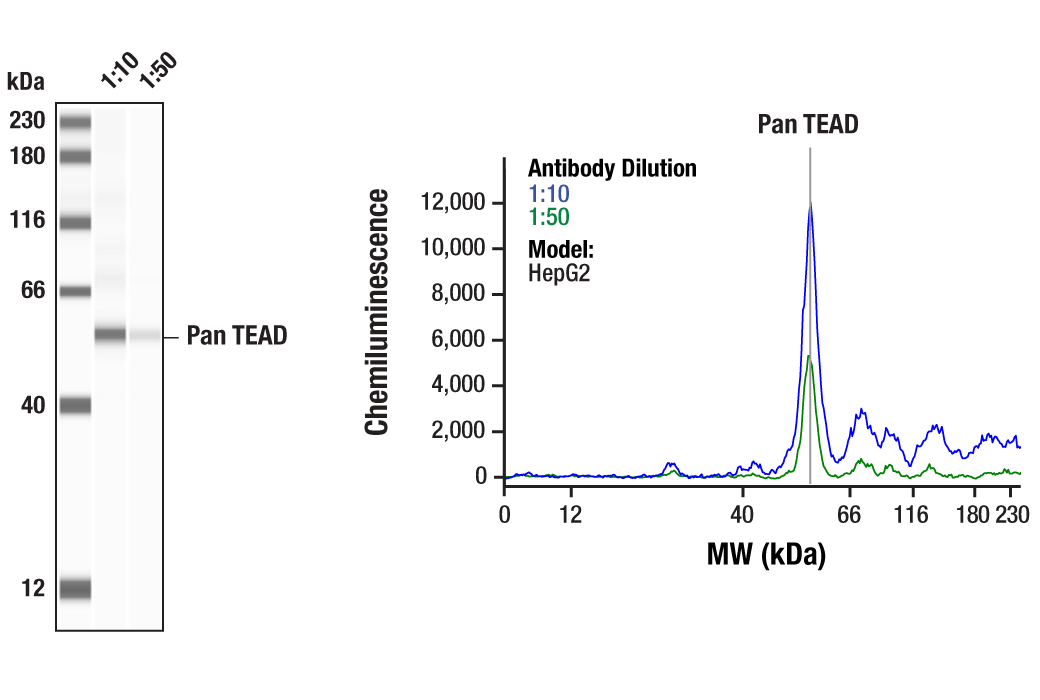

Simple Western™ analysis of lysates (1 mg/mL) from HepG2 cells using Pan-TEAD (D3F7L) Rabbit mAb #13295. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 3: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using CYR61 (D4H5D) XP® Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). As expected, MCF7 cells are negative for CYR61 expression.
undefined Image 4: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Western blot analysis of extracts from concentrated culture medium of various cell lines using IGFBP3 (D1U9C) Rabbit mAb.
undefined Image 5: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Western blot analysis of lysates from Raji (human), BaF3 (mouse) and C6 (rat) cell lines using Survivin (71G4B7E) Rabbit mAb.
undefined Image 6: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 7: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Integrin β2 (D4N5Z) Rabbit mAb (upper) or α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower).
undefined Image 8: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Western blot analysis of HeLa Cell Extracts, untreated (-) or Axl knock-out (+) using Axl (C89E7) Rabbit mAb, #8661 (upper) or GAPDH (D16H11) XP® Rabbit mAb, #5174 (lower).
undefined Image 9: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using CTGF (D8Z8U) Rabbit mAb (upper) and β-actin (D6A8) Rabbit mAb #8457 (lower). Asterisk indicates a 120 kDa band of unknown identity detected by this antibody in Western blot analysis.
undefined Image 10: YAP/TAZ Transcriptional Targets Antibody Sampler Kit

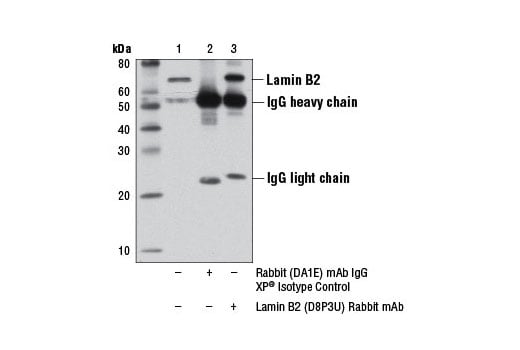

Immunoprecipitation of lamin B2 from Jurkat cell extracts, using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Lamin B2 (D8P3U) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Lamin B2 (D8P3U) Rabbit mAb.
undefined Image 11: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Western blot analysis of extracts from COS-7 cells transfected with a construct expressing either Myc/DDK-tagged full-length human TEAD1 (hTEAD1-Myc/DDK;+), Myc/DDK-tagged full-length human TEAD2 (hTEAD2-Myc/DDK;+), Myc/DDK-tagged full-length human TEAD3 (hTEAD3-Myc/DDK;+), or Myc/DDK-tagged full-length human TEAD4 (hTEAD4-Myc/DDK;+), using Pan-TEAD (D3F7L) Rabbit mAb.
undefined Image 12: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

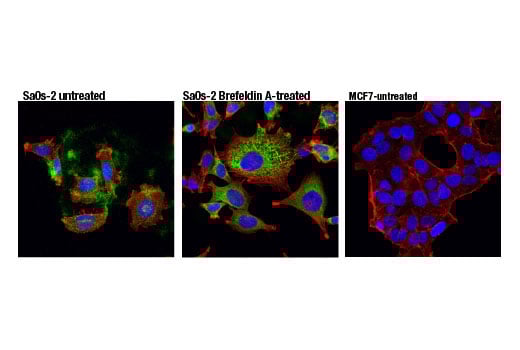

Confocal immunofluorescent analysis of Saos-2 cells, untreated (left) or treated with Brefeldin A #9972 (10 μg/ml, overnight; center), and untreated MCF7 cells (right), using CYR61 (D4H5D) XP® Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4804 (fluorescent DNA dye).
undefined Image 13: YAP/TAZ Transcriptional Targets Antibody Sampler Kit

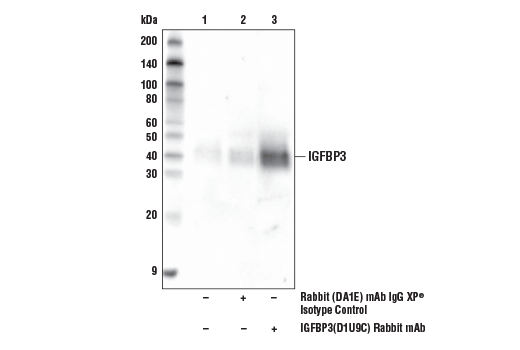

Immunoprecipitation of IGFBP3 protein from HCC1937 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is IGFBP3 (D1U9C) Rabbit mAb. Western blot analysis was performed using IGFBP3 (D1U9C) Rabbit mAb.
undefined Image 14: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Fluorescein Conjugate) #6201 (-) or SignalSilence® Survivin siRNA II (+), using Survivin (71G4B7E) Rabbit mAb #2808 and α-Tubulin (11H10) Rabbit mAb #2125. Survivin (71G4B7E) Rabbit mAb confirms silencing of survivin expression and α-Tubulin (11H10) Rabbit mAb is used to control for loading and specificity of survivin siRNA.
undefined Image 15: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Simple Western™ analysis of lysates (1.0 mg/mL) from Jurkat cells using Survivin (71G4B7) Rabbit mAb #2808. The virtual lane view (left) shows the target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 16: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Axl (C89E7) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 17: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Simple Western™ analysis of lysates (0.1 mg/mL) from HeLa cells using Axl (C89E7) Rabbit mAb #8661. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 18: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of PANC-1 cells (high-expressing) and MCF7 cells (low-expressing) using CTGF (D8Z8U) Rabbit mAb (green) and an Anti-Na+/K+ ATPase α Mouse mAb (blue). Red = Propidium Iodide (PI)/RNase Staining Solution #4087.
undefined Image 19: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Confocal immunofluorescent analysis of HCT 116 cells using Lamin B2 (D8P3U) Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 20: YAP/TAZ Transcriptional Targets Antibody Sampler Kit

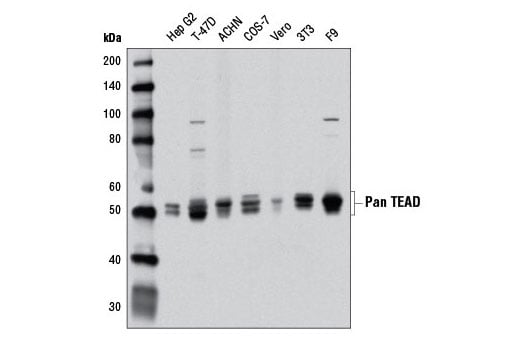

Western blot analysis of extracts from various cell lines using Pan-TEAD (D3F7L) Rabbit mAb.
undefined Image 21: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

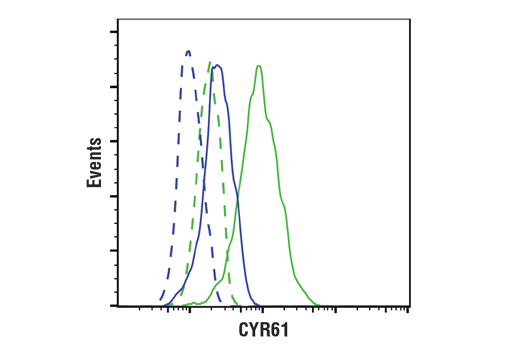

Flow cytometric analysis of 293T cells (blue) and PANC-1 cells (green) using CYR61 (D4H5D) XP® Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 22: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human transitional epithelial carcinoma of the bladder using Survivin (71G4B7E) Rabbit mAb.
undefined Image 23: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded breast carcinoma using Axl (C89E7) Rabbit mAb. Note staining of infiltrating cells.
undefined Image 24: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunoprecipitation of TEAD proteins from COS-7 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Pan-TEAD (D3F7L) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Pan-TEAD (D3F7L) Rabbit mAb.
undefined Image 25: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lung carcinoma showing nuclear localization using Survivin (71G4B7E) Rabbit mAb #2808.
undefined Image 26: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma using Axl (C89E7) Rabbit mAb.
undefined Image 27: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Survivin (71G4B7E) Rabbit mAb in the presence of control peptide (left) or Survivin Blocking Peptide #1037 (right).
undefined Image 28: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human B-cell non-Hodgkin's lymphoma using Axl (C89E7) Rabbit mAb.
undefined Image 29: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human pituitary adenoma using Survivin (71G4B7E) Rabbit mAb.
undefined Image 30: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human ovarian serous carcinoma using Axl (C89E7) Rabbit mAb.
undefined Image 31: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded metastatic lung carcinoma using Axl (C89E7) Rabbit mAb.
undefined Image 32: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Confocal immunofluorescent analysis of HeLa cells using Survivin (71G4B7E) Rabbit mAb (green). Mitochondria have been labeled with MitoTracker® Red CMXRos (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 33: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded cell pellets, NCI-H1299 (left) or Jurkat (right), using Axl (C89E7) Rabbit mAb.
undefined Image 34: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Flow cytometric analysis of untreated Jurkat cells using Survivin (71G4B7E) Rabbit mAb (blue) compared to a nonspecific negative control antibody (red).
undefined Image 35: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Confocal immunofluorescent analysis of DU 145 (left) and HCC827 (right) cells using Axl (C89E7) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 36: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Flow cytometric analysis of fixed and permeabilized Jurkat cells (blue, negative) and DU145 cells (green, positive) using Axl (C89E7H4) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 37: YAP/TAZ Transcriptional Targets Antibody Sampler Kit
