Revision 1

#9779Store at -20C

1 个试剂盒

(5 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
Pim-1 (C93F2) Rabbit mAb 3247 20 µl 34 kDa Rabbit IgG
Pim-2 (D1D2) Rabbit mAb 4730 20 µl 40, 38, 34 kDa Rabbit
Pim-3 (D17C9) Rabbit mAb 4165 20 µl 35 kDa Rabbit IgG
Phospho-Bad (Ser112) (40A9) Rabbit mAb 5284 20 µl 23 kDa Rabbit IgG
Bad (D24A9) Rabbit mAb 9239 20 µl 23 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Pim Kinase Antibody Sampler Kit provides an economical means to detect all three Pim kinases along with Bad and Phospho-Bad (Ser112). The kit contains enough primary and secondary antibody to perform two western blot experiments.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Pim proteins (Pim-1, Pim-2 and Pim-3) are oncogene-encoded serine/threonine kinases (1). Pim-1, a serine/threonine kinase highly expressed in hematopoietic cells, plays a critical role in the transduction of mitogenic signals and is rapidly induced by a variety of growth factors and cytokines (1-4). Pim-1 cooperates with c-Myc in lymphoid cell transformation and protects cells from growth factor withdrawal and genotoxic stress-induced apoptosis (5,6). Pim-1 also enhances the transcriptional activity of c-Myb through direct phosphorylation within the c-Myb DNA binding domain as well as phosphorylation of the transcriptional coactivator p100 (7,8). Hypermutations of the Pim-1 gene are found in B-cell diffuse large cell lymphomas (9). Phosphorylation of Pim-1 at Tyr218 by Etk occurs following IL-6 stimulation and correlates with an increase in Pim-1 activity (10). Various Pim substrates have been identified; Bad is phosphorylated by both Pim-1 and Pim-2 at Ser112 and this phosphorylation reverses Bad-induced cell apoptosis (11,12).
The corresponding pim-1 gene encodes a pair of proteins through use of different translation initiation sites. Both larger 44 kDa (Pim-1L) and smaller 33 kDa (Pim-1S) proteins are active kinases, but differ in stability (13).

  1. Mikkers, H. et al. (2004) Mol Cell Biol 24, 6104-15.
  2. Selten, G. et al. (1986) Cell 46, 603-11.
  3. Meeker, T.C. et al. (1987) J Cell Biochem 35, 105-12.
  4. Dautry, F. et al. (1988) J Biol Chem 263, 17615-20.
  5. Möröy, T. et al. (1993) Proc Natl Acad Sci USA 90, 10734-8.
  6. Lilly, M. and Kraft, A. (1997) Cancer Res 57, 5348-55.
  7. Leverson, J.D. et al. (1998) Mol Cell 2, 417-25.
  8. Winn, L.M. et al. (2003) Cell Cycle 2, 258-62.
  9. Pasqualucci, L. et al. (2001) Nature 412, 341-6.
  10. Kim, O. et al. (2004) Oncogene 23, 1838-44.
  11. Aho, T.L. et al. (2004) FEBS Lett 571, 43-9.
  12. Yan, B. et al. (2003) J Biol Chem 278, 45358-67.
  13. Saris, C.J. et al. (1991) EMBO J 10, 655-64.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    限制使用

    除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

    专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

    Revision 1
    #9779

    Pim Kinase Antibody Sampler Kit

    Pim Kinase Antibody Sampler Kit: Image 1 Expand Image
    使用 Phospho-Bad (Ser112) (40A9) Rabbit mAb #5284 对经过 TPA(200 nM,20 分钟)处理的血清饥饿 COS 细胞的裂解物 (0.1 mg/mL) 进行 Simple Western™ 分析。虚拟泳道式图像(左图)显示一抗稀释比例为 1:10 和 1:50 时的单一靶标条带(如图所示)。对应的电泳图(右图)为一抗稀释比例在 1:10(蓝线)和 1:50(绿线)时沿毛细血管内分子量的化学发光结果。在还原条件下,使用 12-230 kDa 分离模块在 ProteinSimple(BioTechne 品牌)的 Jess™ Simple Western 仪器上进行该实验。
    Pim Kinase Antibody Sampler Kit: Image 2 Expand Image
    使用 Bad (D24A9) Rabbit mAb #9239 对 OVCAR8 细胞的裂解物 (1 mg/mL) 进行 Simple Western™ 分析。虚拟泳道式图像(左图)显示一抗稀释比例为 1:10 和 1:50 时的靶标条带(如图所示)。对应的电泳图(右图)为一抗稀释比例在 1:10(蓝线)和 1:50(绿线)时沿毛细血管内分子量的化学发光结果。在还原条件下,使用 12-230 kDa 分离模块在 ProteinSimple(BioTechne 品牌)的 Jess™ Simple Western 仪器上进行该实验。
    Pim Kinase Antibody Sampler Kit: Image 3 Expand Image
    使用 Pim-1 (C93F2) Rabbit mAb 对不同细胞系的提取物进行蛋白质印迹分析。
    Pim Kinase Antibody Sampler Kit: Image 4 Expand Image
    使用 Pim-3 (D17C9) Rabbit mAb 对不同细胞系的提取物进行蛋白质印迹分析。
    Pim Kinase Antibody Sampler Kit: Image 5 Expand Image
    使用 Pim-2 (D1D2) Rabbit mAb 对 K-562、Raji 和 KARPAS-620 细胞系的提取物进行蛋白质印迹分析。
    Pim Kinase Antibody Sampler Kit: Image 6 Expand Image
    使用 Phospho-Bad (Ser112) (40A9) Rabbit mAb(上)或 Bad Antibody #9292(下),对未处理或经 TPA 处理的 COS 细胞提取物进行蛋白质印迹分析。
    Pim Kinase Antibody Sampler Kit: Image 7 Expand Image
    一抗与靶标蛋白结合之后,与偶联 HRP 的二抗形成复合体。添加 LumiGLO®,在酶催化分解期间发光。
    Pim Kinase Antibody Sampler Kit: Image 8 Expand Image
    使用 Bad (D24A9) Rabbit mAb 对不同细胞系提取物进行蛋白质印迹分析。
    Pim Kinase Antibody Sampler Kit: Image 9 Expand Image
    使用 Pim-1 (C93F2) Rabbit mAb 对重组 Pim-1、-2 和 -3 进行蛋白质印迹分析。

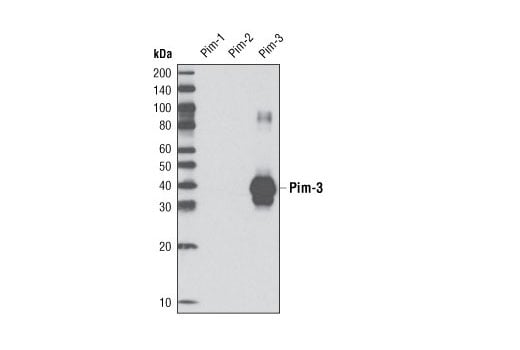

    Pim Kinase Antibody Sampler Kit: Image 10 Expand Image
    使用 Pim-3 (D17C9) Rabbit mAb 对重组 Pim-1、2 和 3 进行蛋白质印迹分析。

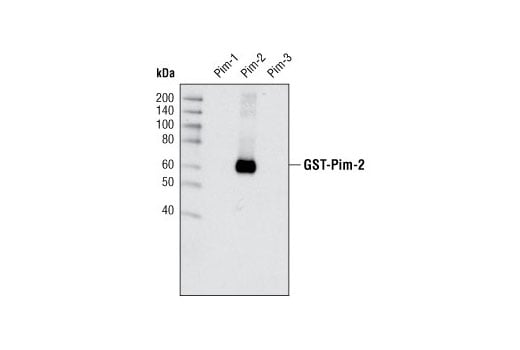

    Pim Kinase Antibody Sampler Kit: Image 11 Expand Image
    使用 Pim-2 (D1D2) Rabbit mAb 对重组 Pim-1、Pim-2 和 Pim-3 激酶进行蛋白质印迹分析。
    Pim Kinase Antibody Sampler Kit: Image 12 Expand Image
    使用 Phospho-Bad (Ser 112) (40A9) Rabbit mAb,对未处理(左)或经 λ 磷酸酶处理(右)的石蜡包埋的人乳腺癌进行免疫组织化学分析。

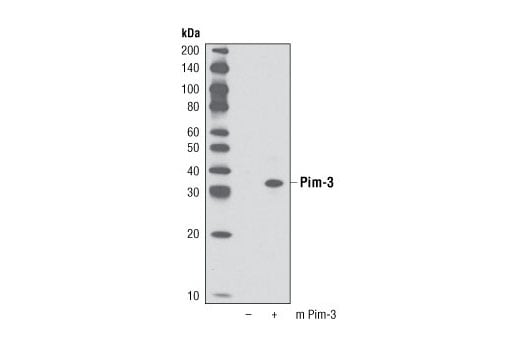

    Pim Kinase Antibody Sampler Kit: Image 13 Expand Image
    使用 Pim-3 (D17C9) Rabbit mAb 对未转染 (-) 或转染小鼠 Pim-3 表达载体 (+) 的 COS-7 细胞的提取物进行蛋白质印迹分析。
    Pim Kinase Antibody Sampler Kit: Image 14 Expand Image
    使用 Phospho-Bad (Ser112) (40A9) Rabbit mAb,对未处理(左)或经 TPA 处理(右)且显示诱导胞质染色的石蜡包埋的 COS 细胞进行免疫组织化学分析。
    Pim Kinase Antibody Sampler Kit: Image 15 Expand Image
    使用经对照肽(左)或 Phospho-Bad (Ser 112) Blocking Peptide (IHC Specific) #1026(右)预孵育的 Phospho-Bad (Ser 112) (40A9) Rabbit Monoclonal Antibody,对石蜡包埋的人前列腺癌进行免疫组织化学分析。
    Pim Kinase Antibody Sampler Kit: Image 16 Expand Image
    使用 Phospho-Bad (Ser112) (40A9) Rabbit mAb,对石蜡包埋的非霍奇金淋巴瘤细胞进行免疫组织化学分析。
    Pim Kinase Antibody Sampler Kit: Image 17 Expand Image
    使用 Phospho-Bad (Ser112) (40A9) Rabbit mAb,对未处理(蓝色)或经 TPA/Calyculin A 处理(绿色)的 COS 细胞进行流式细胞分析。
