Revision 1

#9920Store at -20C

1 个试剂盒

(6 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
Phospho-AMPK Substrate Motif [LXRXX(pS/pT) MultiMab® Rabbit mAb mix 5759 20 µl Rabbit
Phospho-Akt Substrate (RXXS*/T*) (110B7E) Rabbit mAb 9614 20 µl Rabbit IgG
Phospho-PKA Substrate (RRXS*/T*) (100G7E) Rabbit mAb 9624 20 µl Rabbit IgG
Phospho-ATM/ATR Substrate Motif [(pS/pT) QG] MultiMab® Rabbit mAb mix 6966 20 µl Rabbit IgG
Phospho-PKC Substrate Motif [(R/K)XpSX(R/K)] MultiMab® Rabbit mAb mix 6967 20 µl Rabbit IgG
Phospho-CDK Substrate Motif [(K/H)pSP] MultiMab® Rabbit mAb mix 9477 20 µl Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit provides an economical means to investigate the downstream activity of select serine/threonine kinases. The kit contains enough primary antibody to perform two western blot experiments with each antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Phospho-(Ser/Thr) kinases and phosphatases play critical roles in a wide range of biological processes. Each phospho-(Ser/Thr) kinase phosphorylates serine or threonine within a specific motif. Akt phosphorylates substrates at a serine or threonine only in a conserved motif characterized by arginine at positions -5 and -3 (1). Conventional PKC isozymes phosphorylate substrates containing serine or threonine, with arginine or lysine at the -3, -2 and +2 positions, and a hydrophobic amino acid at position +1 (2,3). A consensus phosphorylation site of PKA is serine or threonine with arginine at the -2 and -3 positions (3). AMPK phosphorylates consensus motif (L/M)XRXX(S/T)XXXL (6). Antibodies recognizing the LXRXX(S/T) motif are very useful in the identification of AMPK substrates. The consensus amino acid sequence for CDK substrate is (K/R)(S*)PX(K/R), where denotes any one of the 20 amino acids and S* is the phosphorylation site (4-6). ATM and the related kinase ATR phosphorylate serine or threonine in an S*/T*Q motif (7,8).
Antibodies specific to particular kinase substrates are invaluable reagents in determining kinase activity and identifying potential new kinase substrates. CST has developed antibodies that recognize phosphorylated serine or threonine within the context of a protein motif that is phosphorylated by Akt, PKC, PKA, MAPK/CDK, CDKs or ATM/ATR. As shown by peptide pairing ELISA, each phospho-(Ser/Thr) kinase substrate antibody in this sampler kit is specific to its kinase substrate motif.

  1. Alessi, D.R. et al. (1996) FEBS Lett 399, 333-8.
  2. Nishikawa, K. et al. (1997) J Biol Chem 272, 952-60.
  3. Pearson, R.B. and Kemp, B.E. (1991) Methods Enzymol 200, 62-81.
  4. Songyang, Z. et al. (1996) Mol Cell Biol 16, 6486-93.
  5. Songyang, Z. (1999) Prog Biophys Mol Biol 71, 359-72.
  6. Holmes, J.K. and Solomon, M.J. (1996) J Biol Chem 271, 25240-6.
  7. Kastan, M.B. and Lim, D.S. (2000) Nat Rev Mol Cell Biol 1, 179-86.
  8. Zhao, H. and Piwnica-Worms, H. (2001) Mol Cell Biol 21, 4129-39.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    限制使用

    除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

    专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

    Revision 1
    #9920

    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit

    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 1 Expand Image
    Western blot analysis of extracts from various mouse tissues using Phospho-AMPK Substrate Motif [LXRXX(pS/pT) MultiMab® Rabbit mAb mix
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 2 Expand Image
    使用 Phospho-ATM/ATR Substrate Motif [(pS/pT) QG] MultiMab® Rabbit mAb mix 对未经处理 (-) 或经过紫外线处理(+,50 mJ/cm2,2 小时)的 HeLa 细胞的提取物进行蛋白质印迹分析。使用 Odyssey® Infrared Imaging System (LI-COR® Biotechnologies) 进行蛋白质印迹显影。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 3 Expand Image
    使用 Phospho-PKC Substrate Motif [(R/K)XpSX(R/K)] MultiMab® Rabbit mAb mix 对未经处理 (-) 或经过 TPA(200 nM,30 分钟;+)处理的 Jurkat 细胞的提取物进行蛋白质印迹分析。使用 Odyssey® Infrared Imaging System (LI-COR® Biotechnologies) 进行蛋白质印迹显影。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 4 Expand Image
    一抗与靶标蛋白结合之后,与偶联 HRP 的二抗形成复合体。添加 LumiGLO®,在酶催化分解期间发光。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 5 Expand Image
    使用 Phospho-CDK Substrate Motif [(K/H)pSP] MultiMab® Rabbit mAb mix,对细胞周期 G1/S、G2/M 和 G0 期同步处理的来自 COS-7 细胞的提取物进行蛋白质印迹分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 6 Expand Image
    使用 Phospho-Akt Substrate (RXXS*/T*) (110B7E) Rabbit mAb 对在体外被 Akt 激酶磷酸化或在 PDGF 或 FBS/Calyculin A 培养基中处理的血清饥饿 NIH/3T3 细胞提取物进行蛋白质印迹分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 7 Expand Image
    使用 Phospho-PKA Substrate (RRXS*/T*) (100G7E) Rabbit mAb 对在体外被 PKA 激酶磷酸化或在 Forskolin/IBMX 培养基中处理的血清饥饿 A431 细胞提取物进行蛋白质印迹分析。裂解缓冲液:1.0% Triton X-100(泳道 1 和 2)、2.0% SDS(泳道 3 和 4)。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 8 Expand Image
    Western blot analysis of extracts from H1650 cells, untreated or treated with phenformin (5 mM, 1 hr), usingPhospho-AMPK Substrate Motif [LXRXX(pS/pT) MultiMab® Rabbit mAb mix. 使用 Odyssey® Infrared Imaging System (LI-COR® Biosciences) 进行蛋白质印迹显影。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 9 Expand Image
    使用 Phospho-ATM/ATR Substrate Motif [(pS/pT) QG] MultiMab® Rabbit mAb mix(泳道 3 和 4)对未经处理 (-) 或经紫外线处理(+,50 mJ/cm2,2 小时)的 HeLa 细胞进行免疫沉淀。泳道 1 和 2 为 10% input。使用相同抗体(上)和 p95/NBS1 Antibody #3002(下)进行蛋白质印迹检测分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 10 Expand Image
    使用 Phospho-PKC Substrate Motif [(R/K)XpSX(R/K)] MultiMab® Rabbit mAb mix 对不同小鼠组织的提取物进行蛋白质印迹分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 11 Expand Image
    使用 Phospho-Akt Substrate (RXXS*/T*) (110B7E) Rabbit mAb 对未经处理或经 FBS/Calyculin A 处理的血清饥饿 NIH/3T3 细胞提取物进行免疫沉淀,随后使用相同抗体进行蛋白质印迹分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 12 Expand Image
    Immunoprecipitation of extracts from H1650 cells using Phospho-AMPK Substrate Motif [LXRXX(pS/pT) MultiMab® Rabbit mAb mix. 泳道 1 为 10% input。使用相同抗体进行蛋白质印迹分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 13 Expand Image
    使用 Phospho-PKC Substrate Motif [(R/K)XpSX(R/K)] MultiMab® Rabbit mAb mix 对未经处理 (-) 或经过 TPA(200 nM,30 分钟;+)处理(泳道 3 和 4)的 Jurkat 细胞的提取物进行免疫沉淀 (IP)。泳道 1 和 2 为 10% 输入。使用相同抗体进行蛋白质印迹分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 14 Expand Image

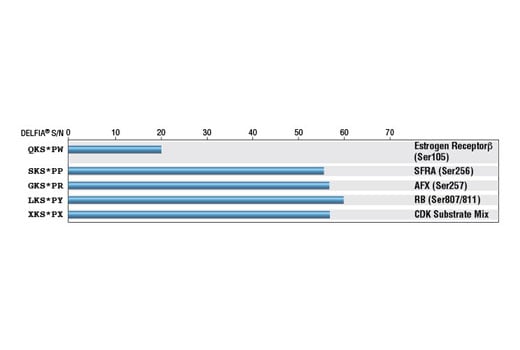

    Phospho-CDK Substrate Motif [(K/H)pSP] MultiMab® Rabbit mAb mix ELISA 检测法:磷酰肽与非磷酰肽的信噪比。 (S* 代表磷酸化丝氨酸。)
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 15 Expand Image
    使用 Phospho-Akt Substrate (RXXS*/T*) (110B7E) Rabbit mAb 对经对照(左)或经 λ 磷酸酶处理(右)的石蜡包埋的人乳腺癌进行免疫组织化学分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 16 Expand Image
    Phospho-PKA Substrate (RRXS*/T*) (100G7E) Rabbit mAb ELISA 检测法:磷酸化肽与非磷酸肽的信噪比。 (T* 与 S* 代表磷酸化苏氨酸及丝氨酸。)
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 17 Expand Image
    使用 Phospho-Akt Substrate (RXXS*/T*) (110B7E) Rabbit mAb 对石蜡包埋的肺癌进行免疫组织化学分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 18 Expand Image
    使用 Phospho-Akt Substrate (RXXS*/T*) (110B7E) Rabbit mAb 对石蜡包埋的肾细胞癌进行免疫组织化学分析。
    Phospho-(Ser/Thr) Kinase Substrate Antibody Sampler Kit: Image 19 Expand Image

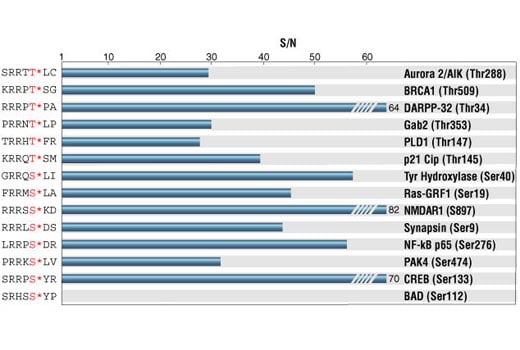

    Phospho-Akt Substrate (RXXS*/T*) (110B7E) Rabbit mAb ELISA 检测法:磷酸化肽与非磷酸肽的信噪比。 (T* 与 S* 代表磷酸化苏氨酸及丝氨酸。)
