Revision 1

#76696

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
DNA-PKcs (E6U3A) Rabbit mAb3816820 µl450 kDaRabbit IgG
Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb6871620 µl450 kDaRabbit IgG
Ku70 (D10A7) Rabbit mAb458820 µl70 kDaRabbit IgG
Ku80 (C48E7) Rabbit mAb218020 µl86 kDaRabbit IgG
DNA Ligase IV (D5N5N) Rabbit mAb1464920 µl100 kDaRabbit IgG
XLF Antibody285420 µl39 kDaRabbit
Artemis (D7O8V) Rabbit mAb1338120 µl90 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit provides an economical means of detecting proteins involved in NHEJ DNA repair. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

DNA double-strand breaks (DSBs) are potentially hazardous lesions that can be induced by ionizing radiation (IR), radiomimetic chemicals, or DNA replication inhibitors. Cells recognize and repair DSBs via two distinct but partly overlapping signaling pathways, non-homologous end joining (NHEJ) and homologous recombination (HR). DNA repair via the HR pathway is restricted to S and G2 phases of the cell cycle, while NHEJ can occur during any phase. NHEJ machinery is also utilized in V(D)J recombination, a process that generates diversity in immunoglobulin and T cell receptor genes. Defects in both pathways have been associated with human disease, including cancer (1).
DNA repair through the NHEJ pathway involves a core group of proteins that includes the Ku heterodimer (Ku70/Ku80), DNA-PKcs, DNA ligase IV, XRCC4, and XLF. XLF interacts with XRCC4 and promotes the ligation of DNA strands by DNA ligase IV and the ligase cofactor XRCC4. The ATP-dependent ligation of free DNA ends is the final step in the NHEJ repair pathway (2). DNA ligase IV and the endonuclease artemis suppress homologous recombination and promote NHEJ (3).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

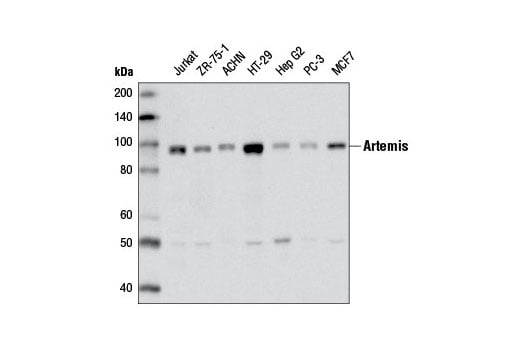

Western blot analysis of extracts from various cell lines using Artemis (D7O8V) Rabbit mAb.
undefined Image 1: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using DNA Ligase IV (D5N5N) Rabbit mAb.
undefined Image 2: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Western blot analysis of cell extracts from HeLa, A549 and COS cells using Ku80 (C48E7) Rabbit mAb.
undefined Image 3: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

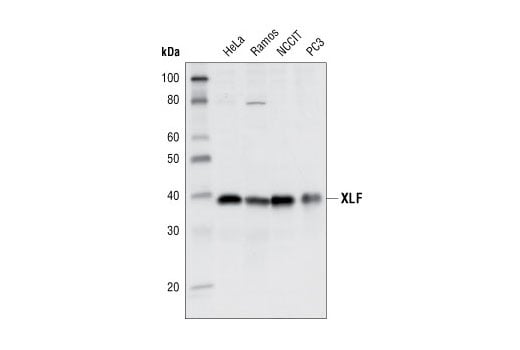

Western blot analysis of extracts of various cell lines using XLF Antibody.
undefined Image 4: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from M059K cells, which express normal levels of DNA-PKcs, and M059J cells, which lack DNA-PKcs, using DNA-PKcs (E6U3A) Rabbit mAb (upper) or α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower).
undefined Image 5: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Ku70 (D10A7) Rabbit mAb.
undefined Image 6: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from M059K (DNA-PKcs positive) and M059J (DNA-PKcs negative) cells, untreated (-), or treated with neocarzinostatin (0.5 µg/ml, 1 hr; +) to induce DNA double strand breaks, using Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb (upper), total DNA-PKcs (E6U3A) Rabbit mAb #38168 (middle), or α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower).
undefined Image 7: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb.
undefined Image 8: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 9: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

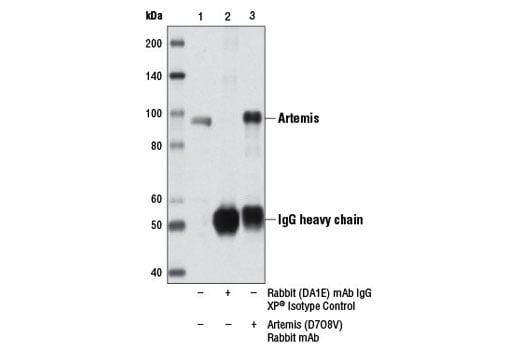

Immunoprecipitation of Artemis from HT-29 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Artemis (D7O8V) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using Artemis (D7O8V) Rabbit mAb.
undefined Image 10: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

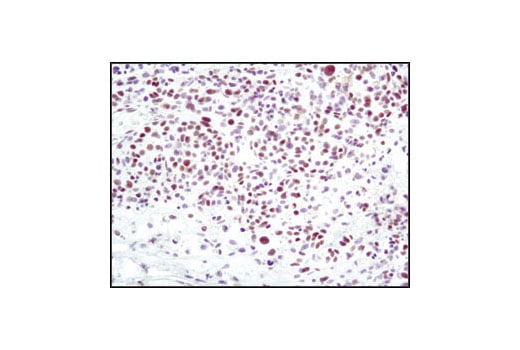

Immunohistochemical analysis of paraffin-embedded human glioblastoma using Ku80 (C48E7) Rabbit mAb.
undefined Image 11: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using DNA-PKcs (E6U3A) Rabbit mAb.
undefined Image 12: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

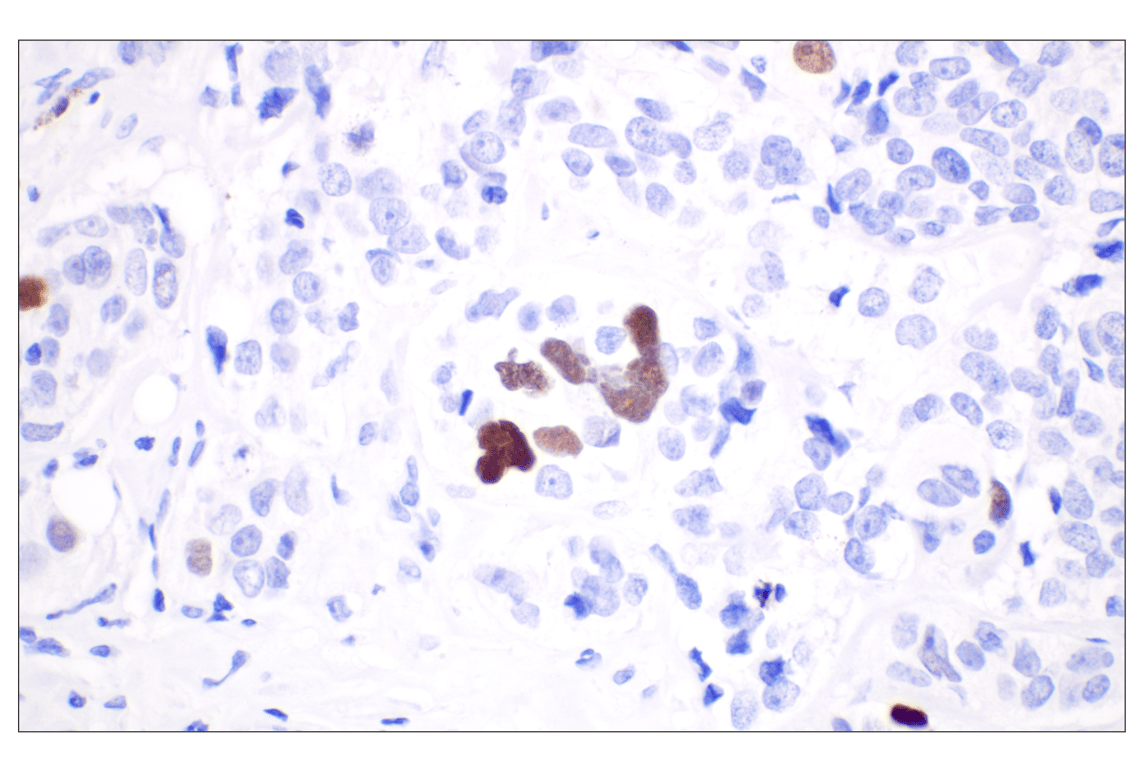

Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb.
undefined Image 13: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

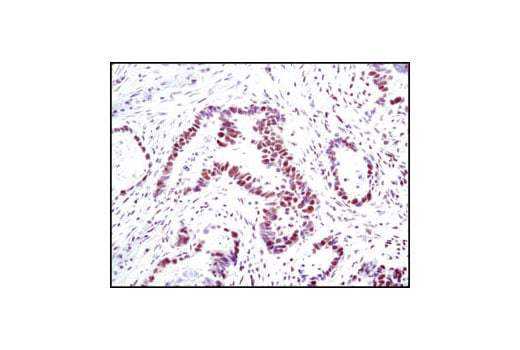

Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Ku80 (C48E7) Rabbit mAb.
undefined Image 14: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded normal human colon using DNA-PKcs (E6U3A) Rabbit mAb.
undefined Image 15: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

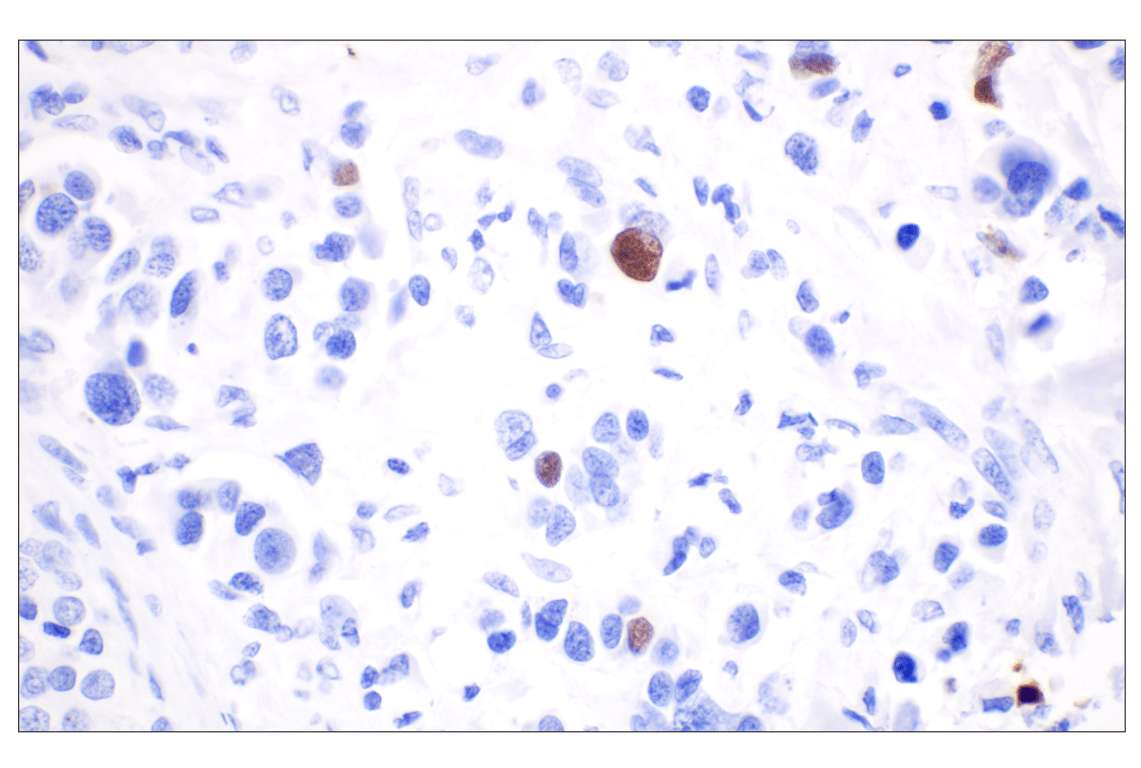

Immunohistochemical analysis of paraffin-embedded human ovarian serous carcinoma using Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb.
undefined Image 16: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

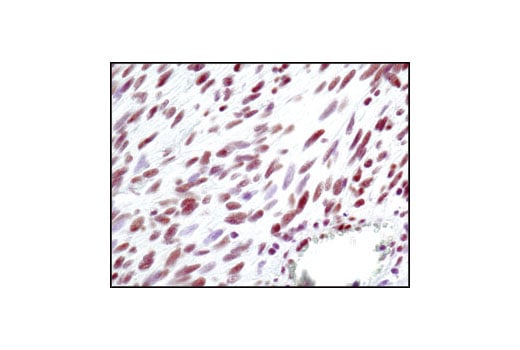

Immunohistochemical analysis of paraffin-embedded human melanoma using Ku80 (C48E7) Rabbit mAb.
undefined Image 17: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma using DNA-PKcs (E6U3A) Rabbit mAb.
undefined Image 18: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

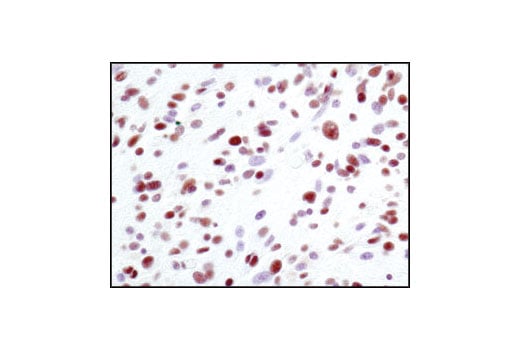

Immunohistochemical analysis of paraffin-embedded human GIST using Ku80 (C48E7) Rabbit mAb.
undefined Image 19: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lung squamous cell carcinoma using DNA-PKcs (E6U3A) Rabbit mAb.
undefined Image 20: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

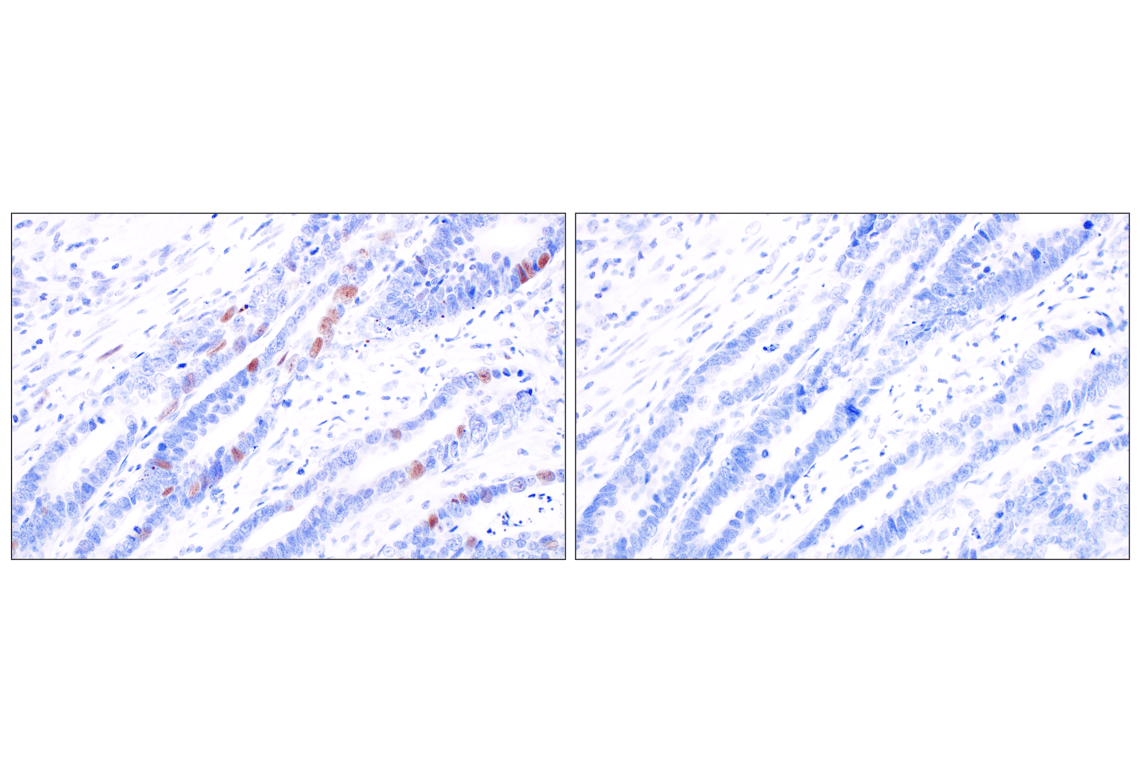

Colon 209: Immunohistochemical analysis of paraffin-embedded human adenocarcinoma of the colon, untreated (left) or lambda phosphatase treated (right), using Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb.
undefined Image 21: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human endometrioid carcinoma using DNA-PKcs (E6U3A) Rabbit mAb.
undefined Image 22: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

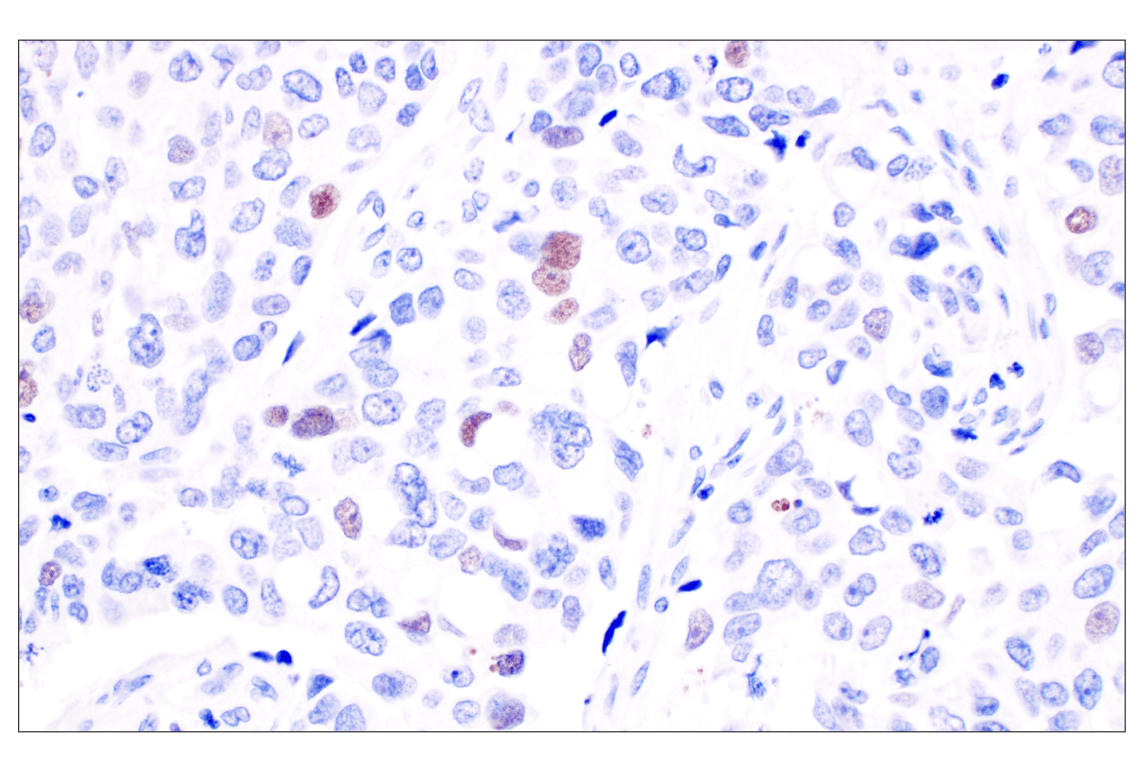

Immunohistochemical analysis of paraffin-embedded human infiltrating ductal carcinoma of the breast using Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 23: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

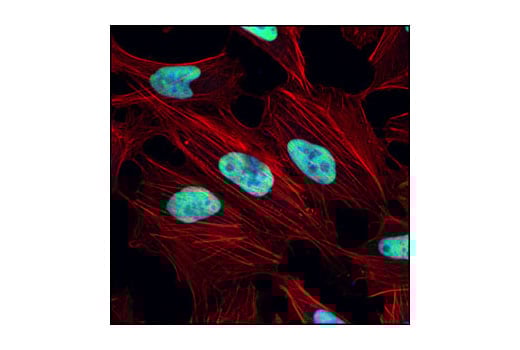

Confocal immunofluorescent analysis of HeLa cells using Ku80 (C48E7) Rabbit mAb (green). Actin filaments have been labeled with Alexa Fluor® 555 phalloidin (red).
undefined Image 24: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded M059K cell pellet (left, positive) or M059J cell pellet (right, negative) using DNA-PKcs (E6U3A) Rabbit mAb.
undefined Image 25: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

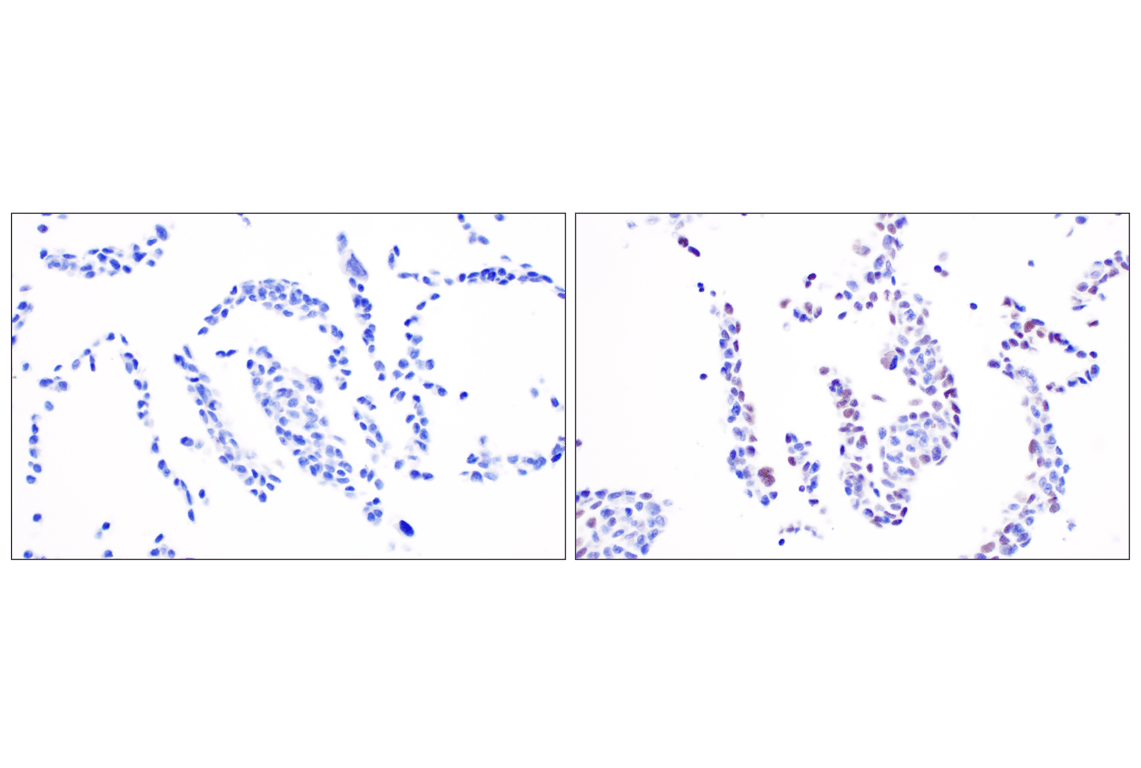

Immunohistochemical analysis of paraffin-embedded HCT 116 cell pellets, untreated (left) or treated with Neocarzinoastatin (0.25 μM, 1 hr), (right), using Phospho-DNA-PKcs (Ser2056) (E9J4G) Rabbit mAb.
undefined Image 26: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit

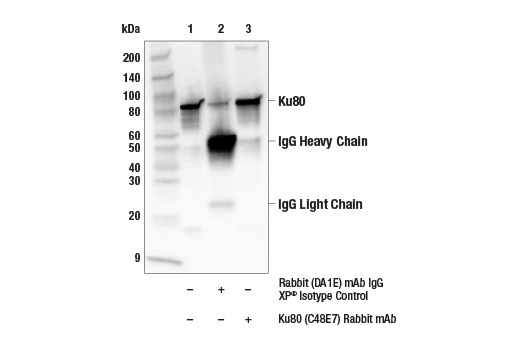

Immunoprecipitation of Ku80 from HeLa cells. Lane 1 is 10% input, lane 2 is precipitated with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Ku80 (C48E7) Rabbit mAb, #2180. Western blot was performed using Ku80 (C48E7) Rabbit mAb, #2180.
undefined Image 27: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of M059K cells (left, positive) and M059J cells (right, negative) using DNA-PKcs (E6U3A) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red).
undefined Image 28: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
Flow cytometric analysis of M059J cells (blue) and M059K cells (green) using DNA-PKcs (E6U3A) Rabbit mAb (solid lines) or a concentration matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 29: Non-Homologous End Joining (NHEJ) DNA Repair Antibody Sampler Kit
