Revision 7

#36064

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat
Calreticulin (D3E6) XP® Rabbit mAb1223820 µl55 kDaRabbit IgG
Ubiquitin (E4I2J) Rabbit mAb4312420 µlRabbit IgG
HLA-G (E8N9C) XP® Rabbit mAb7976920 µl30-40 kDaRabbit IgG
Calnexin (C5C9) Rabbit mAb267920 µl90 kDaRabbit IgG
PSMB8/LMP7 (D1K7X) Rabbit mAb1363520 µl23, 28 kDaRabbit IgG
β2-microglobulin (D8P1H) Rabbit mAb1285120 µl12 kDaRabbit IgG
IFNGR1 (E444) Antibody1040520 µl45-90 kDaRabbit
TAP2 (E8G5I) Rabbit mAb2565720 µl72 kDaRabbit IgG
TAP1 (E4T4F) Rabbit mAb4967120 µl68 kDaRabbit IgG

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The MHC Class I Antigen Processing and Presentation Antibody Sampler Kit provides an economical means to examine key proteins associated with the processing and presentation of MHC class I-restricted antigens. The provided antibodies allow monitoring of total protein levels. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

The predominant function of class I MHC/β2-microglobulin dimers, which are expressed on the surface of most nucleated cell types, is to modulate the adaptive immune response by presenting proteolytic peptide fragments from cytosolic proteins to cytotoxic CD8+ T cells. In order for self and nonself peptides to be presented by MHC class I molecules, the peptide fragments must first be derived from polyubiquitinated proteins that undergo degradation via the ubiquitin-proteasome system. In the context of inflammatory processes, the enzymatic core of the proteasome can be shaped by IFNγ signaling to contain subunits, such as PSMB8/LMP7, which enhance the presentation of antigenic peptides by antigen presenting cells (1). The resulting cytosolic peptide fragments generated through ubiquitin-dependent proteasomal degradation are then transported into the ER lumen via the peptide transporters, TAP1 and TAP2, where the activity of multiple chaperone proteins, such as calnexin and calreticulin, facilitate loading onto class I MHC/β2-microglobulin dimers for transport to the Golgi and eventually, the cell surface (2-6). Defects in the expression of multiple components of the class I antigen presenting machinery have been observed in both solid and liquid tumors, which serves as a mechanism of tumor-immune evasion (7).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines with IFNGR1 (E444) Antibody (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 1: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from SH-SY5Y and KNRK cells using Calreticulin (D3E6) XP® Rabbit mAb.
undefined Image 2: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using β2-microglobulin (D8P1H) Rabbit mAb (upper) and β-Actin (DA8) Rabbit mAb #8457 (lower). DLD-1 and Daudi cell lines are negative for β2-microglobulin due to genomic deletions at the β2-microglobulin locus.
undefined Image 3: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using PSMB8/LMP7 (D1K7X) Rabbit mAb (upper) and GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). (The T2 cell line contains a homozygous deletion of PSMB8/LMP7 (13)).
undefined Image 4: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

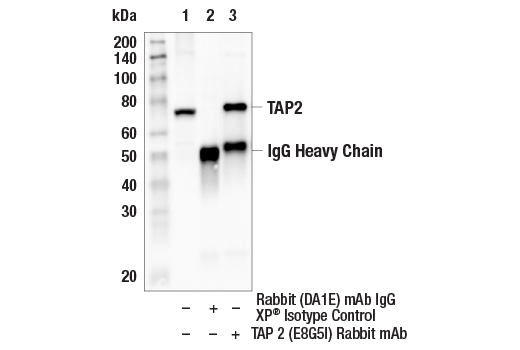

Immunoprecipitation of TAP2 protein from HDLM-2 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is TAP2 (E8G5I) Rabbit mAb. Western blot analysis was performed using TAP2 (E8G5I) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
undefined Image 5: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from HeLa and SW620 cells, untreated (-) or treated with Human Interferon-γ (hIFN-γ) #80385 (100 ng/mL, 48 hr; +), using TAP2 (E8G5I) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). TAP2 protein expression is induced by IFN-γ treatment, as expected.
undefined Image 6: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from HeLa, NIH/3T3, and H-4-II-E cells, untreated (-) or treated with MG-132 #2194 (10μM, 90min; +), using Ubiquitin (E4I2J) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 7: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from HeLa and SW620 cells, untreated (-) or treated with Human Interferon-γ (hIFN-γ) #80385 (100 ng/ml, 48 hr; +), using TAP1 (E4T4F) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 8: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length human IFNGR1 protein (hIFNGR1-Myc/DDK; +), using IFNGR1 (E444) Antibody (upper), Myc-Tag (71D10) Rabbit mAb #2278 (middle), and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 9: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of NIH/3T3 cells using Calreticulin (D3E6) XP® Rabbit mAb (green) and β-Actin (13E5) Rabbit mAb (Alexa Fluor® 555 Conjugate) #8046 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 10: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded HeLa (left) and DLD-1 (right) cell pellets using β2-microglobulin (D8P1H) Rabbit mAb.
undefined Image 11: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

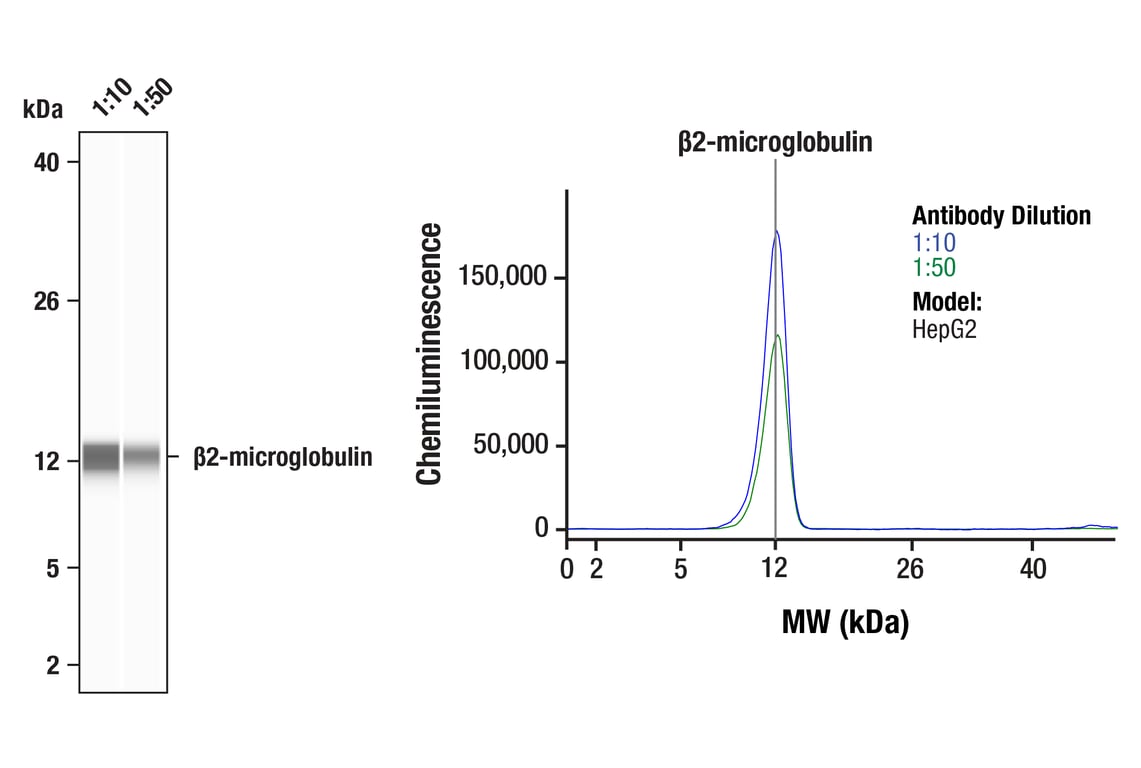

Simple WesternTM analysis of lysates (0.1 mg/mL) from HepG2 cells using β2-microglobulin (D8P1H) Rabbit mAb #12851. The virtual lane view (left) shows the target (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the JessTM Simple Western instrument from ProteinSimple, a BioTechne brand, using the 2-40 kDa separation module.
undefined Image 12: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from PANC1, HepG2 and A204 cells using Calnexin (C5C9) Rabbit mAb.
undefined Image 13: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 14: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from JEG-3 and LNCaP cells using HLA-G (E8N9C) XP® Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 15: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from HeLa and SW620 cells, untreated (-) or treated with Human Interferon-γ (hIFN-γ) #8901 (100 ng/ml, 72 hr; +), using PSMB8/LMP7 (D1K7X) Rabbit mAb (upper) and GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
undefined Image 16: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with constructs expressing Myc/DDK-tagged full-length human TAP1 (hTAP1-Myc/DDK; +) and Myc/DDK-tagged full-length human TAP2 (hTAP2-Myc/DDK; +), using TAP2 (E8G5I) Rabbit mAb (upper), DYKDDDDK Tag (D6W5B) Rabbit mAb #14793 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 17: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Calnexin (C5C9) Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
undefined Image 18: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded colon carcinoma using β2-microglobulin (D8P1H) Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
undefined Image 19: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with constructs expressing Myc/DDK-tagged full-length human PSMB5 (hPSMB5-Myc/DDK; +) or Myc/DDK-tagged full-length human PSMB8 (hPSMB8-Myc/DDK; +), using PSMB8/LMP7 (D1K7X) Rabbit mAb (upper) and DYKDDDDK Tag Antibody #2368 (lower).
undefined Image 20: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

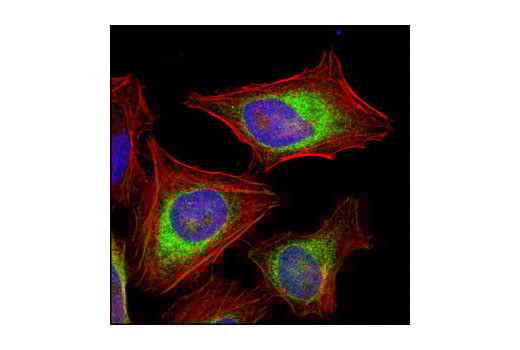

Confocal immunofluorescent analysis of HeLa cells using Calnexin (C5C9) Rabbit mAb (green). Actin filaments have been labeled using DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 21: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human skin using β2-microglobulin (D8P1H) Rabbit mAb.
undefined Image 22: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

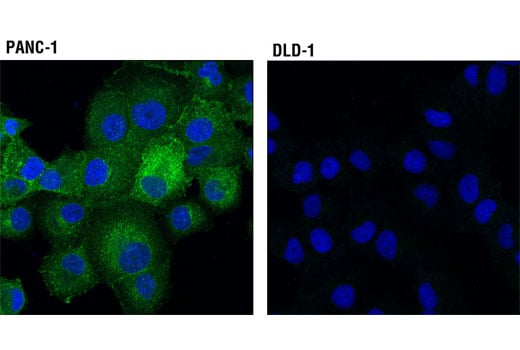

Confocal immunofluorescent analysis of PANC-1 (positive, left) and DLD-1 (negative, right) cells, using β2-microglobulin (D8P1H) Rabbit mAb (green). Blue pseudocolor= DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 23: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

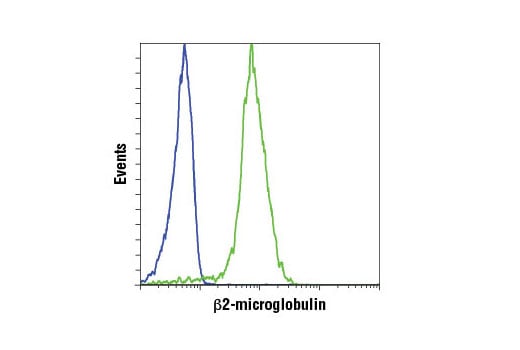

Flow cytometric analysis of DLD-1 cells (blue) and HeLa cells (green) using β2-microglobulin (D8P1H) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #4414 was used as a secondary antibody.
undefined Image 24: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo

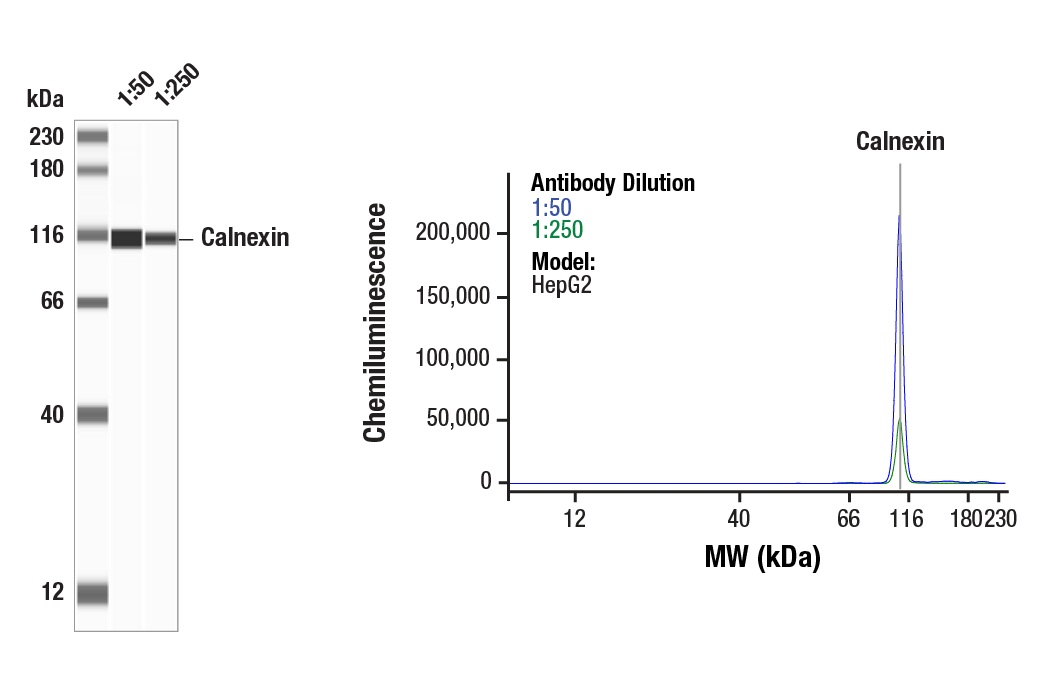

Simple Western™ analysis of lysates (0.1 mg/mL) from HepG2 cells using Calnexin (C5C9) Rabbit mAb #2679. The virtual lane view (left) shows the target bands (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ ​​​​​​​Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 25: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

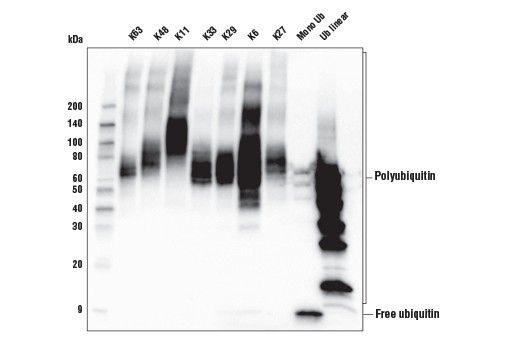

Western blot analysis of various recombinant linkage-specific polyubiquitin chains, recombinant free monoubiquitin (MonoUb), and recombinant linear polyubiquitin (Ub linear) (300 ng each), using Ubiquitin (E4I2J) Rabbit mAb.
undefined Image 26: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with constructs expressing Myc/DDK-tagged full-length human TAP1 protein (hTAP1-Myc/DDK; +) and Myc/DDK-tagged full-length human TAP2 protein (hTAP2-Myc/DDK; +), using TAP1 (E4T4F) Rabbit mAb (upper), DYKDDDDK Tag Antibody #2368 (middle), and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 27: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with construct expressing full-length human MycDDK-tagged HLA-G (hHLA-G-MycDDK; +), using HLA-G (E8N9C) XP® Rabbit mAb (upper), Myc-Tag (71D10) Rabbit mAb #2278 (middle), and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 28: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

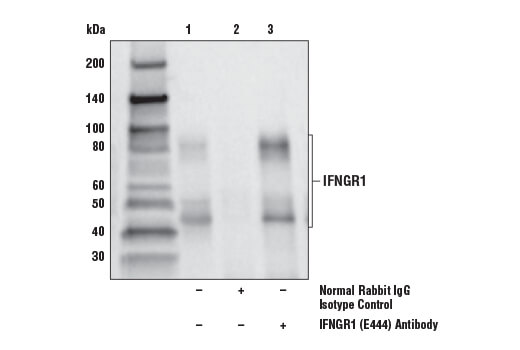

Immunoprecipitation of IFNGR1 from NCI-H226 cell extracts. Lane 1 is 10% input, lane 2 is Normal Rabbit IgG #2729, and lane 3 is IFNGR1 (E444) Antibody. Western blot analysis was performed using IFNGR1 (E444) Antibody. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 was used for detection.
undefined Image 29: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

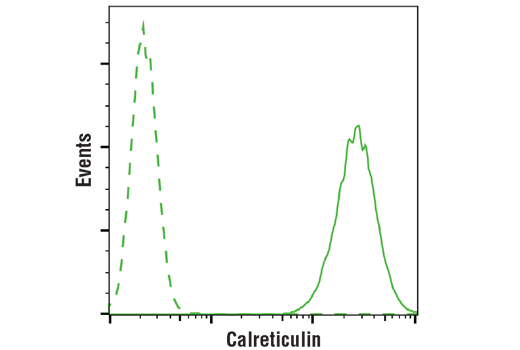

Flow cytometric analysis of Jurkat cells using Calreticulin (D3E6) XP® Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 30: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo

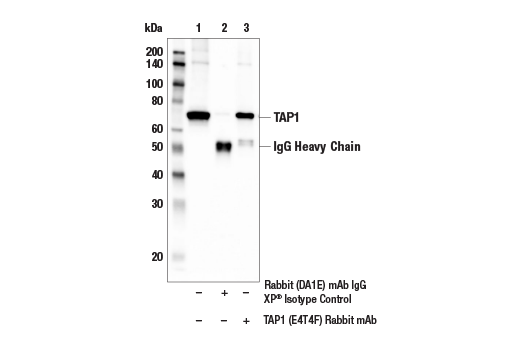

Immunoprecipitation of TAP1 protein from extracts of HeLa cells treated with Human Interferon-γ (hIFN-γ) #80385 (100 ng/mL, 48 hr). Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is TAP1 (E4T4F) Rabbit mAb. Western blot analysis was performed using TAP1 (E4T4F) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
undefined Image 31: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded JEG-3 cell pellet (left, positive) or LNCaP cell pellet (right, negative) using HLA-G (E8N9C) XP® Rabbit mAb.
undefined Image 32: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit

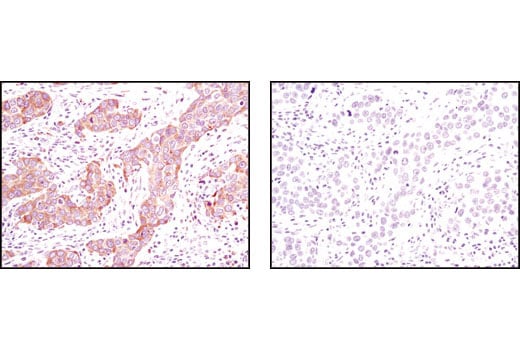

Immunohistochemical analysis of paraffin-embedded human placenta using HLA-G (E8N9C) XP® Rabbit mAb (left) compared to concentration matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 33: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human lung adenocarcinoma using HLA-G (E8N9C) XP® Rabbit mAb.
undefined Image 34: MHC Class I Antigen Processing and Presentation Antibody Sampler Kit
