Revision 1

#97888

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
ABCA7 (E7O5A) Rabbit mAb3294220 µl235 kDaRabbit IgG
SORL1 (D8D4G) Rabbit mAb7932220 µl250 kDaRabbit IgG
BIN1 (E4A1P) Rabbit mAb5184420 µl45-80 kDaRabbit IgG
EphA1 (D6V7I) Rabbit mAb9067320 µl130 kDaRabbit IgG
MEF2C (D80C1) XP® Rabbit mAb503020 µl50-60 kDaRabbit IgG
Pyk2 (5E2) Mouse mAb348020 µl116 kDaMouse IgG2a
TREM2 (E6T1P) Rabbit mAb (Amino-terminal Antigen)6178820 µl28 kDaRabbit IgG
TREM2 (E7P8J) Rabbit mAb (Carboxy-terminal Antigen)7676520 µl11, 28 kDaRabbit IgG
ApoE (E7X2A) Rabbit mAb4928520 µl35 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit provides an economical means of detecting proteins identified as risk factors for late-onset Alzheimer’s Disease (LOAD) by western blot. This kit includes enough antibodies to perform at least two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

Alzheimer's Disease (AD) is the leading cause of dementia worldwide. Clinically, it is characterized by the presence of extracellular amyloid plaques and intracellular neurofibrillary tangles, which result in neuronal dysfunction and cell death (1). Genome-wide association studies (GWAS) have identified a cohort of risk genes associated with late-onset AD (LOAD), including, but not limited to, APOE, BIN1, SORL1, TREM2, EphA1, MEF2C, ABCA7, and PTK2B (2).

APOE has three allele variants; ApoE2, ApoE3, and ApoE4; with ApoE4 associated with an increased risk of AD. Evidence suggests that this risk occurs through promotion of amyloid-beta plaque aggregation (1). ApoE4 is also associated with impaired microglial response, lipid transport, synaptic integrity and plasticity, glucose metabolism, and cerebrovascular integrity (3). Mutations in BIN1, primarily involved in endocytosis and maintaining cytoskeletal integrity in the brain, are suggested to play a role in the aggravation of tau pathology (4,5). Increased levels of BIN1 have been seen in AD postmortem brain tissue (5). SORL1 expression is decreased in the brain of AD patients (6). Studies have demonstrated a role for SORL1 as a neuronal sorting receptor that binds amyloid precursor protein (APP) and regulates its trafficking and proteolytic processing, thus regulating β-amyloid (Aβ) peptide production (7). The triggering receptor expressed on myeloid cells 2 (TREM2) is an innate immune receptor that is expressed on the cell surface of microglia, macrophages, osteoclasts, and immature dendritic cells (8). Research studies using AD mouse models indicate that deficiency and haploinsufficiency of TREM2 can lead to increased Aβ accumulation due to dysfunctional microglia response (9). EphA1 is a member of the ephrin family of receptor tyrosine kinases responsible for regulating cell morphology and motility (10). In the central nervous system (CNS), EphA1 plays a role in synaptic plasticity and axon guidance (11). EphA1 is involved in inflammatory signaling pathways (12), which may mean it plays a role in regulation of neuroinflammatory processes in AD (13). ATP-binding cassette sub-family A member 7 (ABCA7) functions to regulate phospholipid and cholesterol homeostasis in the CNS (14,15). ABCA7 dysfunction may contribute directly to AD pathogenesis by accelerating Aβ production and/or altering microglia-dependent phagocytosis of Aβ (16-18). MEF2C is a member of the myocyte enhancer factor 2 (MEF2) family of transcription factors shown to play a role in learning and memory formation through regulation of synaptic plasticity (19). Studies have shown that MEF2C may play a role in age-related microglial activation through IFN-I associated MEF2C deregulation (20,21). MEF2C may also act as a modulator for APP proteolytic processing of Aβ (22,23). Protein tyrosine kinase, Pyk2, encoded by the PTK2B gene, is a non-receptor tyrosine kinase highly expressed in neurons with implications in synaptic plasticity (24,25). In mouse models, knockout of Pyk2 impairs hippocampal-dependent memory and long-term potentiation (24). Overexpression of Pyk2 has been shown to protect neurons against Aβ42-induced synaptotoxicity (26). Pyk2 may also act as a kinase for tau phosphorylation and has been implicated as a modulator of tau toxicity (27,28).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various tissues using ABCA7 (E7O5A) Rabbit mAb (upper) and β-Tubulin (D2N5G) Rabbit mAb #15115 (lower).
undefined Image 1: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit

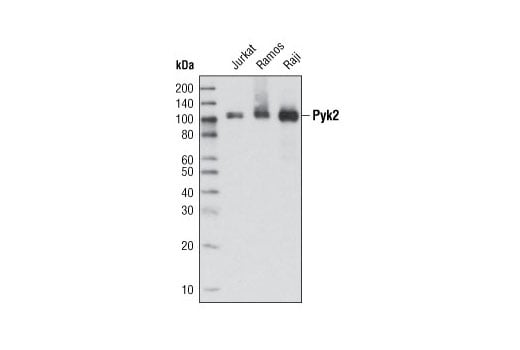

Western blot analysis of extracts from various cell lines using Pyk2 (5E2) Mouse mAb.
undefined Image 2: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit

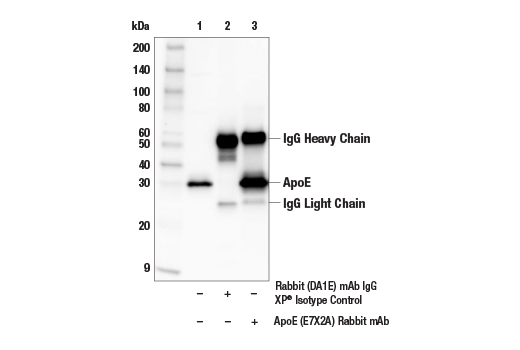

Immunoprecipitation of ApoE protein from mouse brain tissue extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is ApoE (E7X2A) Rabbit mAb. Western blot analysis was performed using ApoE (E7X2A) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as the secondary antibody.
undefined Image 3: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

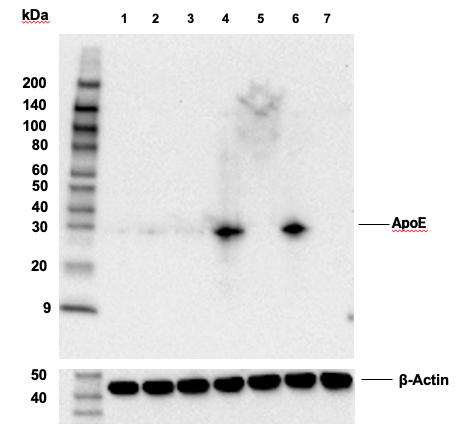

Western blot analysis of extracts from various tissues and cell lines using ApoE (E7X2A) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 4: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse brain using ApoE (E7X2A) Rabbit mAb.
undefined Image 5: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse retina, labeled with ApoE (E7X2A) Rabbit mAb (left, green) and co-labeled with GFAP (GA5) Mouse mAb (Alexa Fluor® 555 Conjugate) #3656 (right, red) and DAPI #4083 (right, blue).
undefined Image 6: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of fixed frozen mouse colon, labeled with ApoE (E7X2A) Rabbit mAb (left, green) and co-labeled with Ras (E4K9L) Rabbit mAb (Alexa Fluor® 647 Conjugate) #37182 (right, red) and DAPI #4083 (right, blue).
undefined Image 7: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse hypothalamus, labeled with ApoE (E7X2A) Rabbit mAb (left, green) and co-labeled with GFAP (GA5) Mouse mAb (Alexa Fluor® 555 Conjugate) #3656 (right, red) and DAPI #4083 (right, blue).
undefined Image 8: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse hippocampus, labeled with ApoE (E7X2A) Rabbit mAb (left, green) and co-labeled with GFAP (GA5) Mouse mAb (Alexa Fluor® 555 Conjugate) #3656 (right, red) and DAPI #4083 (right, blue).
undefined Image 9: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of SIM-A9 cells (left, positive) and C2C12 cells (right, negative) using ApoE (E7X2A) Rabbit mAb (green), DyLight™ 650 Phalloidin #12956 (red), and DAPI #4083 (blue).
undefined Image 10: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Western blot analysis of extracts from various cells lines using MEF2C (D80C1) XP® Rabbit mAb.
undefined Image 11: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Western blot analysis of extracts from various cells and tissue extracts using BIN1 (E4A1P) Rabbit mAb (upper) and α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower).
undefined Image 12: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from mouse bone marrow derived macrophages (BMDM) cells, untreated (-) or treated with peptide N-glycosidase F (PNGase F; +), and Neuro-2a cells using TREM2 (E6T1P) Rabbit mAb (Amino-terminal Antigen) (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 13: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 14: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Western blot analysis of extracts from mouse bone marrow derived macrophages (BMDM), untreated (-) or treated with peptide N-glycosidase F (PNGase F; +), and Neuro-2a cells using TREM2 (E7P8J) Rabbit mAb (Carboxy-terminal Antigen) (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 15: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various tissues using SORL1 (D8D4G) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 16: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Western blot analysis of extracts from LoVo, HT-29 and mIMCD-3 cell lines using EphA1 (D6V7I) Rabbit mAb.
undefined Image 17: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit

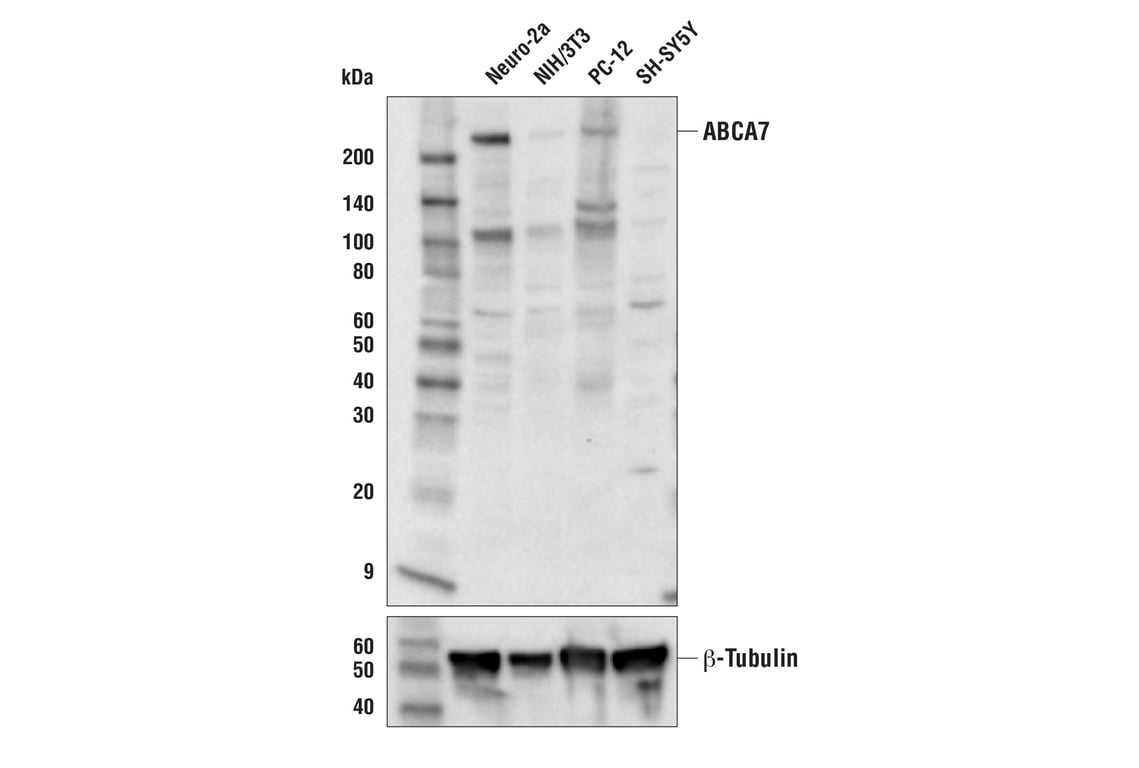

Western blot analysis of extracts from various cell lines using ABCA7 (E7O5A) Rabbit mAb (upper) and β-Tubulin (D2N5G) Rabbit mAb #15115 (lower).
undefined Image 18: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

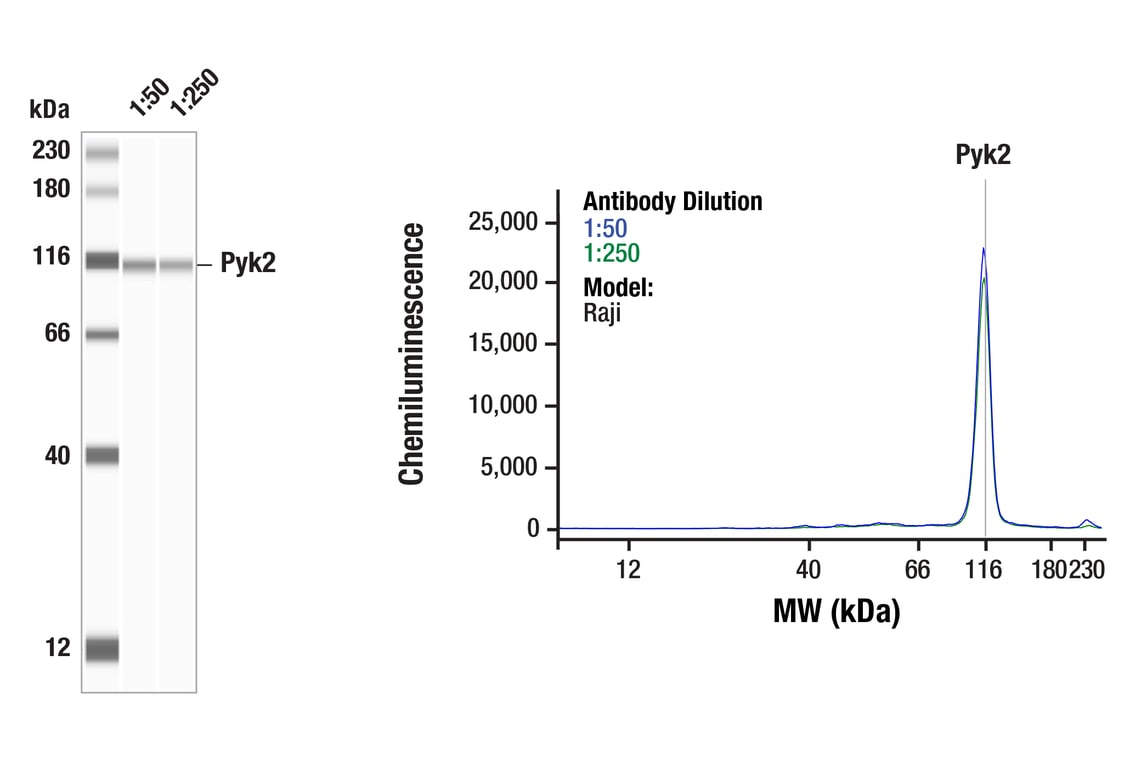

Simple Western™ analysis of lysates (0.1 mg/mL) from Raji lysate using Pyk2 (5E2) Mouse mAb #3480. The virtual lane view (left) shows the target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody.  This experiment was performed under reducing conditions on the JessTM Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 19: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse kidney using ApoE (E7X2A) Rabbit mAb.
undefined Image 20: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Confocal immunofluorescent analysis of C2C12 cells, undifferentiated (left) or differentiated for 3 days (right), using MEF2C (D80C1) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red).
undefined Image 21: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunoprecipitation of BIN1 protein from SK-OV-3 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is BIN1 (E4A1P) Rabbit mAb. Western blot analysis was performed using BIN1 (E4A1P) Rabbit mAb.
undefined Image 22: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit

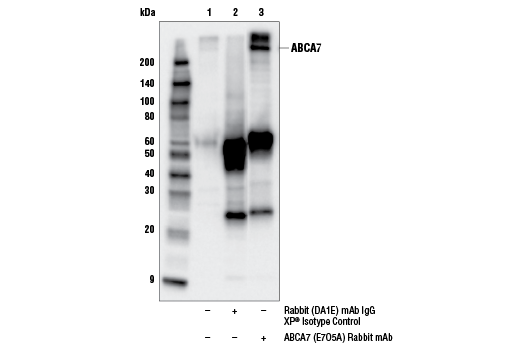

Immunoprecipitation of ABCA7 protein from mouse brain tissue extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is ABCA7 (E7O5A) Rabbit mAb. Western blot analysis was performed using ABCA7 Antibody (Mouse Specific) #31954. Anti-rabbit, HRP-linked Antibody #7074 was used as a secondary antibody.
undefined Image 23: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse spleen using ApoE (E7X2A) Rabbit mAb.
undefined Image 24: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded mouse testis using ApoE (E7X2A) Rabbit mAb.
undefined Image 25: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse thymus using ApoE (E7X2A) Rabbit mAb.
undefined Image 26: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse small intestine using ApoE (E7X2A) Rabbit mAb.
undefined Image 27: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded Renca syngeneic tumor using ApoE (E7X2A) Rabbit mAb.
undefined Image 28: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded A20 syngeneic tumor using ApoE (E7X2A) Rabbit mAb.
undefined Image 29: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded liver (left) or brain (right) from C57BL/6NTac (wt/wt, model #B6-F, top) and APOE4 knock-in (hu/hu, model #1549-F, bottom) mice using ApoE (E7X2A) Rabbit mAb. Mice from Taconic Biosciences, Inc. Note lack of reactivity in tissues with human APOE4 replacing the mouse gene.
undefined Image 30: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded mouse liver using ApoE (E7X2A) Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 31: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded SIM-A9 cell pellet (left, positive) or C2C12 cell pellet (right, negative) using ApoE (E7X2A) Rabbit mAb.
undefined Image 32: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
Western blot analysis of extracts from HepG2 cells (lane 1), 293T mock transfected (lane 2) or transiently transfected with a construct expressing ApoE4 (lane 3), whole liver extracts from wild type C57BL/6NTac model #B6-F mice (lane 4), or ApoE4 knock-in (model #1549-F) (lane 5), whole brain extracts from wild type C57BL/6NTac mice (lane 6), or ApoE4 knock-in (lane 7) using ApoE (E7X2A) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). Mice from Taconic Biosciences, Inc.
undefined Image 33: Late-Onset Alzheimer's Disease Risk Gene (Mouse Model) Antibody Sampler Kit
