Revision 1

#34886

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
MLKL (D2I6N) Rabbit mAb1499320 µl54 kDaRabbit IgG
Phospho-MLKL (Ser358) (D6H3V) Rabbit mAb9168920 µl54 kDaRabbit IgG
Caspase-3 (D3R6Y) Rabbit mAb1422020 µl35, 19, 17 kDaRabbit IgG
RIP3 (E7A7F) XP® Rabbit mAb1018820 µl46-62 kDaRabbit IgG
Phospho-RIP3 (Ser227) (D6W2T) Rabbit mAb9365420 µl46-62 kDaRabbit IgG
Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb3642520 µl30 kDaRabbit IgG
Gasdermin D (E9S1X) Rabbit mAb3975420 µl53, 30 kDaRabbit IgG
IL-1β (D3U3E) Rabbit mAb1270320 µl17, 31 kDaRabbit IgG
Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb8318620 µl17 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Human Reactive PANoptosis Antibody Sampler Kit provides an economical means of detecting the activation of PANoptosis in human samples. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

Programmed cell death (PCD) plays important roles in organismal development and immune responses. There are three major PCD pathways: apoptosis, pyroptosis, and necroptosis. Apoptosis is a non-inflammatory cell death and is characterized by a series of proteolytic cleavage, beginning with the initiator caspases (caspases-8/9), then the executioner caspases (caspases-3/6/7), followed by cleavage of substrate proteins to drive apoptotic cell death (1,2). During pyroptosis, caspase-1 is proteolytically activated through a protein complex called inflammasome, then the activated caspase-1 can cleave Gasdermin D (GSDMD), IL-1β, and IL-18. The freed GSDMD N-terminal domains from the cleavage form pores in the plasma membrane to drive pyroptotic cell lysis and release of the cleaved and matured IL-1β and IL-18, as well as damage-associated molecular patterns (DAMPs) (3,4). The key steps in necroptosis include the receptor-interacting protein kinase 3 (RIPK3)-dependent phosphorylation of mixed lineage kinase domain-like protein (MLKL), translocation of phosphorylated MLKL to plasma membrane, and disruption of plasma membrane integrity (5,6). In contrast to the non-inflammatory nature of apoptosis, both pyroptosis and necroptosis are proinflammatory (7). While early studies of these PCD pathways focused on their distinct individual features and underlying mechanisms, recent findings point to crosstalk and redundancies among these processes under certain conditions, where the three pathways are activated, not independently of each other, and compensatory responses occur when one pathway is blocked. This new form of PCD with key features of pyroptosis, apoptosis, and/or necroptosis has been termed PANoptosis (8,9). PANoptosis is a coordinated cell death pathway driven by a cytoplasmic protein complex named the PANoptosome, whose components provide scaffold and catalytic functions to engage pyroptosis, apoptosis, and/or necroptosis (10,11).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using RIP3 (E7A7F) XP® Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). Absence of signal in HeLa cells is predicted from published reports of epigenetic loss of expression and confirms the specificity of the antibody for RIP3.
undefined Image 1: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from THP-1 cells, untreated (-) or LPS-treated (100 ng/ml, 3 hr; +), using IL-1β (D3U3E) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 2: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of various cell lines, untreated (-) or treated with Staurosporine #9953 (1 μM; 3 hr) or with Etoposide #2200 (25 μM, overnight), using Caspase-3 (D3R6Y) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). MCF7 cells are negative for caspase-3 expression.
undefined Image 3: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using MLKL (D2I6N) Rabbit mAb. KARPAS cell Line source: Dr. Abraham Karpas at the University of Cambridge.
undefined Image 4: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from THP-1 cells, differentiated with TPA #4174 (50 ng/ml, overnight) and then treated with LPS #14011 (5 μg/ml, indicated times), using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb (upper), total Gasdermin D (L60) Antibody #93709 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 5: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from control mouse bone marrow derived macrophages (mBMDM; lane 1) or mBMDM from Gasdermin D knockout mice (lane 2) using Gasdermin D (E9S1X) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). The absence of signal in the Gasdermin D knockout cells confirms the specificity of the antibody for Gasdermin D. The mBMDM from Gasdermin D knockout mice were kindly provided by Dr. Douglas Golenbock, M.D., University of Massachusetts Medical School, Worcester, MA.
undefined Image 6: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 7: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of recombinant Human Interleukin-1β (hIL-1β) #8900 using Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb.
undefined Image 8: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of HT-29 cells, untreated (-), or treated with combinations of the following treatments as indicated: Z-VAD (20 μM, added 30 min prior to other compounds; +), human TNF-α (hTNF-α, 20 ng/ml, 7 hr; +), SM-164 (100 nM, 7 hr; +), and necrostatin-1 (Nec-1, 50 μM, 7 hr; +), using Phospho-MLKL (Ser358) (D6H3V) Rabbit mAb (upper), or MLKL (D2I6N) Rabbit mAb #14993 (lower).
undefined Image 9: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of HT-29 cells, untreated (-) or treated with a combination of the following treatments as indicated: Z-VAD (20 μM, added 30 min prior to other compounds; +), Human Tumor Necrosis Factor-α #8902 (hTNF-α, 20 ng/ml, 7 hr; +), and SM-164 (100 nM, 7 hr; +), using Phospho-RIP3 (Ser227) (D6W2T) Rabbit mAb. To confirm phospho-specificity, membranes were either untreated (left) or treated with Calf Intestinal Phosphatase (CIP; right).
undefined Image 10: Human Reactive PANoptosis Antibody Sampler Kit
Immunoprecipitation of RIP3 protein from THP-1 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is RIP3 (E7A7F) XP® Rabbit mAb. Western blot analysis was performed using RIP3 (E7A7F) XP® Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as a secondary antibody.
undefined Image 11: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of recombinant Human Interleukin-1β (hIL-1β) #8900 using IL-1β (D3U3E) Rabbit mAb.
undefined Image 12: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HCT116 cells (lane 1) or CASP3 knock-out cells (lane 2) using Caspase-3 (D3R6Y) Rabbit mAb #14220 (upper), and α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower). The absence of signal in the CASP3 knock-out HCT116 cells confirms specificity of the antibody for CASP3.
undefined Image 13: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length human MLKL protein (hMLKL-Myc/DDK; +), using MLKL (D2I6N) Rabbit mAb (upper) and Myc-Tag (71D10) Rabbit mAb #2278 (lower).
undefined Image 14: Human Reactive PANoptosis Antibody Sampler Kit

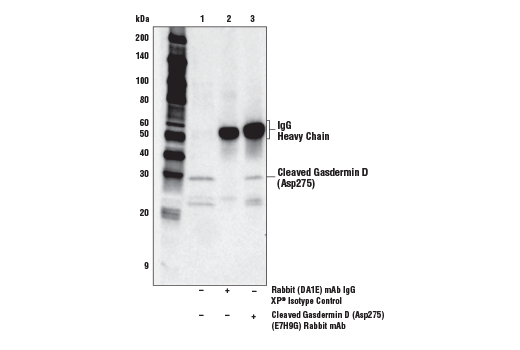

Immunoprecipitation of Cleaved Gasdermin D (Asp725) from THP-1 cells differentiated with TPA #4174 (50 ng/ml, overnight) and then treated with LPS #14011 (5 μg/ml, 6 hr). Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb. Western blot was performed using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
undefined Image 15: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from control PC-3 cells (lane 1) or Gasdermin D knockout PC-3 cells (lane 2) using Gasdermin D (E9S1X) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). The absence of signal in the Gasdermin D knockout PC-3 cells confirms specificity of the antibody for Gasdermin D.
undefined Image 16: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from cells or media collected from THP-1 cells, differentiated with TPA #4147 (80 nM, overnight) and subsequently treated with (+) or without (-) Lipopolysaccharides (LPS) #14011 (1 μg/ml, 6 hr), using Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb.
undefined Image 17: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of HT-29 cells, untreated (-) or treated with a combination of the following treatments as indicated: Z-VAD (20 μM, added 30 min prior to other compounds; +), Human Tumor Necrosis Factor-α #8902 (hTNF-α, 20 ng/ml, 7 hr; +), SM-164 (100 nM, 7 hr; +), and necrostatin-1 (Nec-1, 50 μM, 7 hr; +), using Phospho-RIP3 (Ser227) (D6W2T) Rabbit mAb (upper), RIP3 (E1Z1D) Rabbit mAb #13526 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 18: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human colon carcinoma (left), hepatocellular carcinoma (middle), or normal thymus (right) using RIP3 (E7A7F) XP® Rabbit mAb (top) or RIP3 Rabbit mAb (bottom). These two antibodies detect independent, unique epitopes on human RIP3 protein. The similar staining patterns obtained with both antibodies help to confirm the specificity of the staining.
undefined Image 19: Human Reactive PANoptosis Antibody Sampler Kit
Confocal immunofluorescent analysis of THP-1 cells, untreated (left) or LPS-treated (500 ng/ml, 2 hr; right), using IL-1β (D3U3E) Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red).
undefined Image 20: Human Reactive PANoptosis Antibody Sampler Kit
Simple Western™ analysis of lysates (0.1 mg/mL) from THP-1 cells treated with TPA (80nM, O/N) + LPS (1 µg/ml 15min) using IL-1β (D3U3E) Rabbit mAb #12703. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 21: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Simple Western™ analysis of lysates (1 mg/mL) from Jurkat cells treated with Cytochrome C using Caspase-3 (D3R6Y) Rabbit mAb #14220. The virtual lane view (left) shows the target bands (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 22: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
undefined Image 23: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from mouse bone marrow derived macrophages (mBMDM), untreated (-) or treated with Lipopolysaccharides (LPS) #14011 (50 ng/ml, 4 hr; +) followed by Nigericin (sodium salt) #66419 (15 μM, indicated times), using Gasdermin D (E9S1X) Rabbit mAb (upper), Cleaved Gasdermin D (Asp276) (E3E3P) Rabbit mAb #10137 (middle), or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
undefined Image 24: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Simple WesternTM analysis of lysates (1.0 mg/mL) from HT-29 + ZVAD + hTNFa + SM-164 cells using Phospho-MLKL (Ser358) (D6H3V) Rabbit mAb #91689.  The virtual lane view (left) shows the target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody.  The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody.  This experiment was performed under reducing conditions on the JessTM Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 25: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of HT-29 cells or HT-29 RIPK1 KO cells, untreated (-) or treated with a combination of the following treatments as indicated: Z-VAD (20 μM, added 30 min prior to other compounds; +), Human Tumor Necrosis Factor-α #8902 (hTNF-α, 20 ng/ml, 7 hr; +), and SM-164 (100 nM, 7 hr; +), using Phospho-RIP3 (Ser227) (D6W2T) Rabbit mAb (upper), RIP3 (E1Z1D) Rabbit mAb #13526 (middle) or β-Actin (D6A8) Rabbit mAb #8457 (lower). HT-29 RIPK1 KO cells were kindly provided by Dr. Junying Yuan, Harvard Medical School, Boston, MA.
undefined Image 26: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using RIP3 (E7A7F) XP® Rabbit mAb.
undefined Image 27: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Flow cytometric analysis of THP-1, untreated (blue, negative) or treated with LPS #14011 (100 ng/ml, 3 hr; green, positive) using IL-1β (D3U3E) Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')₂ Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 28: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb in the presence of non-cleaved Gasdermin D peptide (left) or Asp275 cleavage-specific Gasdermin D peptide (right).
undefined Image 29: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Gasdermin D (E9S1X) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
undefined Image 30: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of THP-1 cells, differentiated with TPA #4174 (80 nM, 24 hr) and subsequently treated with (right) or without (left) Lipopolysaccharides (LPS) #14011 (1 μg/ml, 6 hr), using Cleaved-IL-1β (Asp116) (D3A3Z) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 31: Human Reactive PANoptosis Antibody Sampler Kit
Confocal immunofluorescent analysis of HT-29 cells, untreated (left), pre-treated with Z-VAD (20 μM, 30 min) followed by treatment with SM-164 (100 nM) and Human Tumor Necrosis Factor-α (hTNF-α) #8902 (20 ng/mL, 6 hr; center), or pre-treated with Z-VAD followed by treatment with SM-164 and hTNF-α and post-processed with λ-phosphatase (right), using Phospho-RIPK3 (Ser227) (D6W2T) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 32: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded HT-29 cell pellet (left, high-expressing) or HeLa cell pellet (right, low-expressing) using RIP3 (E7A7F) XP® Rabbit mAb.
undefined Image 33: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
undefined Image 34: Human Reactive PANoptosis Antibody Sampler Kit
Western blot analysis of extracts from 293T cells, untransfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length mouse Gasdermin D protein (mGSDMD-Myc/DDK; +), using Gasdermin D (E9S1X) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
undefined Image 35: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded normal human colon using RIP3 (E7A7F) XP® Rabbit mAb.
undefined Image 36: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human non-Hodgkin's Lymphoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
undefined Image 37: Human Reactive PANoptosis Antibody Sampler Kit

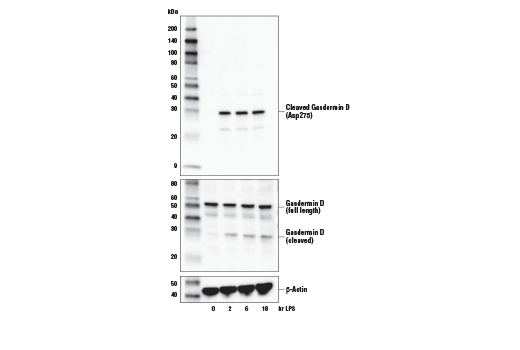

Western blot analysis of extracts from THP-1 cells, differentiated with TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174 (50 ng/ml, overnight) and then treated with Lipopolysaccharides (LPS) #14011 (5 μg/ml, 6 hr), using Gasdermin D (E9S1X) Rabbit mAb (upper), Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb #36425 (middle), or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
undefined Image 38: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using RIP3 (E7A7F) XP® Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 39: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

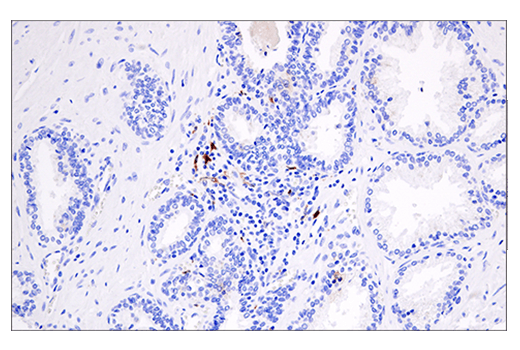

Immunohistochemical analysis of paraffin-embedded human prostate carcinoma using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
undefined Image 40: Human Reactive PANoptosis Antibody Sampler Kit
Immunoprecipitation of Gasdermin D protein from J774A.1 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Gasdermin D (E9S1X) Rabbit mAb. Western blot analysis was performed using Gasdermin D (E9S1X) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as a secondary antibody.
undefined Image 41: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human esophageal adenocarcinoma using RIP3 (E7A7F) XP® Rabbit mAb.
undefined Image 42: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

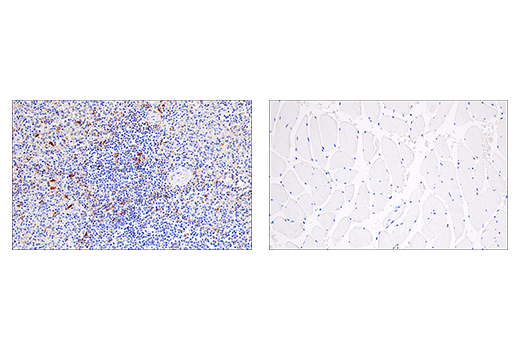

Immunohistochemical analysis of paraffin-embedded human spleen (left, positive) and skeletal muscle (right, negative) using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
undefined Image 43: Human Reactive PANoptosis Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human squamous cell carcinoma of the tonsil using RIP3 (E7A7F) XP® Rabbit mAb.
undefined Image 44: Human Reactive PANoptosis Antibody Sampler Kit

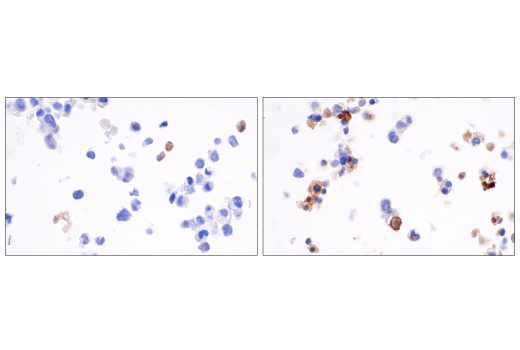

Immunohistochemical analysis of paraffin-embedded THP-1 cell pellets, differentiated with TPA #4174 (left) and then treated with LPS #14011 (right), using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
undefined Image 45: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using RIP3 (E7A7F) XP® Rabbit mAb.
undefined Image 46: Human Reactive PANoptosis Antibody Sampler Kit

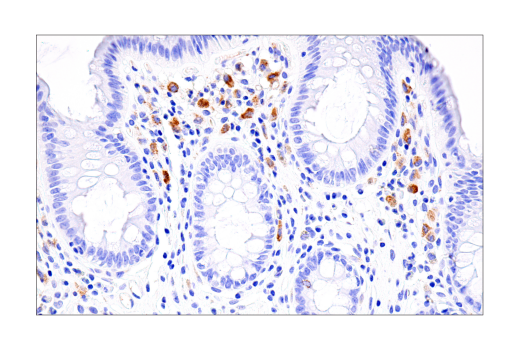

Immunohistochemical analysis of paraffin-embedded human ulcerative colitis using Cleaved Gasdermin D (Asp275) (E7H9G) Rabbit mAb.
undefined Image 47: Human Reactive PANoptosis Antibody Sampler Kit
Confocal immunofluorescent analysis of HT-29 cells (left, positive) or HeLa cells (right, negative) using RIP3 (E7A7F) XP® Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 48: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Flow cytometric analysis of SU-DHL-4 cells (blue, negative) and THP-1 cells (green, positive) using RIP3 (E7A7F) XP® Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 49: Human Reactive PANoptosis Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
