Revision 1

#99891

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
ATM (D2E2) Rabbit mAb287320 µl350 kDaRabbit IgG
Phospho-ATM (Ser1981) (D25E5) Rabbit mAb1305020 µl350 kDaRabbit IgG
Rad51 (D4B10) Rabbit mAb887520 µl37 kDaRabbit IgG
BRCA1 (A8X9F) Rabbit mAb1482320 µl220 kDaRabbit IgG
BRCA2 (D9S6V) Rabbit mAb1074120 µl380 kDaRabbit IgG
Rad54 (D4W3Z) Rabbit mAb1501620 µl84 kDaRabbit IgG
p95/NBS1 (D6J5I) Rabbit mAb1495620 µl95 kDaRabbit IgG
Phospho-p95/NBS1 (Ser343) Antibody300120 µl95 kDaRabbit
CtIP (D76F7) Rabbit mAb920120 µl110 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Homologous Recombination (HR) DNA Repair Antibody Sampler Kit provides an economical means of detecting proteins involved in HR DNA repair. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

DNA double-strand breaks (DSBs) are potentially hazardous lesions that can be induced by ionizing radiation (IR), radiomimetic chemicals, or DNA replication inhibitors. Cells recognize and repair DSBs via two distinct but partly overlapping signaling pathways, non-homologous end joining (NHEJ) and homologous recombination (HR). DSBs that arise during S or G2 phase are repaired via HR, using the replicated sister chromatid as a repair template (1). Activation of ATM by autophosphorylation on Ser1981 occurs in response to exposed DNA DSBs. ATM regulates various responses to DNA damage, including regulation of HR factors (2). Rad51 recombinase polymerizes and forms a filament along single-stranded DNA, mediating HR with the help of auxiliary proteins, including Rad54 and BRCA2 (3). BRCA2 has been shown to be required for localization of Rad51 to sites of DSBs, and cells lacking BRCA1 and BRCA2 cannot repair DSBs through HR (4). NBS1 is critical for HR, and requires CDK-dependent association with CtIP and subsequent phosphorylation by ATM at Ser278 and Ser343 (5-6).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using BRCA2 (D9S6V) Rabbit mAb (upper) or α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower).
undefined Image 1: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from HCT 116 cells, untreated (-) or treated with neocarzinostatin (NCS 10 μM, 1 hr; +), using Phospho-ATM (Ser1981) (D25E5) Rabbit mAb (upper) and ATM (D2E2) Rabbit mAb #2873 (lower).
undefined Image 2: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit

Simple Western™ analysis of lysates (0.1 mg/mL) from 293 cells treated with UV (100 mJ/cm2; 2 Hour Recovery) using Phospho-ATM (Ser1981) (D25E5) Rabbit mAb #13050. The virtual lane view (left) shows the target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 66 - 440 kDa separation module.

undefined Image 3: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HT-29, HeLa, and MCF7 cells using BRCA1 (A8X9F) Rabbit mAb.
undefined Image 4: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using p95/NBS1 (D6J5I) Rabbit mAb (upper) and α-Actinin (D6F6) XP® Rabbit mAb #6487 (lower).
undefined Image 5: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Rad54 (D4W3Z) Rabbit mAb.
undefined Image 6: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts of HeLa, NCCIT and PYS2 cells using ATM (D2E2) Rabbit mAb.
undefined Image 7: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from 293 cells, untreated or UV-treated (100 mJ/cm2, 1 hr), using Phospho-p95/NBS1 (Ser343) Antibody (upper) or p95/NBS1 (E8M3Q) XP® Rabbit mAb #81234 (lower).
undefined Image 8: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 9: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Rad51 (D4B10) Rabbit mAb.
undefined Image 10: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using CtIP (D76F7) Rabbit mAb.
undefined Image 11: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Western blot analysis of DLD1 cells, either wild type (WT) or BRCA2 knockout (-/-), using BRCA2 (D9S6V) Rabbit mAb (upper) or α-Actinin (D6F6) XP® Rabbit mAb (lower). DLD1 (WT) and DLD1 (-/-) cells were kindly provided by Dr. Judit Jimenez, Yale University, New Haven, CT.
undefined Image 12: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

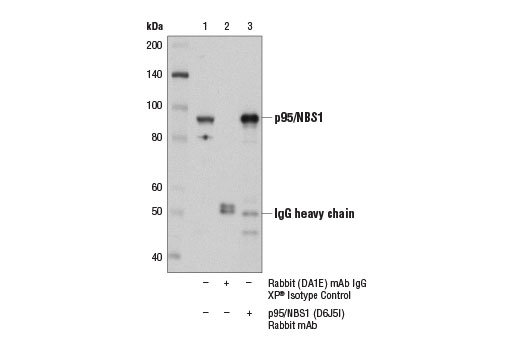

Immunoprecipitation of p95/NBS1 from HeLa cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or p95/NBS1 (D6J5I) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using p95/NBS1 (D6J5I) Rabbit mAb.
undefined Image 13: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit

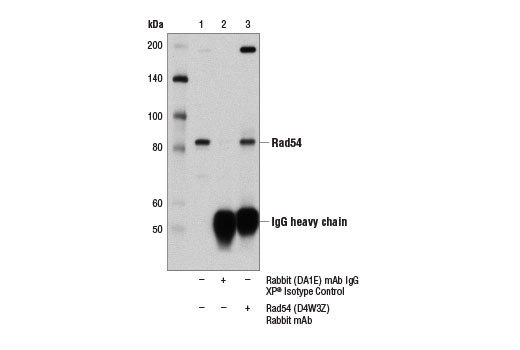

Immunoprecipitation of Rad54 from 293T cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Rad54 (D4W3Z) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using Rad54 (D4W3Z) Rabbit mAb.
undefined Image 14: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit

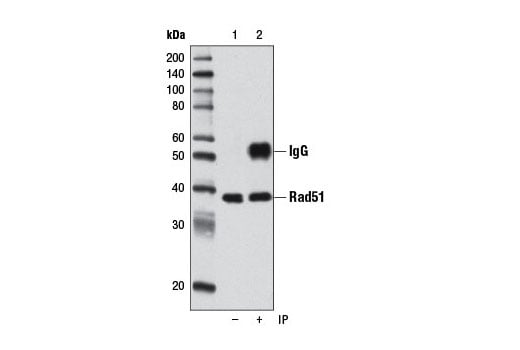

Immunoprecipitation of Rad51 from HeLa cell extracts using Rad51 (D4B10) Rabbit mAb (lane 2). Western blot detection was performed using the same antibody. Lane 1 is 10% input.
undefined Image 15: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

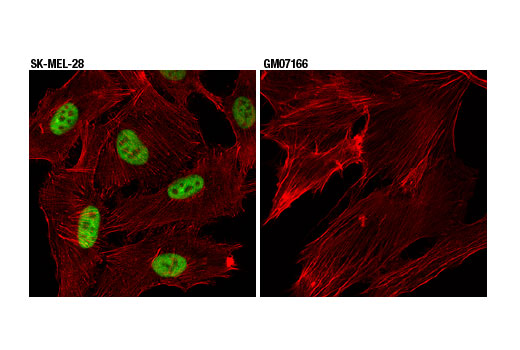

Confocal immunofluorescent analysis of SK-MEL-28 (left) and GM07166 (right) cells using p95/NBS1 (D6J5I) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054.
undefined Image 16: Homologous Recombination (HR) DNA Repair Antibody Sampler Kit
