Western blot analysis of extracts from LNCaP cells grown in phenol red free media and 5% charcoal stripped FBS for 3 d then either untreated (-), dihydrotestosterone (DHT)-treated (+), or DHT-treated and subsequently treated with λ phosphatase and calf intestinal phosphatase (CIP) (+), using Phospho-Androgen Receptor (Ser258) (E4L1I) Rabbit mAb (upper) or Androgen Receptor (D6F11) XP^® Rabbit mAb #5153 (lower).

Western blot analysis of extracts from LNCaP (AR+), MCF7 (AR+), PC-3 (AR-), and DU 145 (AR-) cells using Androgen Receptor (D6F11) XP^® Rabbit mAb (upper) and β-Actin Antibody #4967 (lower).

CUT&RUN was performed with LNCaP cells grown in phenol red free medium and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT, 10 nM) for 4 hours and Androgen Receptor (D6F11) XP^® Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina^® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across KLK2, a known target gene of Androgen Receptor (see additional figure containing CUT&RUN-qPCR data).

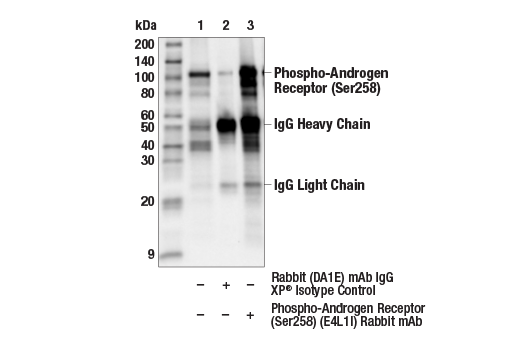

Immunoprecipitation of phospho-androgen receptor (Ser258) protein from LNCaP cell extracts. Cells were grown in phenol red free media and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT) (5 nM, 6 hr). Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP^® Isotype Control #3900, and lane 3 is Phospho-Androgen Receptor (Ser258) (E4L1I) Rabbit mAb. Western blot analysis was performed using Phospho-Androgen Receptor (Ser258) (E4L1I) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.

Immunohistochemical analysis of paraffin-embedded LNCaP (AR+, left) and DU145 (AR-, right) using Androgen Receptor (D6F11) XP^® Rabbit mAb.

CUT&RUN was performed with LNCaP cells grown in phenol red free medium and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT, 10 nM) for 4 hours and Androgen Receptor (D6F11) XP^® Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA Libraries were prepared using DNA Library Prep Kit for Illumina^® (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 19 (upper), including KLK2 (lower), a known target gene of Androgen Receptor (see additional figure containing CUT&RUN-qPCR data).

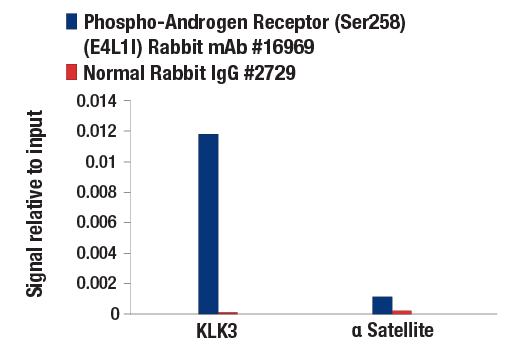

Chromatin immunoprecipitations were performed with cross-linked chromatin from LNCaP cells grown in phenol red free medium and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT) (5 nM, 6 hr) and either Phospho-Androgen Receptor (Ser258) (E4L1I) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP^® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP^® Human KLK3 Promoter Primers #32784 and SimpleChIP^® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

Immunohistochemical analysis of paraffin-embedded human prostate carcinoma using Androgen Receptor (D6F11) XP^® Rabbit mAb.

CUT&RUN was performed with LNCaP cells grown in phenol red free medium and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT, 10 nM) for 4 hours and either Androgen Receptor (D6F11) XP^® Rabbit mAb or Rabbit (DA1E) mAb IgG XP^® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using SimpleChIP^® Human KLK2 Intron 1 Primers #62086 and SimpleChIP^® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

Confocal immunofluorescent analysis of LNCaP (positive, left) and DU145 (negative, right) cells using Androgen Receptor (D6F11) XP^® Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red).

Flow cytometric analysis of DU-145 cells (blue) and LNCaP cells (green) using Androgen Receptor (D6F11) XP^® Rabbit mAb (solid lines) or a concentration matched Rabbit (DA1E) mAb IgG XP^® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')₂ Fragment (Alexa Fluor^® 488 Conjugate) #4412 was used as a secondary antibody.

Chromatin immunoprecipitations were performed with cross-linked chromatin from LNCaP cells grown in phenol red free medium and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT, 10 nM) for 4 hours and Androgen Receptor (D6F11) XP^® Rabbit mAb, using SimpleChIP^® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina^® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across KLK2, a known target gene of Androgen Receptor (see additional figure containing ChIP-qPCR data). For additional ChIP-seq tracks, please download the product datasheet.

Chromatin immunoprecipitations were performed with cross-linked chromatin from LNCaP cells grown in phenol red free medium and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT, 10 nM) for 4 hours and Androgen Receptor (D6F11) XP^® Rabbit mAb, using SimpleChIP^® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using DNA Library Prep Kit for Illumina^® (ChIP-seq, CUT&RUN) #56795. The figure shows binding across chromosome 19 (upper), including KLK2 (lower), a known target gene of Androgen Receptor (see additional figure containing ChIP-qPCR data).

Chromatin immunoprecipitations were performed with cross-linked chromatin from LNCaP cells grown in phenol red free medium and 5% charcoal stripped FBS for 3 d then treated with dihydrotestosterone (DHT, 10 nM) for 4 hours and either Androgen Receptor (D6F11) XP^® Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP^® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. The enriched DNA was quantified by real-time PCR using SimpleChIP^® Human KLK2 Intron 1 Primers #62086, SimpleChIP^® Human KLK3 Promoter Primers #32784, and SimpleChIP^® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.

Western blot analysis of extracts from LNCaP (AR+), VCaP (AR & AR-V7+), 22Rv1 (AR & AR-V7+), and PC-3 (AR-) cells using Androgen Receptor (D6F11) XP^® Rabbit mAb (upper), and β-Actin (13E5) Rabbit mAb (lower).

Simple Western™ analysis of lysates (0.1 mg/mL) from LNCaP cells using Androgen Receptor (D6F11) XP^® Rabbit mAb #5153. The virtual lane view (left) shows a single target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
