Revision 1
Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, IP, IF-IC, FC-FP, ChIP

REACTIVITY:

H M R Mk

SENSITIVITY:

Endogenous

MW (kDa):

17

Source/Isotype:

Rabbit IgG

UniProt ID:

#P68431

Entrez-Gene Id:

8350

Product Information

Product Usage Information

For optimal ChIP and ChIP-seq results, use 10 μl of antibody and 10 μg of chromatin (approximately 4 x 106 cells) per IP. This antibody has been validated using SimpleChIP® Enzymatic Chromatin IP Kits.

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:50
Immunofluorescence (Immunocytochemistry) 1:400 - 1:1600
Flow Cytometry (Fixed/Permeabilized) 1:50 - 1:200
Chromatin IP 1:50

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity / Sensitivity

Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb detects endogenous levels of histone H3 when tri-methylated on Lys9. This antibody shows some cross-reactivity with histone H3 that is di-methylated on Lys9, but does not cross-react with non-methylated or mono-methylated histone H3 Lys9. This antibody does not detect tri-methyl histone H3 Lys9 when the adjacent Ser10 residue is phosphorylated during mitosis. In addition, this antibody does not cross-react with methylated histone H3 Lys4, Lys27, Lys36, or Lys79.

Species Reactivity:

Human, Mouse, Rat, Monkey

Species predicted to react based on 100% sequence homology

Bovine

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues near the amino terminus of histone H3 in which Lys9 is tri-methylated.

Background

The nucleosome, made up of four core histone proteins (H2A, H2B, H3, and H4), is the primary building block of chromatin. Originally thought to function as a static scaffold for DNA packaging, histones have now been shown to be dynamic proteins, undergoing multiple types of post-translational modifications, including acetylation, phosphorylation, methylation, and ubiquitination (1). Histone methylation is a major determinant for the formation of active and inactive regions of the genome and is crucial for the proper programming of the genome during development (2,3). Arginine methylation of histones H3 (Arg2, 17, 26) and H4 (Arg3) promotes transcriptional activation and is mediated by a family of protein arginine methyltransferases (PRMTs), including the co-activators PRMT1 and CARM1 (PRMT4) (4). In contrast, a more diverse set of histone lysine methyltransferases has been identified, all but one of which contain a conserved catalytic SET domain originally identified in the Drosophila Su(var)3-9, Enhancer of zeste, and Trithorax proteins. Lysine methylation occurs primarily on histones H3 (Lys4, 9, 27, 36, 79) and H4 (Lys20) and has been implicated in both transcriptional activation and silencing (4). Methylation of these lysine residues coordinates the recruitment of chromatin modifying enzymes containing methyl-lysine binding modules such as chromodomains (HP1, PRC1), PHD fingers (BPTF, ING2), tudor domains (53BP1), and WD-40 domains (WDR5) (5-8). The discovery of histone demethylases, such as PADI4, LSD1, JMJD1, JMJD2, and JHDM1, has shown that methylation is a reversible epigenetic marker (9).

  1. Peterson, C.L. and Laniel, M.A. (2004) Curr Biol 14, R546-51.
  2. Kubicek, S. et al. (2006) Ernst Schering Res Found Workshop, 1-27.
  3. Lin, W. and Dent, S.Y. (2006) Curr Opin Genet Dev 16, 137-42.
  4. Lee, D.Y. et al. (2005) Endocr Rev 26, 147-70.
  5. Daniel, J.A. et al. (2005) Cell Cycle 4, 919-26.
  6. Shi, X. et al. (2006) Nature 442, 96-9.
  7. Wysocka, J. et al. (2006) Nature 442, 86-90.
  8. Wysocka, J. et al. (2005) Cell 121, 859-72.
  9. Trojer, P. and Reinberg, D. (2006) Cell 125, 213-7.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

WB: Western Blotting IP: Immunoprecipitation IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized) ChIP: Chromatin IP

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
SimpleChIP is a registered trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Revision 1
#13969

Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb

Western Blotting Image 1: Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb Expand Image
使用 Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb 对不同细胞系的提取物进行蛋白质印迹分析。
Western Blotting Image 2: Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb Expand Image
抗体特异性通过蛋白质印迹法确定。对 HeLa 与 NIH/3T3 细胞裂解物使用 Tri-Methyl Histone H3 (Lys9) (D4W1U) Rabbit mAb (小图 A) 或 Tri-Methyl Histone H3 (Lys9) (D4W1U) Rabbit mAb 进行检测,后者使用 1.5 μM 不同竞争肽 (小图 B-M) 作预吸附处理。如图所示,只有三甲基组蛋白 H3 (Lys9) 肽 (小图 E) 与抗体的结合具有优势。
No image available
Immunofluorescence Image 1: Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb Expand Image
使用 Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb (绿色) 和 β-Actin (8H10D10) Mouse mAb #3700 (红色),对未经处理(上图)或经 λ 磷酸酶处理的(下图)间期(左图)或有丝分裂期(右图)HeLa 细胞进行共聚焦免疫荧光分析。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。如上所示,当邻近的 Ser10 残基被磷酸化之后,该抗体无法检测有丝分裂细胞中的三甲基组蛋白 H3 Lys9。

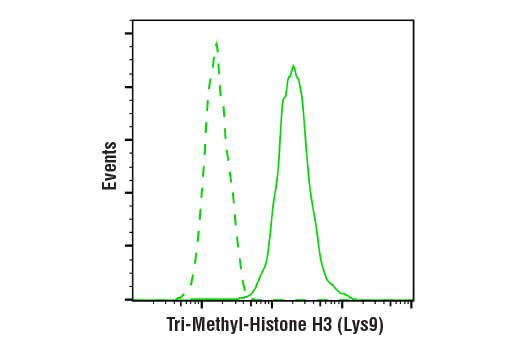

Flow Cytometry Image 1: Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb Expand Image
使用以浓度匹配的 Rabbit (DA1E) mAb IgG XP® Isotype Control #3900(虚线)作对照的 Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb(实线),对 HeLa 细胞进行流式细胞分析。Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 用作二抗。

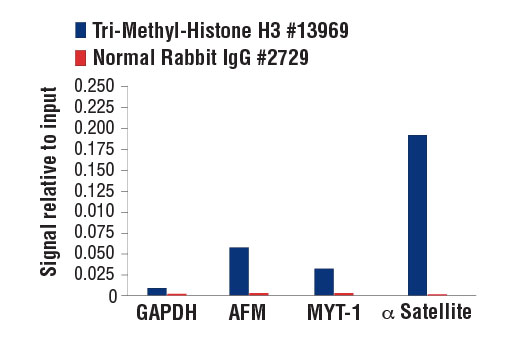

Chromatin Immunoprecipitation Image 1: Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb Expand Image
使用 SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003,对 HeLa 细胞中提取的交联染色质,在加入 Tri-Methyl-Histone H3 (Lys9) (D4W1U) Rabbit mAb 或 Normal Rabbit IgG #2729 进行染色质免疫沉淀。使用 SimpleChIP® Human GAPDH Exon 1 Primers #5516、SimpleChIP® Human AFM Intron 1 Primers #5098、SimpleChIP® Human MYT-1 Exon 1 Primers #4493 和 SimpleChIP® Human α Satellite Repeat Primers #4486,通过实时 PCR 对富集的 DNA 进行定量分析。将每份样品中免疫沉淀的 DNA 的量表现为相对于所输入染色质总量(等于 1)的信号。
