Revision 1

#8683

Store at -20C

Tight Junction Antibody Sampler Kit

1 Kit

(6 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
CD2AP Antibody213520 µl80 kDaRabbit
Claudin-1 (D5H1D) XP® Rabbit mAb1325520 µl20 kDaRabbit IgG
ZO-1 (D7D12) Rabbit mAb819320 µl220 kDaRabbit IgG
ZO-2 Antibody284720 µl150 kDaRabbit
ZO-3 (D57G7) XP® Rabbit mAb370420 µl140 kDaRabbit IgG
Afadin (D1Y3Z) Rabbit mAb1353120 µl205 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Tight Junction Antibody Sampler Kit provides an economical means to evaluate the presence of a number of proteins involved in tight junctions. The kit contains enough primary antibodies to perform two western blot experiments per primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Tight junctions, or zona occludens, form a continuous barrier to fluids across the epithelium and endothelium. They function in regulation of paracellular permeability and in the maintenance of cell polarity, blocking the movement of transmembrane proteins between the apical and basolateral cell surfaces (reviewed in 1). Tight junctions are composed of claudin and occludin transmembrane proteins, which join the junctions to the cytoskeleton (1,2). The claudin family is composed of 23 integral membrane proteins, and their expression, which varies among tissue types, may determine both the strength and properties of the epithelial barrier (2,3). Zona occludens proteins ZO-1, -2, and -3 (also known as TJP1, 2, and 3) are peripheral membrane adaptor proteins that link junctional transmembrane proteins such as occludin and claudin to the actin cytoskeleton (reviewed in 4). ZO-1 and ZO-2 are required for tight junction formation and function (5,6). In subconfluent proliferating cells, ZO-1 and ZO-2 have been shown to colocalize to the nucleus and play a role in transcriptional regulation (7-9). Exogenous expression of the amino terminal portion of ZO-3 exerts a dominant negative effect that interferes with assembly of tight junctions and adherens junctions (10). ZO-1 has been shown to interact with afadin prior to the formation of tight junctions (11). Recent work has also shown that afadin is involved in controlling the directionality of cell movement when it is localized at the leading edge of moving cells (12,13). CD2AP is a scaffolding protein that is thought to link membrane proteins to the cytoskeleton (14-16). It plays a role in the formation of tight junctions in specialized cell types such as the slit diaphragm of the kidney glomerulus (17). CD2AP is also involved in the immunological synapse between CD2-expressing T cells and antigen presenting cells (18). Research studies have shown that interaction between CD2AP and other cytoskeletal proteins may regulate the endocytosis of EGFR (16).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from A431 and MCF7 cells using Claudin-1 (D5H1D) XP® Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 1: Tight Junction Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Afadin (D1Y3Z) Rabbit mAb.
undefined Image 2: Tight Junction Antibody Sampler Kit
Western blot analysis of extracts of K562, A431 and COS cells, using CD2AP Antibody.
undefined Image 3: Tight Junction Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell types using ZO-2 Antibody.
undefined Image 4: Tight Junction Antibody Sampler Kit
Western blot analysis of extracts from MCF-7, HT-29 and HCT-15 cells using ZO-3 (D57G7) XP® Rabbit mAb.
undefined Image 5: Tight Junction Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 6: Tight Junction Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using ZO-1 (D7D12) Rabbit mAb.
undefined Image 7: Tight Junction Antibody Sampler Kit

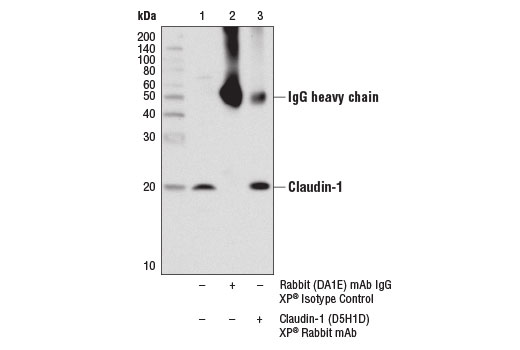

Immunoprecipitation of claudin-1 from A-431 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Claudin-1 (D5H1D) XP® Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using Claudin-1 (D5H1D) Rabbit mAb.
undefined Image 8: Tight Junction Antibody Sampler Kit

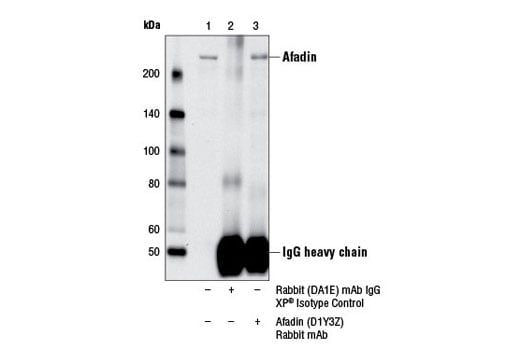

Immunoprecipitation of afadin from A-431 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or Afadin (D1Y3Z) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot was performed using Afadin (D1Y3Z) Rabbit mAb.
undefined Image 9: Tight Junction Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of A431 cells using ZO-2 Antibody (green). Actin filaments have been labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5™ (fluorescent DNA dye).
undefined Image 10: Tight Junction Antibody Sampler Kit
Confocal immunofluorescent analysis of MCF-7 cells using ZO-3 (D57G7) XP® Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 11: Tight Junction Antibody Sampler Kit

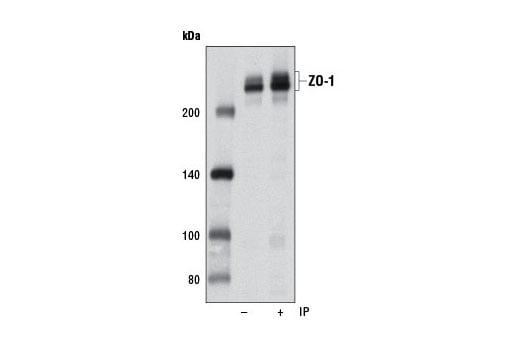

Immunoprecipitation and western blot analysis of extracts from Hep G2 cells using ZO-1 (D7D12) Rabbit mAb. Lane 1 is 10% input.
undefined Image 12: Tight Junction Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using Claudin-1 (D5H1D) XP® Rabbit mAb.
undefined Image 13: Tight Junction Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lung carcinoma using Claudin-1 (D5H1D) XP® Rabbit mAb.
undefined Image 14: Tight Junction Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded cell pellets, A-431 (left) and MCF7 (right), using Claudin-1 (D5H1D) XP® Rabbit mAb.
undefined Image 15: Tight Junction Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human skin using Claudin-1 (D5H1D) XP® Rabbit mAb.
undefined Image 16: Tight Junction Antibody Sampler Kit
