Revision 4

#8665

Store at -20C

Rag and LAMTOR Antibody Sampler Kit

1 Kit

(7 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
LAMTOR1/C11orf59 (D11H6) XP® Rabbit mAb897520 µl18 kDaRabbit IgG
LAMTOR2/ROBLD3 (D7C10) Rabbit mAb814520 µl14 kDaRabbit IgG
LAMTOR3/MAPKSP1 (D38G5) Rabbit mAb816820 µl14 kDaRabbit IgG
RagA (D8B5) Rabbit mAb435720 µl30 kDaRabbit IgG
RagC (D8H5) Rabbit mAb948020 µl50 kDaRabbit IgG
RagB (D18F3) Rabbit mAb815020 µl40 kDaRabbit IgG
RagD Antibody447020 µl50 kDaRabbit
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Rag and LAMTOR Antibody Sampler Kit is an economical means of detecting various Rag and LAMTOR proteins implicated within mTOR complex signaling. The kit contains enough primary and secondary antibody to perform two western blots with each antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

The mTORC kinase complex is a critical regulator of cell growth (1,2). Its activity is modulated by energy levels, growth factors, and amino acids via signaling through Akt, MAPK, and AMPK pathways (3,4). Recent studies found that the four related GTPases, RagA, RagB, RagC, and RagD, interact with raptor within the mTORC1 complex (1,2). These interactions are both necessary and sufficient for mTORC1 activation in response to amino acid signals (1,2). According to the research literature, RagD is one of several genes differentially expressed in human melanoma cell lines and has been considered to be a viable target for further diagnostic and therapeutic study (5). A protein complex consisting of LAMTOR1/C11orf59, LAMTOR2/ROBLD3, and LAMTOR3/MAPKSP1 has been identified to interact with and recruit four Rag GTPases to the surface of lysosomes (6).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Western blot analysis of extracts from 293 and PANC-1 cells using RagA (D8B5) Rabbit mAb.
undefined Image 1: Rag and LAMTOR Antibody Sampler Kit

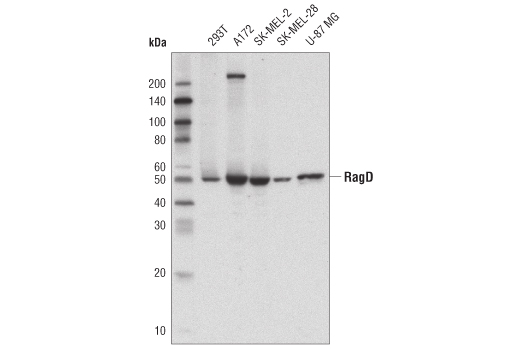

Western blot analysis of extracts from various cell lines using RagD Antibody.
undefined Image 2: Rag and LAMTOR Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 3: Rag and LAMTOR Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using LAMTOR2/ROBLD3 (D7C10) Rabbit mAb.
undefined Image 4: Rag and LAMTOR Antibody Sampler Kit

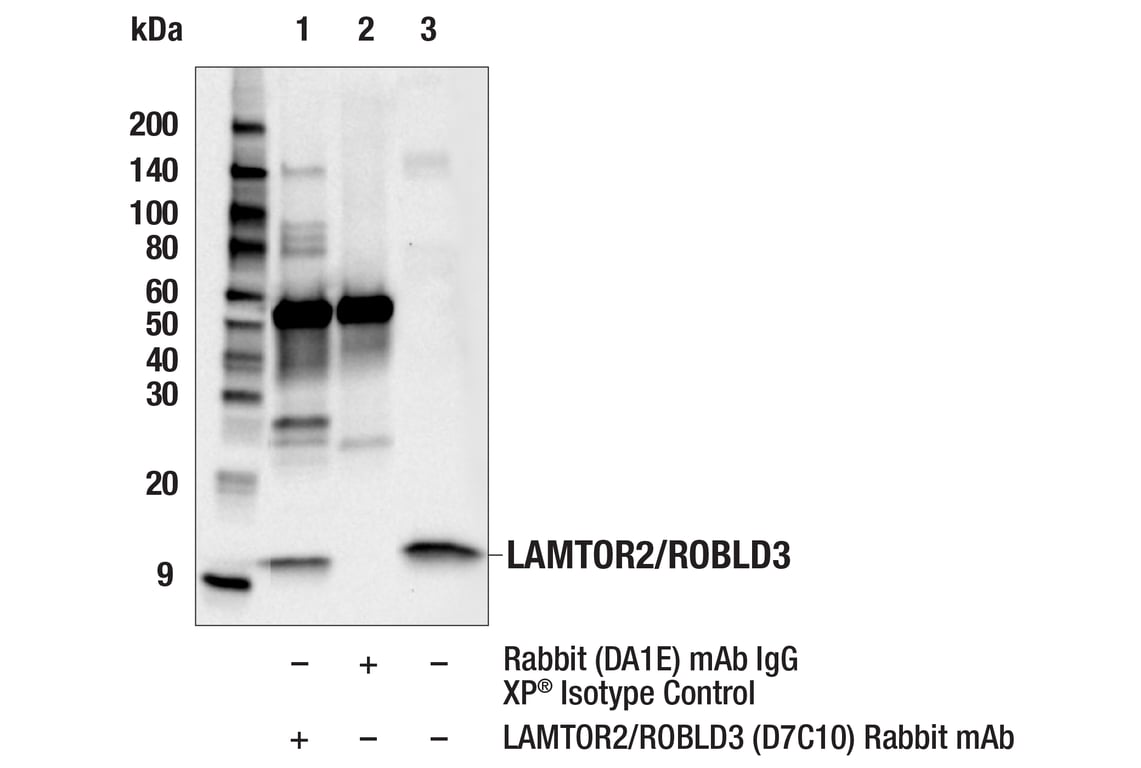

Immunoprecipitation of LAMTOR2/ROBLD3 protein from HepG2 extracts. Lane 1 is LAMTOR2/ROBLD3 (D7C10) Rabbit mAb, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control, #3900 and lane 3 is 10% input. Western blot analysis was performed using LAMTOR2/ROBLD3 (D7C10) Rabbit mAb, #8145. Anti-rabbit IgG, HRP-linked Antibody, #7074 was used as the secondary antibody.
undefined Image 5: Rag and LAMTOR Antibody Sampler Kit

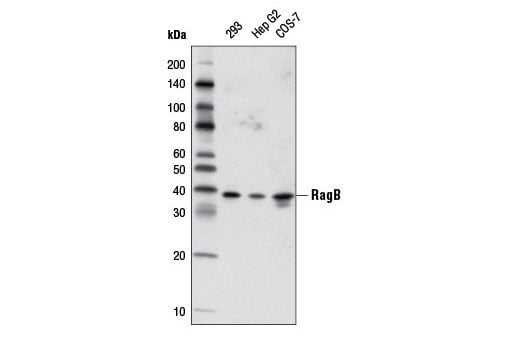

Western blot analysis of extracts from various cell lines using RagB (D18F3) Rabbit mAb.
undefined Image 6: Rag and LAMTOR Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo

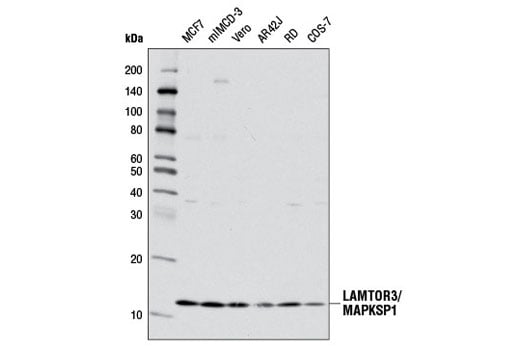

Western blot analysis of extracts from various cell lines using LAMTOR3/MAPKSP1 (D38G5) Rabbit mAb.
undefined Image 7: Rag and LAMTOR Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using LAMTOR1/C11orf59 (D11H6) XP® Rabbit mAb.
undefined Image 8: Rag and LAMTOR Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using RagC (D8H5) Rabbit mAb.
undefined Image 9: Rag and LAMTOR Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo

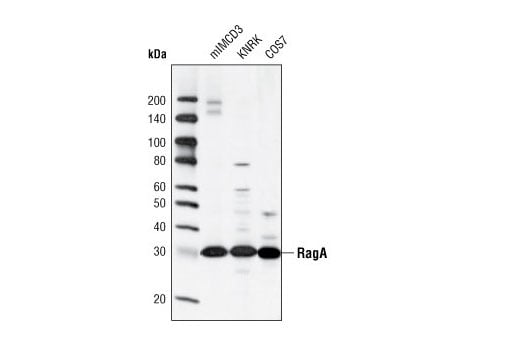

Western blot analysis of extracts from mIMCD3, KNRK and COS7 cells using RagA (D8B5) Rabbit mAb.
undefined Image 10: Rag and LAMTOR Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using LAMTOR1/C11orf59 (D11H6) XP® Rabbit mAb.
undefined Image 11: Rag and LAMTOR Antibody Sampler Kit
Confocal immunofluorescent analysis of HeLa cells using RagC (D8H5) Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 12: Rag and LAMTOR Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using LAMTOR1/C11orf59 (D11H6) XP® Rabbit mAb.
undefined Image 13: Rag and LAMTOR Antibody Sampler Kit

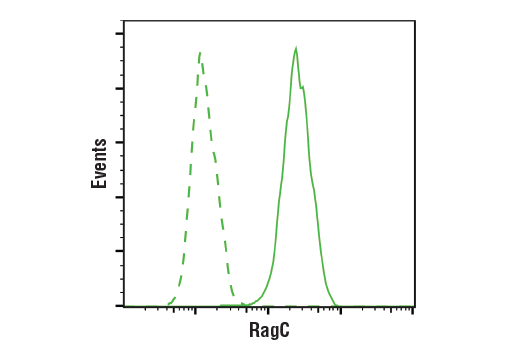

Flow cytometric analysis of HeLa cells using RagC (D8H5) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 14: Rag and LAMTOR Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse colon using LAMTOR1/C11orf59 (D11H6) XP® Rabbit mAb.
undefined Image 15: Rag and LAMTOR Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of HeLa cells using LAMTOR1/C11orf59 (D11H6) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin. Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 16: Rag and LAMTOR Antibody Sampler Kit
