Revision 1
Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, IF-IC, FC-FP

REACTIVITY:

H

SENSITIVITY:

Endogenous

MW (kDa):

40

Source/Isotype:

Rabbit IgG

UniProt ID:

#Q86WV6

Entrez-Gene Id:

340061

Product Information

Product Usage Information

This formulation is ideal for use with technologies requiring specialized or custom antibody labeling, including fluorophores, metals, lanthanides, and oligonucleotides. It is not recommended for ChIP, ChIP-seq, CUT&RUN, or CUT&Tag assays. If you require a carrier-free formulation for chromatin profiling, please contact us. Optimal dilutions/concentrations should be determined by the end user.

Formulation

Supplied in 1X PBS, BSA and Azide Free.

For standard formulation of this product see product #50907.

Storage

Store at -20°C. This product will freeze at -20°C so it is recommended to aliquot into single-use vials to avoid multiple freeze/thaw cycles. A slight precipitate may be present and can be dissolved by gently vortexing. This will not interfere with antibody performance.

Specificity / Sensitivity

Phospho-STING (Ser366) (E9A9K) Rabbit mAb (BSA and Azide Free) recognizes endogenous levels of STING protein only when phosphorylated at Ser366.

Species Reactivity:

Human

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Ser366 of human STING protein.

Background

Stimulator of interferon genes (STING, TMEM173, MITA) is a transmembrane adaptor protein that is a critical component of the cellular innate immune response to pathogenic cytoplasmic DNA (1,2). STING is a ubiquitously expressed protein found predominantly in the ER (1). The enzyme cGAMP synthase (cGAS) produces the second messenger cyclic-GMP-AMP (cGAMP) in response to cytoplasmic DNA (3,4). cGAMP binds and activates STING (3,4). In addition, detection of cytoplasmic DNA by nucleic acid sensors, including DDX41 or IFI16, results in STING activation (5,6). Following activation, STING translocates with TBK1 to perinuclear endosomes (7). The TBK1 kinase phosphorylates and activates interferon regulatory factors (IRFs) and NF-κB, which leads to the induction of type I interferon and other immune response genes (1,2,7).

Following binding of cyclic dinucleotides, STING is phosphorylated by TBK1 at Ser366 (Ser365 in mouse), leading to IRF-3 activation and type I interferon upregulation (8).

  1. Ishikawa, H. and Barber, G.N. (2008) Nature 455, 674-8.
  2. Zhong, B. et al. (2008) Immunity 29, 538-50.
  3. Sun, L. et al. (2013) Science 339, 786-91.
  4. Wu, J. et al. (2013) Science 339, 826-30.
  5. Zhang, Z. et al. (2011) Nat Immunol 12, 959-65.
  6. Unterholzner, L. et al. (2010) Nat Immunol 11, 997-1004.
  7. Ishikawa, H. et al. (2009) Nature 461, 788-92.
  8. Liu, S. et al. (2015) Science 347, aaa2630.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

WB: Western Blotting IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized)

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
Alexa Fluor is a registered trademark of Life Technologies Corporation.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Revision 1
#72650

Phospho-STING (Ser366) (E9A9K) Rabbit mAb (BSA and Azide Free)

Western Blotting Image 1: Phospho-STING (Ser366) (E9A9K) Rabbit mAb (BSA and Azide Free) Expand Image
使用 Phospho-STING (Ser366) (E9A9K) Rabbit mAb(上图)、STING (D2P2F) Rabbit mAb #13647(中间)或 β-Actin (D6A8) Rabbit mAb #8457(下图)对用 TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174(80 nM,16 小时)分化,随后不转染 (-) 或转染 poly(dA:dT)(5 ug/mL,3 小时;+)的 THP-1 细胞的提取物进行蛋白印迹分析。数据的生成使用的是该产品的常规组分产品。

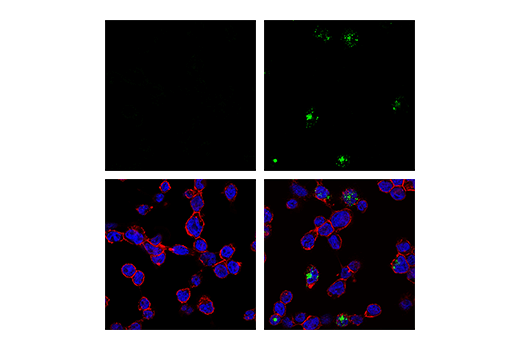

Immunofluorescence Image 1: Phospho-STING (Ser366) (E9A9K) Rabbit mAb (BSA and Azide Free) Expand Image
使用 Phospho-STING (Ser366) (E9A9K) Rabbit mAb(绿色)对用 TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174(80 nM,16 小时)分化,随后转染空载(左图)或转染 poly(dA:dT)(5 μg/mL,3 小时;右图)的 THP-1 细胞进行共聚焦免疫荧光分析。肌动蛋白微丝由 DyLight 554 Phalloidin #13054(红色)标记。样本用 ProLong® Gold Antifade Reagent with DAPI #8961(蓝色)封片。数据的生成使用的是该产品的常规组分产品。

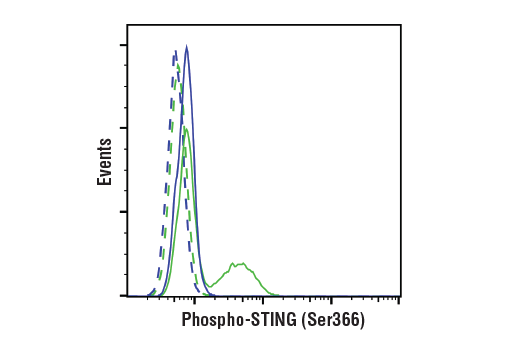

Flow Cytometry Image 1: Phospho-STING (Ser366) (E9A9K) Rabbit mAb (BSA and Azide Free) Expand Image
使用 Phospho-STING (Ser366) (E9A9K) Rabbit mAb(实线)或浓度匹配的 Rabbit (DA1E) mAb IgG XP® Isotype Control #3900(虚线)对用 TPA (12-O-Tetradecanoylphorbol-13-Acetate) #4174(80 nM,24 小时)分化,随后不转染(蓝色)或转染 poly(dA:dT)(5 μg/mL,3 小时;绿色)的 THP-1 细胞进行流式细胞分析。Anti-rabbit IgG (H+L)、F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 作为二抗。数据的生成使用的是该产品的常规组分产品。
