Revision 5

#76384

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, W-S, IP, IHC-Bond, IHC-P, FC-FP

Reactivity:
H M

Sensitivity:
Endogenous

MW (kDa):
76

Source/Isotype:
Rabbit IgG

UniProt ID:
#Q13094

Entrez-Gene Id:
3937

Product Usage Information

Application Dilution
Western Blotting 1:1000
Simple Western™ 1:50 - 1:250
Immunoprecipitation 1:50
IHC Leica Bond 1:200 - 1:800
Immunohistochemistry (Paraffin) 1:200 - 1:800
Flow Cytometry (Fixed/Permeabilized) 1:100 - 1:400

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier-free (BSA and azide free) version of this product see product #10190.

Specificity/Sensitivity

Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb recognizes endogenous levels of SLP-76 protein only when phosphorylated at Ser376. Non-specific staining was observed in human stomach crypts by immunohistochemistry. Clone E3G9U is more sensitive by flow cytometry than clone D7S1K.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Ser376 of human SLP-76 protein.

Background

SH2 domain-containing leukocyte protein of 76 kDa (SLP-76) is a hematopoietic adaptor protein that is important in multiple biochemical signaling pathways and necessary for T cell development and activation (1). ZAP-70 phosphorylates SLP-76 and LAT as a result of TCR ligation. SLP-76 has amino-terminal tyrosine residues followed by a proline-rich domain and a carboxy-terminal SH2 domain. Phosphorylation of Tyr113 and Tyr128 result in recruitment of the GEF Vav and the adaptor protein Nck (2). TCR ligation also leads to phosphorylation of Tyr145, which mediates an association between SLP-76 and Itk, which is accomplished in part via the proline-rich domain of SLP-76 and the SH3 domain of Itk (3). Furthermore, the proline-rich domain of SLP-76 binds to the SH3 domains of Grb2-like adaptor Gads (3,4). In resting cells, SLP-76 is predominantly in the cytosol. Upon TCR ligation, SLP-76 translocates to the plasma membrane and promotes the assembly of a multi-protein signaling complex that includes Vav, Nck, Itk, and PLCγ1 (1). The expression of SLP-76 is tightly regulated; the protein is detected at very early stages of thymocyte development, increases as thymocyte maturation progresses, and is reduced as cells mature to CD4+ CD8+ double-positive thymocytes (5).

Following TCR ligation, SLP-76 is phosphorylated at Ser376 by the hematopoietic progenitor kinase 1 (HPK1) (6,7). This phosphorylation induces interaction with 14-3-3ε, which leads to the disassembly of TCR signaling complexes and downregulation of TCR signaling (6-8).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting W-S: Simple Western™ IP: Immunoprecipitation IHC-Bond: IHC Leica Bond IHC-P: Immunohistochemistry (Paraffin) FC-FP: Flow Cytometry (Fixed/Permeabilized)

Cross-Reactivity Key

H: Human M: Mouse

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

Alexa Fluor is a registered trademark of Life Technologies Corporation.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo
Western blot analysis of extracts from Jurkat, HeLa, and EL4 cells, untreated (-) or treated with H2O2 (11 mM, 1 min; +), using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb (upper), SLP-76 (E4N7E) Rabbit mAb #25361 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 1: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb

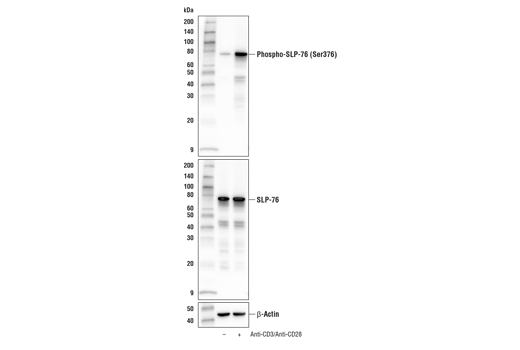

Western blot analysis of extracts from Jurkat cells, treated with isotype control (-) or treated with cross-linked anti-CD3 plus anti-CD28 (10 ug/mL each, 5 min; +), using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb (upper), SLP-76 (D1R1A) Rabbit mAb #70896 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 2: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Simple Western™ analysis of lysates (0.1 mg/mL) from serum starved Jurkat cells treated with H2O2 (10mM, 2 min) using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb #76384. The virtual lane view (left) shows the target band (as indicated) at 1:50 and 1:250 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:50 (blue line) and 1:250 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
Western Blotting Image 1: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo

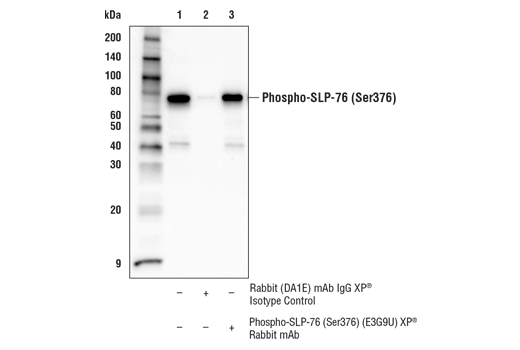

Immunoprecipitation of Phospho-SLP-76 (Ser376) protein from Jurkat cell extracts treated with H2O2 (11 mM, 1 min). Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb. Western blot analysis was performed using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as the secondary antibody.
Immunoprecipitation Image 1: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded Renca syngeneic tumor using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
Immunohistochemistry Image 1: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded A20 syngeneic tumor using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
Immunohistochemistry Image 2: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
Immunohistochemistry Image 3: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded mouse spleen using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
Immunohistochemistry Image 4: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma, untreated (left) or lambda phosphatase treated (right), using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb (top) or SLP-76 (D1R1A) Rabbit mAb #70896 (bottom). Lambda phosphatase treatment does not affect total SLP-76 signal intensity, as expected.
Immunohistochemistry Image 1: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human non-small cell lung carcinoma using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb.
Immunohistochemistry Image 2: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded human lymphoma using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb.
Immunohistochemistry Image 3: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded human mucoepidermoid carcinoma of the larynx using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb.
Immunohistochemistry Image 4: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded Jurkat cell pellets, untreated (left), or hydrogen peroxide-treated (center), and HeLa cell pellet (right) using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb.
Immunohistochemistry Image 5: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Immunohistochemical analysis of paraffin-embedded human tonsil using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb.
Immunohistochemistry Image 6: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb

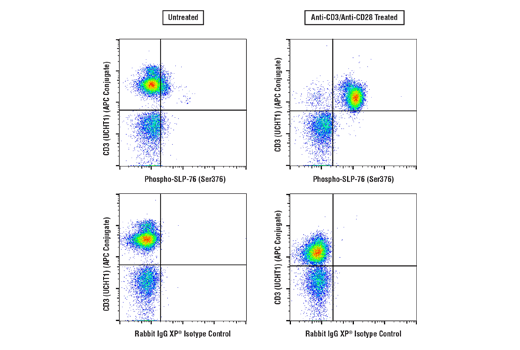

Flow cytometric analysis of human peripheral blood mononuclear cells, untreated (left column) or treated with cross-linked anti-CD3 plus anti-CD28 (10 μg/ml each, 15 min; right column), using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb (top row) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (bottom row), and co-stained with CD3 (UCHT1) Mouse mAb (APC Conjugate) #19881. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 1: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 5

Cell Signaling Technology Logo

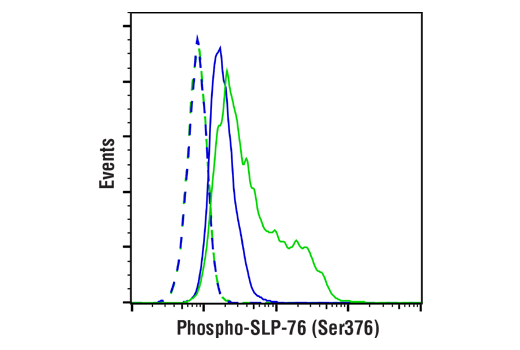

Flow cytometric analysis of EL4 cells, untreated (blue) or treated with Hydrogen Peroxide (11 mM, 1 min; green) using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 2: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb

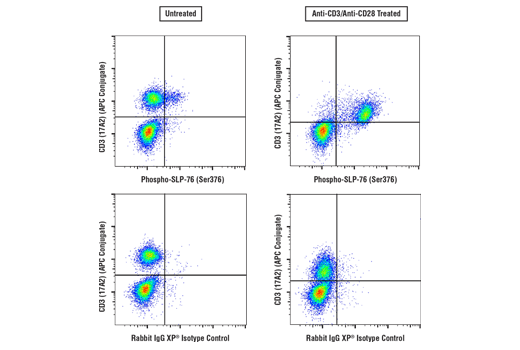

Flow cytometric analysis of mouse splenocytes, untreated (left column) or treated with cross-linked anti-CD3 plus anti-CD28 (10 μg/ml each, 15 min; right column), using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb (top row) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (bottom row), and co-stained with CD3 (17A2) Rat mAb (APC Conjugate) #24265. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 3: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb

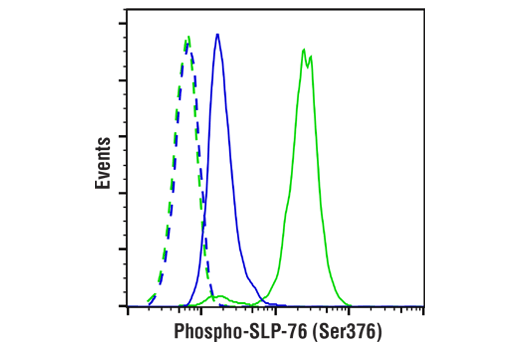

Flow cytometric analysis of Jurkat cells, untreated (blue) or treated with Hydrogen Peroxide (11mM, 1 min; green) using Phospho-SLP-76 (Ser376) (E3G9U) XP® Rabbit mAb (solid lines) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 4: Phospho-SLP-76 (Ser376) (E3G9U) XP<sup>®</sup> Rabbit mAb
