Revision 9
Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, W-S, IP, ChIP, ChIP-seq, C&R, C&T

REACTIVITY:

H M R Mk

SENSITIVITY:

Endogenous

MW (kDa):

250

Source/Isotype:

Rabbit IgG

UniProt ID:

#P24928

Entrez-Gene Id:

5430

Product Information

Product Usage Information

For optimal ChIP and ChIP-seq results, use 10 μl of antibody and 10 μg of chromatin (approximately 4 x 106 cells) per IP. This antibody has been validated using SimpleChIP® Enzymatic Chromatin IP Kits.

The CUT&RUN dilution was determined using CUT&RUN Assay Kit #86652.

The CUT&Tag dilution was determined using CUT&Tag Assay Kit #77552.

Application Dilution
Western Blotting 1:1000
Simple Western™ 1:10 - 1:50
Immunoprecipitation 1:50
Chromatin IP 1:50
Chromatin IP-seq 1:50
CUT&RUN 1:50
CUT&Tag 1:50

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity / Sensitivity

Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb recognizes endogenous levels of Rpb1 only when the carboxy-terminal domain (CTD) heptapeptide repeat [Tyr1, Ser2, Pro3, Thr4, Ser5, Pro6, Ser7] is phosphorylated at Ser2. This antibody does not cross-react with Rpb1 CTD phosphorylated at Ser5 or Ser7.

Species Reactivity:

Human, Mouse, Rat, Monkey

Species predicted to react based on 100% sequence homology

Hamster, D. melanogaster, Xenopus, Zebrafish, Bovine, Pig, S. cerevisiae, C. elegans

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic phosphopeptide corresponding to residues surrounding Ser2 of the human Rpb1 CTD heptapeptide repeat.

Background

RNA polymerase II (RNAPII) is a large multi-protein complex that functions as a DNA-dependent RNA polymerase, catalyzing the transcription of DNA into RNA using the four ribonucleoside triphosphates as substrates (1). The largest subunit, RNAPII subunit B1 (Rpb1), also known as RNAPII subunit A (POLR2A), contains a unique heptapeptide sequence (Tyr1,Ser2,Pro3,Thr4,Ser5,Pro6,Ser7), which is repeated up to 52 times in the carboxy-terminal domain (CTD) of the protein (1). This CTD heptapeptide repeat is subject to multiple post-translational modifications, which dictate the functional state of the polymerase complex. Phosphorylation of the CTD during the active transcription cycle integrates transcription with chromatin remodeling and nascent RNA processing by regulating the recruitment of chromatin modifying enzymes and RNA processing proteins to the transcribed gene (1). During transcription initiation, RNAPII contains a hypophosphorylated CTD and is recruited to gene promoters through interactions with DNA-bound transcription factors and the Mediator complex (1). The escape of RNAPII from gene promoters requires phosphorylation at Ser5 by CDK7, the catalytic subunit of transcription factor IIH (TFIIH) (2). Phosphorylation at Ser5 mediates the recruitment of RNA capping enzymes, in addition to histone H3 Lys4 methyltransferases, which function to regulate transcription initiation and chromatin structure (3,4). After promoter escape, RNAPII proceeds down the gene to an intrinsic pause site, where it is halted by the negative elongation factors NELF and DSIF (5). At this point, RNAPII is unstable and frequently aborts transcription and dissociates from the gene. Productive transcription elongation requires phosphorylation at Ser2 by CDK9, the catalytic subunit of the positive transcription elongation factor P-TEFb (6). Phosphorylation at Ser2 creates a stable transcription elongation complex and facilitates recruitment of RNA splicing and polyadenylation factors, in addition to histone H3 Lys36 methyltransferases, which function to promote elongation-compatible chromatin (7,8). Ser2/Ser5-phosphorylated RNAPII then transcribes the entire length of the gene to the 3' end, where transcription is terminated. RNAPII dissociates from the DNA and is recycled to the hypophosphorylated form by various CTD phosphatases (1).In addition to Ser2/Ser5 phosphorylation, Ser7 of the CTD heptapeptide repeat is also phosphorylated during the active transcription cycle. Phosphorylation at Ser7 is required for efficient transcription of small nuclear (sn) RNA genes (9,10). snRNA genes, which are neither spliced nor poly-adenylated, are structurally different from protein-coding genes. Instead of a poly(A) signal found in protein-coding RNAs, snRNAs contain a conserved 3'-box RNA processing element, which is recognized by the Integrator snRNA 3' end processing complex (11,12). Phosphorylation at Ser7 by CDK7 during the early stages of transcription facilitates recruitment of RPAP2, which dephosphorylates Ser5, creating a dual Ser2/Ser7 phosphorylation mark that facilitates recruitment of the Integrator complex and efficient processing of nascent snRNA transcripts (13-15).

  1. Brookes, E. and Pombo, A. (2009) EMBO Rep 10, 1213-9.
  2. Komarnitsky, P. et al. (2000) Genes Dev 14, 2452-60.
  3. Ho, C.K. and Shuman, S. (1999) Mol Cell 3, 405-11.
  4. Ng, H.H. et al. (2003) Mol Cell 11, 709-19.
  5. Cheng, B. and Price, D.H. (2007) J Biol Chem 282, 21901-12.
  6. Marshall, N.F. et al. (1996) J Biol Chem 271, 27176-83.
  7. Krogan, N.J. et al. (2003) Mol Cell Biol 23, 4207-18.
  8. Proudfoot, N.J. et al. (2002) Cell 108, 501-12.
  9. Chapman, R.D. et al. (2007) Science 318, 1780-2.
  10. Egloff, S. et al. (2007) Science 318, 1777-9.
  11. Egloff, S. et al. (2008) Biochem Soc Trans 36, 590-4.
  12. Baillat, D. et al. (2005) Cell 123, 265-76.
  13. Akhtar, M.S. et al. (2009) Mol Cell 34, 387-93.
  14. Egloff, S. et al. (2010) J Biol Chem 285, 20564-9.
  15. Egloff, S. et al. (2012) Mol Cell 45, 111-22.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

WB: Western Blotting W-S: Simple Western™ IP: Immunoprecipitation ChIP: Chromatin IP ChIP-seq: Chromatin IP-seq C&R: CUT&RUN C&T: CUT&Tag

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
SimpleChIP is a registered trademark of Cell Signaling Technology, Inc.
XP is a registered trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Revision 9
#13499

Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb

Western Blotting Image 1: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 对 C2C12、H-4-II-E 和 COS-7 细胞的提取物进行蛋白质印迹分析。

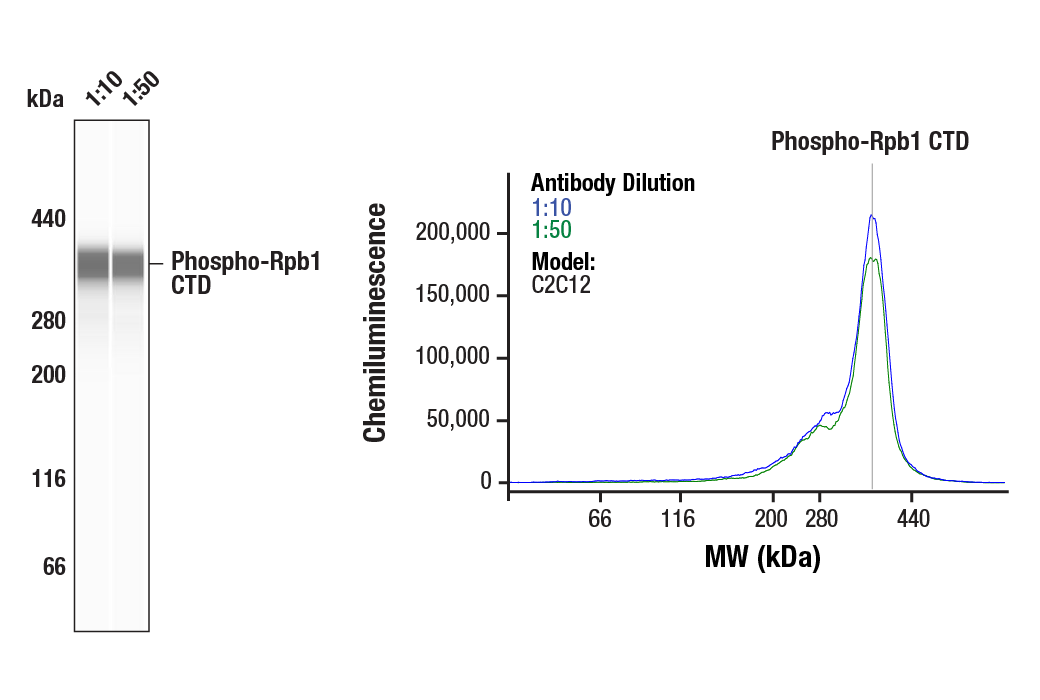

Western Blotting Image 1: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
Simple Western™ analysis of lysates (1 mg/ml) from C2C12 cells using Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb #13499. 虚拟泳道式图像(左图)显示一抗稀释比例为 1:10 和 1:50 时的靶标条带(如图所示)。对应的电泳图(右图)为一抗稀释比例在 1:10(蓝线)和 1:50(绿线)时沿毛细血管内分子量的化学发光结果。This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 66-440 kDa.

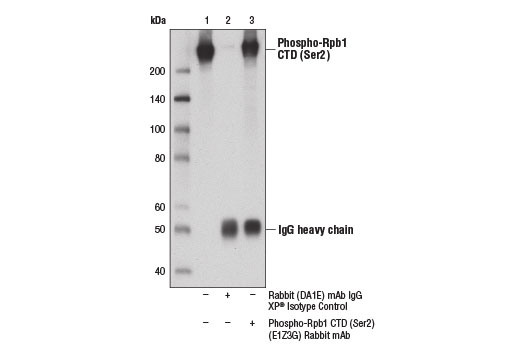

Immunoprecipitation Image 1: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 Rabbit (DA1E) mAb IgG XP ® Isotype Control #3900(泳道 2)或 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb(泳道 3),对 HeLa 细胞提取物 Rpb1 进行免疫沉淀。泳道 1 是 10% 输入对照。使用 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 进行蛋白质印迹分析。

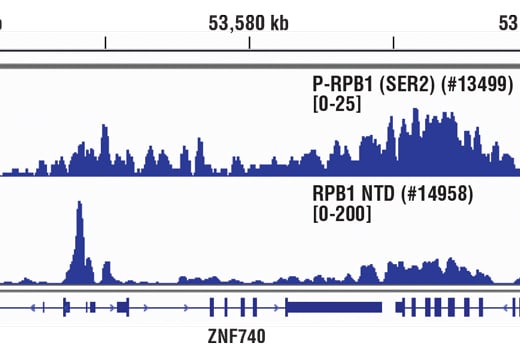

Chromatin Immunoprecipitation Image 1: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003 对 Hela 细胞中提取的交联染色质,在加入 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 或 Rpb1 NTD (D8L4Y) Rabbit mAb 314958 后进行染色质免疫沉淀。使用 DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795 制备 DNA 库。结果图显示在染色体 12上 ZNF740 基因内结合。

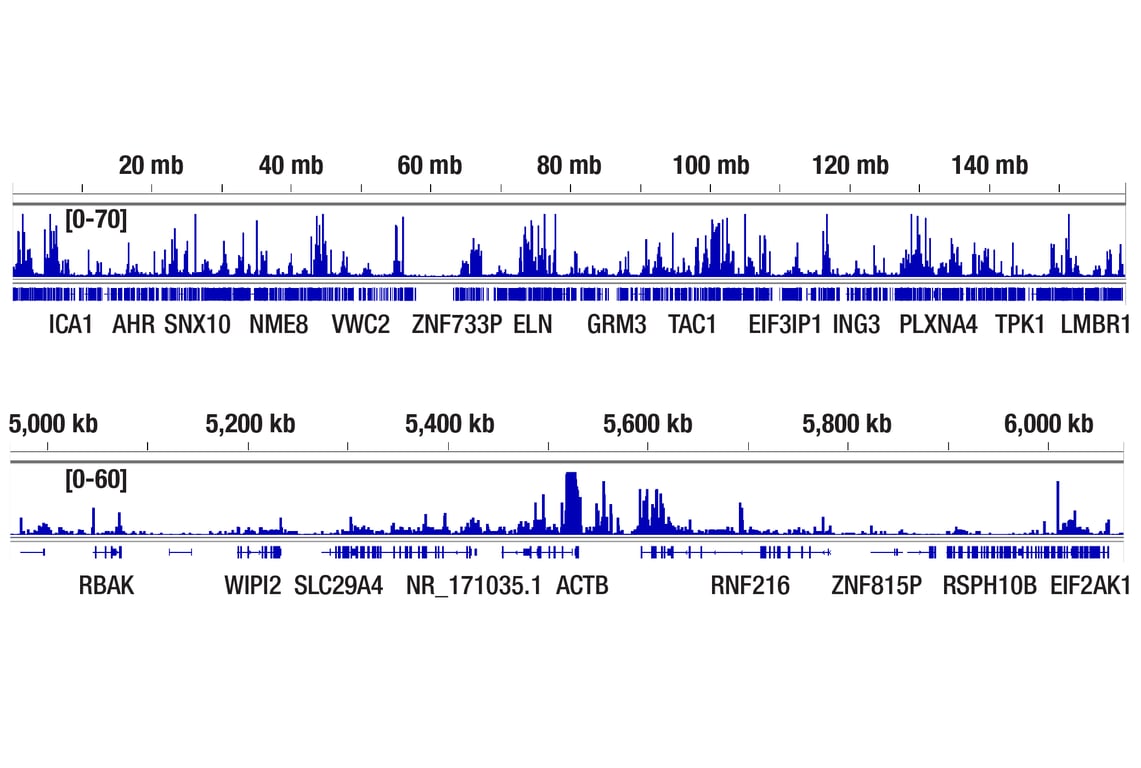

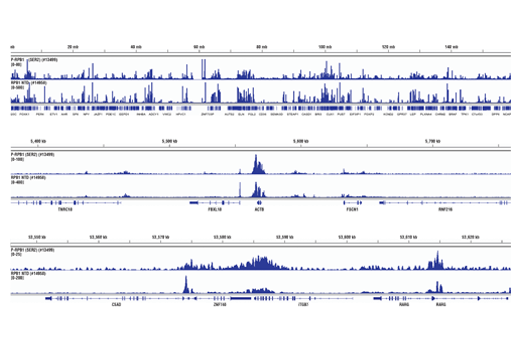

Chromatin Immunoprecipitation Image 2: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003 对 Hela 细胞中提取的交联染色质,在加入 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 或 Rpb1 NTD (D8L4Y) Rabbit mAb 314958 后进行染色质免疫沉淀。使用 DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795 制备 DNA 库。结果图显示在染色体 7(上图)内的结合,包括 Phospho-Rpb1 CTD (Ser2) 的已知靶标基因 ACTB(中图)(参见包含 ChIP-qPCR 数据的其他结果图)和染色体 12 中的 ZNF740 基因。

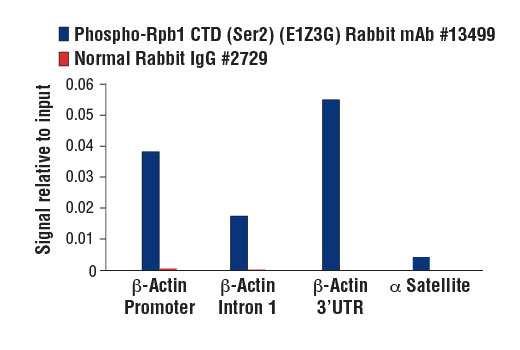

Chromatin Immunoprecipitation Image 3: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003 对 Hela 细胞中提取的交联染色质,在加入 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 或 Normal Rabbit IgG #2729 后进行染色质免疫沉淀。使用 SimpleChIP® Human β-Actin Promoter Primers #13653、human β-Actin intron 1 primers、SimpleChIP® Human β-Actin 3' UTR Primers #13669 和 SimpleChIP® Human α Satellite Repeat Primers #4486,通过实时 PCR 对富集的 DNA 进行定量分析。将每份样品中免疫沉淀的 DNA 的量表现为相对于所输入染色质总量(等于 1)的信号。

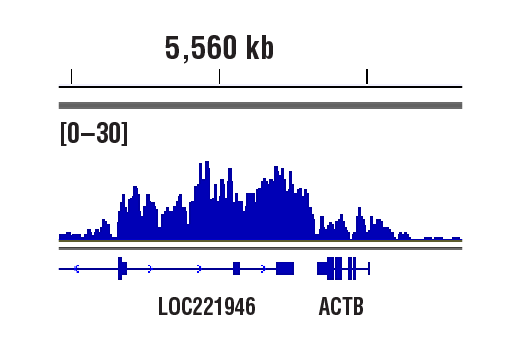

CUT and RUN Image 1: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 CUT&RUN Assay Kit #86652, HCT 116细胞和 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 进行 CUT&RUN。使用 DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795 制备 DNA 库。结果图显示在 ACTB 内结合,ACTB 是一种已知的 Rpb1 靶标基因(参见包含 CUT&RUN-qPCR 数据的其他图形)。

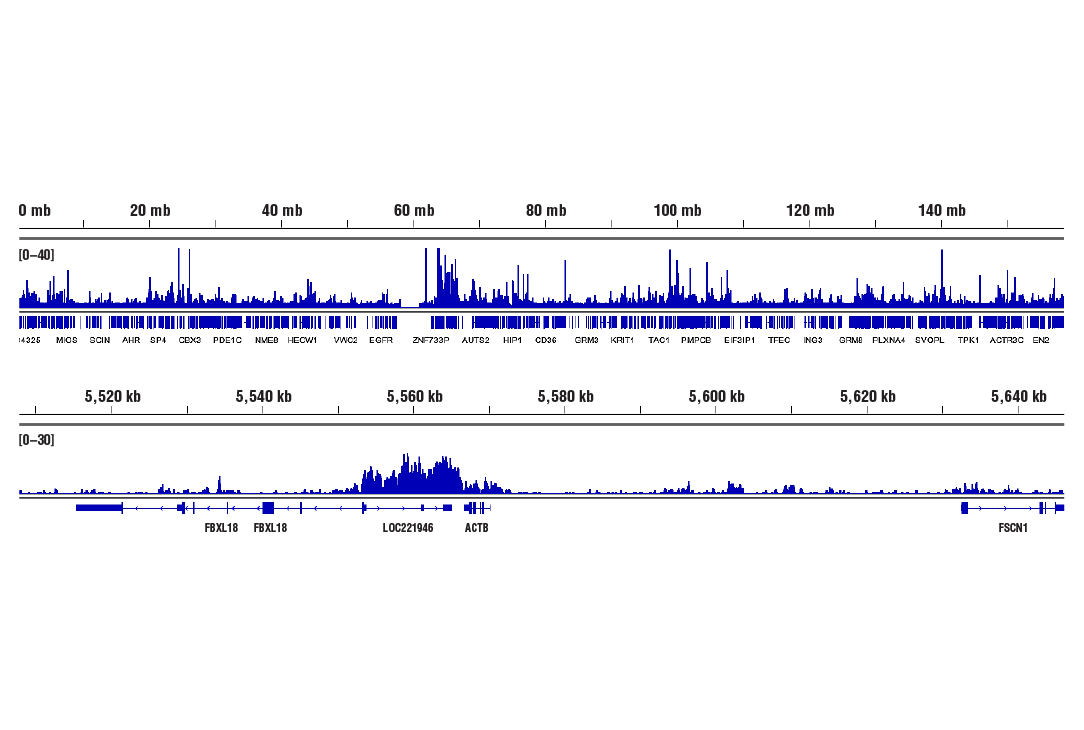

CUT and RUN Image 2: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 CUT&RUN Assay Kit #86652, HCT 116细胞和 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 进行 CUT&RUN。使用 DNA Library Prep Kit for Illumina® (ChIP-seq, CUT&RUN) #56795 制备 DNA 库。结果图显示在染色体 7(上图)内的结合,包括 Rpb1 的已知靶基因 ACTB(下图)(参见包含 CUT&RUN-qPCR 数据的其他结果图)。

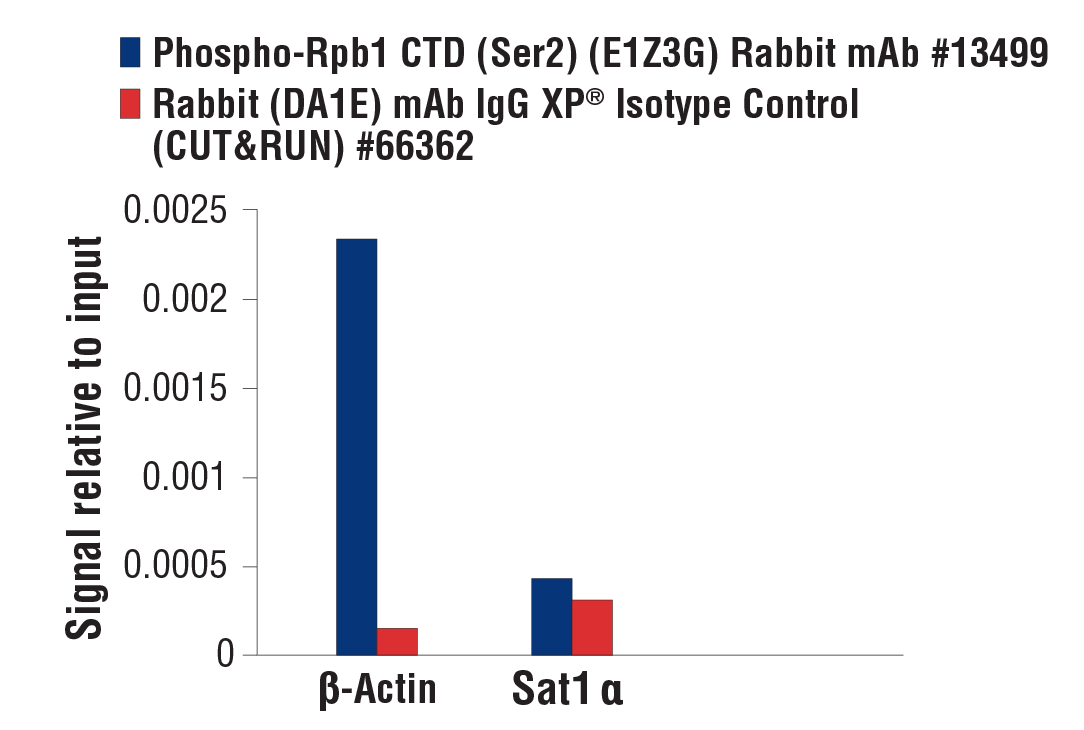

CUT and RUN Image 3: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
使用 CUT&RUN Assay Kit #86652,NCCIT 细胞和 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 或 Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362进行 CUT&RUN。使用人源 β-actin 内含子 1 引物和 SimpleChIP® Human α Satellite Repeat Primers #4486,通过实时 PCR 对富集的 DNA 进行定量分析。将每份样品中免疫沉淀的 DNA 的量表现为相对于所输入染色质总量(等于 1)的信号。

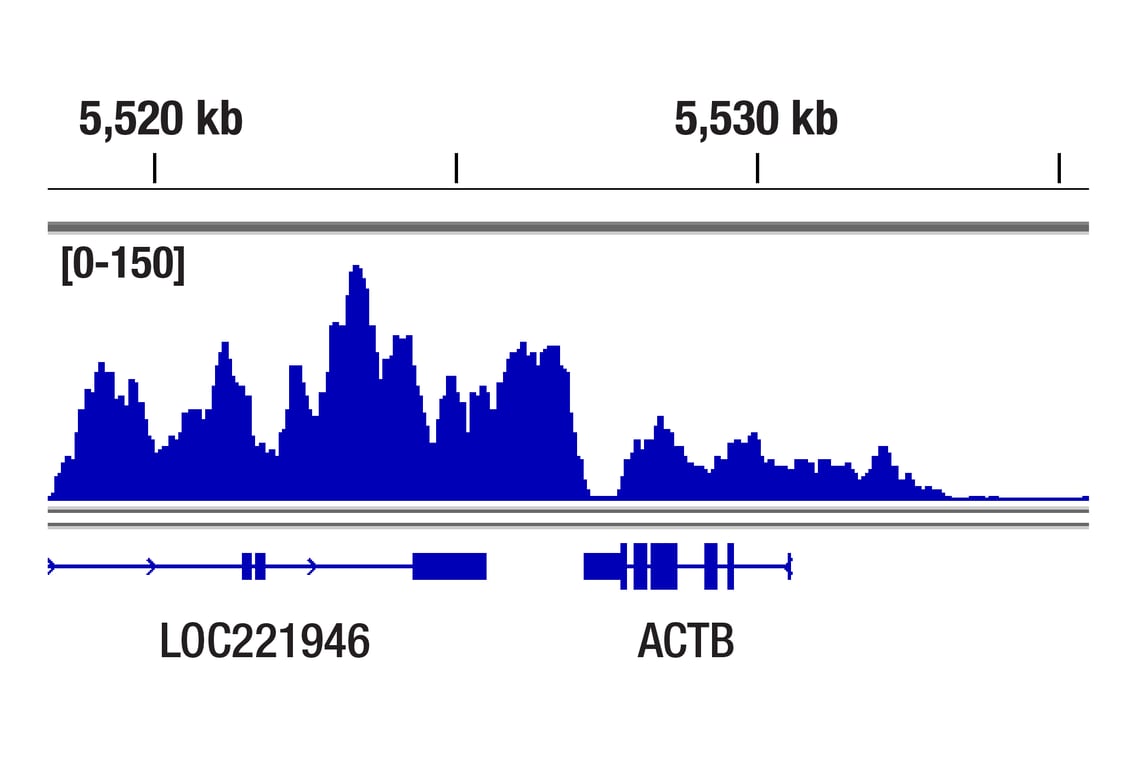

CUT and Tag Image 1: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
CUT&Tag was performed with HeLa cells and Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. 该图显示在 ACTB 基因内结合。
CUT and Tag Image 2: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
CUT&Tag was performed with HeLa cells and Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. 该图显示在染色体 7(上图)内的结合,包括 ACTB 基因(下图)。

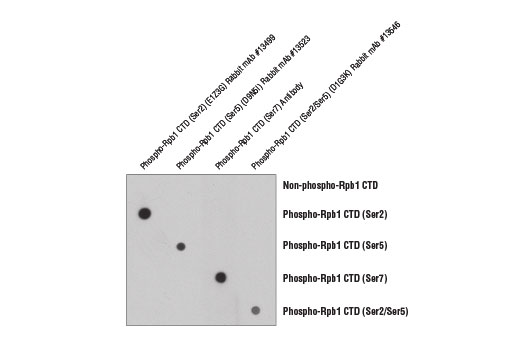

Product Image 1: Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb Expand Image
肽斑点印迹分析可证明 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 抗体的特异性。使用 Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb、Phospho-Rpb1 CTD (Ser5) (D9N5I) Rabbit mAb #13523(一种磷酸-Rpb1 CTD (Ser7) 抗体)和 Phospho-Rpb1 CTD (Ser2/Ser5) (D1G3K) Rabbit mAb #13546 显示结合预涂膜 Rpb1 CTD 肽的抗体。正如预期的一样,Phospho-Rpb1 CTD (Ser2) (E1Z3G) Rabbit mAb 仅可结合在 Ser2 位点被磷酸化的磷酸-Rpb1 CTD 肽。
