Revision 2
#8653
Store at -20C
Organelle Localization IF Antibody Sampler Kit
1 Kit
(5 x 20 microliters)
Orders:
877-616-CELL (2355)
Support:
877-678-TECH (8324)
3 Trask Lane | Danvers | Massachusetts | 01923 | USA
For Research Use Only. Not for Use in Diagnostic Procedures.
| Product Includes | Product # | Quantity | Mol. Wt | Isotype/Source |
|---|---|---|---|---|
| AIF (D39D2) XP® Rabbit mAb | 5318 | 20 µl | 67 kDa | Rabbit IgG |
| EEA1 (C45B10) Rabbit mAb | 3288 | 20 µl | 170 kDa | Rabbit IgG |
| LAMP1 (D2D11) XP® Rabbit mAb | 9091 | 20 µl | 42 (non-glycosylated), 90-120 (glycosylated) kDa | Rabbit IgG |
| PDI (C81H6) Rabbit mAb | 3501 | 20 µl | 57 kDa | Rabbit |
| RCAS1 (D2B6N) XP® Rabbit mAb | 12290 | 20 µl | 32 kDa | Rabbit IgG |
Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.
Description
The Organelle Localization IF Antibody Sampler Kit provides an economical means for identification of cellular organelles by fluorescence immunocytochemistry (IF-IC). This kit includes enough primary antibody to perform at least twenty IF-IC tests or two western blots with each antibody.
Storage
Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.
Background
Knowledge of the subcellular location of a protein may reveal its potential role in a variety of cellular processes. One can confirm the subcellular location of a marker that colocalizes with one of the organelle-specific antibodies in this kit. While these antibodies serve as powerful tools for immunofluorescence, they may also be used as western blot controls for fractionated cell lysates.
Trademarks and Patents
Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
U.S. Patent No. 7,429,487, foreign equivalents, and child patents deriving therefrom.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.
限制使用
除非 CST 的合法授书代表以书面形式书行明确同意，否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件，除非书 CST 的合法授书代表以书面形式书独接受， 否书均被拒书，并且无效。
专品专有“专供研究使用”的专专或专似的专专声明， 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的， 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专，且专用于研专用途。将专品用于专断、专防或治专目的， 或专专售（专独或作专专成）或其他商专目的而专专专品，均需要 CST 的专独专可。客专：(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品，或使用专品制造任何商专专品，(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专，或使用专品开专任何与 CST 的专品或服专专争的专品或服专， (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专，(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 ， (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Western blot analysis of extracts from various cell lines using RCAS1 (D2B6N) XP® Rabbit mAb.
Western blot analysis of extracts from various cell lines using EEA1 (C45B10) Rabbit mAb.
Confocal immunofluorescent tile scan of a fixed frozen brain from an amyloid mouse model of Alzheimer's disease using EEA1 (C45B10) Rabbit mAb #3288 (green), GFAP (GA5) Mouse mAb #3670 (red), and DAPI #4083 (blue).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Confocal immunofluorescent analysis of fixed frozen mouse thalamus, labeled with EEA1 (C45B10) Rabbit mAb #3288 (left, green) and co-labeled with GFAP (GA5) Mouse mAb #3670 (right, red) and DAPI #4083 (right, blue).
Confocal immunofluorescent analysis of fixed frozen mouse hippocampus, labeled with EEA1 (C45B10) Rabbit mAb #3288 (left, green) and co-labeled with GFAP (GA5) Mouse mAb #3670 (right, red) and DAPI #4093 (right, blue).
Western blot analysis of extracts from various cell types using PDI (C81H6) Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Western blot analysis of extracts from Jurkat, C2C12, and C6 cells using AIF (D39D2) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using AIF (D39D2) XP® Rabbit mAb.
Western blot analysis of extracts from various cell lines using LAMP1 (D2D11) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2

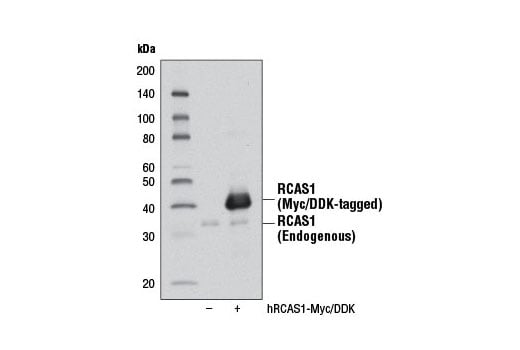

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing Myc/DDK-tagged full-length human RCAS1 (hRCAS1-Myc/DDK; +), using RCAS1 (D2B6N) XP® Rabbit mAb.
Confocal immunofluorescent analysis of HeLa cells using EEA1 (C45B10) Rabbit mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5™ (fluorescent DNA dye).
Immunohistochemical analysis of paraffin-embedded human lung carcinoma using PDI (C81H6) Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded human papillary thyroid carcinoma using AIF (D39D2) XP® Rabbit mAb.
Immunohistochemical analysis of normal human kidney using LAMP1 (D2D11) XP® Rabbit mAb.

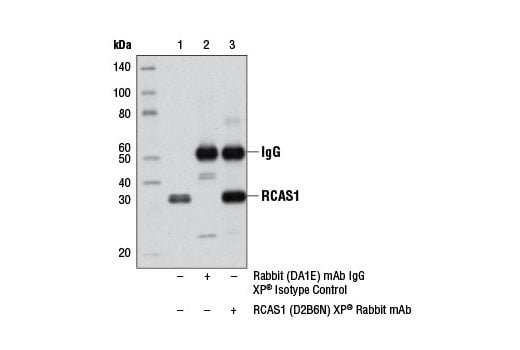

Immunoprecipitation of RCAS1 from HCT 116 extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or RCAS1 (D2B6N) XP® Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using RCAS1 (D2B6N) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded human lymphoma using PDI (C81H6) Rabbit mAb.
Confocal immunofluorescent analysis of mouse brainstem using AIF (D39D2) XP® Rabbit mAb #5318 (green) and GFAP (GA5) Mouse mAb #3670 (red). Sections were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Confocal immunofluorescent analysis of MCF7 cells, untreated (left) or treated with Brefeldin A #9972 (5 μg/ml, 1 hr; right), using RCAS1 (D2B6N) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded mouse spleen using PDI (C81H6) Rabbit mAb.
Confocal immunofluorescent analysis of human iPSC-derived astrocyte cells at 7 days in vitro using PDI (C81H6) Rabbit mAb (green), GFAP (GA5) Mouse mAb #3670 (red), and DAPI #4083 (blue). iCell Astrocytes 2.0 were kindly provided by FUJIFILM Cellular Dynamics, Inc.
Immunohistochemical analysis of paraffin-embedded human hepatocellular carcinoma using AIF (D39D2) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Confocal immunofluorescent analysis of mouse cerebellum using AIF (D39D2) XP® Rabbit mAb #5318 (green), GFAP (GA5) Mouse mAb #3670 (red), and F4/80 (BM8.1) Rat mAb #71299 (blue).
Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma using AIF (D39D2) XP® Rabbit mAb.
Immunoprecipitation of AIF protein from Jurkat cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is AIF (D39D2) XP® Rabbit mAb. Western blot analysis was performed using AIF (D39D2) XP® Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of human lung carcinoma using LAMP1 (D2D11) XP® Rabbit mAb.
Immunohistochemical analysis of human ovarian serous cystadenoma using LAMP1 (D2D11) XP® Rabbit mAb.

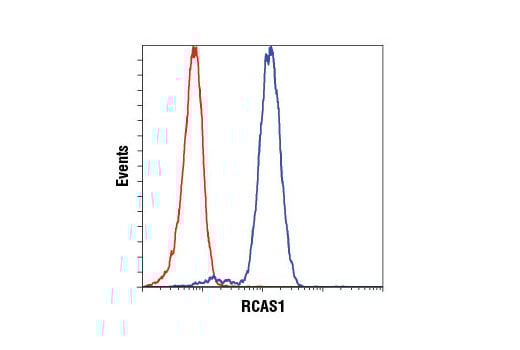

Flow cytometric analysis of Jurkat cells using RCAS1 (D2B6N) XP® Rabbit mAb (blue) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (red).
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Confocal immunofluorescent analysis of NIH/3T3 cells using PDI (C81H6) Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Confocal immunofluorescent analysis of mouse striatum using AIF (D39D2) XP® Rabbit mAb #5318 (green), GFAP (GA5) Mouse mAb #3670 (red), and F4/80 (BM8.1) Rat mAb #71299 (blue).
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using AIF (D39D2) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Confocal immunofluorescent analysis of HeLa cells using LAMP1 (D2D11) XP® Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Confocal immunofluorescent analysis of mouse thalamus using AIF (D39D2) XP® Rabbit mAb #5318 (green), GFAP (GA5) Mouse mAb #3670 (red). Sections were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunohistochemical analysis of paraffin-embedded human papillary carcinoma of the breast using AIF (D39D2) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Flow cytometric analysis of Jurkat cells using LAMP1 (D2D11) XP® Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Confocal immunofluorescent analysis of C2C12 cells using AIF (D39D2) XP® Rabbit mAb #5318 (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Immunohistochemical analysis of paraffin-embedded normal human testis using AIF (D39D2) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Confocal immunofluorescent analysis of HeLa cells using AIF (D39D2) XP ™ Rabbit mAb (green), showing colocalization with mitochondria that have been labeled with MitoTracker® Red CMXRos (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
Immunohistochemical analysis of paraffin-embedded normal human spleen using AIF (D39D2) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded normal human skeletal muscle using AIF (D39D2) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded normal human liver using AIF (D39D2) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded normal human kidney using AIF (D39D2) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded normal human breast using AIF (D39D2) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded A20 syngeneic tumor using AIF (D39D2) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded LL/2 syngeneic tumor using AIF (D39D2) XP® Rabbit mAb.
Immunohistochemical analysis of paraffin-embedded mouse testis using AIF (D39D2) XP® Rabbit mAb.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using AIF (D39D2) XP® Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
Immunoprecipitation of LAMP1 from SNB-19 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is LAMP1 (D2D11) XP® Rabbit mAb. Western blot was performed using LAMP1 (D2D11) XP® Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
Confocal immunofluorescent analysis of human iPSC-derived cortical glutamatergic neurons at 7 days in vitro using LAMP1 (D2D11) XP® Rabbit mAb (green), β3-Tubulin (E9F3E) Mouse mAb #45058 (red), and DAPI #4083 (blue). iCell GlutaNeurons were kindly provided by FUJIFILM Cellular Dynamics, Inc.
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] •
Web:
cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
Revision 2
Confocal immunofluorescent analysis of human iPSC-derived astrocyte cells at 7 days in vitro using LAMP1 (D2D11) XP® Rabbit mAb (green), GFAP (GA5) Mouse mAb #3670 (red), and DAPI #4083 (blue). iCell Astrocytes 2.0 were kindly provided by FUJIFILM Cellular Dynamics, Inc.
