Revision 1

#63387

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
COL1A1 (E8F4L) XP® Rabbit mAb7202620 µl220 kDaRabbit IgG
Tenascin C (E5J3B) Rabbit mAb3335220 µl200, 240 kDaRabbit IgG
Thrombospondin-1 (D7E5F) Rabbit mAb3787920 µl170 kDaRabbit IgG
Fibronectin/FN1 (E5H6X) Rabbit mAb2683620 µl300 kDaRabbit IgG
COL4A1 Antibody5027320 µl200 kDaRabbit
SPARC (D10F10) Rabbit mAb872520 µl42 kDaRabbit IgG
Periostin (E5F2S) Rabbit mAb2030220 µl90 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat
COL3A1 (E8D7R) XP® Rabbit mAb6303420 µl200 kDaRabbit IgG
CYR61 (D4H5D) XP® Rabbit mAb1447920 µl41 kDaRabbit IgG

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Extracellular Matrix Dynamics Antibody Sampler Kit provides an economical means of detecting selected proteins associated with dynamic remodeling of the extracellular matrix. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

The extracellular matrix (ECM) is a three-dimensional macromolecular network composed of collagens, proteoglycans, glycosaminoglycans, elastin, fibronectin, laminins, along with many other proteins and glycoproteins. This network of macromolecules provides a dynamic microenvironment that supports cell and tissue function, and undergoes continuous remodeling during both normal development and disease (1). Remodeling of the ECM can alter the relative balance of macromolecules within distinct ECM subcompartments, with important functional consequences; for example, changes to the relative amounts of COL1A1 and COL3A1 in the interstitial ECM, or COL4A1 and laminins in the basement membrane, can influence cell-matrix interactions, and/or disrupt cellular signaling events (2). Fibronectin functions as a physical and functional bridge between many different ECM components, including collagens, growth factors, and cell surface integrins, and thus plays a critical role in facilitating ECM remodeling. Matricellular proteins (MCPs) are another important group of ECM proteins. MCPs can be categorized into 6 distinct subgroups: centralized coordination network (CCN), thrombospondin (THBS), secreted protein acidic and rich in cysteine (SPARC), tenascin (TN), small integrin-binding ligand N-linked glycoprotein (SIBLING), and γ-carboxyglutamate (Gla)-containing proteins. CCN1 (CYR61), SPARC, tenascin C, periostin, and thrombospondin-1 are among the most well-studied of this group. All are non-structural ECM proteins that interact with structural ECM proteins, in part to regulate the rigidity of the ECM. They also play important roles in matrix-cell communication by engaging with cell surface receptors and integrins to elicit intracellular responses. The dysregulation of MCP expression has been associated with the development of numerous disease states, including cancer and fibrosis (4,5).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using CYR61 (D4H5D) XP® Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). As expected, MCF7 cells are negative for CYR61 expression.
undefined Image 1: Extracellular Matrix Dynamics Antibody Sampler Kit
Western blot analysis of extracts from Hs 578T and AN3-CA cells using Periostin (E5F2S) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). Negative expression of periostin protein in AN3-CA cells is consistent with the predicted expression pattern.
undefined Image 2: Extracellular Matrix Dynamics Antibody Sampler Kit

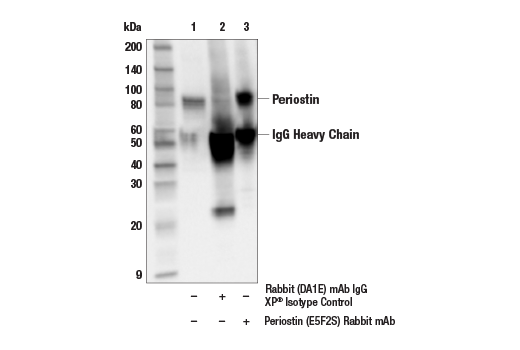

Immunoprecipitation of periostin protein from Hs 578T cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Periostin (E5F2S) Rabbit mAb. Western blot analysis was performed using Periostin (E5F2S) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as the secondary antibody.
undefined Image 3: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

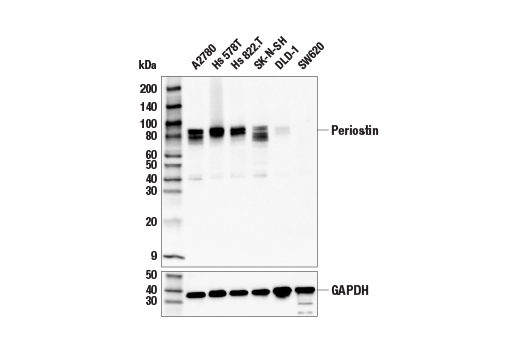

Western blot analysis of extracts from various cell lines using Periostin (E5F2S) Rabbit mAb (upper) or GAPDH (D16H11) XP® Rabbit mAb #5174 (lower). Negative expression of periostin protein in SW620 cells is consistent with the predicted expression pattern.
undefined Image 4: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human prostate adenocarcinoma using Periostin (E5F2S) Rabbit mAb.
undefined Image 5: Extracellular Matrix Dynamics Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Fibronectin/FN1 (E5H6X) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). The absence of Fibronectin/FN1 expression in PANC-1 cell extracts is consistent with molecular and proteomic expression profiling data, confirming specificity of the antibody.
undefined Image 6: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from RH-30 and IGROV-1 cells using Tenascin C (E5J3B) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). The differential in Tenascin C expression between RH-30 and IGROV-1 cells is consistent with their reported molecular expression profiles (CCLE, portals.broadinstitute.org), confirming specificity of the antibody for Tenascin C.
undefined Image 7: Extracellular Matrix Dynamics Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Thrombospondin-1 (D7E5F) Rabbit mAb.
undefined Image 8: Extracellular Matrix Dynamics Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using COL4A1 Antibody (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). The absence of COL4A1 expression in HCT 116 cell extracts is consistent with molecular and proteomic expression profiling data, confirming specificity of the antibody.
undefined Image 9: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from RD and ACHN cells using COL3A1 (E8D7R) XP® Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower). Differential expression of COL3A1 in RD and ACHN cell lines is consistent with molecular and proteomic expression profiling data, confirming specificity of the antibody for COL3A1.
undefined Image 10: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human prostate adenocarcinoma using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 11: Extracellular Matrix Dynamics Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 12: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using COL1A1 (E8F4L) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 13: Extracellular Matrix Dynamics Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using COL1A1 (E8F4L) XP® Rabbit mAb (upper) and GAPDH (D16H11) XP® Rabbit mAb #5174 (lower).
undefined Image 14: Extracellular Matrix Dynamics Antibody Sampler Kit
Western blot analysis of culture medium, from SPARC-secreting PYS-2 cells, using SPARC (D10F10) Rabbit mAb.
undefined Image 15: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of Saos-2 cells, untreated (left) or treated with Brefeldin A #9972 (10 μg/ml, overnight; center), and untreated MCF7 cells (right), using CYR61 (D4H5D) XP® Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Blue pseudocolor = DRAQ5® #4804 (fluorescent DNA dye).
undefined Image 16: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human esophageal adenocarcinoma using Periostin (E5F2S) Rabbit mAb.
undefined Image 17: Extracellular Matrix Dynamics Antibody Sampler Kit

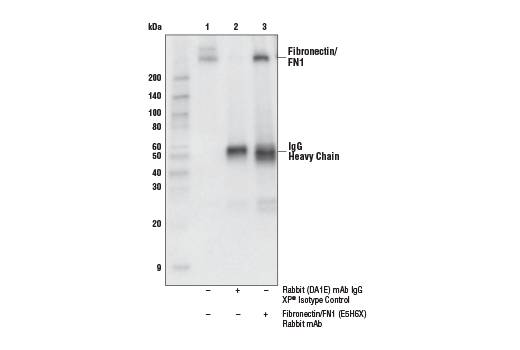

Immunoprecipitation of Fibronectin/FN1 protein from Hep G2 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Fibronectin/FN1 (E5H6X) Rabbit mAb. Western blot analysis was performed using Fibronectin/FN1 (E5H6X) Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
undefined Image 18: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunoprecipitation of Tenascin C protein from U-87 MG cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Tenascin C (E5J3B) Rabbit mAb. Western blot analysis was performed using Tenascin C (E5J3B) Rabbit mAb. Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb (HRP Conjugate) #5127 was used as the secondary antibody.
undefined Image 19: Extracellular Matrix Dynamics Antibody Sampler Kit

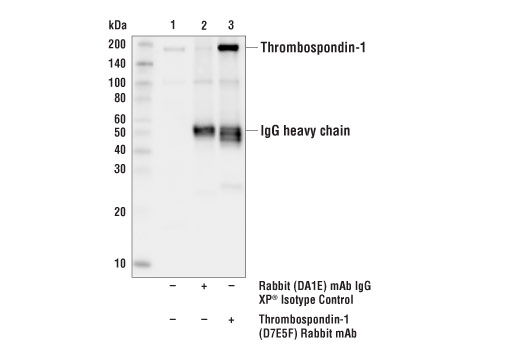

Immunoprecipitation of thrombospondin-1 protein from ACHN cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Thrombospondin-1 (D7E5F) Rabbit mAb. Western blot analysis was performed using Thrombospondin-1 (D7E5F) Rabbit mAb.
undefined Image 20: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human gastrointestinal stromal tumor using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 21: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human prostate carcinoma using COL1A1 (E8F4L) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 22: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon carcinoma using SPARC (D10F10) Rabbit mAb.
undefined Image 23: Extracellular Matrix Dynamics Antibody Sampler Kit
Flow cytometric analysis of 293T cells (blue) and PANC-1 cells (green) using CYR61 (D4H5D) XP® Rabbit mAb (solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 24: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human lung adenocarcinoma using Periostin (E5F2S) Rabbit mAb.
undefined Image 25: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human neuroendocrine carcinoma of the lung using Fibronectin/FN1 (E5H6X) Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 26: Extracellular Matrix Dynamics Antibody Sampler Kit
Confocal immunofluorescent analysis of RH-30 cells (left, high-expressing) or HCT 116 cells (right, low-expressing) using Tenascin C (E5J3B) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Sections were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 27: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human lung sarcoma using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 28: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human prostate carcinoma using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 29: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human lung carcinoma using SPARC (D10F10) Rabbit mAb.
undefined Image 30: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma using Periostin (E5F2S) Rabbit mAb.
undefined Image 31: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded Hep G2 cell pellet (left, positive) or PANC-1 cell pellet (right, negative) using Fibronectin/FN1 (E5H6X) Rabbit mAb.
undefined Image 32: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human large cell neuroendocrine lung carcinoma using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 33: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded normal human kidney using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 34: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using Periostin (E5F2S) Rabbit mAb.
undefined Image 35: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using Fibronectin/FN1 (E5H6X) Rabbit mAb.
undefined Image 36: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human urothelial carcinoma using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 37: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon carcinoma (left), renal cell carcinoma (middle) or prostate carcinoma (right) using COL1A1 (E8F4L) XP® Rabbit mAb (top) or COL1A1 (E3E1X) Mouse mAb #66948 (bottom). These two antibodies detect independent, unique epitopes on human COL1A1. The similar staining patterns obtained with both antibodies help to confirm the specificity of the staining.
undefined Image 38: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded 293T cell pellet, untransfected (left) or periostin-transfected (right), using Periostin (E5F2S) Rabbit mAb.
undefined Image 39: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human ductal breast carcinoma using Fibronectin/FN1 (E5H6X) Rabbit mAb.
undefined Image 40: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 41: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded A20 syngeneic tumor using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 42: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Periostin (E5F2S) Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 43: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human adenoid cystic carcinoma of the trachea using Fibronectin/FN1 (E5H6X) Rabbit mAb (left) or Fibronectin Rabbit mAb (right). These two antibodies detect independent, unique epitopes on human Fibronectin/FN1 protein. The similar staining patterns obtained with both antibodies help to confirm the specificity of the staining.
undefined Image 44: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded normal human kidney using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 45: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded GL261 syngeneic tumor using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 46: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded Hs 578T cell pellet (left, positive) or AN3-CA cell pellet (right, negative) using Periostin (E5F2S) Rabbit mAb.
undefined Image 47: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using Fibronectin/FN1 (E5H6X) Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 48: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using COL3A1 (E8D7R) XP® Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 49: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse liver using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 50: Extracellular Matrix Dynamics Antibody Sampler Kit

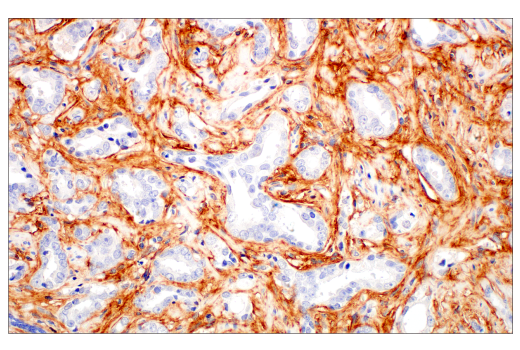

Immunohistochemical analysis of paraffin-embedded human lung adenocarcinoma using Fibronectin/FN1 (E5H6X) Rabbit mAb.
undefined Image 51: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

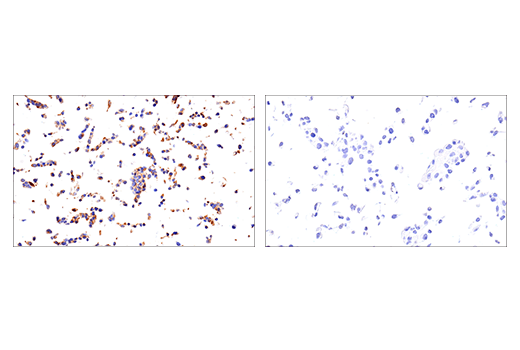

Immunohistochemical analysis of paraffin-embedded RD cell pellet (left, positive) or ACHN cell pellet (right, negative) using COL3A1 (E8D7R) XP® Rabbit mAb.
undefined Image 52: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse lung using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 53: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human B-cell non-Hodgkin lymphoma using Fibronectin/FN1 (E5H6X) Rabbit mAb.
undefined Image 54: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded rhesus monkey heart using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 55: Extracellular Matrix Dynamics Antibody Sampler Kit
Confocal immunofluorescent analysis of U-118 MG cells (left, positive) and PANC-1 cells (right, negative) using Fibronectin/FN1 (E5H6X) Rabbit mAb (green). Actin filaments were labeled with DyLight™ 650 Phalloidin #12956 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 56: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded rat colon using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 57: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

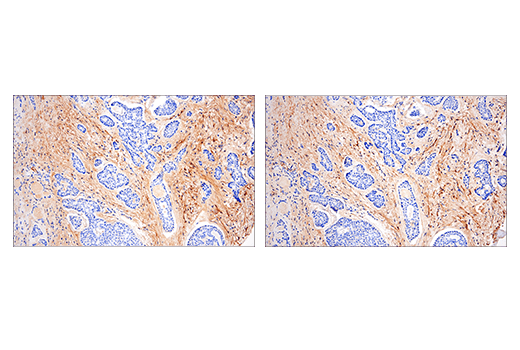

Immunohistochemical analysis of paraffin-embedded human esophageal adenocarcinoma using COL1A1 (E8F4L) XP® Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 58: Extracellular Matrix Dynamics Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse spleen labeled with COL1A1 (E8F4L) XP® Rabbit mAb (green), α-Smooth Muscle Actin (D4K9N) XP® Rabbit mAb (Alexa Fluor® 647 Conjugate) #76113 (red), and ProLong Gold Antifade Reagent with DAPI #8961 (blue).

undefined Image 59: Extracellular Matrix Dynamics Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon carcinoma (left), renal cell carcinoma (middle) or prostate carcinoma (right) using COL1A1 (E8F4L) XP® Rabbit mAb (top) or COL1A1 (E3E1X) Mouse mAb #66948 (bottom). These two antibodies detect independent, unique epitopes on human COL1A1. The similar staining patterns obtained with both antibodies help to confirm the specificity of the staining.
undefined Image 60: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

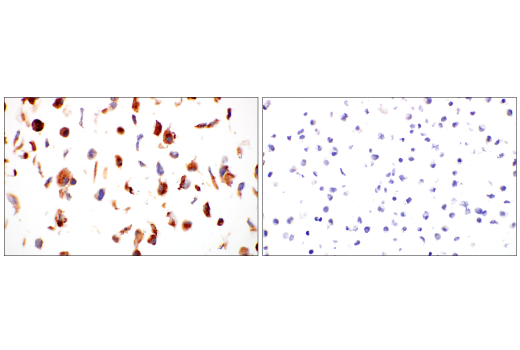

Immunohistochemical analysis of paraffin-embedded U-118 MG cell pellet (left, positive) or HT-29 cell pellet (right, negative) using COL1A1 (E8F4L) XP® Rabbit mAb.
undefined Image 61: Extracellular Matrix Dynamics Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse colon labeled with COL1A1 (E8F4L) XP® Rabbit mAb (green), β-Catenin (D10A8) XP® Rabbit mAb (Alexa Fluor® 555 Conjugate) #83539 (yellow), α-Smooth Muscle Actin (D4K9N) XP® Rabbit mAb (Alexa Fluor® 647 Conjugate) #76113 (red), and ProLong Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 62: Extracellular Matrix Dynamics Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse liver labeled with COL1A1 (E8F4L) XP® Rabbit mAb (green), α-Smooth Muscle Actin (D4K9N) XP® Rabbit mAb (Alexa Fluor® 647 Conjugate) #76113 (red) and ProLong Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 63: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of U-118 MG cells (left, positive) and HT-29 cells (right, negative) using COL1A1 (E8F4L) XP® Rabbit mAb (green). Actin filaments were labeled with DyLight™ 554 Phalloidin #13054 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 64: Extracellular Matrix Dynamics Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
