Revision 1

#42135Store at -20C

1 个试剂盒

(9 x 20 microliters)

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Product Includes Product # Quantity Mol. Wt Isotype/Source
Myelin Basic Protein (E9P7U) Mouse mAb 83683 20 µl 12-18 kDa Mouse IgG2b kappa
PLP1 (E9V1N) Rabbit mAb 28702 20 µl 20-30 kDa Rabbit IgG
MOG (E5K6T) XP® Rabbit mAb 96457 20 µl 46, 35, 28, 23 kDa Rabbit IgG
MAG (D4G3) XP® Rabbit mAb 9043 20 µl 100 kDa Rabbit IgG
Caspr (D8I3V) Rabbit mAb 97736 20 µl 190 kDa Rabbit IgG
Caspr2 (D6S1O) Rabbit mAb 61962 20 µl 150 kDa Rabbit IgG
Neurofascin 155 (D7B6O) Rabbit mAb 15035 20 µl 140-155 kDa Rabbit IgG
Neurofascin 186 (D6G6O) Rabbit mAb 15034 20 µl 200 kDa Rabbit IgG
β3-Tubulin (D71G9) XP® Rabbit mAb 5568 20 µl 55 kDa Rabbit IgG
Anti-rabbit IgG, HRP-linked Antibody 7074 100 µl Goat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Demyelinating Disease Targets Antibody Sampler Kit provides an economical means of detecting the protein components of myelin sheath. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibodies.

Background

Myelin is the insulating material surrounding neuronal axons. The function of myelin is to promote action potential propagation down the axon to the axon terminal. Myelin is formed in the central nervous system (CNS) by specialized glial cells called oligodendrocytes and by Schwann cells in the peripheral nervous system (PNS). Oligodendrocytes and Schwann cells make concentric rings, called the myelin sheath, around the axon at regular intervals. These intervals, called nodes of ranvier, are enriched in structural proteins and ion channels, which help promote action potential propagation. Several proteins are enriched in the myelin sheath and likely help mediate the tight multi-layered membranes that make up the sheath. These proteins include myelin basic protein (MBP, [1]), myelin-associated glycoprotein (MAG, [2]), myelin proteolipid protein (PLP1, [3]) and  myelin-oligodendrocyte glycoprotein (MOG, [4]). Contactin-associated protein (Caspr) 1 & 2 (5,6) and neurofascin 155 & 186 (7,8) are nodes of ranvier-associated proteins that may play roles in generating the regular intervals of myelin along the axon. Expression of several of these proteins are altered in demyelinating diseases such as multiple sclerosis (MS). Additionally, mislocalization and/or altered expression of these proteins, compared to the axonal protein β3-tubulin, may represent altered myelin function.

  1. Harauz, G. and Boggs, J.M. (2013) J Neurochem 125, 334-61.
  2. Li, M. et al. (1996) J Neurosci Res 46, 404-14.
  3. Thomson, C.E. et al. Dev Neurosci 27, 27-36.
  4. Johns, T.G. and Bernard, C.C. (1999) J Neurochem 72, 1-9.
  5. Rios, J.C. et al. (2000) J Neurosci 20, 8354-64.
  6. Einheber, S. et al. (1997) J Cell Biol 139, 1495-506.
  7. Charles, P. et al. (2002) Curr Biol 12, 217-20.
  8. Thaxton, C. et al. (2011) Neuron 69, 244-57.

Background References

    Trademarks and Patents

    Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
    XP is a registered trademark of Cell Signaling Technology, Inc.
    All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

    限制使用

    除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

    专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

    Revision 1
    #42135

    Demyelinating Disease Targets Antibody Sampler Kit

    Demyelinating Disease Targets Antibody Sampler Kit: Image 1 Expand Image
    Confocal immunofluorescent analysis of fixed frozen mouse subiculum from wild-type (left) or an amyloid mouse model of Alzheimer's disease (right) using PLP1 (E9V1N) Rabbit mAb (green). After blocking free secondary antibody binding sites with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, the tissue was then labeled using β-Amyloid (D54D2) XP® Rabbit mAb (Alexa Fluor® 594 Conjugate) #35363 (red) and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
    Demyelinating Disease Targets Antibody Sampler Kit: Image 2 Expand Image
    Confocal immunofluorescent analysis of fixed frozen mouse hippocampus from wild-type (left) or an amyloid mouse model of Alzheimer's disease (right) using PLP1 (E9V1N) Rabbit mAb (green). After blocking free secondary antibody binding sites with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, the tissue was then labeled using Iba1/AIF-1 (E4O4W) XP® Rabbit mAb (Alexa Fluor® 555 Conjugate) (red) and ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
    Demyelinating Disease Targets Antibody Sampler Kit: Image 3 Expand Image
    使用 Neurofascin 186 (D6G6O) Rabbit mAb(上)和 β-Actin (D6A8) Rabbit mAb #8457(下)对小鼠大脑、小鼠肺和大鼠脑细胞提取物进行蛋白质印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 4 Expand Image
    使用 Neurofascin 155 (D7B6O) Rabbit mAb(上)和 β-Actin (D6A8) Rabbit mAb #8457(下)对小鼠大脑、小鼠肺和大鼠脑细胞提取物进行蛋白质印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 5 Expand Image
    使用 PLP1 (E9V1N) Rabbit mAb(上图)和 α-Actinin (D6F6) XP® Rabbit mAb #6487(下图)对不同组织的提取物进行蛋白印迹分析。上部条带对应全长 PLP1,而下部条带则是 PLP1 的选择性剪切体,称为 DM20。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 6 Expand Image
    使用 β3-Tubulin (D71G9) XP® Rabbit mAb,对 HeLa 细胞和人体小脑进行蛋白质印迹法分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 7 Expand Image
    使用 Caspr2 (D6S1O) Rabbit mAb,对小鼠和大鼠脑提取物进行蛋白质印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 8 Expand Image
    一抗与靶标蛋白结合之后,与偶联 HRP 的二抗形成复合体。添加 LumiGLO®,在酶催化分解期间发光。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 9 Expand Image
    使用 Myelin Basic Protein (E9P7U) Mouse mAb(上图)和 β-Actin (D6A8) Rabbit mAb #8457(下图)对不同组织和细胞系的提取物进行蛋白印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 10 Expand Image
    使用 MAG (D4G3) XP® Rabbit mAb,对小鼠脑、大鼠脑和人体小脑的提取物进行蛋白质印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 11 Expand Image
    使用 MOG (E5K6T) XP® 兔单克隆抗体(上图)和 β-肌动蛋白 (D6A8) 兔单克隆抗体 #8457(下图)对各种组织的提取物进行蛋白质印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 12 Expand Image
    使用 Caspr (D8I3V) Rabbit mAb(上图)和 α-Actinin (D6F6) XP® Rabbit mAb (HRP Conjugate) #12413(下图),对小鼠脑细胞、小鼠胰腺细胞、人小脑细胞和人胰腺细胞的提取物进行蛋白质印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 13 Expand Image

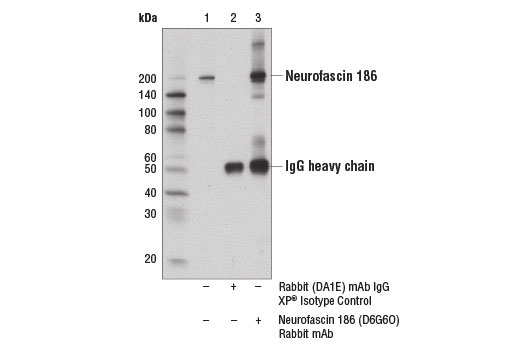

    使用 Rabbit (DA1E) mAb IgG XP® Isotype Control #3900(泳道 2)或 Neurofascin 186 (D6G6O) Rabbit mAb(泳道 3)对小鼠脑细胞提取物神经束蛋白 186 进行免疫沉淀。泳道 1 是 10% 输入对照。使用 Neurofascin 186 (D6G6O) Rabbit mAb 进行蛋白质印迹分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 14 Expand Image
    使用 Neurofascin 186 (D6G6O) Rabbit mAb(左,绿色)或 Neurofascin 155 (D7B6O) Rabbit mAb # 15035(右,绿色)对小鼠坐骨神经细胞进行共聚焦免疫荧光分析。神经纤维细丝 L 蛋白用 Neurofilament-L (DA2) Mouse mAb #2835(红色)标记。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 15 Expand Image
    使用 PLP1 (E9V1N) Rabbit mAb(绿色)和 GFAP (GA5) Mouse mAb #3670(红色)对小鼠小脑(左图)和纹状体(右图)细胞进行共聚焦免疫荧光分析。样本用 ProLong® Gold Antifade Reagent with DAPI #8961(蓝色)封片。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 16 Expand Image

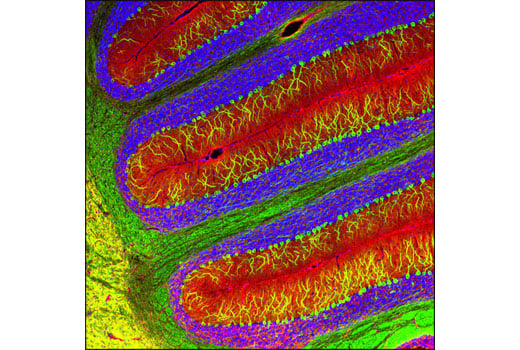

    使用 β3-Tubulin (D71G9) XP® Rabbit mAb(绿色)和 Tau(红色)对小鼠小脑进行共聚焦免疫荧光分析。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 17 Expand Image
    使用 Myelin Basic Protein (E9P7U) Mouse mAb(绿色)和 PDGF Receptor α (D1E1E) XP® Rabbit mAb #3174(红色)对小鼠脑细胞进行共聚焦免疫荧光分析。样品用 Prolong® Gold Antifade Reagent with DAPI #8961(蓝色)封装。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 18 Expand Image
    使用 MAG (D4G3) XP® Rabbit mAb (绿色),对大鼠小脑进行共聚焦免疫荧光分析。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 19 Expand Image

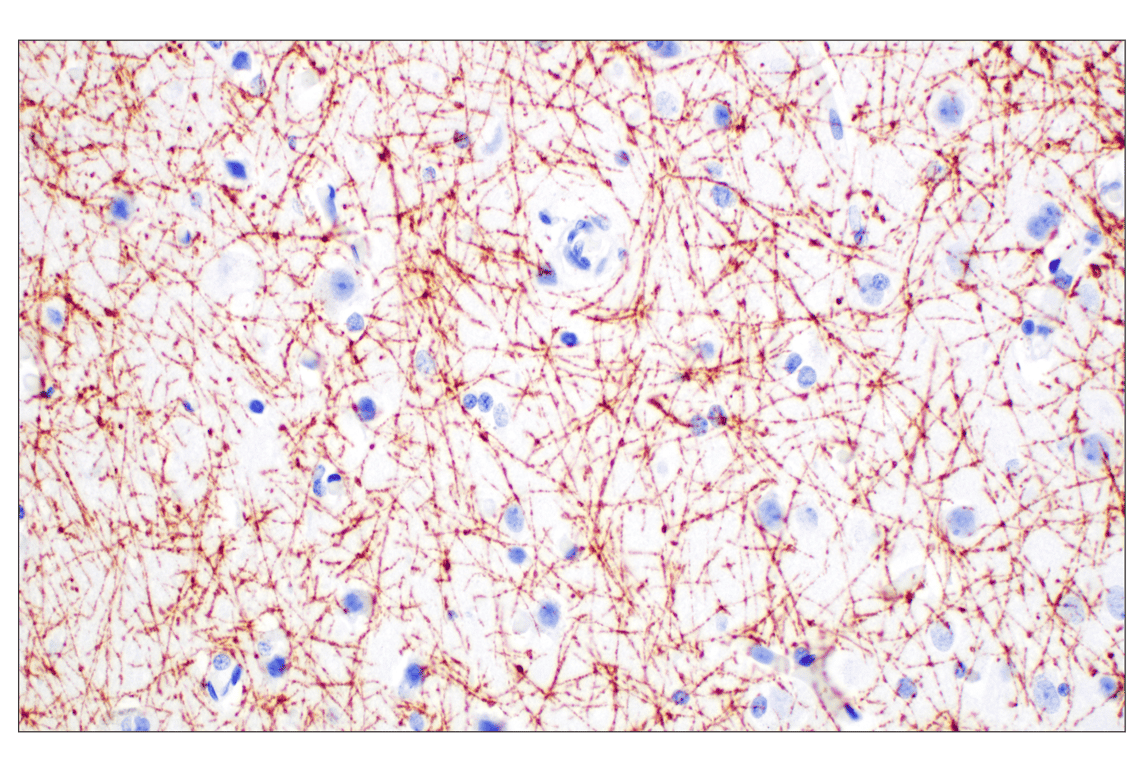

    使用 MOG (E5K6T) XP® 兔单克隆抗体对石蜡包埋的人小脑细胞进行免疫组织化学分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 20 Expand Image
    使用 Caspr (D8I3V) Rabbit mAb(绿色)对小鼠坐骨神经进行共聚焦免疫荧光分析。肌动蛋白微丝由 DyLight 554 Phalloidin #13054(红色)标记。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 21 Expand Image

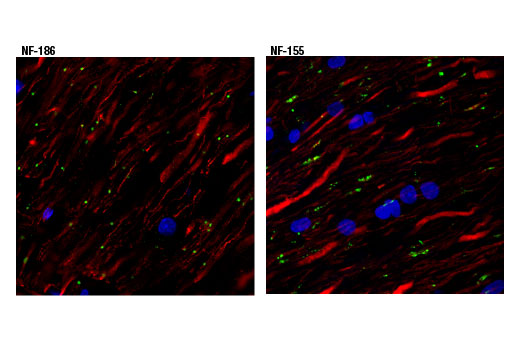

    使用 Neurofascin 186 (D6G6O) Rabbit mAb(左,绿色)或 Neurofascin 155 (D7B6O) Rabbit mAb # 15035(右,绿色)对小鼠坐骨神经细胞进行共聚焦免疫荧光分析。神经纤维细丝 L 蛋白用 Neurofilament-L (DA2) Mouse mAb #2835(红色)标记。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 22 Expand Image

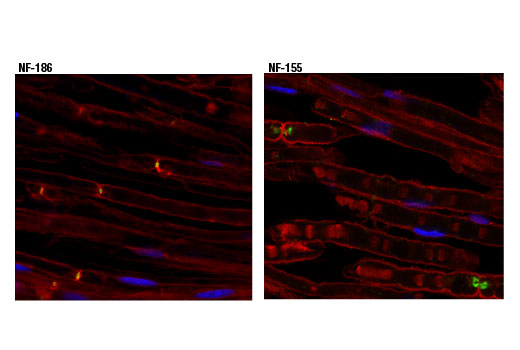

    使用 Neurofascin 186 (D6G6O) Rabbit mAb(左,绿色)或 Neurofascin 155 (D7B6O) Rabbit mAb # 15035(右,绿色)对大鼠脊髓细胞进行共聚焦免疫荧光分析。β3-微管蛋白用 β3-Tubulin (TU-20) Mouse mAb #4466(红色)标记。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 23 Expand Image
    使用 β3-Tubulin (D71G9) XP® Rabbit mAb(绿色),对用视黄酸分化的 P19 细胞进行共聚焦免疫荧光分析。使用 DY-554 phalloidin(红色)标记肌动蛋白纤丝。蓝色伪彩= DRAQ5 #4084®(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 24 Expand Image
    使用 Myelin Basic Protein (E9P7U) Mouse mAb(绿色,小鼠 IgG2b)和 Synaptophysin (7H12) Mouse mAb (IF Formulated) #9020(红色,小鼠 IgG1)对(左图,缩小)或(小图,放大)小鼠海马细胞进行共聚焦免疫荧光分析。样本用 ProLong® Gold Antifade Reagent with DAPI #8961(蓝色)封片。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 25 Expand Image
    使用 MOG (E5K6T) XP® 兔单克隆抗体对石蜡包埋的小鼠脑细胞进行免疫组织化学分析。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 26 Expand Image
    使用 Neurofascin 186 (D6G6O) Rabbit mAb(左,绿色)或 Neurofascin 155 (D7B6O) Rabbit mAb # 15035(右,绿色)对大鼠脊髓细胞进行共聚焦免疫荧光分析。β3-微管蛋白用 β3-Tubulin (TU-20) Mouse mAb #4466(红色)标记。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 27 Expand Image
    使用 OG (E5K6T) XP® 兔单克隆抗体对石蜡包埋的小鼠小脑细胞(左图,阳性)或结肠细胞(右图,阴性)进行免疫组织化学分析。注意,小鼠结肠中的肠肌丛节细胞中并无染色。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 28 Expand Image

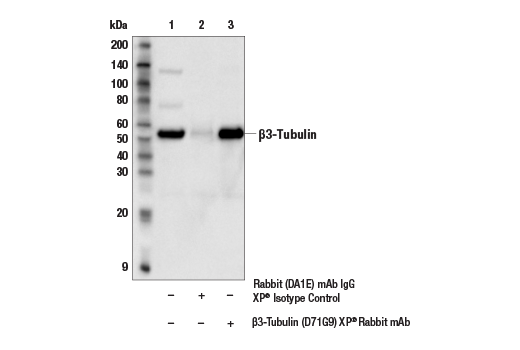

    对小鼠脑组织提取物 β3-Tubulin 蛋白进行免疫沉淀分析。泳道 1 为 10% input,泳道 2 为 Rabbit (DA1E) mAb IgG XP® Isotype Control #3900,泳道 3 为 β3-Tubulin (D71G9) XP® Rabbit mAb。使用 β3-Tubulin (D71G9) XP® Rabbit mAb 进行蛋白质印迹分析。Mouse Anti-rabbit IgG (Conformation Specific) (L27A9) mAb #3678 用作二抗。
    Demyelinating Disease Targets Antibody Sampler Kit: Image 29 Expand Image
    使用 MOG (E5K6T) XP® 兔单克隆抗体 对石蜡包埋的大鼠脑细胞进行免疫组织化学分析。
