Revision 1

#11843

Store at -20C

Cell Fractionation Antibody Sampler Kit

1 Kit

(4 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
MEK1/2 (D1A5) Rabbit mAb872720 µl45 kDaRabbit IgG
AIF (D39D2) XP® Rabbit mAb531820 µl67 kDaRabbit IgG
Histone H3 (D1H2) XP® Rabbit mAb449920 µl17 kDaRabbit IgG
Vimentin (D21H3) XP® Rabbit mAb574120 µl57 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Cell Fractionation Antibody Sampler Kit provides an economical means for determining the purity of each distinctly separated subcellular fraction by western blot using Cell Signaling Technology's Cell Fractionation Kit #9038. This antibody sampler kit includes enough primary antibody to perform at least two western blots per primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Knowledge of the subcellular location of a protein may reveal the potential role it plays in a variety of cellular processes. Antibodies in the Cell Fractionation Antibody Sampler Kit can be used as a marker to ensure that each subcellular fraction is efficiently separated from the next. MEK1 and MEK2, also called MAPK or Erk Kinases, are dual-specificity protein kinases that function in a mitogen activated protein kinase cascade (1). Apoptosis-inducing factor (AIF) is a ubiquitously expressed flavoprotein that plays a critical role in caspase-independent apoptosis (2). Core histone protein, H3 is one of the primary building blocks of chromatin that makes up the nucleosome (3). Vimentin is a cell-specific intermediate filament with mesenchyme origin that contributes to making up of the cytoskeleton (4). MEK1/2, AIF, histone H3, and vimentin localize to the cytoplasm, mitochondria, nucleus, and cytoskeleton, respectively.

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Histone H3 (D1H2) XP® Rabbit mAb.
undefined Image 1: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Histone H3 (D1H2) XP® Rabbit mAb.
undefined Image 2: Cell Fractionation Antibody Sampler Kit
Western blot analysis of extracts from Jurkat, C2C12, and C6 cells using AIF (D39D2) XP® Rabbit mAb.
undefined Image 3: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

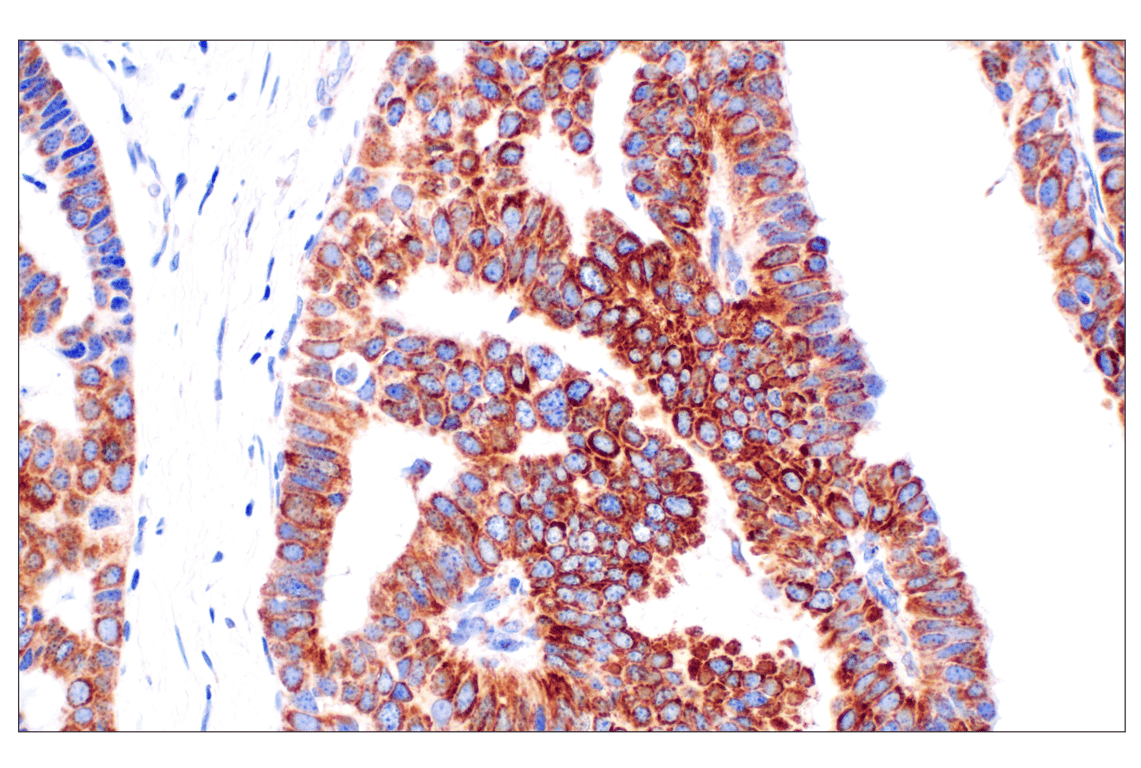

Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using AIF (D39D2) XP® Rabbit mAb.
undefined Image 4: Cell Fractionation Antibody Sampler Kit

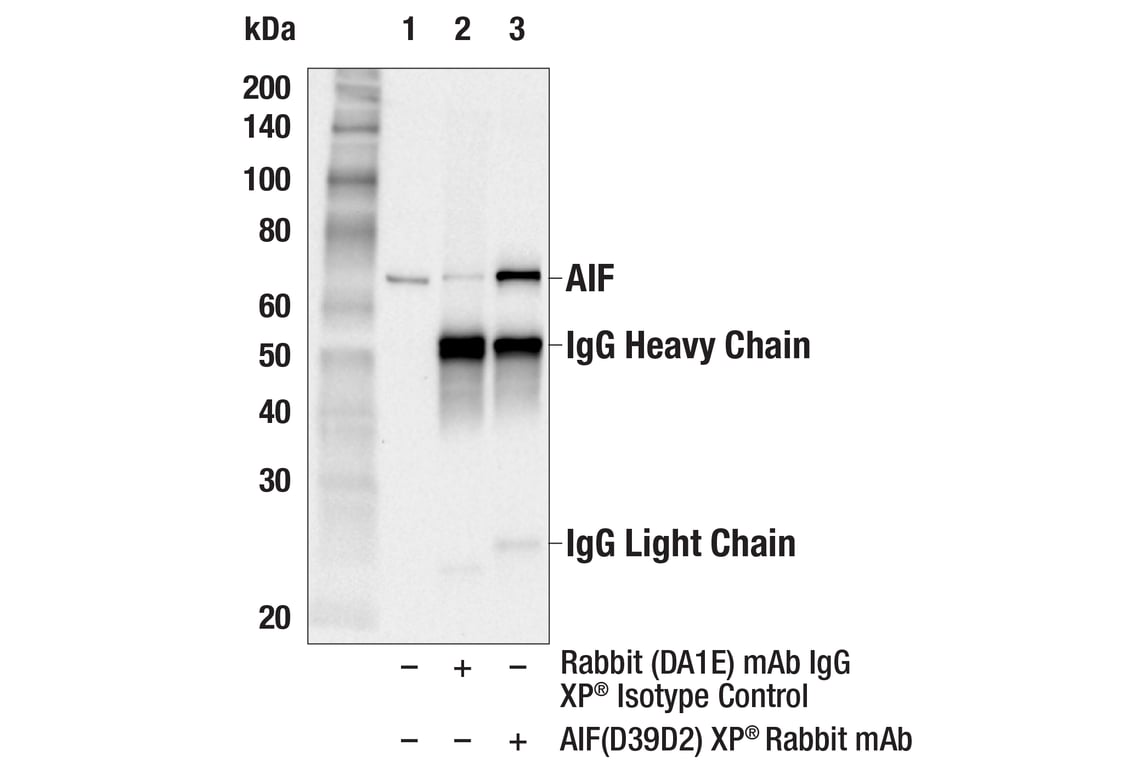

Immunoprecipitation of AIF protein from Jurkat cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is AIF (D39D2) XP® Rabbit mAb. Western blot analysis was performed using AIF (D39D2) XP® Rabbit mAb. Anti-rabbit IgG, HRP-linked Antibody #7074 was used as a secondary antibody.
undefined Image 5: Cell Fractionation Antibody Sampler Kit

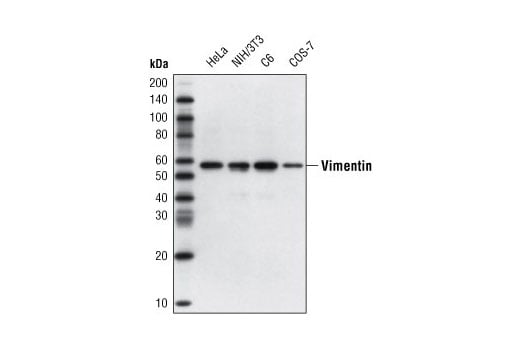

Western blot analysis of extracts from various cell lines using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 6: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

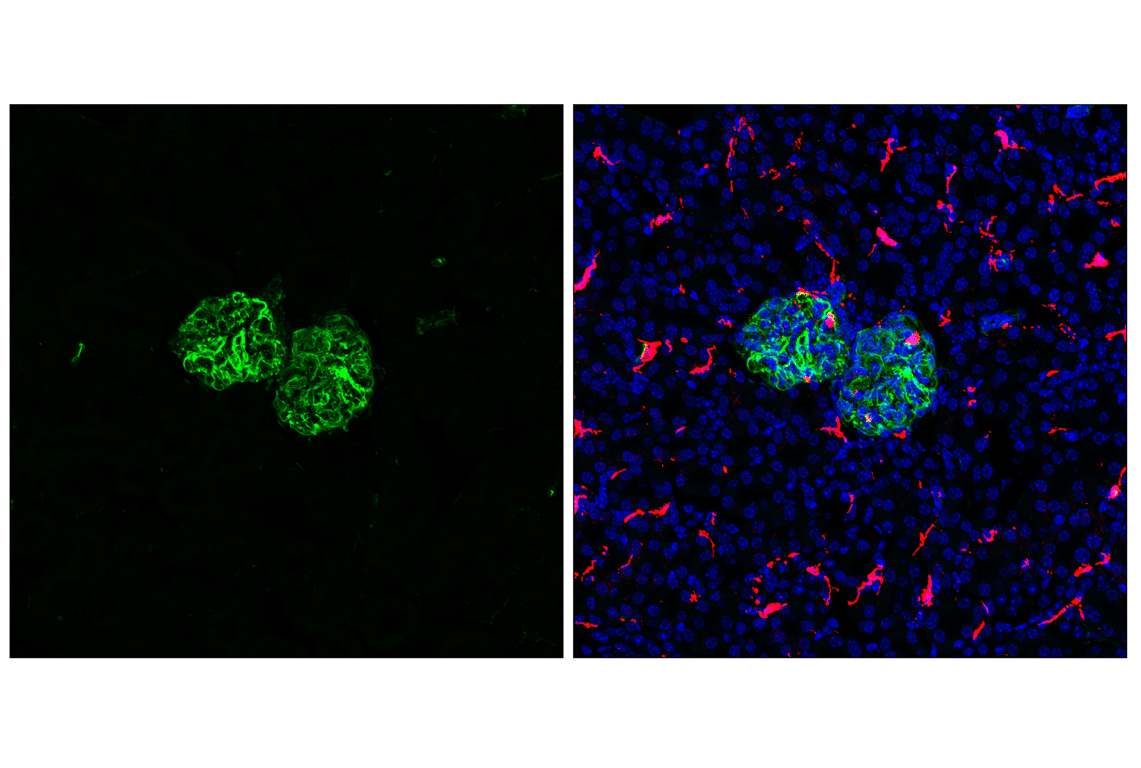

Confocal immunofluorescent analysis of fixed frozen mouse kidney labeled with Vimentin (D21H3) XP® Rabbit mAb (left, green) and co-labeled with F4/80 (BM8.1) Rat mAb (right, red), and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 7: Cell Fractionation Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse colon labeled with Vimentin (D21H3) XP® Rabbit mAb (left, green) and co-labeled with F4/80 (BM8.1) Rat mAb (right, red), and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 8: Cell Fractionation Antibody Sampler Kit

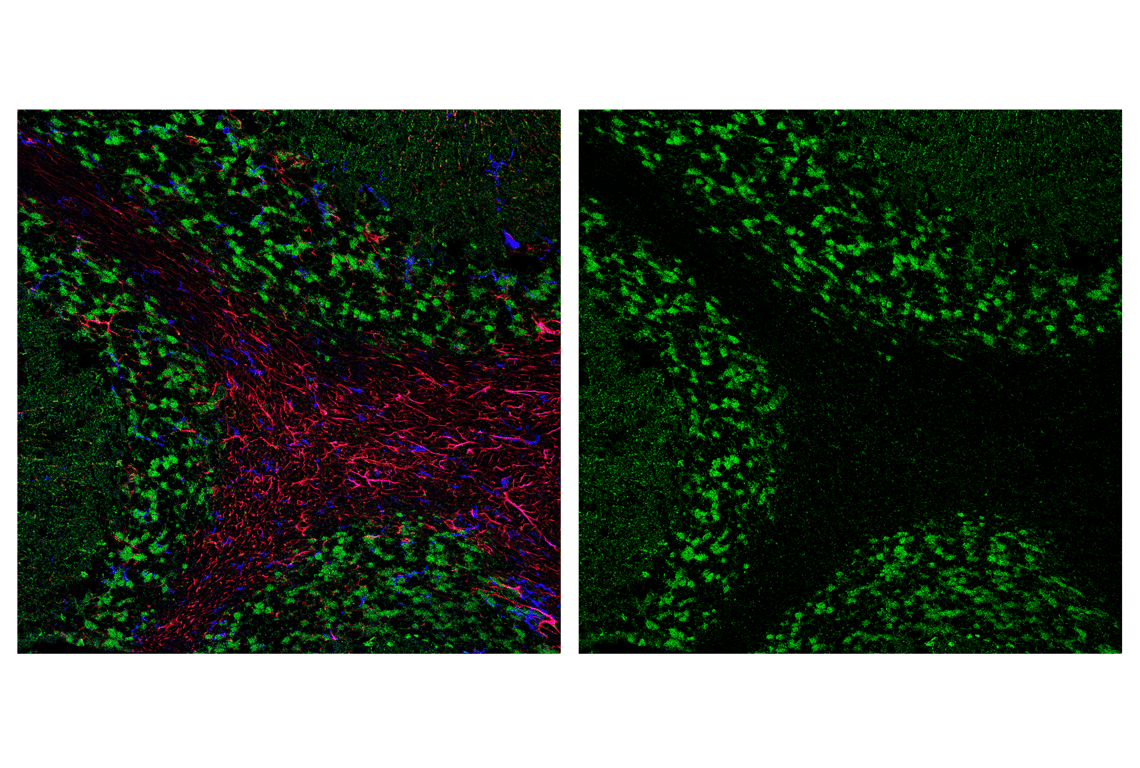

Confocal immunofluorescent analysis of fixed frozen mouse cerebellum labeled with Vimentin (D21H3) XP® Rabbit mAb (left, green) and co-labeled with F4/80 (BM8.1) Rat mAb (right, red), and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 9: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

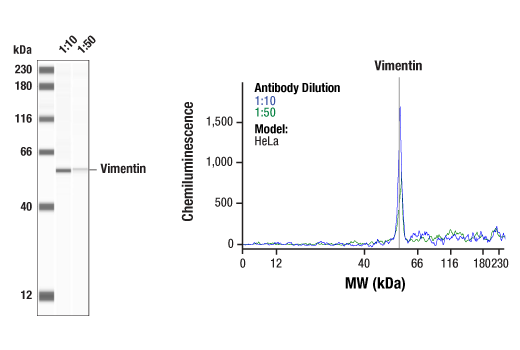

Simple Western™ analysis of lysates (1 mg/mL) from HeLa cells using Vimentin (D21H3) XP ® Rabbit mAb #5741. The virtual lane view (left) shows a single target band (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the Jess™ Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
undefined Image 10: Cell Fractionation Antibody Sampler Kit
Confocal immunofluorescent analysis of fixed frozen mouse cerebellum labeled with Vimentin (D21H3) XP® Rabbit mAb (left, green) and co-labeled with F4/80 (BM8.1) Rat mAb (right, red), and ProLong® Gold Antifade Reagent with DAPI #8961 (right, blue).
undefined Image 11: Cell Fractionation Antibody Sampler Kit

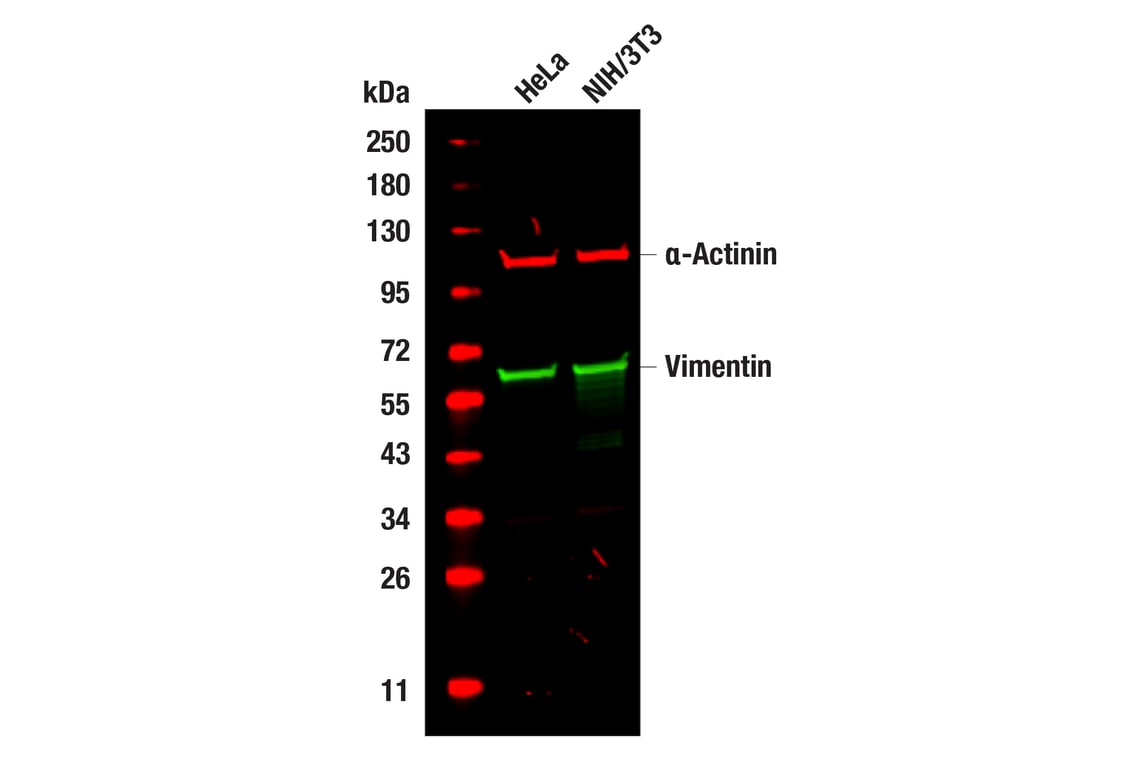

Western blot analysis of extracts from HeLa and NIH/3T3 cells using Vimentin (D21H3) XP® Rabbit mAb #5741 (green), and α-Actinin (E7U1O) Mouse mAb #69758 (red). Anti-rabbit IgG (H+L) (DyLight 800 4X PEG Conjugate) #5151 (green) and Anti-mouse IgG (H+L) (DyLight 680 Conjugate) #5470 (red) were used as secondary antibodies.
undefined Image 12: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 13: Cell Fractionation Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using MEK1/2 (D1A5) Rabbit mAb.
undefined Image 14: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded 4T1 syngeneic mammary tumor using Histone H3 (D1H2) XP® Rabbit mAb.
undefined Image 15: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human papillary thyroid carcinoma using AIF (D39D2) XP® Rabbit mAb.
undefined Image 16: Cell Fractionation Antibody Sampler Kit

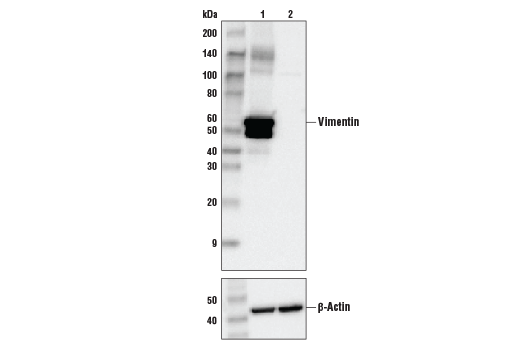

Western blot analysis of extracts from control HeLa cells (lane 1) or Vimentin knockout HeLa cells (lane 2) using Vimentin (D21H3) XP® Rabbit mAb #5741 (upper) or β-Actin (13E5) Rabbit mAb #4970 (lower). The absence of signal in the Vimentin knockout HeLa cells confirms specificity of the antibody for Vimentin.
undefined Image 17: Cell Fractionation Antibody Sampler Kit
Confocal immunofluorescent analysis of HeLa cells using MEK1/2 (D1A5) Rabbit mAb (green). Actin filaments were labeled with DY-554 phalloidin. Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 18: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of HeLa cells using Histone H3 (D1H2) XP® Rabbit mAb (green) and β-Tubulin (9F3) Rabbit mAb (Alexa Fluor® 555 Conjugate) #2116 (red).
undefined Image 19: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded LL/2 syngeneic tumor using Histone H3 (D1H2) XP® Rabbit mAb.
undefined Image 20: Cell Fractionation Antibody Sampler Kit
Confocal immunofluorescent analysis of mouse brainstem using AIF (D39D2) XP® Rabbit mAb #5318 (green) and GFAP (GA5) Mouse mAb #3670 (red). Sections were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 21: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

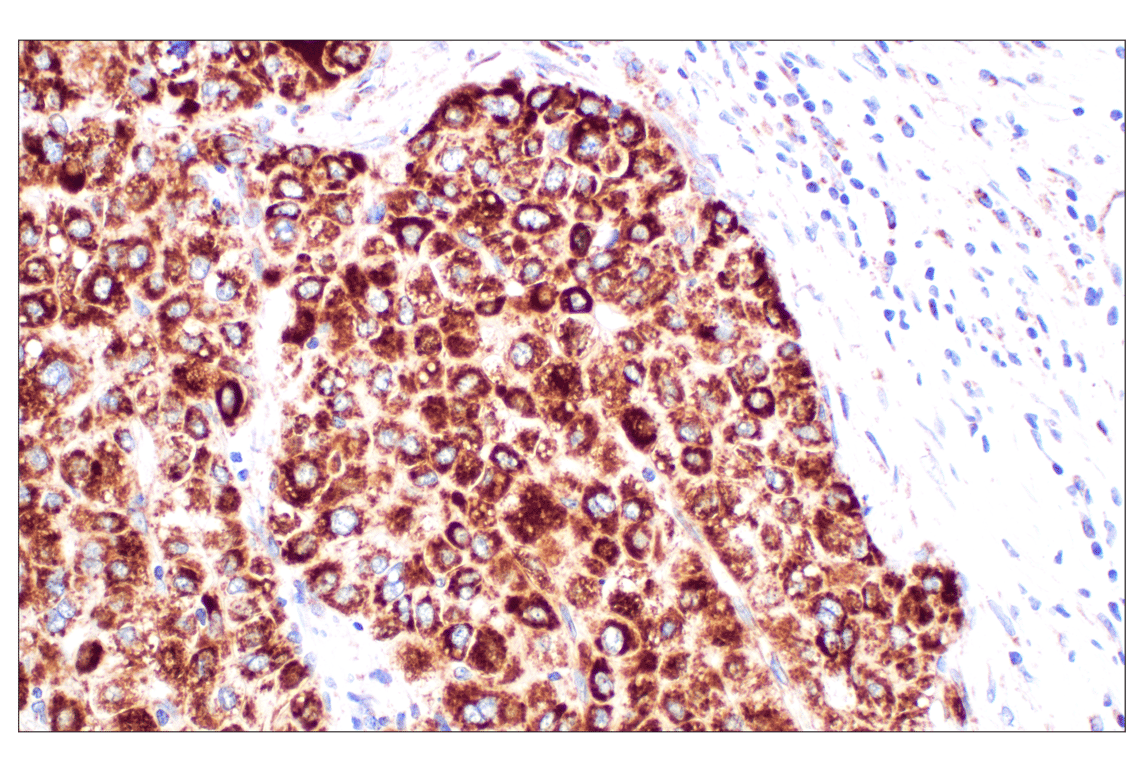

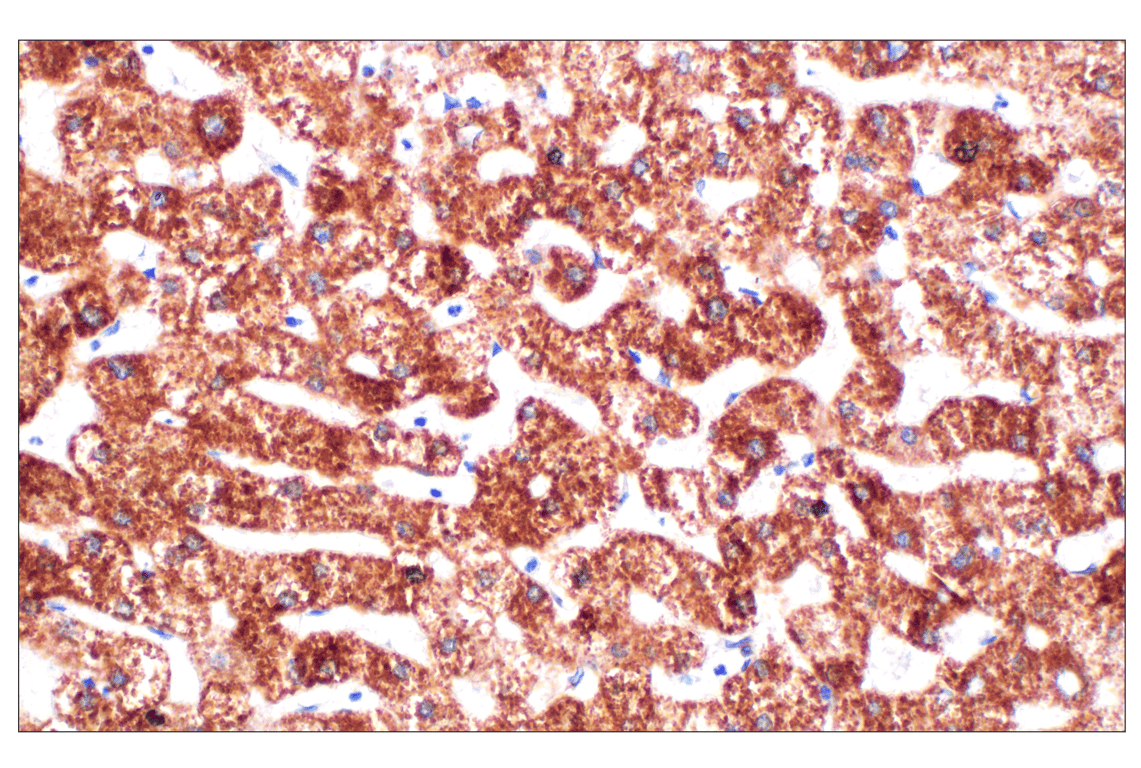

Immunohistochemical analysis of paraffin-embedded human hepatocellular carcinoma using AIF (D39D2) XP® Rabbit mAb.
undefined Image 22: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using Vimentin (D21H3) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 23: Cell Fractionation Antibody Sampler Kit
Flow cytometric analysis of Jurkat cells using MEK1/2 (D1A5) Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 24: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Flow cytometric analysis of HeLa cells using Histone H3 (D1H2) XP® Rabbit mAb (solid line) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 25: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse brain using Histone H3 (D1H2) XP® Rabbit mAb.
undefined Image 26: Cell Fractionation Antibody Sampler Kit
Confocal immunofluorescent analysis of mouse cerebellum using AIF (D39D2) XP® Rabbit mAb #5318 (green), GFAP (GA5) Mouse mAb #3670 (red), and F4/80 (BM8.1) Rat mAb #71299 (blue).
undefined Image 27: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

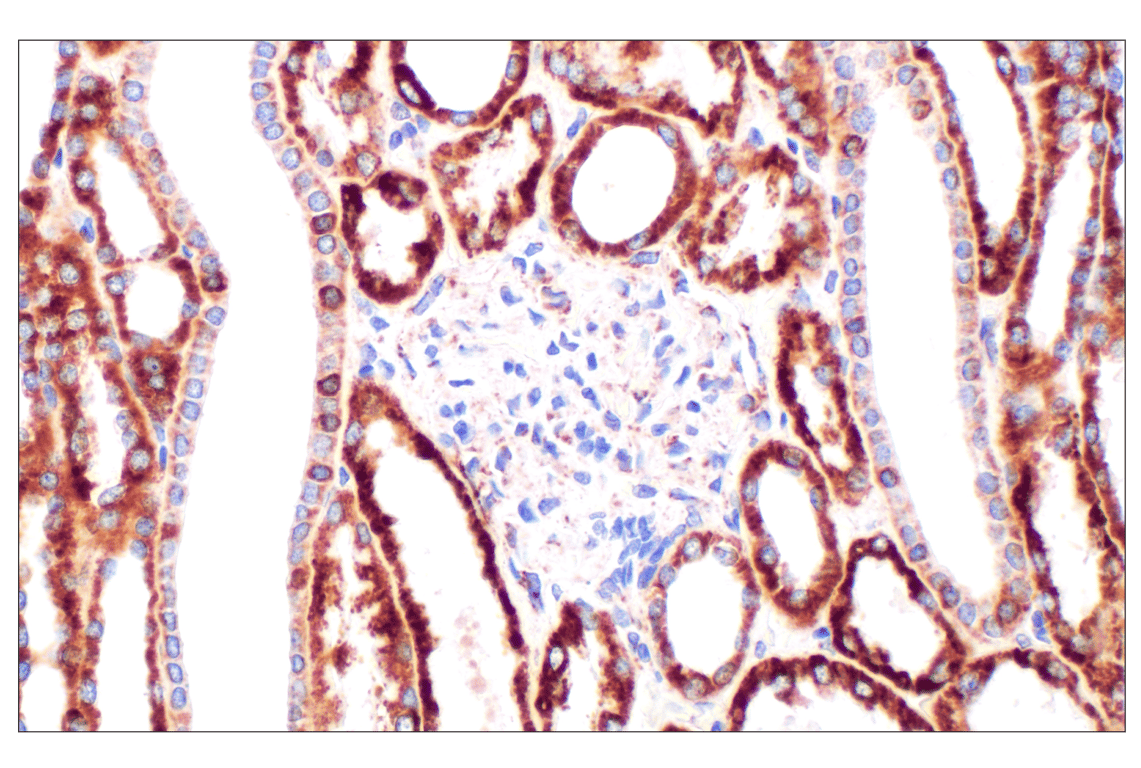

Immunohistochemical analysis of paraffin-embedded human renal cell carcinoma using AIF (D39D2) XP® Rabbit mAb.
undefined Image 28: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using Vimentin (D21H3) XP® Rabbit mAb performed on the Leica® BOND™ Rx.
undefined Image 29: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded rhesus monkey liver using Histone H3 (D1H2) XP® Rabbit mAb.
undefined Image 30: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of mouse striatum using AIF (D39D2) XP® Rabbit mAb #5318 (green), GFAP (GA5) Mouse mAb #3670 (red), and F4/80 (BM8.1) Rat mAb #71299 (blue).
undefined Image 31: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using AIF (D39D2) XP® Rabbit mAb.
undefined Image 32: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human breast carcinoma using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 33: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

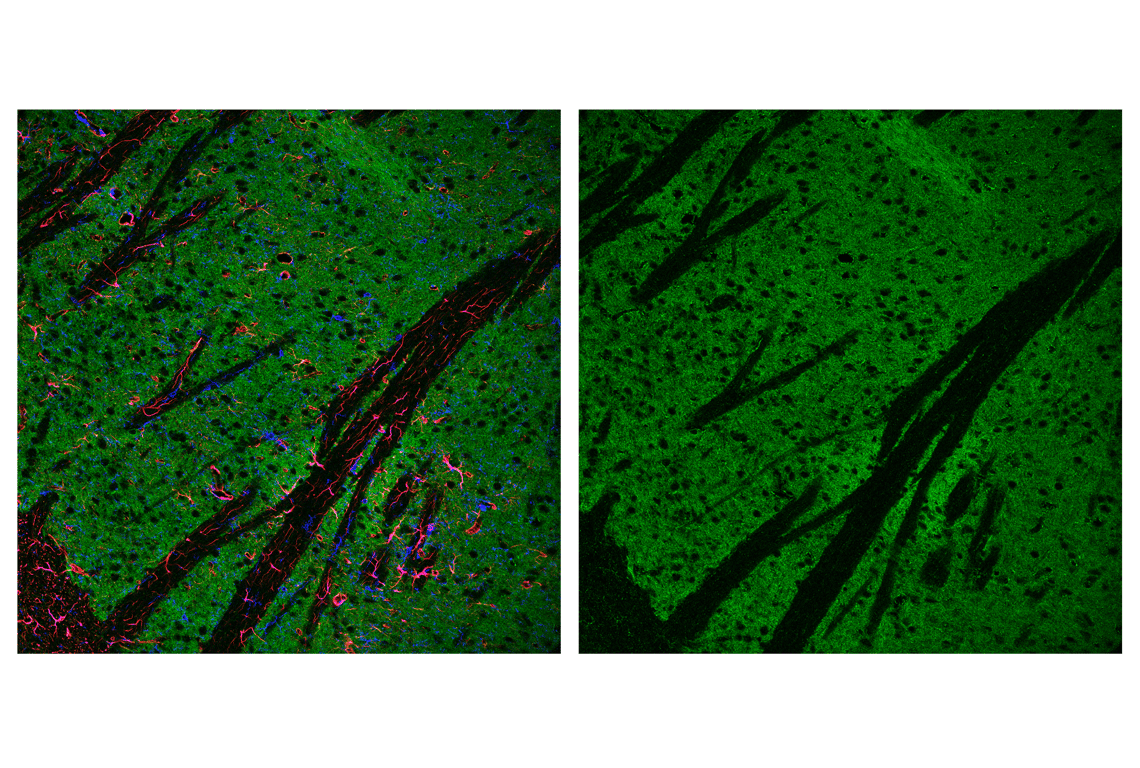

Confocal immunofluorescent analysis of mouse thalamus using AIF (D39D2) XP® Rabbit mAb #5318 (green), GFAP (GA5) Mouse mAb #3670 (red). Sections were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 34: Cell Fractionation Antibody Sampler Kit

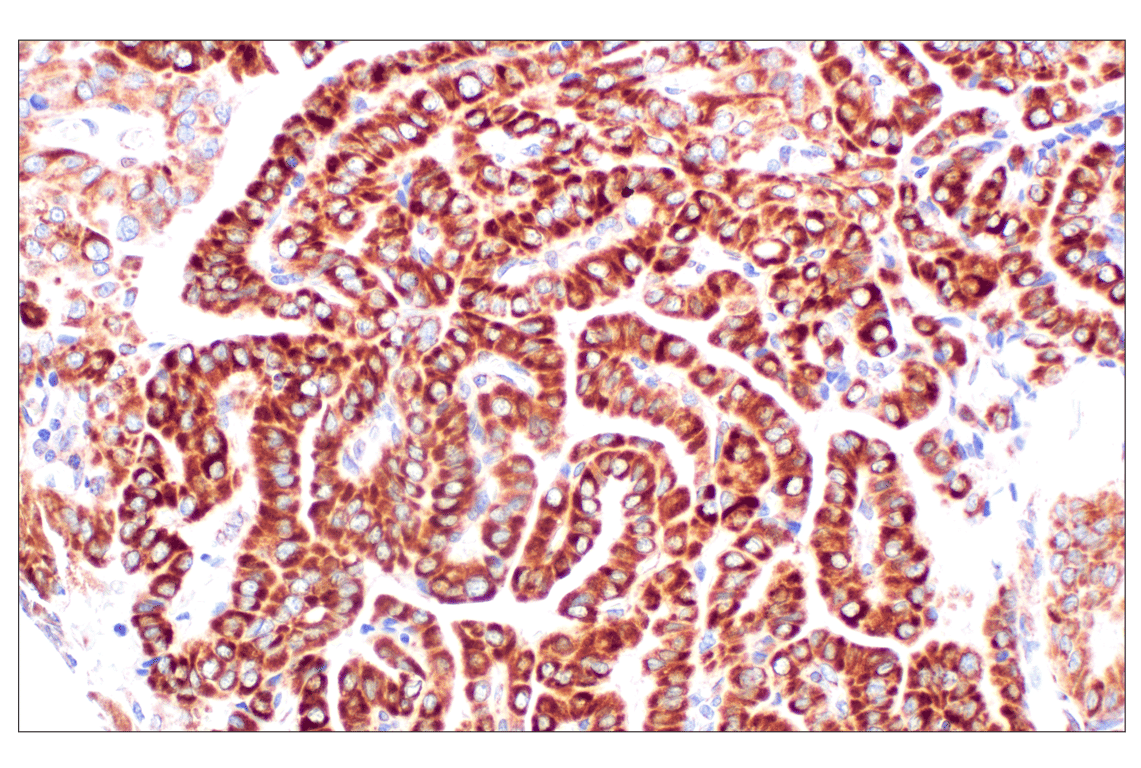

Immunohistochemical analysis of paraffin-embedded human papillary carcinoma of the breast using AIF (D39D2) XP® Rabbit mAb.
undefined Image 35: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse colon using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 36: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of C2C12 cells using AIF (D39D2) XP® Rabbit mAb #5318 (green). Actin filaments were labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 37: Cell Fractionation Antibody Sampler Kit

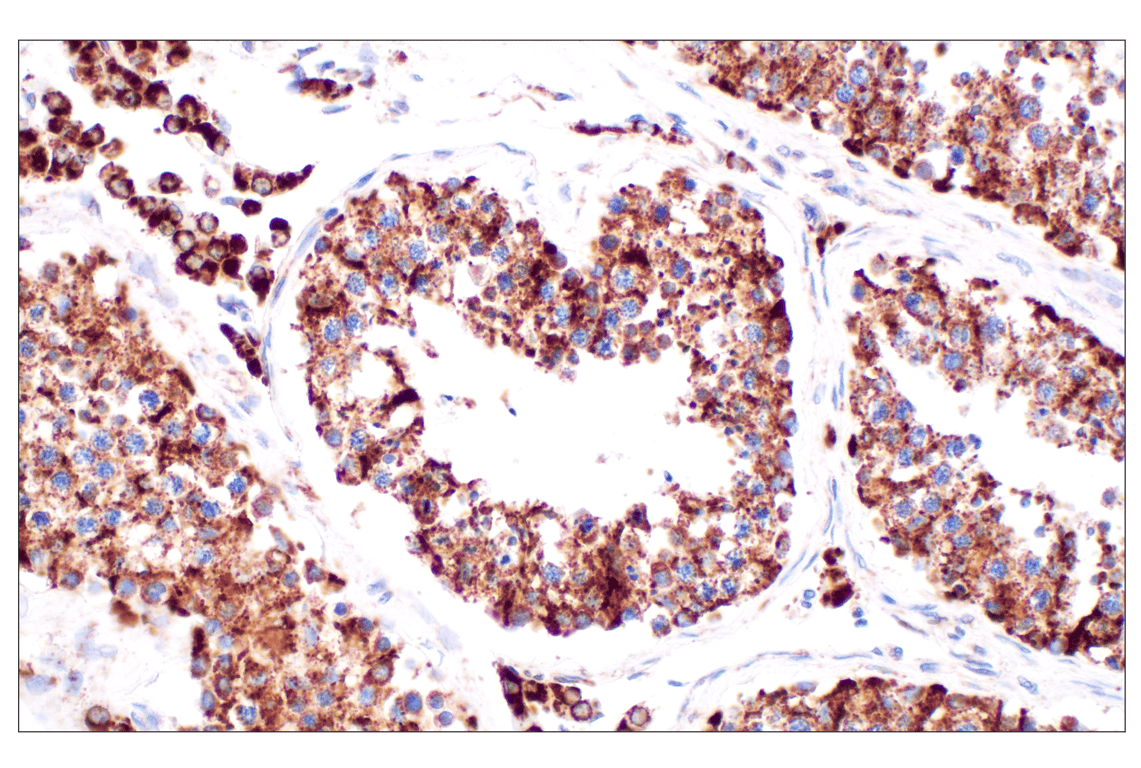

Immunohistochemical analysis of paraffin-embedded normal human testis using AIF (D39D2) XP® Rabbit mAb.
undefined Image 38: Cell Fractionation Antibody Sampler Kit

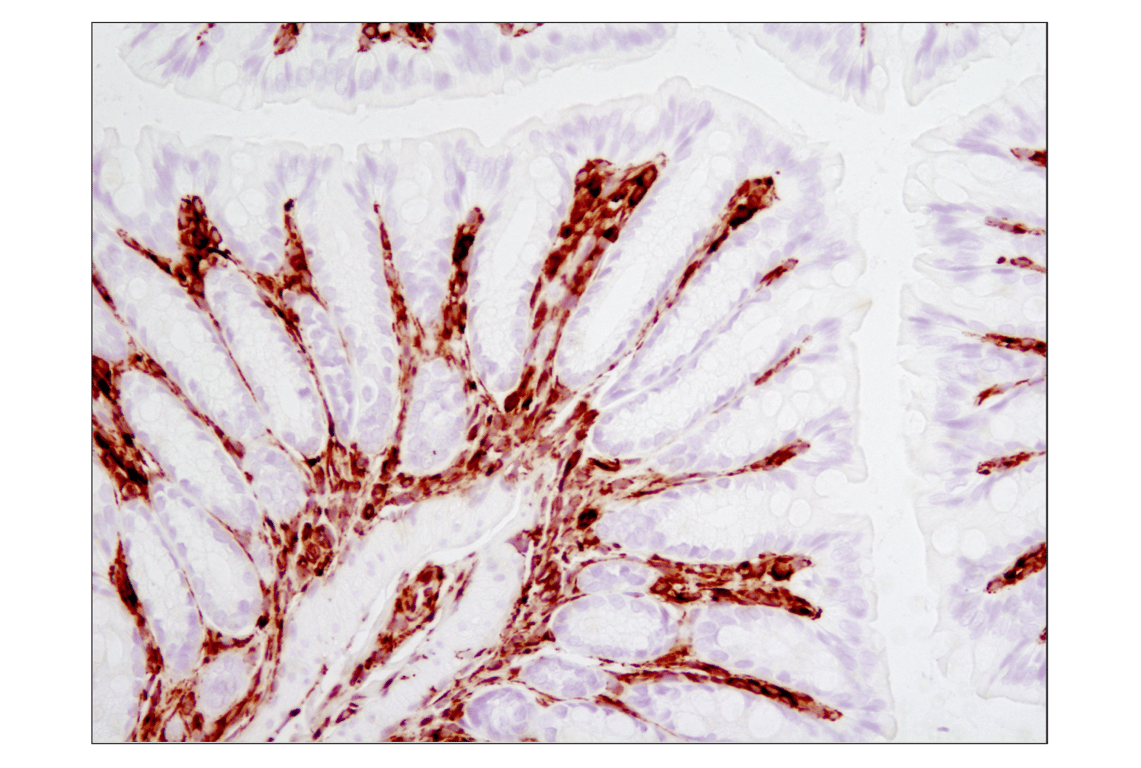

Immunohistochemical analysis of paraffin-embedded rat colon using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 39: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

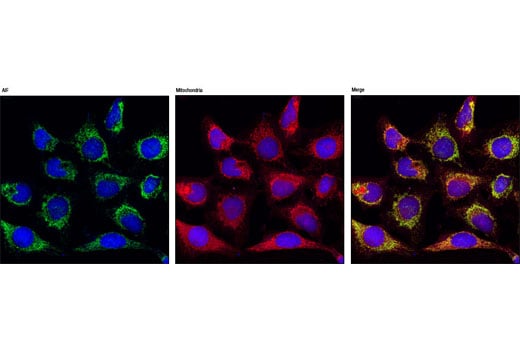

Confocal immunofluorescent analysis of HeLa cells using AIF (D39D2) XP ™ Rabbit mAb (green), showing colocalization with mitochondria that have been labeled with MitoTracker® Red CMXRos (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 40: Cell Fractionation Antibody Sampler Kit

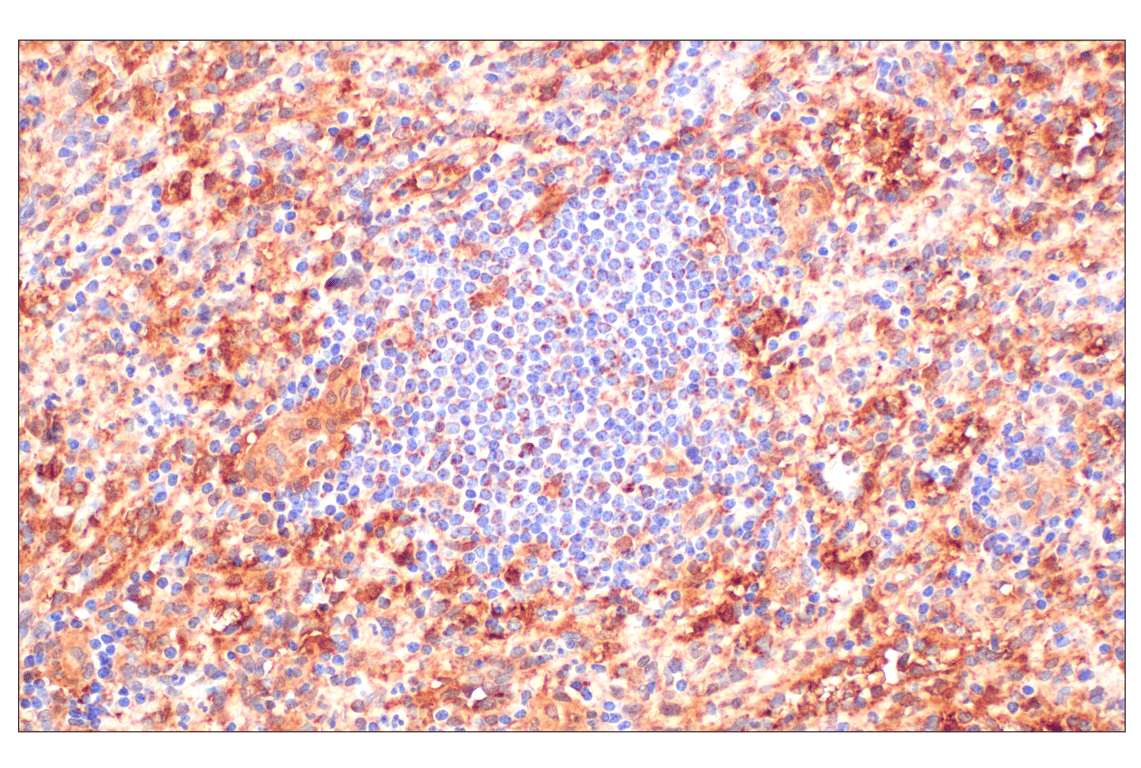

Immunohistochemical analysis of paraffin-embedded normal human spleen using AIF (D39D2) XP® Rabbit mAb.
undefined Image 41: Cell Fractionation Antibody Sampler Kit

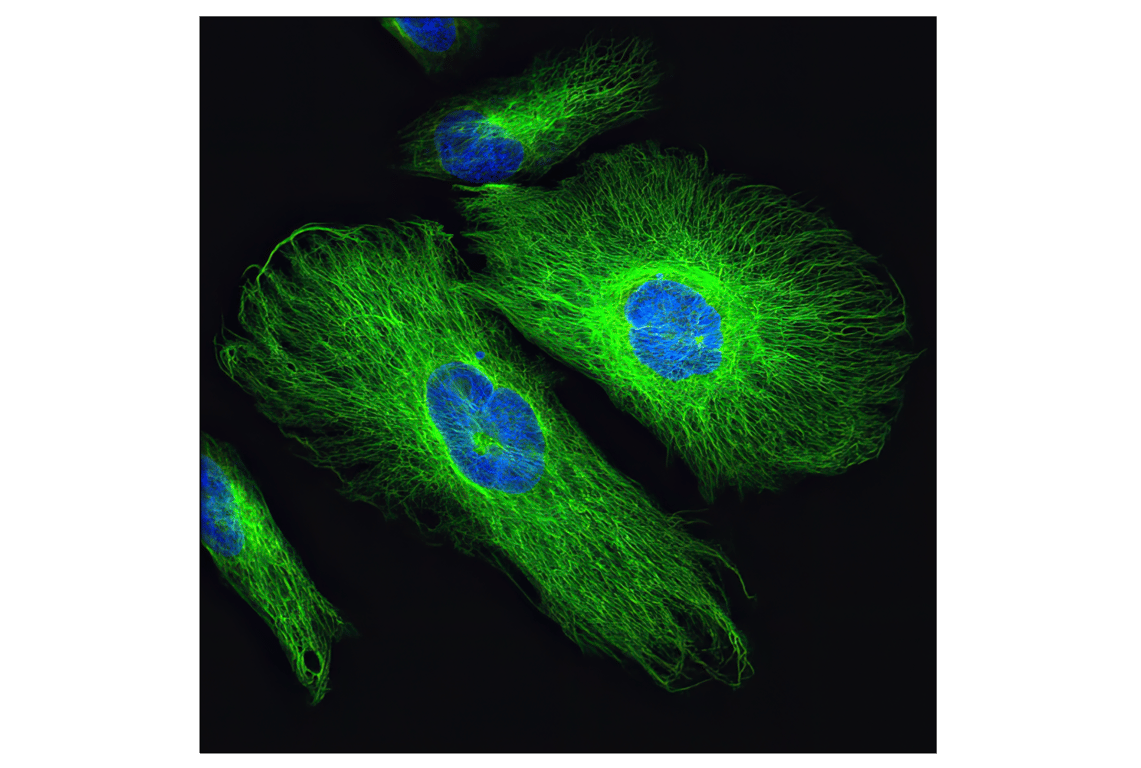

Confocal immunofluorescent analysis of SNB19 cells using Vimentin (D21H3) Rabbit mAb (green). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 42: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded rhesus kidney using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 43: Cell Fractionation Antibody Sampler Kit

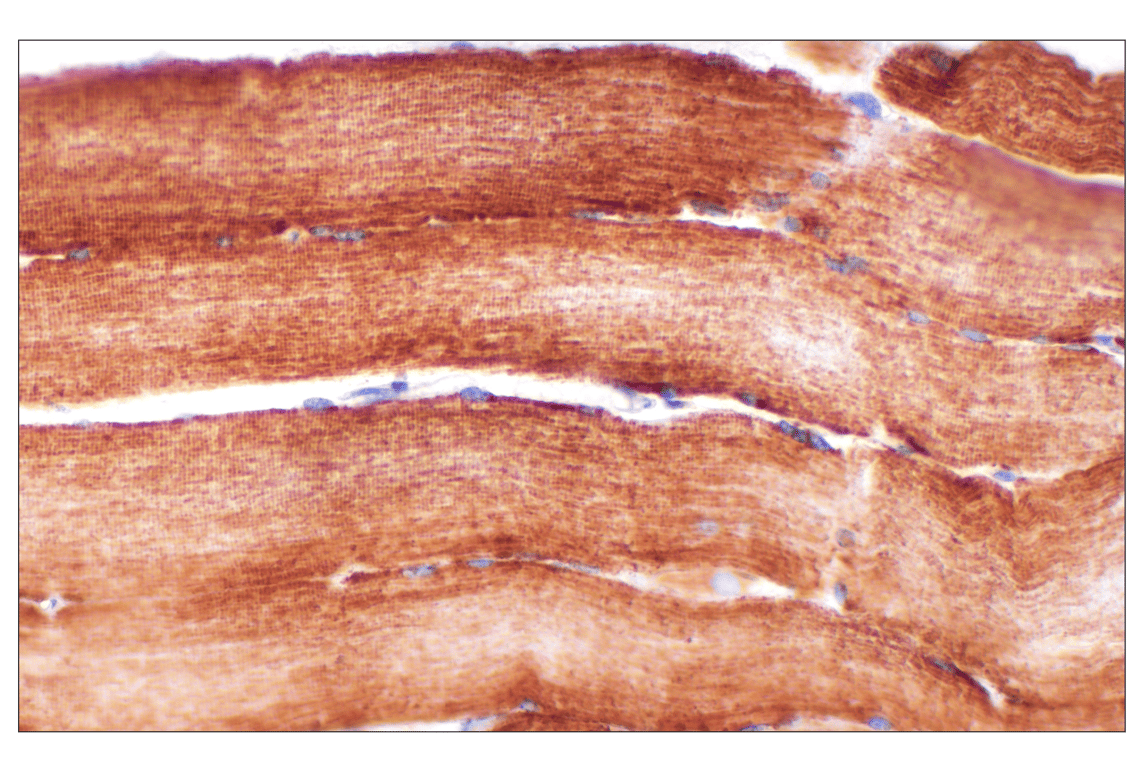

Immunohistochemical analysis of paraffin-embedded normal human skeletal muscle using AIF (D39D2) XP® Rabbit mAb.
undefined Image 44: Cell Fractionation Antibody Sampler Kit

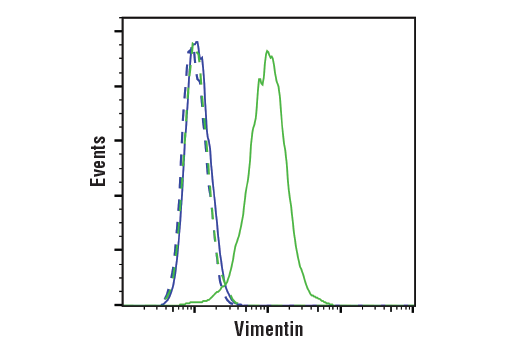

Flow cytometric analysis of MCF7 cells (blue, negative) and HeLa cells (green, positive) using Vimentin (D21H3) XP® Rabbit mAb(solid lines) or a concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed lines). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
undefined Image 45: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded Syrian hamster small intestine using Vimentin (D21H3) XP® Rabbit mAb.
undefined Image 46: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded normal human liver using AIF (D39D2) XP® Rabbit mAb.
undefined Image 47: Cell Fractionation Antibody Sampler Kit

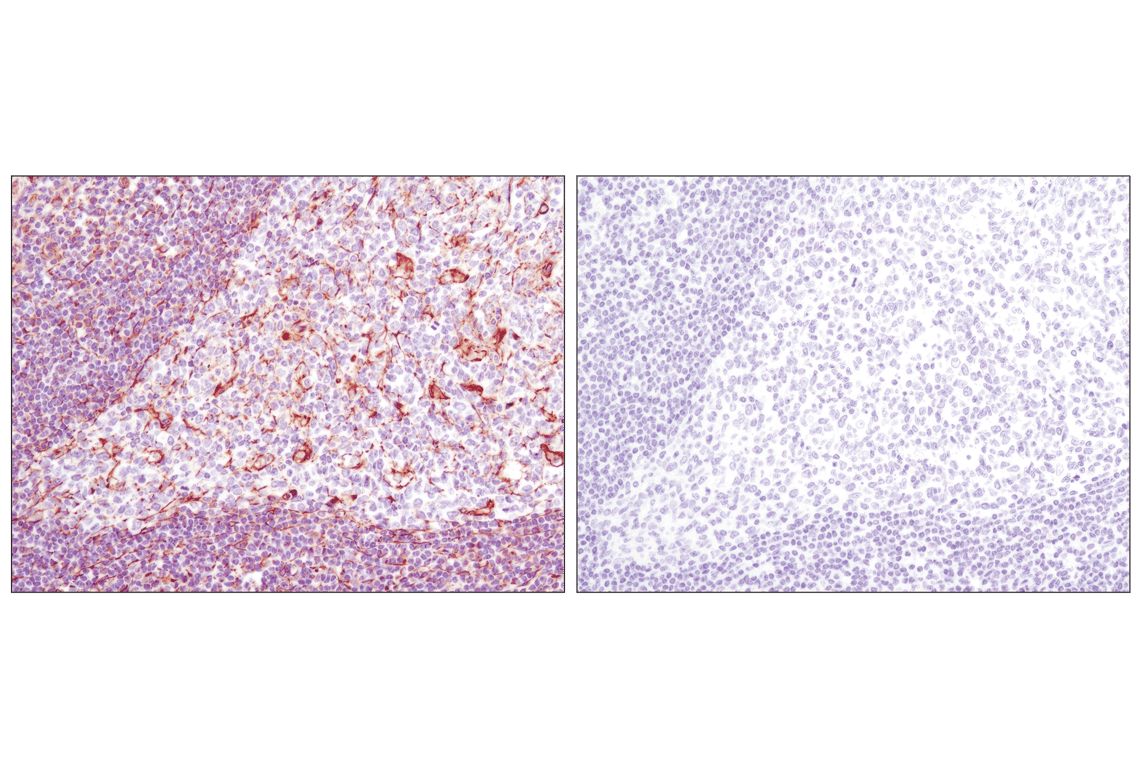

Immunohistochemical analysis of paraffin-embedded human tonsil using Vimentin (D21H3) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
undefined Image 48: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded normal human kidney using AIF (D39D2) XP® Rabbit mAb.
undefined Image 49: Cell Fractionation Antibody Sampler Kit

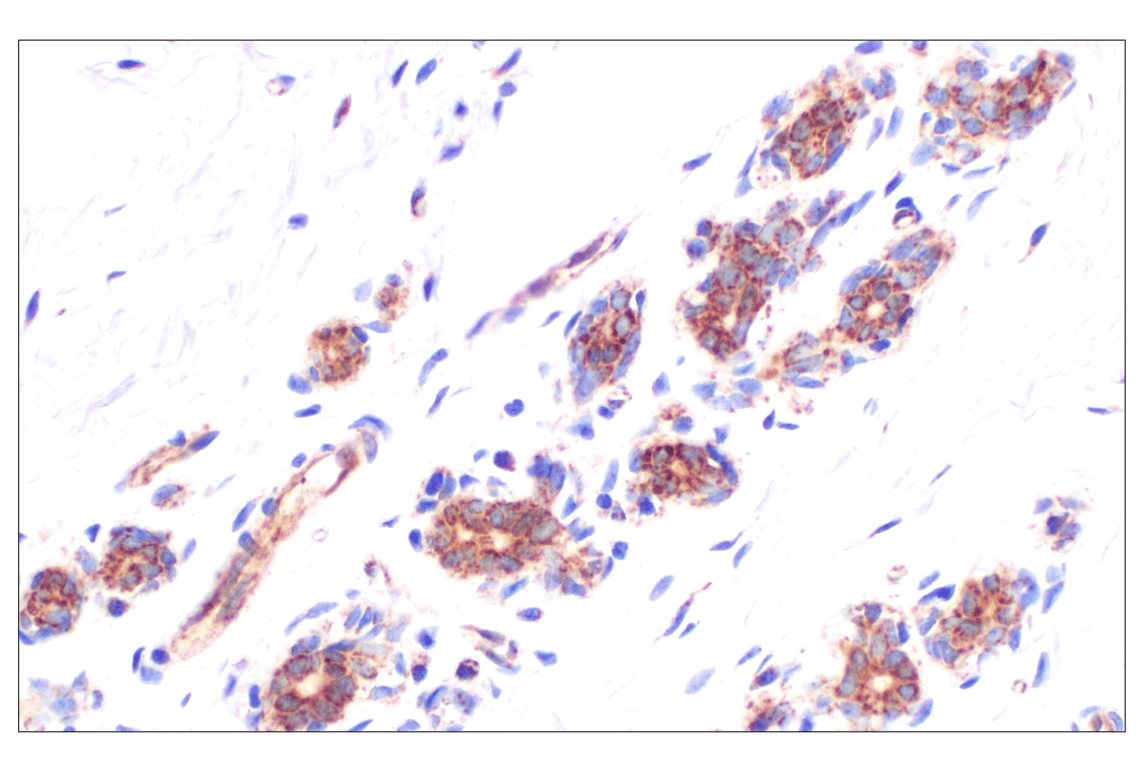

Immunohistochemical analysis of paraffin-embedded normal human breast using AIF (D39D2) XP® Rabbit mAb.
undefined Image 50: Cell Fractionation Antibody Sampler Kit

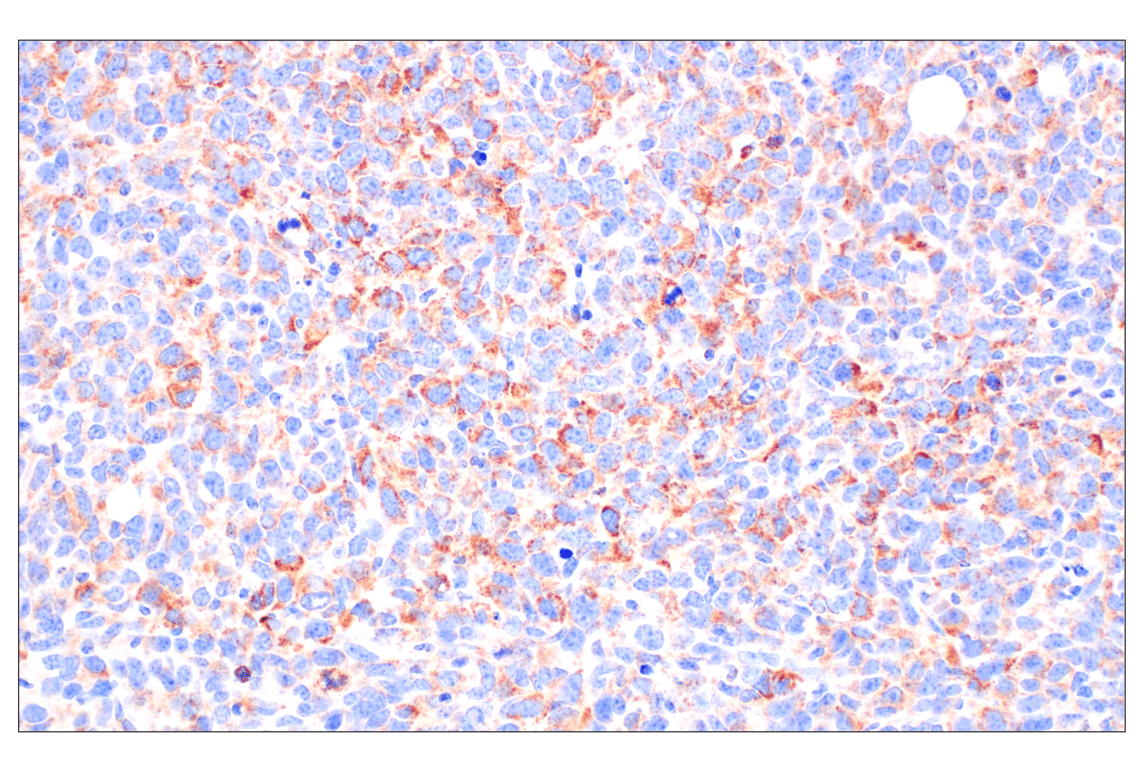

Immunohistochemical analysis of paraffin-embedded A20 syngeneic tumor using AIF (D39D2) XP® Rabbit mAb.
undefined Image 51: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded LL/2 syngeneic tumor using AIF (D39D2) XP® Rabbit mAb.
undefined Image 52: Cell Fractionation Antibody Sampler Kit

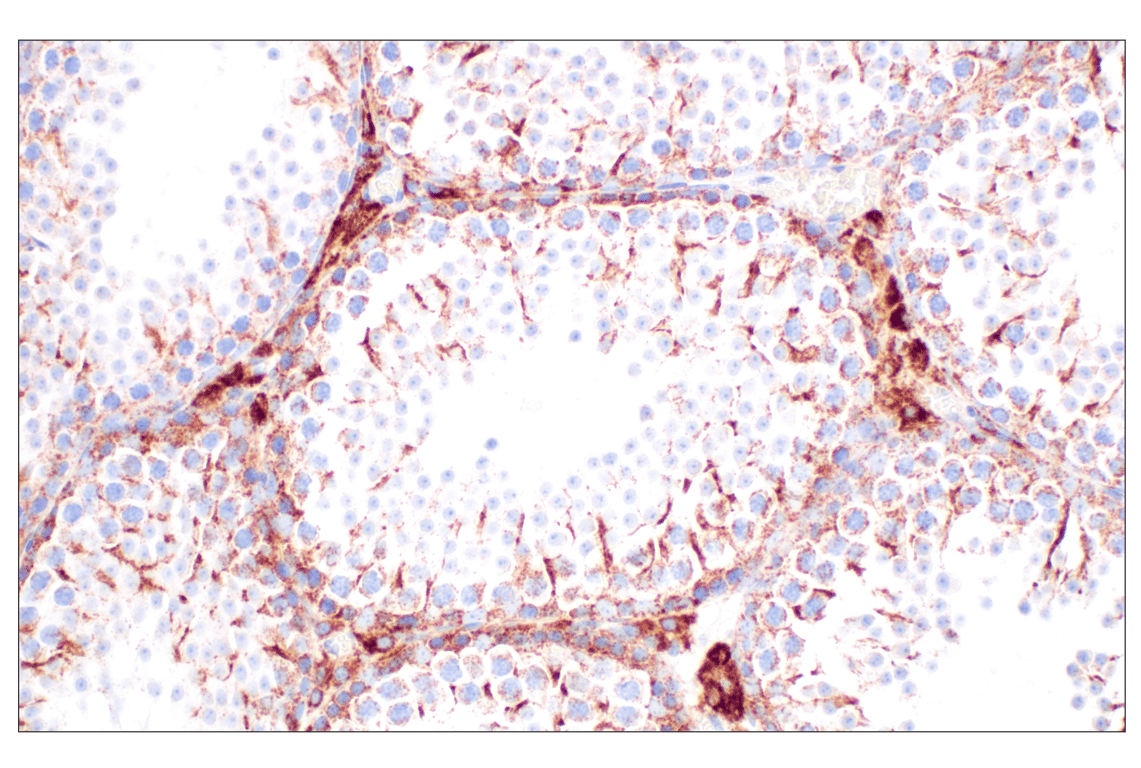

Immunohistochemical analysis of paraffin-embedded mouse testis using AIF (D39D2) XP® Rabbit mAb.
undefined Image 53: Cell Fractionation Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human endometrioid adenocarcinoma using AIF (D39D2) XP® Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
undefined Image 54: Cell Fractionation Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.
