Revision 1

#66102

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IF-F, IF-IC, FC-FP, FC-L

Reactivity:
M

Sensitivity:
Endogenous

MW (kDa):
100-200

Source/Isotype:
Rabbit IgG

UniProt ID:
#Q3U0X8

Entrez-Gene Id:
84544

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunofluorescence (Frozen) 1:50 - 1:200
Immunofluorescence (Immunocytochemistry) 1:200 - 1:800
Flow Cytometry (Fixed/Permeabilized) 1:50 - 1:200
Flow Cytometry (Live) 1:50 - 1:200

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity/Sensitivity

CD96 (E1Y2Z) Rabbit mAb recognizes endogenous levels of total CD96 protein. This antibody does not cross-react with human CD96 protein.

Source / Purification

Monoclonal antibody is produced by immunizing animals with recombinant protein specific to the extracellular domain of mouse CD96 protein.

Background

Cluster of Differentiation 96 (CD96), also known as T cell-activated increased late expression protein (TACTILE), is a heavily glycosylated type I transmembrane protein belonging to the immunoglobulin superfamily (1-3). CD96 is expressed on peripheral T cells and natural killer (NK) cells, and is strongly upregulated on these cell types after activation (1,4). It is also expressed on transformed T cells, and at very low levels on activated B cells (1,5,6). CD96 interacts with the receptor ligand PVR (CD155), and is involved in adhesion of activated T and NK cells to target cells during the late phase of the immune response (2,4). CD96 competes with DNAM-1 (CD226) for binding to PVR (CD155) in order to negatively regulate T and NK cell activity, and thus blockade of CD96 in order to induce anti-tumor immune responses is investigated for potential immunotherapeutic intervention in cancer (7-9). Alternative splicing occurs at this locus, and two transcript variants encoding distinct isoforms with variable functions have been identified (1,10).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting IF-F: Immunofluorescence (Frozen) IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized) FC-L: Flow Cytometry (Live)

Cross-Reactivity Key

M: Mouse

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from EL4, CTLL-2, and C2C12 cells using CD96 (E1Y2Z) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). Negative expression of CD96 protein in C2C12 cells is consistent with the predicted expression pattern.
Western Blotting Image 1: CD96 (E1Y2Z) Rabbit mAb

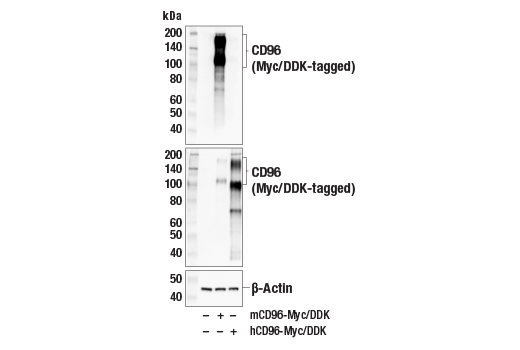

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with constructs expressing Myc/DDK-tagged full-length mouse CD96 (mCD96-Myc/DDK; +) and Myc/DDK-tagged full-length human CD96 (hCD96-Myc/DDK; +), using CD96 (E1Y2Z) Rabbit mAb (upper), Myc-Tag (71D10) Rabbit mAb #2278 (middle), or β-Actin (D6A8) Rabbit mAb #8457 (lower).
Western Blotting Image 2: CD96 (E1Y2Z) Rabbit mAb
Confocal immunofluorescent analysis of fixed frozen mouse spleen using CD96 (E1Y2Z) Rabbit mAb (green), CD45R/B220 (RA3-6B2) Rat mAb (FITC Conjugate) #34399 (magenta pseudocolor), and CD3 (17A2) Rat mAb (APC Conjugate) #24265 (red).
Immunofluorescence Image 1: CD96 (E1Y2Z) Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of fixed frozen mouse lymph node using CD96 (E1Y2Z) Rabbit mAb (green), CD45R/B220 (RA3-6B2) Rat mAb (FITC Conjugate) #34399 (magenta pseudocolor), and CD3 (17A2) Rat mAb (APC Conjugate) #24265 (red).
Immunofluorescence Image 2: CD96 (E1Y2Z) Rabbit mAb
Confocal immunofluorescent analysis of EL4 cells (left, positive) or C2C12 cells (right, negative) using CD96 (E1Y2Z) Rabbit mAb (green) and DAPI #4083 (blue).
Immunofluorescence Image 1: CD96 (E1Y2Z) Rabbit mAb

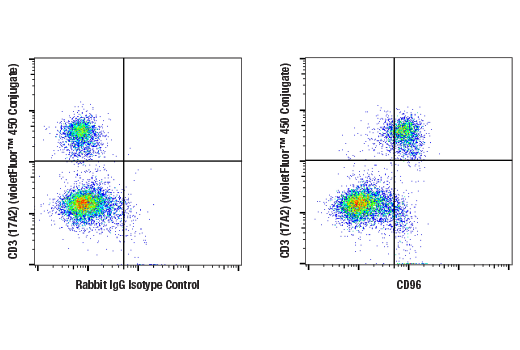

Flow cytometric analysis of live mouse splenocytes using CD96 (E1Y2Z) Rabbit mAb (right) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (left), co-stained with CD3 (17A2) Rat mAb (violetFluor™ 450 Conjugate) #38527. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 1: CD96 (E1Y2Z) Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

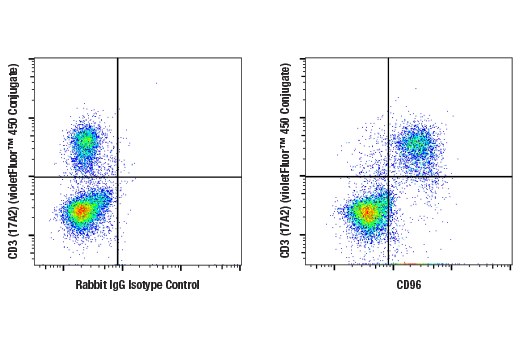

Flow cytometric analysis of fixed and permeabilized mouse splenocytes using CD96 (E1Y2Z) Rabbit mAb (right) or concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (left), co-stained with CD3 (17A2) Rat mAb (violetFluor™ 450 Conjugate) #38527. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 2: CD96 (E1Y2Z) Rabbit mAb
