Revision 7

#3528

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IP, IHC-P, IF-IC

Reactivity:
H

Sensitivity:
Endogenous

MW (kDa):
130

Source/Isotype:
Mouse IgG1

UniProt ID:
#P16284

Entrez-Gene Id:
5175

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:50
Immunohistochemistry (Paraffin) 1:800 - 1:3200
Immunofluorescence (Immunocytochemistry) 1:800 - 1:3200

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier free (BSA and azide free) version of this product see product #85873.

Specificity/Sensitivity

CD31 (PECAM-1) (89C2) Mouse mAb detects endogenous levels of total CD31 protein. It does not cross-react with other related proteins.

Source / Purification

Monoclonal antibody is produced by immunizing animals with recombinant human CD31 protein.

Background

CD31 (Platelet Endothelial Cell Adhesion Molecule-1: PECAM-1), a member of the Ig superfamily of cell adhesion molecules, is expressed by circulating platelets, monocytes, neutrophils, some T cells, and endothelial cells and modulates cell adhesion, endothelial cell migration, and angiogenesis (1). CD31 is phosphorylated on Tyr686 at the cytoplasmic carboxy-terminal tail upon various stimuli (e.g. mechanical or oxidative stress), presumably by Src family members (2). The tyrosine phosphorylation mediates associations with a number of SH2 domain-containing binding partners such as PI3 kinase, SHIP, PLCγ, and SHP-2. Thus, CD31 serves as a scaffold for various signaling molecules (3).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v nonfat dry milk, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting IP: Immunoprecipitation IHC-P: Immunohistochemistry (Paraffin) IF-IC: Immunofluorescence (Immunocytochemistry)

Cross-Reactivity Key

H: Human

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from HUVEC cells using CD31 (PECAM-1) (89C2) Mouse mAb.
Western Blotting Image 1: CD31 (PECAM-1) (89C2) Mouse mAb

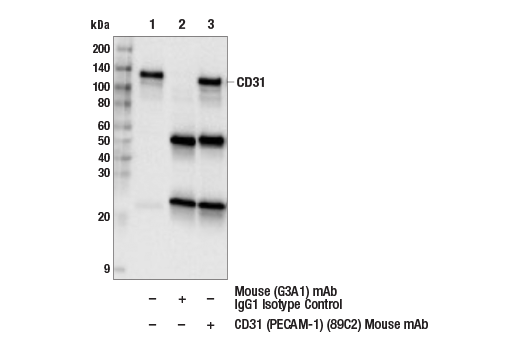

Immunoprecipitation of CD31 from HUVEC cell extracts. Lane 1 is 10% input, lane 2 is precipitated with Mouse (G3A1) mAb IgG1 Isotype Control #5415, and lane 3 is CD31 (PECAM-1) (89C2) Mouse mAb. Western blot was performed using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunoprecipitation Image 1: CD31 (PECAM-1) (89C2) Mouse mAb
Immunohistochemical analysis of paraffin-embedded human smooth muscle using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 1: CD31 (PECAM-1) (89C2) Mouse mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded HUVEC pellets using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 2: CD31 (PECAM-1) (89C2) Mouse mAb
Immunohistochemical analysis of paraffin-embedded human clear cell carcinoma using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 3: CD31 (PECAM-1) (89C2) Mouse mAb
Immunohistochemical analysis of paraffin-embedded human capillary hemangioma using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 4: CD31 (PECAM-1) (89C2) Mouse mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human urothelial carcinoma using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 5: CD31 (PECAM-1) (89C2) Mouse mAb
Immunohistochemical analysis of paraffin-embedded human colon adenocarcinoma using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 6: CD31 (PECAM-1) (89C2) Mouse mAb
Immunohistochemical analysis of paraffin-embedded human non-small cell lung carcinoma using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 7: CD31 (PECAM-1) (89C2) Mouse mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded human T-cell lymphoma using CD31 (PECAM-1) (89C2) Mouse mAb.
Immunohistochemistry Image 8: CD31 (PECAM-1) (89C2) Mouse mAb
Confocal immunofluorescent analysis of HUVEC (left) and HeLa cells (right) using CD31 (PECAM-1) (89C2) Mouse mAb (green). Actin filaments have been labeled with DY-554 phalloidin (red). Blue pseudocolor = DRAQ5™ (fluorescent DNA dye).
Immunofluorescence Image 1: CD31 (PECAM-1) (89C2) Mouse mAb
