Revision 7
Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, IHC-P, IF-IC

REACTIVITY:

H

SENSITIVITY:

Endogenous

MW (kDa):

130

Source/Isotype:

Mouse IgG1

UniProt ID:

#P16284

Entrez-Gene Id:

5175

Product Information

Product Usage Information

This product is the carrier free version of product #3528. All data were generated using the same antibody clone in the standard formulation which contains BSA and glycerol.

This formulation is ideal for use with technologies requiring specialized or custom antibody labeling, including fluorophores, metals, lanthanides, and oligonucleotides. It is not recommended for ChIP, ChIP-seq, CUT&RUN, or CUT&Tag assays. If you require a carrier-free formulation for chromatin profiling, please contact us. Optimal dilutions/concentrations should be determined by the end user.

Formulation

Supplied in 1X PBS, BSA and Azide Free.

For standard formulation of this product see product #3528.

Storage

Store at -20°C. This product will freeze at -20°C so it is recommended to aliquot into single-use vials to avoid multiple freeze/thaw cycles. A slight precipitate may be present and can be dissolved by gently vortexing. This will not interfere with antibody performance.

Specificity / Sensitivity

CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) detects endogenous levels of total CD31 protein. It does not cross-react with other related proteins.

Species Reactivity:

Human

Source / Purification

Monoclonal antibody is produced by immunizing animals with recombinant human CD31 protein.

Background

CD31 (Platelet Endothelial Cell Adhesion Molecule-1: PECAM-1), a member of the Ig superfamily of cell adhesion molecules, is expressed by circulating platelets, monocytes, neutrophils, some T cells, and endothelial cells and modulates cell adhesion, endothelial cell migration, and angiogenesis (1). CD31 is phosphorylated on Tyr686 at the cytoplasmic carboxy-terminal tail upon various stimuli (e.g. mechanical or oxidative stress), presumably by Src family members (2). The tyrosine phosphorylation mediates associations with a number of SH2 domain-containing binding partners such as PI3 kinase, SHIP, PLCγ, and SHP-2. Thus, CD31 serves as a scaffold for various signaling molecules (3).

  1. Newman, P.J. (1997) J. Clin. Invest. 99, 3-8.
  2. Cao, M. Y. et al. (1998) J. Biol. Chem. 273, 15765-72.
  3. Ilan, N. and Madri, J.A. (2003) Curr. Opin. Cell Biol. 15, 515-24.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

WB: Western Blotting IHC-P: Immunohistochemistry (Paraffin) IF-IC: Immunofluorescence (Immunocytochemistry)

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Revision 7
#85873

CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free)

Western Blotting Image 1: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对 HUVEC 细胞提取物进行蛋白质印迹分析。数据的生成使用的是该产品的常规组分产品。

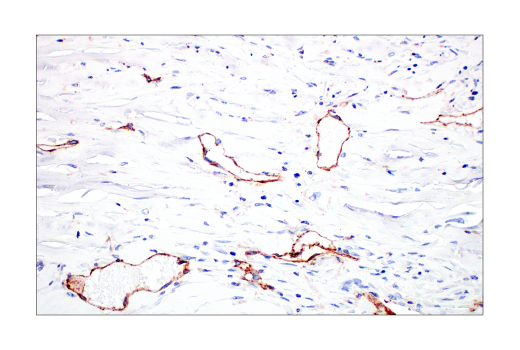

Immunohistochemistry Image 1: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的人尿路上皮癌细胞进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。
Immunohistochemistry Image 2: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的人结肠腺癌细胞进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。

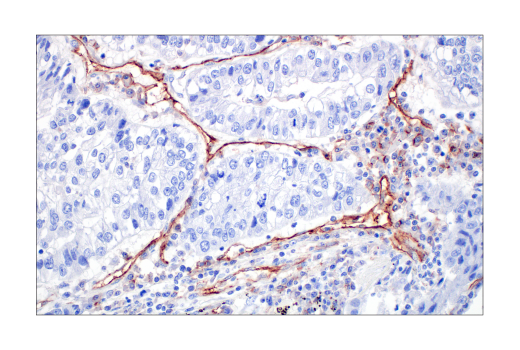

Immunohistochemistry Image 3: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的人非小细胞肺癌细胞进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。

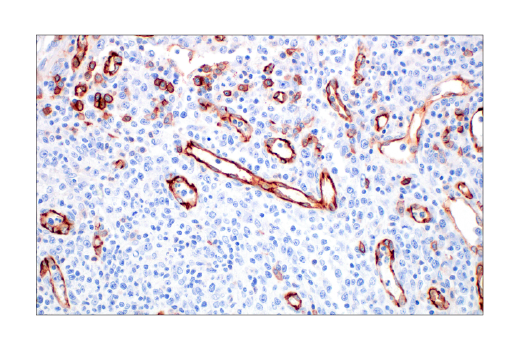

Immunohistochemistry Image 4: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的人 T 细胞淋巴瘤细胞进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。

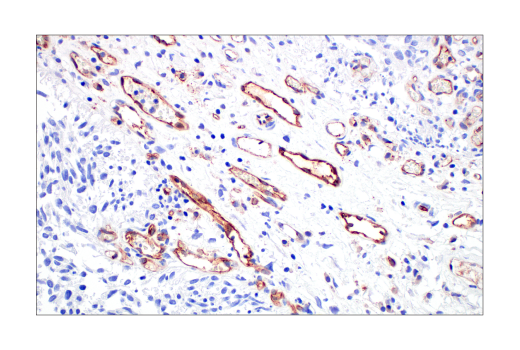

Immunohistochemistry Image 5: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的人毛细血管瘤进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。

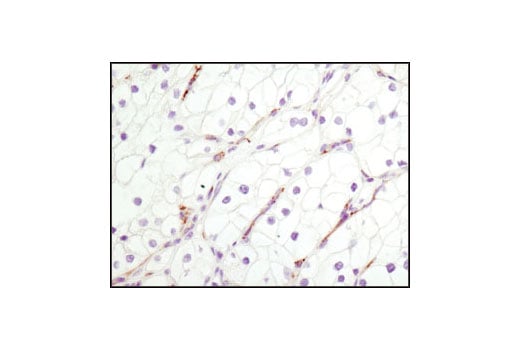

Immunohistochemistry Image 6: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的人明细胞癌进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。

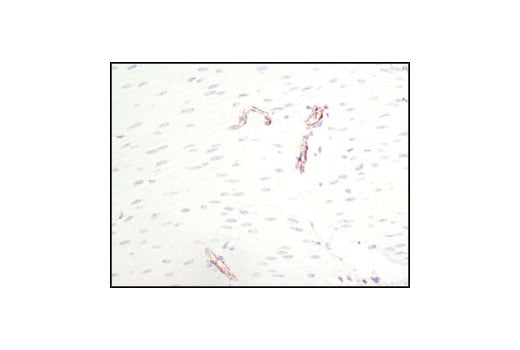

Immunohistochemistry Image 7: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的人平滑肌进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。
Immunohistochemistry Image 8: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb 对石蜡包埋的 HUVEC 细胞沉淀物进行免疫组织化学分析。数据的生成使用的是该产品的常规组分产品。

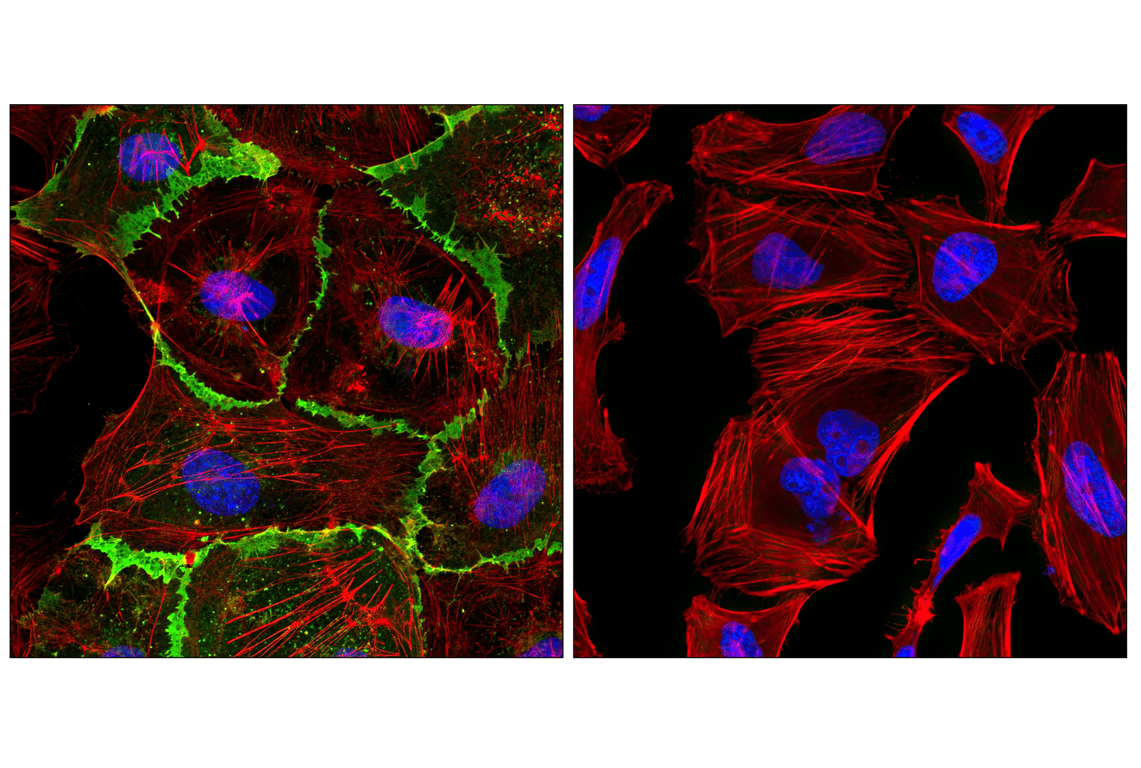

Immunofluorescence Image 1: CD31 (PECAM-1) (89C2) Mouse mAb (BSA and Azide Free) Expand Image
使用 CD31 (PECAM-1) (89C2) Mouse mAb(绿色)、DyLight 554 Phalloidin #13054(红色)和 DRAQ5® #4084(蓝色)对 HUVEC 细胞(左图,阳性)和 HeLa 细胞(右图,阴性)进行共聚焦免疫荧光分析。数据的生成使用的是该产品的常规组分产品。
