Revision 3

#12396Store at -20C

Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB, IP, IF-IC

REACTIVITY:

H M R Mk

SENSITIVITY:

Endogenous

MW (kDa):

38, 76

Source/Isotype:

Rabbit IgG

UniProt ID:

#O60238

Entrez-Gene Id:

665

Product Information

Product Usage Information

Application Dilution
Western Blotting 1:1000
Immunoprecipitation 1:100
Immunofluorescence (Immunocytochemistry) 1:100 - 1:400

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity / Sensitivity

BNIP3L/Nix (D4R4B) Rabbit mAb recognizes endogenous levels of total BNIP3L/Nix protein.

Species Reactivity:

Human, Mouse, Rat, Monkey

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Glu128 of human BNIP3L/Nix protein.

Background

BCL2/Adenovirus E1B 19 kDa protein-interacting protein 3-like (BNIP3L) (1), also termed BNIP3α (2), B5 (3), and Nix (4), is a member of the Bcl-2 family of apoptotic regulators with highest homology to BNIP3. BNIP3L can bind BNIP3, Bcl-xL, and Bcl-2 (1-5). BNIP3L forms homodimers that withstand denaturing by SDS and reducing conditions (5). BNIP3L is a mitochondrial protein and knockout studies suggest that BNIP3L regulates autophagic clearance of damaged mitochondria during erythroid maturation via mitochondrial autophagy (6,7). It has been shown that the expression of BNIP3L is up-regulated during terminal erythroid differentiation (6-8), as well as in tumor cell lines during hypoxia (9-11). BNIP3L directly regulates the elimination of mitochondria through its ability to bind to and recruit important components of the autophagic machinery, including LC3/Atg8 and GABARAP proteins, via its amino-terminal LC3-interacting region (LIR) (12). BNIP3L may also indirectly activate phagophore formation either via the recruitment of autophagy proteins or by binding Bcl-xL, which in turn releases Beclin-1 (13). BNIP3L/Nix also plays a pivotal role in Parkin-mediated mitochondrial autophagy via its ability to mediate the mitochondrial translocation of Parkin (14). Activated BNIP3L can promote the opening of mitochondrial permeability transition pores resulting in mitochondrial depolarization, generation of reactive oxygen species, and induction of necrosis. Due to its involvement in cell death and autophagy, research scientists have implicated BNIP3L in heart disease and cancer (13).

  1. Matsushima, M. et al. (1998) Genes Chromosomes Cancer 21, 230-5.
  2. Yasuda, M. et al. (1999) Cancer Res 59, 533-7.
  3. Ohi, N. et al. (1999) Cell Death Differ 6, 314-25.
  4. Chen, G. et al. (1999) J Biol Chem 274, 7-10.
  5. Imazu, T. et al. (1999) Oncogene 18, 4523-9.
  6. Schweers, R.L. et al. (2007) Proc Natl Acad Sci USA 104, 19500-5.
  7. Sandoval, H. et al. (2008) Nature 454, 232-5.
  8. Aerbajinai, W. et al. (2003) Blood 102, 712-7.
  9. Sowter, H.M. et al. (2001) Cancer Res 61, 6669-73.
  10. Bruick, R.K. (2000) Proc Natl Acad Sci USA 97, 9082-7.
  11. Fei, P. et al. (2004) Cancer Cell 6, 597-609.
  12. Novak, I. et al. (2010) EMBO Rep 11, 45-51.
  13. Zhang, J. and Ney, P.A. (2009) Cell Death Differ 16, 939-46.
  14. Ding, W.X. et al. (2010) J Biol Chem 285, 27879-90.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

WB: Western Blotting IP: Immunoprecipitation IF-IC: Immunofluorescence (Immunocytochemistry)

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Revision 3
#12396

BNIP3L/Nix (D4R4B) Rabbit mAb

Western Blotting Image 1: BNIP3L/Nix (D4R4B) Rabbit mAb Expand Image
使用 BNIP3L/Nix (D4R4B) Rabbit mAb(上)或 β-Actin (D6A8) Rabbit mAb #8457(下),对未经处理 (-) 或经氯化钴处理(100 μM,过夜;+)的 A172 细胞和 HeLa 细胞提取物进行蛋白质印迹分析。

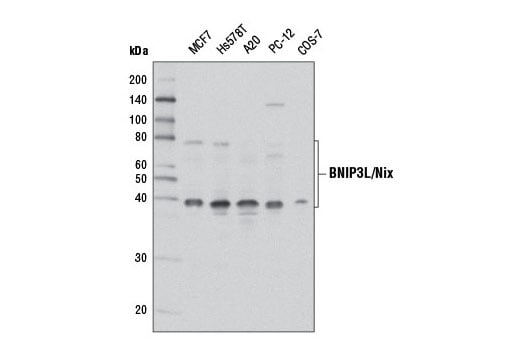

Western Blotting Image 2: BNIP3L/Nix (D4R4B) Rabbit mAb Expand Image
使用 BNIP3L/Nix (D4R4B) Rabbit mAb 对不同细胞系的提取物进行蛋白质印迹分析。

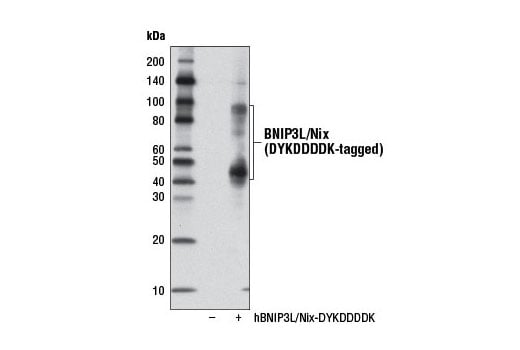

Western Blotting Image 3: BNIP3L/Nix (D4R4B) Rabbit mAb Expand Image
使用 BNIP3L/Nix (D4R4B) Rabbit mAb,对转染空载(-)或转染带有 DYKDDDDK 标签的全长人 BNIP3L/Nix(hBNIP3L/Nix-DYKDDDDK;+)表达载体的 293T 细胞的提取物进行蛋白质印迹分析。BNIP3L/Nix 构建体由 Salk Institute for Biological Studies, La Jolla, CA 的 Reuben Shaw 博士惠赠。

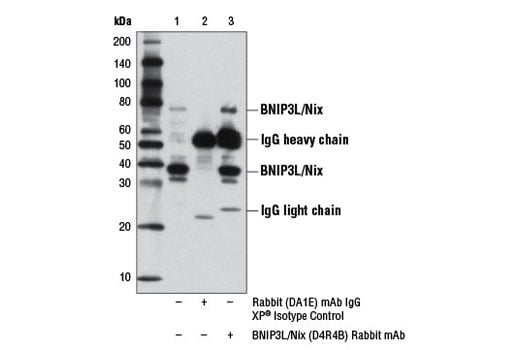

Immunoprecipitation Image 1: BNIP3L/Nix (D4R4B) Rabbit mAb Expand Image
使用 Rabbit (DA1E) mAb IgG XP ® Isotype Control #3900(泳道 2)或 BNIP3L/Nix (D4R4B) Rabbit mAb(泳道3),对经氯化钴处理(100 μM,过夜)的 A172 细胞的 BNIP3L/Nix 进行免疫沉淀 。泳道 1 是 10% 输入对照。使用 BNIP3L/Nix (D4R4B) Rabbit mAb 进行蛋白质印迹分析。
Immunofluorescence Image 1: BNIP3L/Nix (D4R4B) Rabbit mAb Expand Image
使用 BNIP3L/Nix (D4R4B) Rabbit mAb(绿色)对 A172 细胞(未经处理(左)或经氯化钴处理(100 μM,过夜;右))进行共聚焦免疫荧光分析。蓝色伪彩 = DRAQ5® #4084(DNA 荧光染料)。
