Revision 1

#59187

Store at -20C

Beclin-1 Complex Antibody Sampler Kit

1 Kit

(6 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
Beclin-1 (D40C5) Rabbit mAb349520 µl60 kDaRabbit IgG
PI3 Kinase Class III (D9A5) Rabbit mAb426320 µl100 kDaRabbit
PIK3R4 Antibody1458020 µl153 kDaRabbit
Atg14 (D1A1N) Rabbit mAb9675220 µl65 kDaRabbit IgG
UVRAG (D2Q1Z) Rabbit mAb1311520 µl90 kDaRabbit IgG
Rubicon (D9F7) Rabbit mAb846520 µl130 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Beclin-1 Complex Antibody Sampler Kit provides an economical means of detecting proteins that are part of the Beclin-1 complexes. The kit includes enough antibodies to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

A number of studies have identified distinct complexes involving Beclin-1 and PI3K Kinase Class III with specific roles in autophagy and vesicle trafficking (1,2). These complexes commonly contain Beclin-1, PI3KC3/VSP34, and PIK3R4/VPS15 and function to catalyze the phosphorylation of phosphatidylinositol at the D3 position, producing phosphatidylinositol-3-phosphate. Specificity of PI3KC3 activity is regulated by additional binding partners. Complex 1 contains Atg14 which is required for early stages of autophagosome nucleation (3,4). Complex 2 lacks Atg14, but instead contains UVRAG, and is important for autophagosome maturation and endocytic trafficking (4-6). A third complex, containing both UVRAG and Rubicon, negatively regulates canonical autophagy (7,8). Importantly, this complex containing Rubicon is critical for a related process of LC3-associated phagocytosis (LAP) in which extracellular pathogens binding to cell surface receptors are engulfed by a single membrane phagosome and degraded by the lysosome (9,10).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using UVRAG (D2Q1Z) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). HCT 116 cells have been reported to contain a monoallelic frameshift mutation resulting in significantly reduced levels of endogenous UVRAG expression (11).
undefined Image 1: Beclin-1 Complex Antibody Sampler Kit

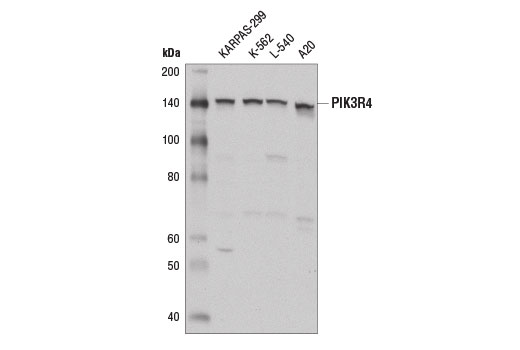

Western blot analysis of extracts from various cell lines using PIK3R4 Antibody.
undefined Image 2: Beclin-1 Complex Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Beclin-1 (D40C5) Rabbit mAb.
undefined Image 3: Beclin-1 Complex Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from mouse brain and C6 cells using PI3 Kinase Class III (D9A5) Rabbit mAb.
undefined Image 4: Beclin-1 Complex Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 5: Beclin-1 Complex Antibody Sampler Kit
Western blot analysis of extracts from various cell lines using Rubicon (D9F7) Rabbit mAb.
undefined Image 6: Beclin-1 Complex Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of extracts from HCT 116 and HCT 116/Atg14 shRNA knockout cells using Atg14 (D1A1N) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #84576 (lower). HCT 116/Atg14 shRNA cells were kindly provided by Dr. Do-Hyung Kim, University of Minnesota, Minneapolis, MN.
undefined Image 7: Beclin-1 Complex Antibody Sampler Kit

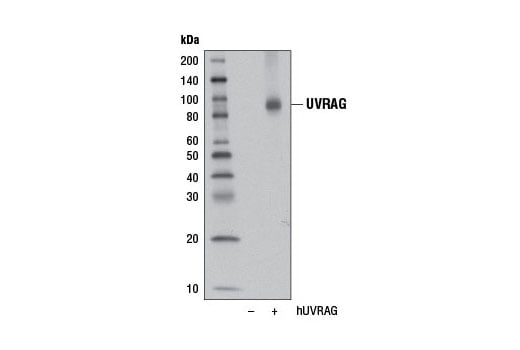

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing human UVRAG (hUVRAG; +), using UVRAG (D2Q1Z) Rabbit mAb.
undefined Image 8: Beclin-1 Complex Antibody Sampler Kit

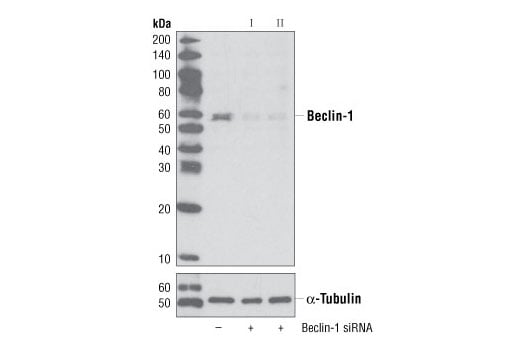

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-), SignalSilence® Beclin-1 siRNA I #6222 (+) or SignalSilence® Beclin-1 siRNA II (+), using Beclin-1 (D40C5) XP® Rabbit mAb #3495 (upper) or α-Tubulin (11H10) Rabbit mAb #2125 (lower). The Beclin-1 (D40C5) XP® Rabbit mAb confirms silencing of Beclin-1 expression, while the α-Tubulin (11H10) Rabbit mAb is used to control for loading and specificity of Beclin-1 siRNA.
undefined Image 9: Beclin-1 Complex Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

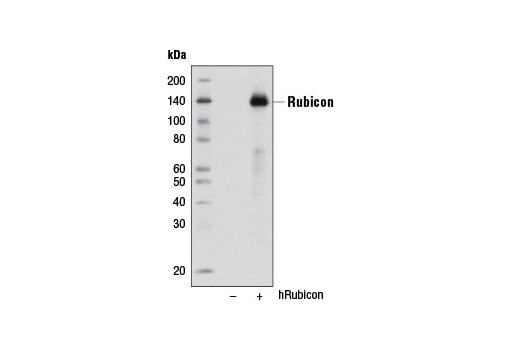

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with human Rubicon (hRubicon, +), using Rubicon (D9F7) Rabbit mAb. Rubicon construct was kindly provided by Dr. Qing Zhong, University of California, Berkeley, CA.
undefined Image 10: Beclin-1 Complex Antibody Sampler Kit

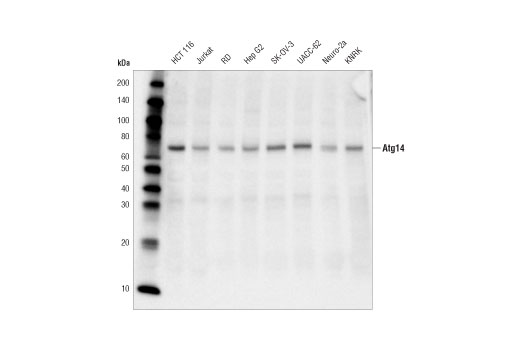

Western blot analysis of extracts from various cell lines using Atg14 (D1A1N) Rabbit mAb.
undefined Image 11: Beclin-1 Complex Antibody Sampler Kit

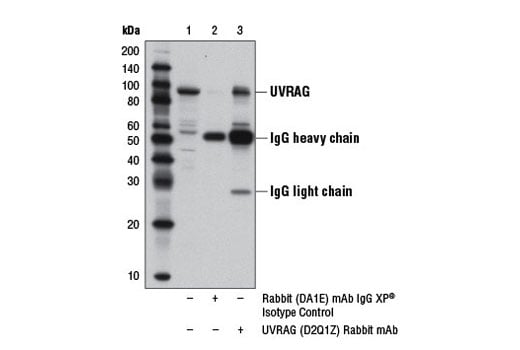

Immunoprecipitation of UVRAG from PANC-1 cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (lane 2) or UVRAG (D2Q1Z) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using UVRAG (D2Q1Z) Rabbit mAb.
undefined Image 12: Beclin-1 Complex Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

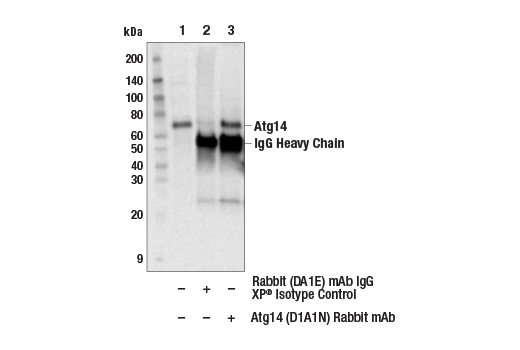

Immunoprecipitation of Atg14 from Neuro2A cell extracts. Lane 1 is 10% input, lane 2 is precipitated with Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is Atg14 (D1A1N) Rabbit mAb. Western blot was performed using Atg14 (D1A1N) Rabbit mAb.
undefined Image 13: Beclin-1 Complex Antibody Sampler Kit
