Revision 1

#85314

Store at -20C

β-Amyloid Antibody Sampler Kit

1 Kit

(7 x 20 microliters)

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
APP Antibody245220 µl100 to 140 kDaRabbit
β-Amyloid (1-42) (D3E10) Rabbit mAb1284320 µl4 kDaRabbit
β-Amyloid (1-40) (D8Q7I) Rabbit mAb1299020 µl4 kDaRabbit IgG
β-Amyloid (1-37) (D2A6H) Rabbit mAb1246720 µl4 kDaRabbit IgG
β-Amyloid (1-39) (D5Y9L) Rabbit mAb1207720 µl4 kDaRabbit IgG
β-Amyloid (D54D2) XP® Rabbit mAb824320 µl5 kDaRabbit IgG
β-Amyloid (pE3 Peptide) (D5N5H) Rabbit mAb1497520 µl4 kDaRabbit IgG
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The β-Amyloid Antibody Sampler Kit provides an economical means of detecting APP and APP unmodified/modified fragments using total and fragment-specific antibodies. The kit includes enough antibody to perform two western blot experiments with each primary antibody.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Amyloid β (Aβ) precursor protein (APP) is a 100-140 kDa transmembrane glycoprotein that exists as several isoforms (1). The amino acid sequence of APP contains an amyloid domain, which can be processed and released by two-step proteolytic cleavage (1). The extracellular deposition and accumulation of the released Aβ fragments form the main components of amyloid plaques in Alzheimer's disease (1). Several fragments corresponding to progressive APP processing at alternative cleavage sites have been identified (2). These include Aβ (1-37), Aβ (1-39), Aβ (1-40), and Aβ (1-42) (2). These fragments can also be N-terminally modified to generate pyroglutamate-3 Aβ (pE3-peptide) (3). Fragment-specific and pan-Aβ antibodies are used to detect and examine relative levels of individual Aβ fragments.

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of the indicated amounts of human Aβ-39 peptide using β-Amyloid (1-39) (D5Y9L) Rabbit mAb.
undefined Image 1: β-Amyloid Antibody Sampler Kit
Western blot analysis of the indicated amounts of human Aβ-37 peptide using β-Amyloid (1-37) (D2A6H) Rabbit mAb.
undefined Image 2: β-Amyloid Antibody Sampler Kit
Western blot analysis of human Aβ-37, Aβ-38, Aβ-39, Aβ-40, Aβ-42, and Aβ-43 peptides (2.5 ng) using β-Amyloid (1-42) (D3E10) Rabbit mAb (upper) or β-Amyloid (D54D2) XP® Rabbit mAb #8243 (lower).
undefined Image 3: β-Amyloid Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of brain extracts from 13-month old wild-type and TG2576 mice using β-Amyloid (1-40) (D8Q7I) Rabbit mAb (upper) and β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 4: β-Amyloid Antibody Sampler Kit
β-Amyloid (pE3 Peptide) (D5N5H) Rabbit mAb specificity is demonstrated using peptide dot blot. β-Amyloid (pE3 Peptide) (D5N5H) Rabbit mAb binds to pre-coated β-amyloid (pE3) peptide but not to β-amyloid (E3) peptide or scrambled β-amyloid (pE3) peptide.
undefined Image 5: β-Amyloid Antibody Sampler Kit
Western blot analysis of extracts from HeLa (human), 3T3L1 (mouse) or C6 (rat) cells, untreated or nocodazole-treated (1 µg/ml, 16-18 hours), using APP Antibody.
undefined Image 6: β-Amyloid Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 7: β-Amyloid Antibody Sampler Kit
Western blot analysis of human Aβ-42, Aβ-40, Aβ-39, Aβ-38, and Aβ-37 peptides (5 ng) using β-Amyloid (D54D2) XP® Rabbit mAb.
undefined Image 8: β-Amyloid Antibody Sampler Kit
Western blot analysis of human Aβ-37, Aβ-38, Aβ-39, Aβ-40, Aβ-42, and Aβ-43 peptides (10 ng) using β-Amyloid (1-39) (D5Y9L) Rabbit mAb (upper) or β-Amyloid (D54D2) XP® Rabbit mAb #8243 (lower).
undefined Image 9: β-Amyloid Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

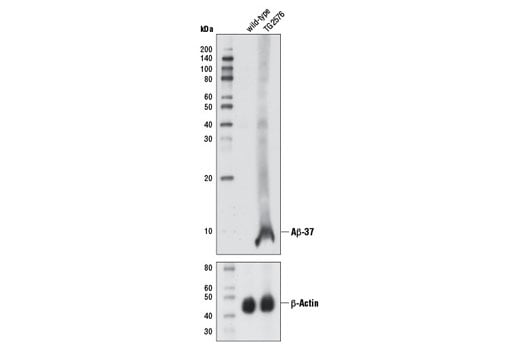

Western blot analysis of brain extracts from 13-month old wild-type and TG2576 mice using β-Amyloid (1-37) (D2A6H) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 10: β-Amyloid Antibody Sampler Kit
Western blot analysis of the indicated amounts of human Aβ-42 peptide using β-Amyloid (1-42) (D3E10) Rabbit mAb.
undefined Image 11: β-Amyloid Antibody Sampler Kit

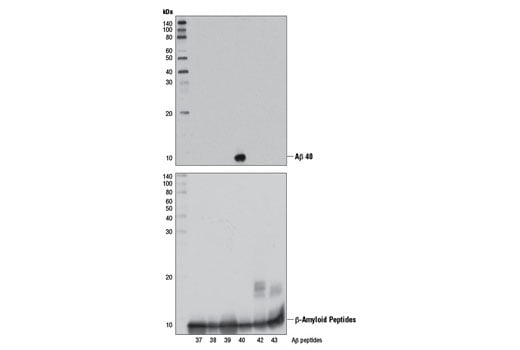

Western blot analysis of human Aβ-37, Aβ-38, Aβ-39, Aβ-40, Aβ-42 and Aβ-43 peptides (10 ng) using β-Amyloid (1-40) (D8Q7I) Rabbit mAb (upper) and β-Amyloid (D54D2) XP® Rabbit mAb #8243 (lower).
undefined Image 12: β-Amyloid Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo

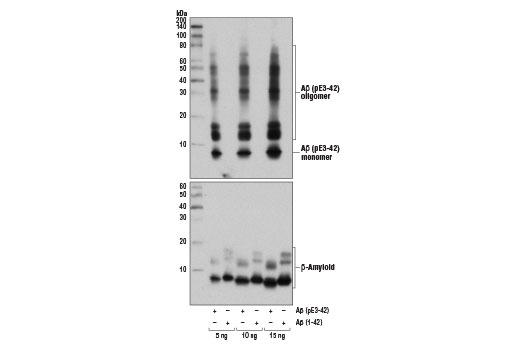

Western blot analysis of the indicated amounts of human Aβ (pE3-42) and Aβ (1-42) peptides using β-Amyloid (pE3 Peptide) (D5N5H) Rabbit mAb (upper) and β-Amyloid (1-42) (D3E10) Rabbit mAb #12843 (lower).
undefined Image 13: β-Amyloid Antibody Sampler Kit
Western blot analysis of the indicated amounts of human Aβ-42 (left) and Aβ-40 (right) peptides using β-Amyloid (D54D2) XP® Rabbit mAb.
undefined Image 14: β-Amyloid Antibody Sampler Kit

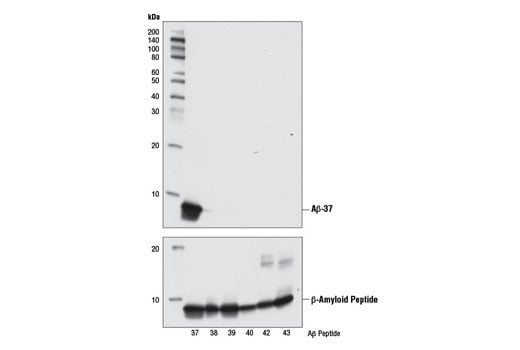

Western blot analysis of human Aβ-37, Aβ-38, Aβ-39, Aβ-40, Aβ-42, and Aβ-43 peptides (10 ng) using β-Amyloid (1-37) (D2A6H) Rabbit mAb (upper) or β-Amyloid (D54D2) XP® Rabbit mAb #8243 (lower).
undefined Image 15: β-Amyloid Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of brain extracts from 13-month old wild-type and TG2576 mice using β-Amyloid (1-42) (D3E10) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower).
undefined Image 16: β-Amyloid Antibody Sampler Kit

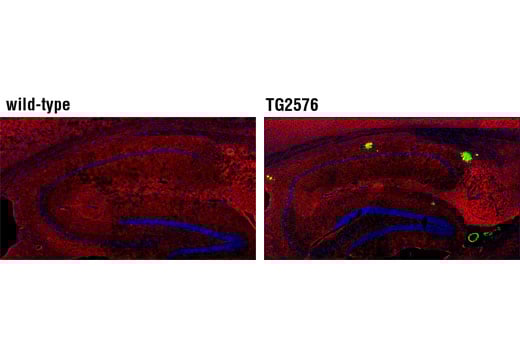

Confocal immunofluorescent analysis of hippocampus from wild-type (left) and TG2576 (right) mice using β-Amyloid (1-40) (D8Q7I) Rabbit mAb (green) and β3-Tubulin (TU-20) Mouse mAb #4466 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 17: β-Amyloid Antibody Sampler Kit

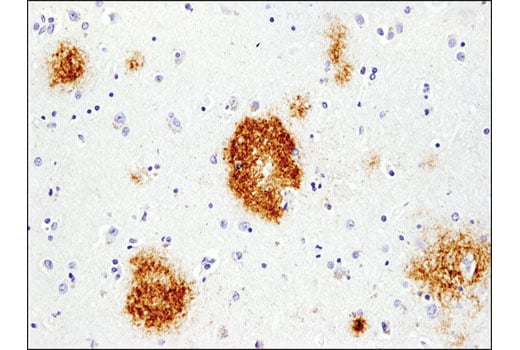

Immunohistochemical analysis of paraffin-embedded human Alzheimer's brain using β-Amyloid (pE3 Peptide) (D5N5H) Rabbit mAb.
undefined Image 18: β-Amyloid Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Western blot analysis of human Aβ-42 peptide (1 ng) and human cerebrospinal fluid (CSF) of an AD patient using β-Amyloid (D54D2) XP® Rabbit mAb.
undefined Image 19: β-Amyloid Antibody Sampler Kit

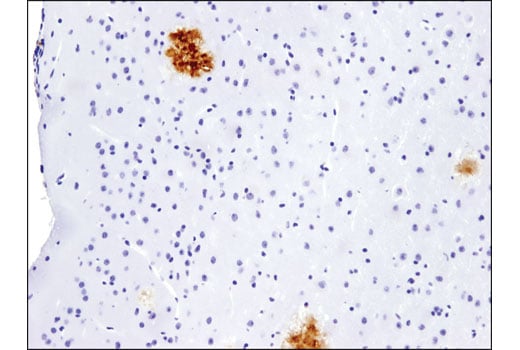

Immunohistochemical analysis of paraffin-embedded Tg2576 mouse model of Alzheimer's brain using β-Amyloid (pE3 Peptide) (D5N5H) Rabbit mAb.
undefined Image 20: β-Amyloid Antibody Sampler Kit

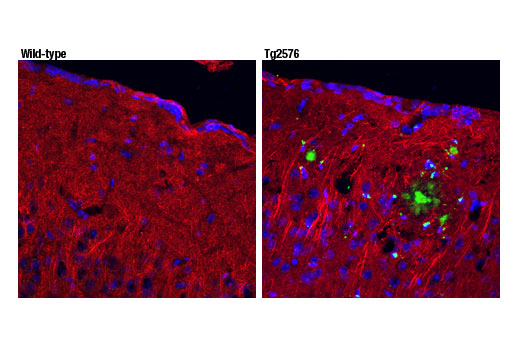

Confocal immunofluorescent analysis of wild-type (left) and Tg2576 mouse model of Alzheimer's brain (right) using β-Amyloid (pE3 Peptide) (D5N5H) Rabbit mAb (green) and β3-Tubulin (TU-20) Mouse mAb #4466 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 21: β-Amyloid Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of mouse subicular cortex from an amyloid mouse model of Alzheimer's Disease using β-Amyloid (D54D2) XP® Rabbit mAb #8243 (green) and GFAP (GA5) Mouse mAb #3670 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
undefined Image 22: β-Amyloid Antibody Sampler Kit
