Revision 2

#19848

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Mol. Wt Isotype/Source
LC3A/B (D3U4C) XP® Rabbit mAb1274120 µl14, 16 kDaRabbit IgG
Atg7 (D12B11) Rabbit mAb855820 µl78 kDaRabbit IgG
Atg4B (D1G2R) Rabbit mAb1350720 µl48 kDaRabbit IgG
Atg4A (D62C10) Rabbit mAb761320 µl48-60 kDaRabbit IgG
GABARAP (E1J4E) Rabbit mAb1373320 µl14, 16 kDaRabbit IgG
Atg3 Antibody341520 µl40 kDaRabbit
Anti-rabbit IgG, HRP-linked Antibody7074100 µlGoat

Please visit cellsignal.com for individual component applications, species cross-reactivity, dilutions, protocols, and additional product information.

Description

The Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit provides an economical means of detecting target proteins related to autophagy vesicle elongation pathway. The kit contains enough antibody to perform two western blots per primary.

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Background

Autophagy is a catabolic process for the autophagosomic-lysosomal degradation of bulk cytoplasmic contents (1,2). Autophagy is generally activated by conditions of nutrient deprivation, but it has also been associated with a number of physiological processes including development, differentiation, neurodegenerative diseases, infection, and cancer (3). Autophagy marker Light Chain 3 (LC3) was originally identified as a subunit of microtubule-associated proteins 1A and 1B (termed MAP1LC3) (4) and subsequently found to contain similarity to the yeast protein Apg8/Aut7/Cvt5 critical for autophagy (5). Three human LC3 isoforms (LC3A, LC3B, and LC3C) undergo post-translational modifications during autophagy (6-8). Cleavage of LC3 at the carboxy terminus immediately following synthesis yields the cytosolic LC3-I form. During autophagy, LC3-I is converted to LC3-II through lipidation by a ubiquitin-like system involving Atg7 and Atg3 that allows for LC3 to become associated with autophagic vesicles (6-9). The presence of LC3 in autophagosomes and the conversion of LC3 to the lower migrating form, LC3-II, have been used as indicators of autophagy (10). Numerous mammalian counterparts to yeast Atg proteins have been described, including three Atg8 proteins (GATE-16, GABARAP, and LC3) and four Atg4 homologs (Atg4A/autophagin-2, Atg4B/autophagin-1, Atg4C/autophagin-3, and Atg4D/autophagin-4) (10-12). The cysteine protease Atg4 is pivotal to autophagosome membrane generation and regulation (13). GABAA receptor associated protein (GABARAP) is an Atg8 family protein with a key role in autophagy, which was originally discovered as a protein associated with the GABAA receptor regulating receptor trafficking to the plasma membrane (14). Processing of GABARAP involves cleavage by Atg4 family members (15,16) followed by conjugation by the E1 and E2 like enzymes Atg7 and Atg3 (17,18).

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from RD cells, untreated (-) or Torin 1-treated (250 nM, 4 hr; +), using LC3A/B (D3U4C) XP® Rabbit mAb.
undefined Image 1: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit

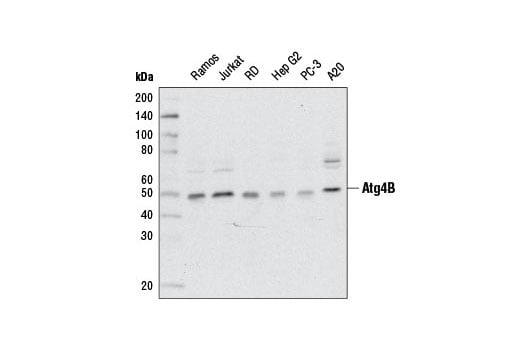

Western blot analysis of extracts from various cell lines using Atg4B (D1G2R) Rabbit mAb.
undefined Image 2: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Western blot analysis of A172 and C2C12 cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using GABARAP (E1J4E) Rabbit mAb.
undefined Image 3: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Atg3 Antibody.
undefined Image 4: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
After the primary antibody is bound to the target protein, a complex with HRP-linked secondary antibody is formed. The LumiGLO® is added and emits light during enzyme catalyzed decomposition.
undefined Image 5: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg4A siRNA I #6427 (+), using Atg4A (D62C10) Rabbit mAb (upper) or α-Tubulin (11H10) Rabbit mAb #2125 (lower). The Atg4A (D62C10) Rabbit mAb confirms silencing of Atg4A expression, while the α-Tubulin (11H10) Rabbit mAb is used as a loading control.
undefined Image 6: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Atg7 (D12B11) Rabbit mAb.
undefined Image 7: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Western blot analysis of extracts from HeLa, NIH/3T3, and KNRK cells, untreated (-) or chloroquine-treated (50 μM, overnight; +), using LC3A/B (D3U4C) XP® Rabbit mAb.
undefined Image 8: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit

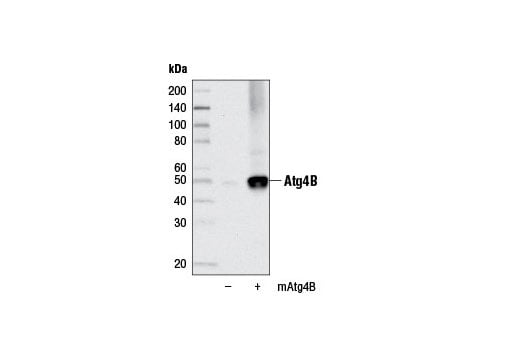

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a construct expressing full-length mouse Atg4B (mAtg4B; +), using Atg4B (D1G2R) Rabbit mAb.
undefined Image 9: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with constructs expressing Myc/DDK-tagged full-length human GABARAP (hGABARAP-Myc/DDK; +), human GABARAPL1 (hGABARAPL1-Myc/DDK; +), or human GABARAPL2 (hGABARAPL2-Myc/DDK; +), using GABARAP (E1J4E) Rabbit mAb.
undefined Image 10: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit

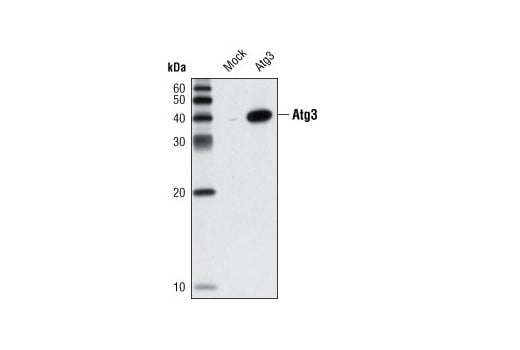

Western blot analysis of extracts from HeLa cells, mock transfected or transfected with mouse Atg3, using Atg3 Antibody.
undefined Image 11: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit

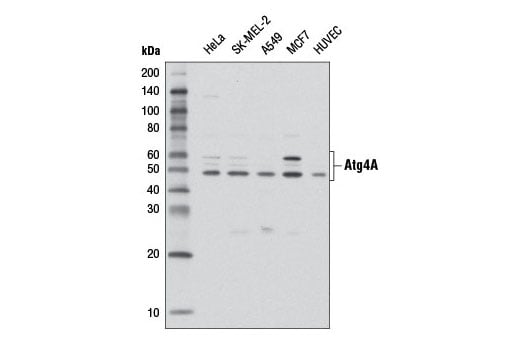

Western blot analysis of extracts from various cell lines using Atg4A (D62C10) Rabbit mAb.
undefined Image 12: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo

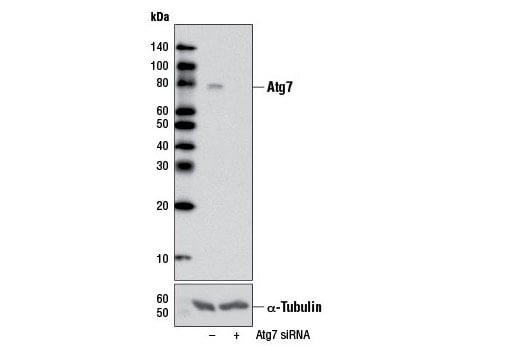

Western blot analysis of extracts from HeLa cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg7 siRNA I #6604 (+), using Atg7 (D12B11) Rabbit mAb (upper) or α-Tubulin (11Η10) Rabbit mAb #2125 (lower). The Atg7 (D12B11) Rabbit mAb confirms silencing of Atg7 expression, while the α-Tubulin (11H10) Rabbit mAb is used as a loading control.
undefined Image 13: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded mouse prostate using LC3A/B (D3U4C) XP® Rabbit mAb.
undefined Image 14: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit

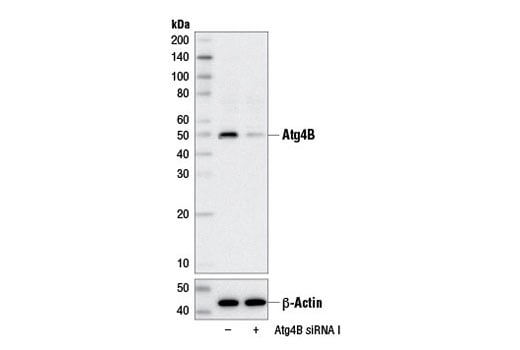

Western blot analysis of extracts from RD cells, transfected with 100 nM SignalSilence® Control siRNA (Unconjugated) #6568 (-) or SignalSilence® Atg4B siRNA I #6336 (+), using Atg4B (D1G2R) Rabbit mAb (upper) or β-Actin (D6A8) Rabbit mAb #8457 (lower). The Atg4B (D1G2R) Rabbit mAb confirms silencing of Atg4B expression, while the β-Actin (D6A8) Rabbit mAb is used as a loading control.
undefined Image 15: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Confocal immunofluorescent analysis of A172 cells, untreated (left) and chloroquine-treated (50 μM, overnight; right), using GABARAP (E1J4E) Rabbit mAb (green) and β-Actin (8H10D10) Mouse mAb #3700 (red). Blue pseudocolor = DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 16: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit

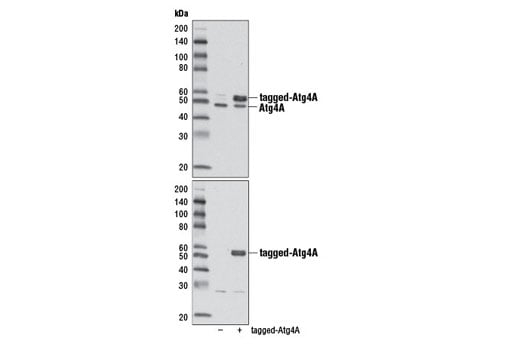

Western blot analysis of extracts from 293T cells, mock transfected (-) or transfected with a DYKDDDDK-tagged human Atg4A construct (+), using Atg4A (D62C10) Rabbit mAb (upper) and DYKDDDDK Tag Antibody #2368 (lower).
undefined Image 17: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded human squamous cell lung carcinoma using LC3A/B (D3U4C) XP® Rabbit mAb in the presence of control peptide (left) or antigen-specific peptide (right).
undefined Image 18: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo

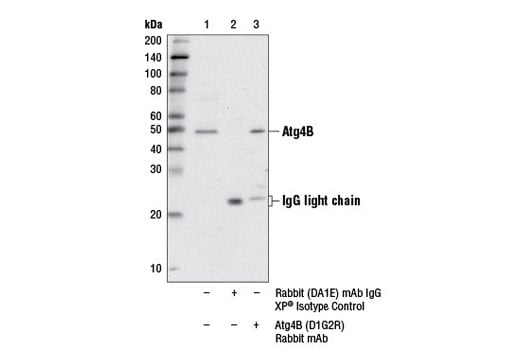

Immunoprecipitation of Atg4B from RD cell extracts using Rabbit (DA1E) mAb IgG XP® Isotype control #3900 (lane 2) or Atg4B (D1G2R) Rabbit mAb (lane 3). Lane 1 is 10% input. Western blot analysis was performed using Atg4B (D1G2R) Rabbit mAb.
undefined Image 19: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Immunohistochemical analysis of paraffin-embedded NIH/3T3 cell pellets, control (left) or chloroquine-treated (right), using LC3A/B (D3U4C) XP® Rabbit mAb.
undefined Image 20: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Confocal immunofluorescent analysis of HeLa (upper) and C2C12 (lower) cells, chloroquine-treated (50 μM, overnight; left), nutrient-starved with EBSS (3 hr, middle) or untreated (right) using LC3A/B (D3U4C) XP® Rabbit mAb (green) and β-Actin (13E5) Rabbit mAb (Alexa Fluor® 555 Conjugate) #8046 (red). Blue pseudocolor= DRAQ5® #4084 (fluorescent DNA dye).
undefined Image 21: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 2

Cell Signaling Technology Logo
Flow cytometric analysis of HeLa cells, untreated (blue) or treated with chloroquine (50 µM, 16 hr; green) using LC3A/B (D3U4C) Rabbit mAb. Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 647 Conjugate) #4414 was used as a secondary antibody.
undefined Image 22: Autophagy Vesicle Elongation (LC3 Conjugation) Antibody Sampler Kit
