Revision 1
Cell Signaling Technology

Orders: 877-616-CELL (2355) [email protected]

Support: 877-678-TECH (8324)

Web: [email protected] cellsignal.com

3 Trask LaneDanversMassachusetts01923USA
For Research Use Only. Not for Use in Diagnostic Procedures.
Applications:

WB

:

:

:

:

Product Information

Product Usage Information

Boil for 3 minutes prior to use. Load 15 μl of nonphosphorylated and phosphorylated p44/42 MAPK (Erk1/2) Control Cell Extracts per lane.

Storage

Supplied in SDS Sample Buffer: 62.5 mM Tris-HCl
(pH 6.8 at 25°C), 2% w/v SDS, 10% glycerol, 50 mM DTT,
0.01% w/v bromophenol blue or phenol red.
Store at –20°C or –80°C for long-term storage.

Product Description

Nonphosphorylated p44/42 MAPK (Erk1/2) Control Cell Extracts: Total cell extracts from Jurkat cells treated with U0126 (MEK1/2 Inhibitor) #9903 at 10 μM for 1 hour, to serve as a negative control. Supplied in SDS Sample Buffer.
Phosphorylated p44/42 MAPK (Erk1/2) Control Cell Extracts: Total cell extracts from Jurkat cells treated with TPA #4174 at 200 nM for 20 minutes, to serve as a positive control. Supplied in SDS Sample Buffer.

Background

Mitogen-activated protein kinases (MAPKs) are a widely conserved family of serine/threonine protein kinases involved in many cellular programs, such as cell proliferation, differentiation, motility, and death. The p44/42 MAPK (Erk1/2) signaling pathway can be activated in response to a diverse range of extracellular stimuli, including mitogens, growth factors, and cytokines (1-3), and research investigators consider it an important target in the diagnosis and treatment of cancer (4). Upon stimulation, a sequential three-part protein kinase cascade is initiated, consisting of a MAP kinase kinase kinase (MAPKKK or MAP3K), a MAP kinase kinase (MAPKK or MAP2K), and a MAP kinase (MAPK). Multiple p44/42 MAP3Ks have been identified, including members of the Raf family, as well as Mos and Tpl2/COT. MEK1 and MEK2 are the primary MAPKKs in this pathway (5,6). MEK1 and MEK2 activate p44 and p42 through phosphorylation of activation loop residues Thr202/Tyr204 and Thr185/Tyr187, respectively. Several downstream targets of p44/42 have been identified, including p90RSK (7) and the transcription factor Elk-1 (8,9). p44/42 are negatively regulated by a family of dual-specificity (Thr/Tyr) MAPK phosphatases, known as DUSPs or MKPs (10), along with MEK inhibitors, such as U0126 and PD98059.

  1. Roux, P.P. and Blenis, J. (2004) Microbiol Mol Biol Rev 68, 320-44.
  2. Baccarini, M. (2005) FEBS Lett 579, 3271-7.
  3. Meloche, S. and Pouysségur, J. (2007) Oncogene 26, 3227-39.
  4. Roberts, P.J. and Der, C.J. (2007) Oncogene 26, 3291-310.
  5. Rubinfeld, H. and Seger, R. (2005) Mol Biotechnol 31, 151-74.
  6. Murphy, L.O. and Blenis, J. (2006) Trends Biochem Sci 31, 268-75.
  7. Dalby, K.N. et al. (1998) J Biol Chem 273, 1496-505.
  8. Marais, R. et al. (1993) Cell 73, 381-93.
  9. Kortenjann, M. et al. (1994) Mol Cell Biol 14, 4815-24.
  10. Owens, D.M. and Keyse, S.M. (2007) Oncogene 26, 3203-13.

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

WB: Western Blotting

Cross-Reactivity Key

H: human M: mouse R: rat Hm: hamster Mk: monkey Vir: virus Mi: mink C: chicken Dm: D. melanogaster X: Xenopus Z: zebrafish B: bovine Dg: dog Pg: pig Sc: S. cerevisiae Ce: C. elegans Hr: horse GP: Guinea Pig Rab: rabbit All: all species expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.
All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品, (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Revision 1
#9194

p44/42 MAPK (Erk1/2) 对照细胞提取物

Western Blotting Image 1: p44/42 MAPK (Erk1/2) Control Cell Extracts Expand Image
使用 Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) Antibody #9101(左图)或 p44/42 MAPK (Erk1/2) Antibody #9102(右图),对经过 U0126 或 TPA 处理的 p44/42 MAPK (Erk1/2) 对照细胞提取物进行蛋白质印迹分析。

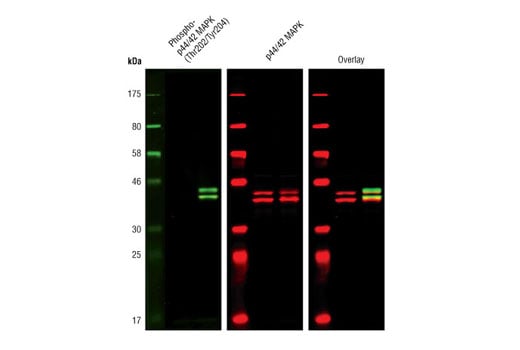

Western Blotting Image 2: p44/42 MAPK (Erk1/2) Control Cell Extracts Expand Image
使用 Phospho-p44/42 MAPK (Erk1/2) (Thr202/Tyr204) (E10) Mouse mAb #9106(绿色)和 p44/42 MAPK (Erk1/2) (137F5) Rabbit mAb #4695(红色),对 p44/42 MAPK (Erk1/2) 对照细胞提取物进行蛋白质印迹分析。
