Revision 7

#8240

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, IP, IF-IC, FC-FP, ChIP, ChIP-seq, C&R, C&T

Reactivity:
H M R Mk

Sensitivity:
Endogenous

MW (kDa):
23

Source/Isotype:
Rabbit IgG

UniProt ID:
#Q96QV6

Entrez-Gene Id:
221613

Product Usage Information

For optimal ChIP and ChIP-seq results, use 5 μl of antibody and 10 μg of chromatin (approximately 4 x 106 cells) per IP. This antibody has been validated using SimpleChIP® Enzymatic Chromatin IP Kits.

The CUT&RUN dilution was determined using CUT&RUN Assay Kit #86652.

The CUT&Tag dilution was determined using CUT&Tag Assay Kit #77552.

Application Dilution
Western Blotting 1:2000
Immunoprecipitation 1:100
Immunofluorescence (Immunocytochemistry) 1:800 - 1:1600
Flow Cytometry (Fixed/Permeabilized) 1:800 - 1:3200
Chromatin IP 1:100
Chromatin IP-seq 1:100
CUT&RUN 1:50
CUT&Tag 1:50

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier free (BSA and azide free) version of this product see product #45772.

Specificity/Sensitivity

Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb recognizes endogenous levels of histone H2A protein only when ubiquitinated at Lys119. The antibody does not cross-react with other ubiquitinated proteins or free ubiquitin.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues near the carboxy terminus of human histone H2A protein in which Lys119 is mono-ubiquitinated.

Background

The nucleosome, made up of four core histone proteins (H2A, H2B, H3, and H4), is the primary building block of chromatin. Originally thought to function as a static scaffold for DNA packaging, histones have now been shown to be dynamic proteins, undergoing multiple types of posttranslational modifications, including acetylation, phosphorylation, methylation, and ubiquitination (1). Ubiquitin is a conserved 76 amino acid peptide unit that can be covalently linked to many cellular proteins by the ubiquitination process. Three components are involved in this protein-ubiquitin conjugation process. Ubiquitin is first activated by forming a thioester complex with the activation component E1; the activated ubiquitin is subsequently transferred to the ubiquitin-carrier protein E2, then from E2 to ubiquitin ligase E3 for final delivery to the epsilon-NH2 of the target protein lysine residue (2). Histone H2A is mono-ubiquitinated at Lys119 by the Polycomb Repressor Complex 1 (PRC1) and is critical for transcriptional silencing of the developmental HOX genes and X chromosome inactivation (3-6). PRC1 is composed of Bmi1 and RING1A (also RING1 or RNF1), both of which act to enhance the E3 ubiquitin ligase activity of the catalytic subunit RING1B (also RING2 or RNF2) (3,4). Histone H2A is also mono-ubiquitinated at Lys119 at sites of DNA damage. This mono-ubiquitination event requires the PRC1 components Bmi1 and RING1B, in addition to another E3 ubiquitin ligase RNF8, and contributes to subsequent recruitment of the BRCA1 complex, via binding of RAP80/UIMC1 (ubiquitin interactive motif containing 1 protein) (7-10).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v BSA, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting IP: Immunoprecipitation IF-IC: Immunofluorescence (Immunocytochemistry) FC-FP: Flow Cytometry (Fixed/Permeabilized) ChIP: Chromatin IP ChIP-seq: Chromatin IP-seq C&R: CUT&RUN C&T: CUT&Tag

Cross-Reactivity Key

H: Human M: Mouse R: Rat Mk: Monkey

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
Western blot analysis of extracts from various cell lines using Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb.
Western Blotting Image 1: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb
Confocal immunofluorescent analysis of HeLa cells using Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb (green) and COX IV (4D11-B3-E8) Mouse mAb #11967 (red).
Immunofluorescence Image 1: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb

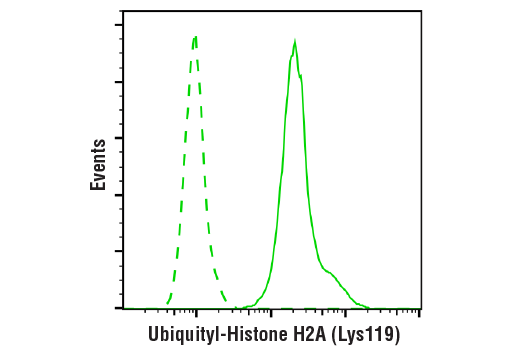

Flow cytometric analysis of HeLa cells using Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb (solid line) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (dashed line). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 1: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo

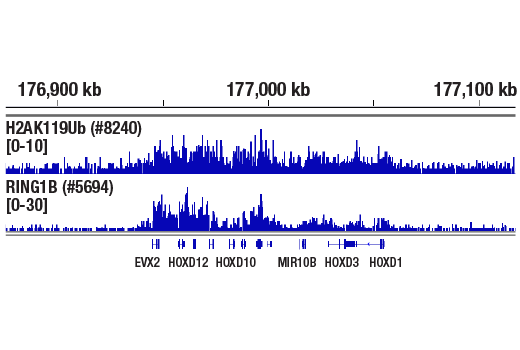

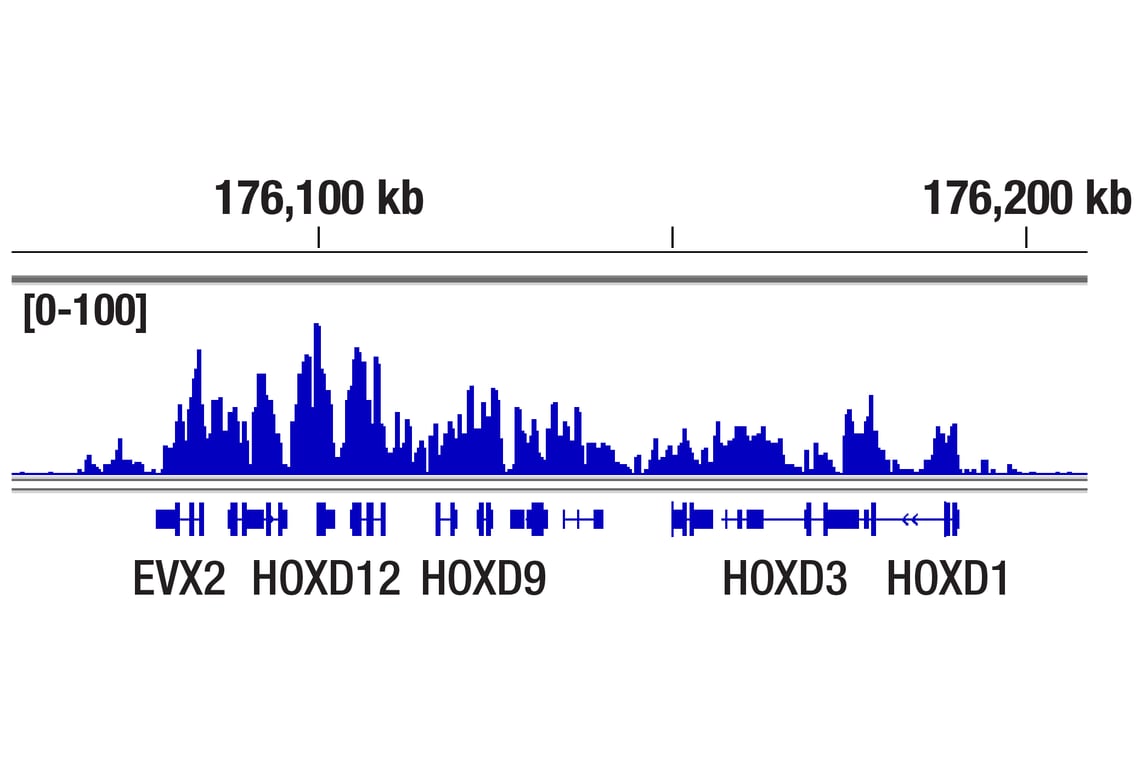

Chromatin immunoprecipitations were performed with cross-linked chromatin from NCCIT cells and either Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb or RING1B (D22F2) XP® Rabbit mAb #5694, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. H2AK119Ub and RING1B are known to associate with each other on chromatin. The figure shows binding of both H2AK119Ub and RING1B across HOXD genes.
Chromatin Immunoprecipitation Image 1: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb

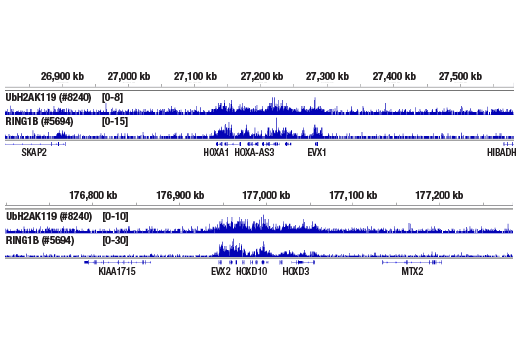

Chromatin immunoprecipitations were performed with cross-linked chromatin from NCCIT cells and either Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb or RING1B (D22F2) XP® Rabbit mAb #5694, using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Libraries were prepared using SimpleChIP® ChIP-seq DNA Library Prep Kit for Illumina® #56795. H2AK119Ub and RING1B are known to associate with each other on chromatin. The figure shows binding of both H2AK119Ub and RING1B across HOXA genes (upper) and HOXD genes (lower), which are known target genes of H2AK119Ub and RING1B (see additional figure containing ChIP-qPCR data).
Chromatin Immunoprecipitation Image 2: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb

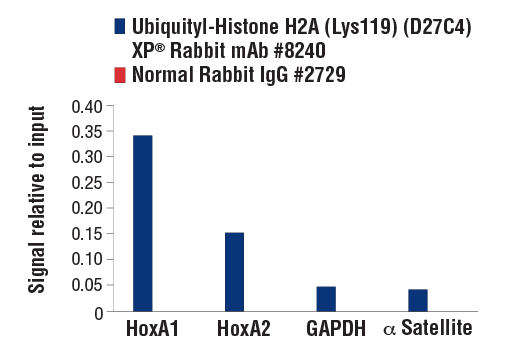

Chromatin immunoprecipitations were performed with cross-linked chromatin from NCCIT cells and either Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human HoxA1 Intron 1 Primers #7707, SimpleChIP® Human HoxA2 Promoter Primers #5517, SimpleChIP® Human GAPDH Exon 1 Primers #5516, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin (equivalent to one).
Chromatin Immunoprecipitation Image 3: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo

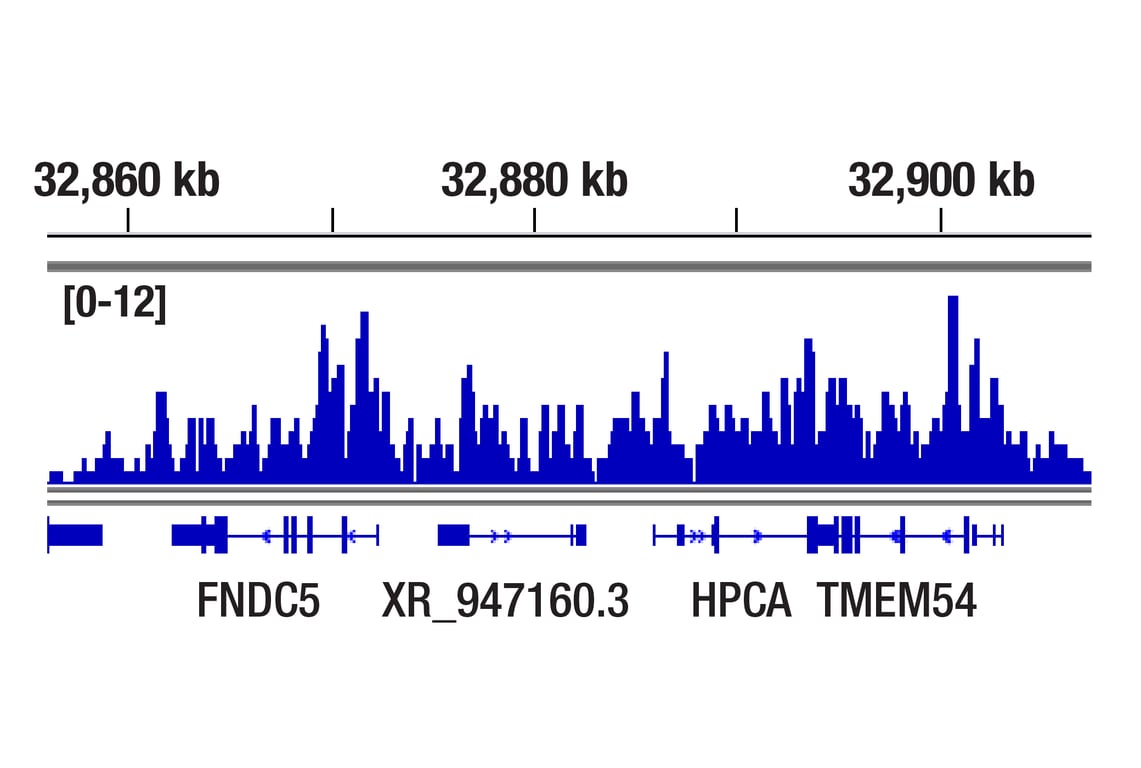

CUT&RUN was performed with NCCIT cells and Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb, using CUT&RUN Assay Kit #86652. The DNA library was prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figure shows binding across TMEM54 gene.
CUT & RUN Image 1: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb

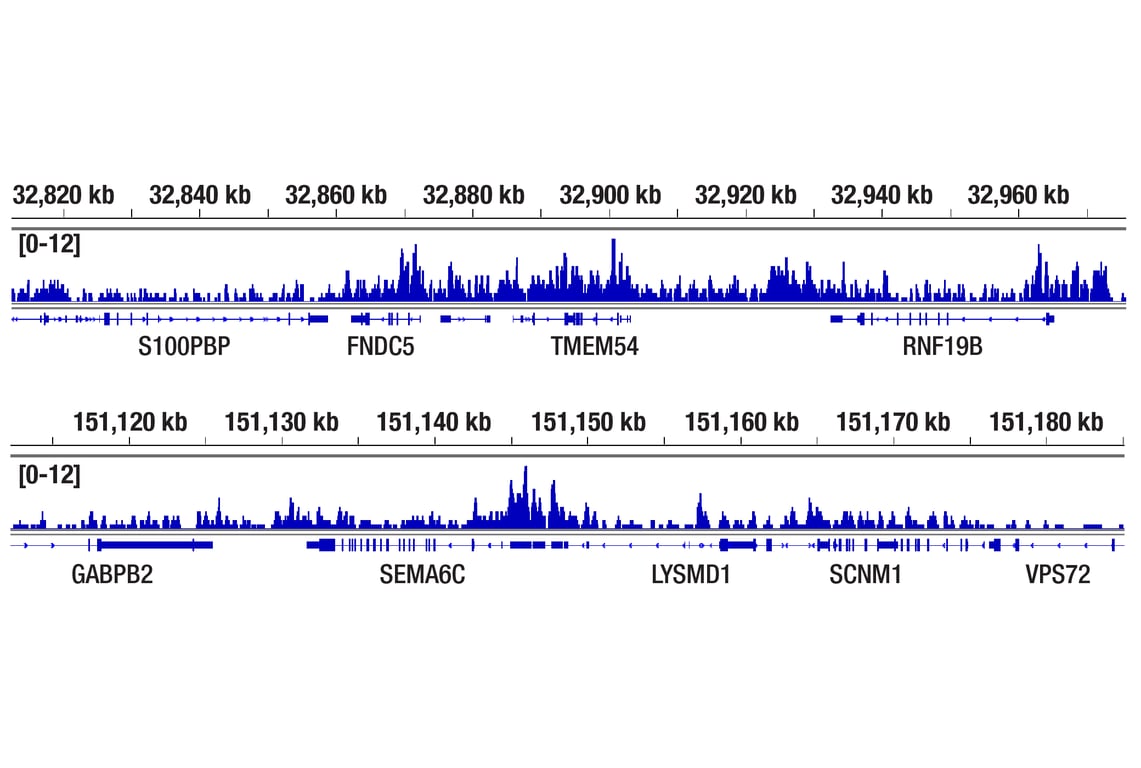

CUT&RUN was performed with NCCIT cells and Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb, using CUT&RUN Assay Kit #86652. The DNA library was prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figures show binding across TMEM54 gene (upper) and SEMA6C gene (lower).
CUT & RUN Image 2: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb

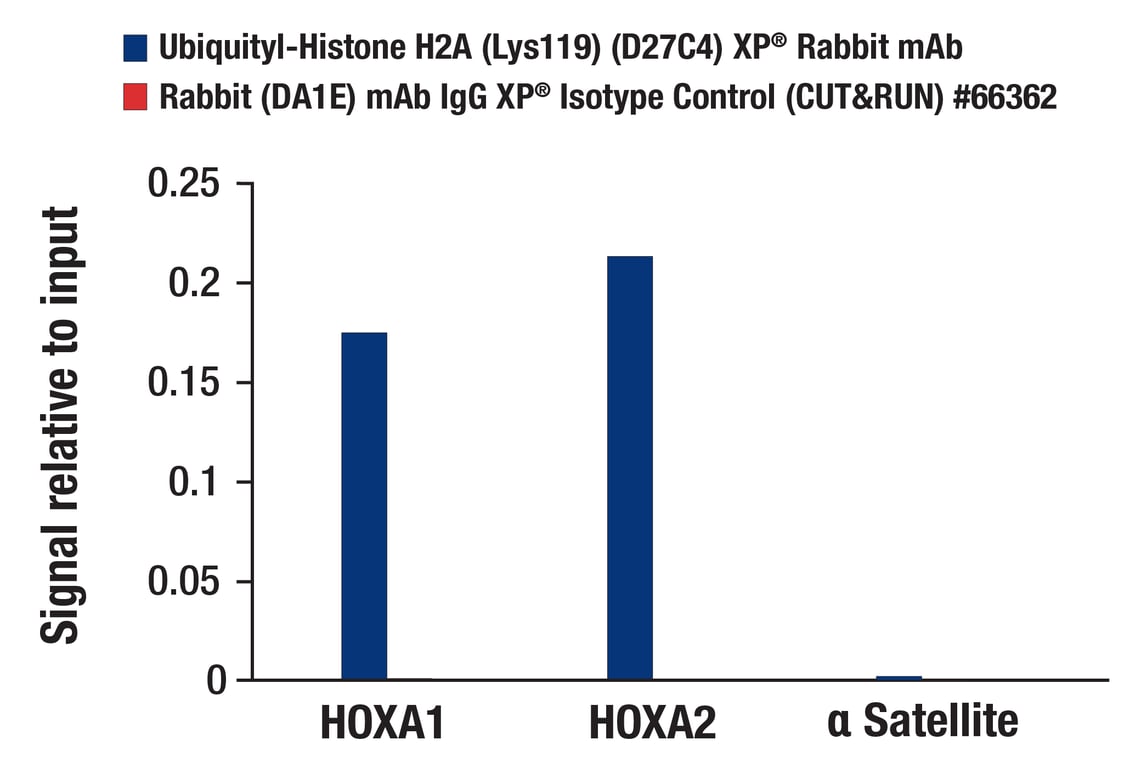

CUT&RUN was performed with NCCIT cells and either Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human HoxA1 Intron 1 Primers, SimpleChIP® Human HoxA2 Promoter Primers, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
CUT & RUN Image 3: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

Cell Signaling Technology Logo
CUT&Tag was performed with NCCIT cells and Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across HOXD genes, which are known target genes of H2AK119Ub (see our ChIP-qPCR figure).
CUT & Tag Image 1: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb

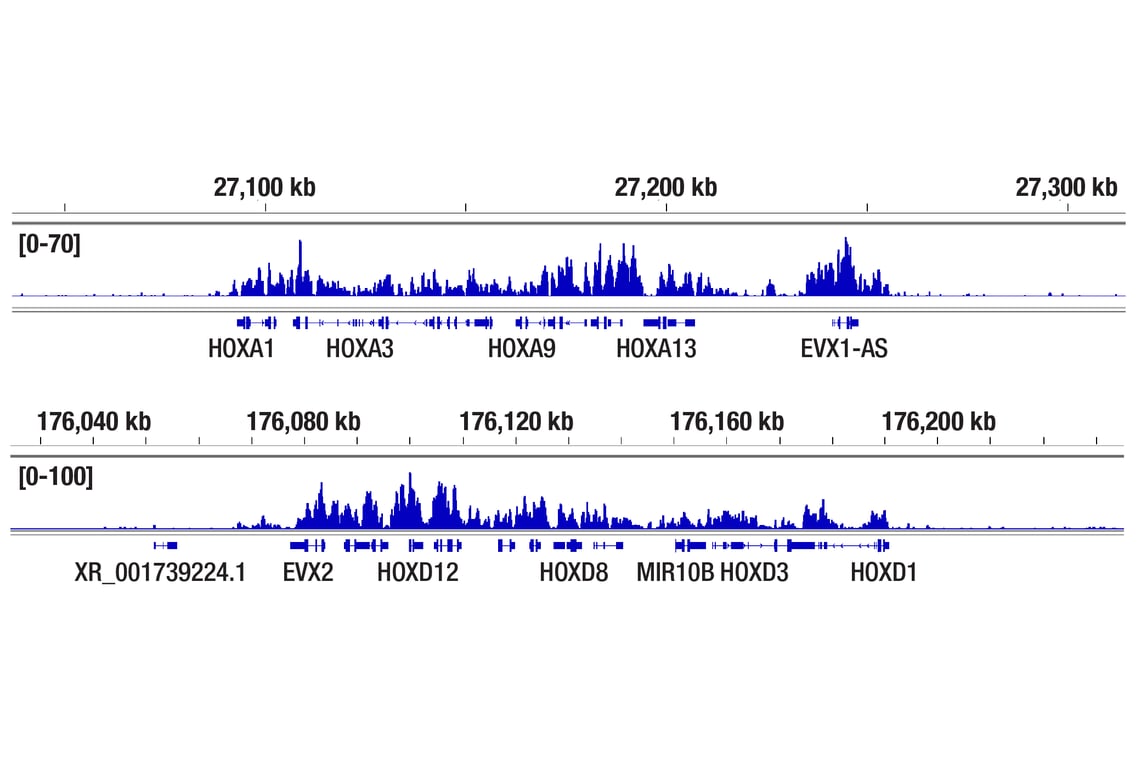

CUT&Tag was performed with NCCIT cells and Ubiquityl-Histone H2A (Lys119) (D27C4) XP® Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figures show binding across HOXA genes (upper) and HOXD genes (lower), which are known target genes of H2AK119Ub (see our ChIP-qPCR figure).
CUT & Tag Image 2: Ubiquityl-Histone H2A (Lys119) (D27C4) XP<sup>®</sup> Rabbit mAb
