Revision 4

#7175

Store at +4C

PathScan® Phospho-MEK1 (Ser217/221) Sandwich ELISA Kit

1 Kit

(96 assays)

Species Cross Reactivity:
H M

UniProt ID:
#Q02750

Entrez-Gene Id:
#5604

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Product Includes Product # Quantity Color Storage Temp
MEK1 Mouse mAb Coated Microwells9724296 tests+4C
Phospho-MEK1/2 (Ser217/221) Rabbit Detection mAb571011 eaGreen (Lyophilized)+4C
Anti-rabbit IgG, HRP-linked Antibody (ELISA Formulated)132721 eaRed (Lyophilized)+4C
Detection Antibody Diluent1333911 mlGreen+4C
HRP Diluent1351511 mlRed+4C
TMB Substrate700411 ml+4C
STOP Solution700211 ml+4C
Sealing Tape545032 ea+4C
ELISA Wash Buffer (20X)980125 ml+4C
ELISA Sample Diluent1108325 mlBlue+4C
Cell Lysis Buffer (10X)980315 ml-20C

Kit contents scale proportionally with size, except sealing tape.
Example: The V1 kit contains 5X the listed quantities above, but will exclude the sealing tape.

The microwell plate is supplied as 12 8-well modules - Each module is designed to break apart for 8 tests.

Description

CST's PathScan® Phospho-MEK1 (Ser217/221) Sandwich ELISA Kit is a solid phase sandwich enzyme-linked immunosorbent assay (ELISA) that detects endogenous levels of Phospho-MEK1 (Ser217/221) protein. MEK1 Mouse mAb has been coated onto the microwells. After incubation with cell lysates, total MEK1 protein (phospho- and nonphospho-) is captured by the coated antibody. Following extensive washing, a Phospho-MEK1/2 Antibody is added to detect the captured phospho-MEK1 protein. Anti-rabbit IgG, HRP-linked antibody is then used to recognize the bound detection antibody. HRP substrate, TMB, is added to develop color. The magnitude of optical density for this developed color is proportional to the quantity of phospho-MEK1 protein.

*Antibodies in kit are custom formulations specific to kit.

Specificity/Sensitivity

CST's PathScan® Phospho-MEK1 (Ser217/221) Sandwich ELISA Kit detects endogenous levels of phospho-MEK1 protein. A significant induction of MEK1 phosphorylation in PMA-treated NIH/3T3 cells can be detected using this kit, #7175. However, the level of total MEK1 protein detected by PathScan® Total MEK1 Sandwich ELISA Kit #7165 remains unchanged (Figure 1). This kit can also be used to detect phosphorylated MEK1 protein in human 293 cells. This kit detects proteins from the indicated species, as determined through in-house testing, but may also detect homologous proteins from other species.

Background

MEK1 and MEK2, also called MAPK or Erk kinases, are dual-specificity protein kinases that function in a mitogen activated protein kinase cascade controlling cell growth and differentiation (1-3). Activation of MEK1 and MEK2 occurs through phosphorylation of two serine residues at positions 217 and 221, located in the activation loop of subdomain VIII, by Raf-like molecules. MEK1/2 is activated by a wide variety of growth factors and cytokines and also by membrane depolarization and calcium influx (1-4). Constitutively active forms of MEK1/2 are sufficient for the transformation of NIH/3T3 cells or the differentiation of PC-12 cells (4). MEK activates p44 and p42 MAP kinase by phosphorylating both threonine and tyrosine residues at sites located within the activation loop of kinase subdomain VIII.

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

PathScan is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 4

Cell Signaling Technology Logo
Figure 1: Treatment of NIH/3T3 cells with PMA stimulates phosphorylation of MEK1 at Ser217/221, detected by PathScan® Phospho-MEK1 (Ser217/221) Sandwich ELISA kit #7175, but does not affect the level of total MEK1 protein detected by PathScan® Total MEK1 Sandwich ELISA kit #7165. Lambda protein phosphatase (LPP) treatment of control cell lysates (37ºC for 90 minutes) abolished the basal phosphorylation of MEK1 in control lysates shown in both Sandwich ELISA and Western analysis. The OD450 readings are shown in the top figure, while the corresponding Western blot, using Phospho-MEK1/2 (Ser217/221) Antibody #9121 (right panel) or MEK1 Mouse mAb #2352 (left panel), is shown in the bottom figure.
ELISA Image 1: PathScan<sup>®</sup> Phospho-MEK1 (Ser217/221) Sandwich ELISA Kit

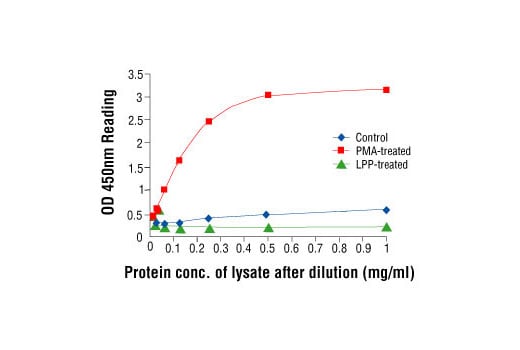

Figure 2: Linear relationship between protein concentration of lysates from untreated and PMA-treated NIH/3T3 cells and kit assay optical density readings. Cells (80% confluence) were treated with PMA (120 ng/ml) and lysed after incubation at 37ºC for 30 minutes. Lambda protein phosphatase (LPP) treatment of control cell lysates was performed at 37ºC for 90 minutes.
ELISA Image 2: PathScan<sup>®</sup> Phospho-MEK1 (Ser217/221) Sandwich ELISA Kit
