Revision 7

#46743

Store at -20C

NRF1 (D9K6P) Rabbit mAb
CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

Web:

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
W, W-S, IP, ChIP, ChIP-seq, C&R, C&T

Reactivity:
H M R Mk

Sensitivity:
Endogenous

MW (kDa):
68

Source/Isotype:
Rabbit IgG

UniProt ID:
#Q16656

Entrez-Gene Id:
4899

Product Usage Information

For optimal ChIP and ChIP-Seq results, use 5 μl of antibody and 10 μg of chromatin (approximately 4 x 106 cells) per IP. This antibody has been validated using SimpleChIP® Enzymatic Chromatin IP Kits.

The CUT&RUN dilution was determined using CUT&RUN Assay Kit #86652.

Application Dilution
Western Blotting 1:1000
Simple Western™ 1:10 - 1:50
Immunoprecipitation 1:100
Chromatin IP 1:100
Chromatin IP-seq 1:100
CUT&RUN 1:50
CUT&Tag 1:100

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity/Sensitivity

NRF1 (D9K6P) Rabbit mAb recognizes endogenous levels of total NRF1 protein.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues surrounding Ala175 of human NRF1 protein.

Background

Nuclear respiratory factor 1 (NRF1) was identified as a transcription activator for the gene encoding cytochrome c (1). It was later found to play a role in the nuclear control of mitochondrial function (1). PGC-1 induces the expression of NRF1 and NRF2 (2). NRF1, along with the coactivator PGC-1, stimulates the promoter of mitochondrial transcription factor A, which regulates mitochondrial biogenensis and function (2).

Background References

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Western Blot Buffer

IMPORTANT: For western blots, incubate membrane with diluted primary antibody in 5% w/v nonfat dry milk, 1X TBS, 0.1% Tween® 20 at 4°C with gentle shaking, overnight.

Applications Key

W: Western Blotting W-S: Simple Western™ IP: Immunoprecipitation ChIP: Chromatin IP ChIP-seq: Chromatin IP-seq C&R: CUT&RUN C&T: CUT&Tag

Cross-Reactivity Key

H: Human M: Mouse R: Rat Mk: Monkey

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

SimpleChIP is a registered trademark of Cell Signaling Technology, Inc.

XP is a registered trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意，否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件，除非书 CST 的合法授书代表以书面形式书独接受， 否书均被拒书，并且无效。

专品专有“专供研究使用”的专专或专似的专专声明， 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的， 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专，且专用于研专用途。将专品用于专断、专防或治专目的， 或专专售（专独或作专专成）或其他商专目的而专专专品，均需要 CST 的专独专可。客专：(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品，或使用专品制造任何商专专品，(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专，或使用专品开专任何与 CST 的专品或服专专争的专品或服专， (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专，(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 ， (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] • Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

#46743

NRF1 (D9K6P) Rabbit mAb

Cell Signaling Technology Logo

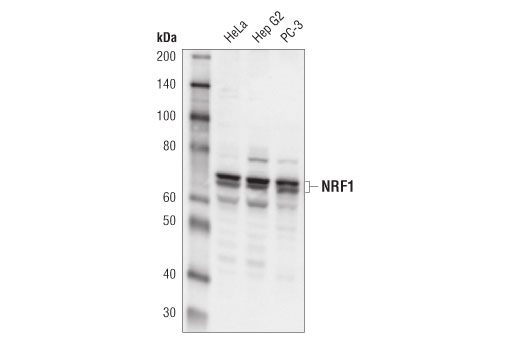

Western blot analysis of extracts from various cell lines using NRF1 (D9K6P) Rabbit mAb.
Western Blotting Image 1: NRF1 (D9K6P) Rabbit mAb

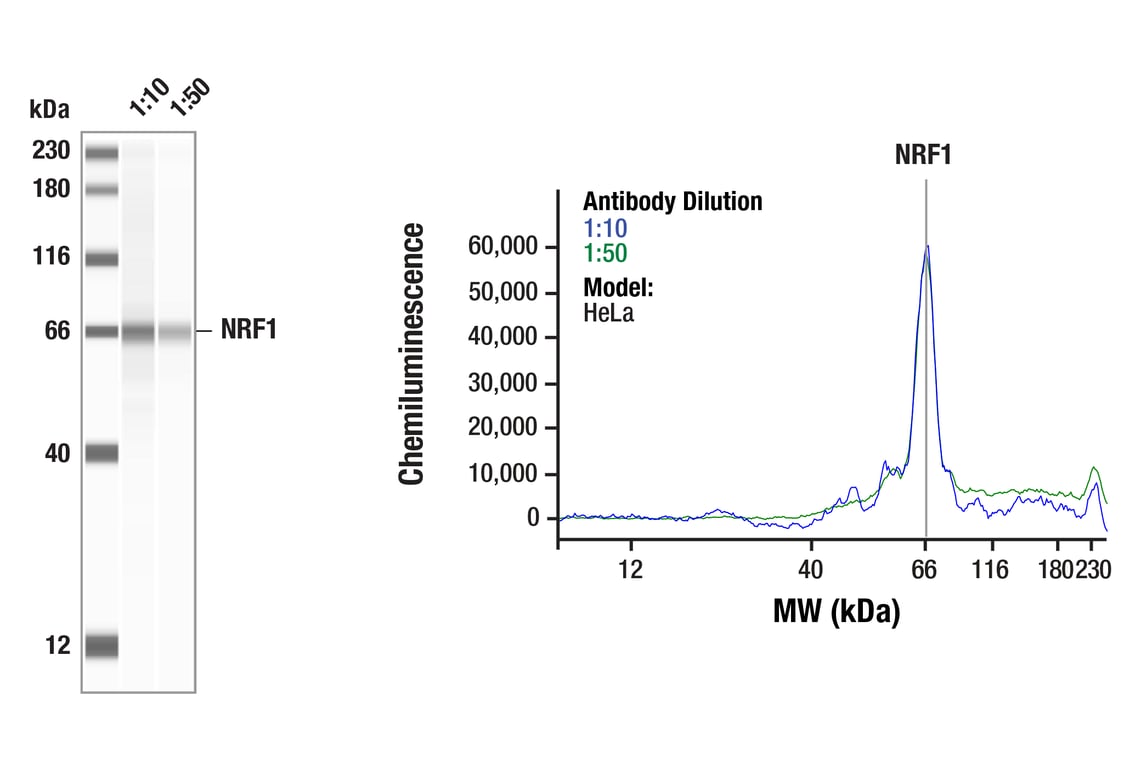

Simple WesternTM analysis of lysates (1.0 mg/mL) from HeLa cells using NRF1 (D9K6P) Rabbit mAb #46743. The virtual lane view (left) shows the target (as indicated) at 1:10 and 1:50 dilutions of primary antibody. The corresponding electropherogram view (right) plots chemiluminescence by molecular weight along the capillary at 1:10 (blue line) and 1:50 (green line) dilutions of primary antibody. This experiment was performed under reducing conditions on the JessTM Simple Western instrument from ProteinSimple, a BioTechne brand, using the 12-230 kDa separation module.
Western Blotting Image 1: NRF1 (D9K6P) Rabbit mAb

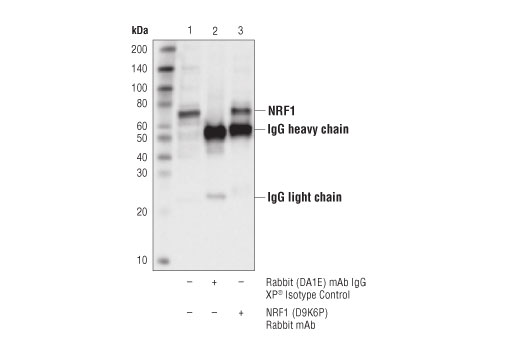

Immunoprecipitation of NRF1 from HepG2 cell extracts. Lane 1 is 10% input, lane 2 is Rabbit (DA1E) mAb IgG XP® Isotype Control #3900, and lane 3 is NRF1 (D9K6P) Rabbit mAb. Western blot analysis was performed using NRF1 (D9K6P) Rabbit mAb.
Immunoprecipitation Image 1: NRF1 (D9K6P) Rabbit mAb
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] • Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

#46743

NRF1 (D9K6P) Rabbit mAb

Cell Signaling Technology Logo

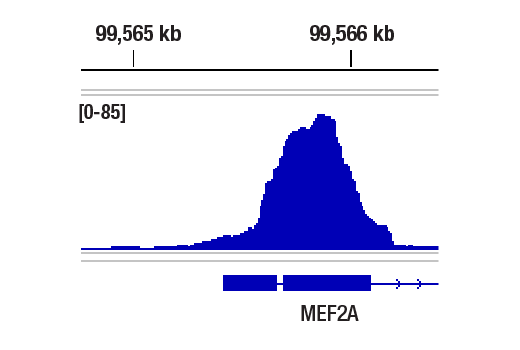

Chromatin immunoprecipitations were performed with cross-linked chromatin from untreated 293 cells and NRF1 (D9K6P) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Library was prepared using DNA Library Prep Kit for Illumina (ChIP-seq, CUT&RUN) #56795. The figure shows binding across MEF2A, a known target gene of NRF1 (see additional figure containing ChIP-qPCR data).
Chromatin Immunoprecipitation Image 1: NRF1 (D9K6P) Rabbit mAb

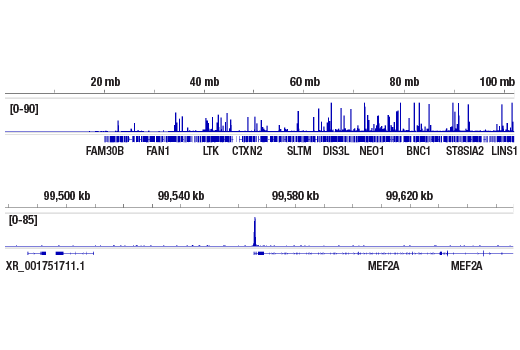

Chromatin immunoprecipitations were performed with cross-linked chromatin from untreated 293 cells and NRF1 (D9K6P) Rabbit mAb, using SimpleChIP® Plus Enzymatic Chromatin IP Kit (Magnetic Beads) #9005. DNA Library was prepared using DNA Library Prep Kit for Illumina (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 15 (upper), including MEF2A (lower), a known target gene of NRF1 (see additional figure containing ChIP-qPCR data).
Chromatin Immunoprecipitation Image 2: NRF1 (D9K6P) Rabbit mAb

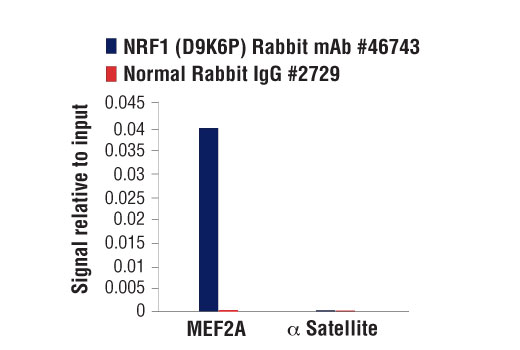

Chromatin immunoprecipitations were performed with cross-linked chromatin from 293 cells and either NRF1 (D9K6P) Rabbit mAb or Normal Rabbit IgG #2729 using SimpleChIP® Enzymatic Chromatin IP Kit (Magnetic Beads) #9003. The enriched DNA was quantified by real-time PCR using SimpleChIP® Human MEF2A Exon 1 Primers #26727, and SimpleChIP® Human α Satellite Repeat Primers #4486. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
Chromatin Immunoprecipitation Image 3: NRF1 (D9K6P) Rabbit mAb
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] • Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

#46743

NRF1 (D9K6P) Rabbit mAb

Cell Signaling Technology Logo

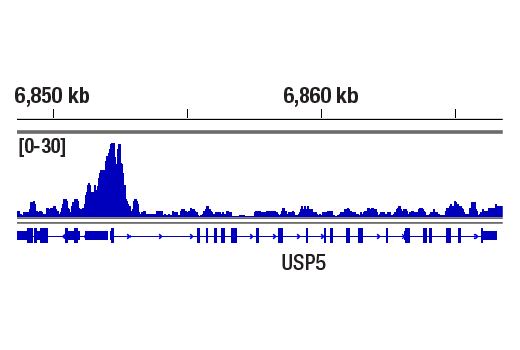

CUT&RUN was performed with 293 cells and NRF1 (D9K6P) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA library was prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figure shows binding across USP5 gene, a known target gene of NRF1 (see additional figure containing CUT&RUN-qPCR data).
CUT & RUN Image 1: NRF1 (D9K6P) Rabbit mAb

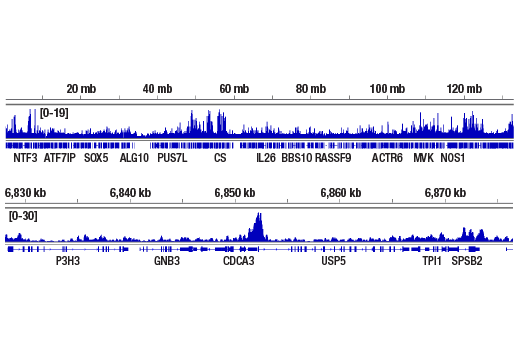

CUT&RUN was performed with 293 cells and NRF1 (D9K6P) Rabbit mAb, using CUT&RUN Assay Kit #86652. DNA library was prepared using DNA Library Prep Kit for Illumina Systems (ChIP-seq, CUT&RUN) #56795. The figures show binding across chromosome 12 (upper), including USP5 (lower), a known target gene of NRF1 (see additional figure containing CUT&RUN-qPCR data).
CUT & RUN Image 2: NRF1 (D9K6P) Rabbit mAb

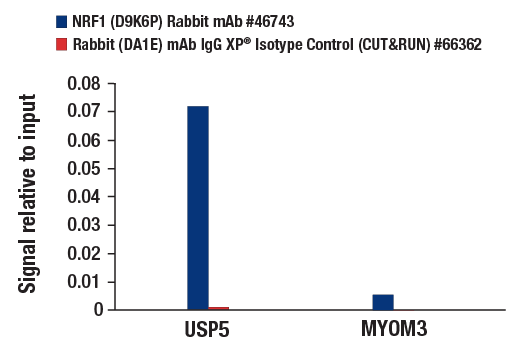

CUT&RUN was performed with 293 cells and either NRF1 (D9K6P) Rabbit mAb or Rabbit (DA1E) mAb IgG XP® Isotype Control (CUT&RUN) #66362, using CUT&RUN Assay Kit #86652. The enriched DNA was quantified by real-time PCR using human USP5 promoter primers and human MYOM3 promoter primers. The amount of immunoprecipitated DNA in each sample is represented as signal relative to the total amount of input chromatin, which is equivalent to one.
CUT & RUN Image 3: NRF1 (D9K6P) Rabbit mAb
Orders: 877-616-CELL (2355) • [email protected] • Support: 877-678-TECH (8324) • [email protected] • Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 7

#46743

NRF1 (D9K6P) Rabbit mAb

Cell Signaling Technology Logo

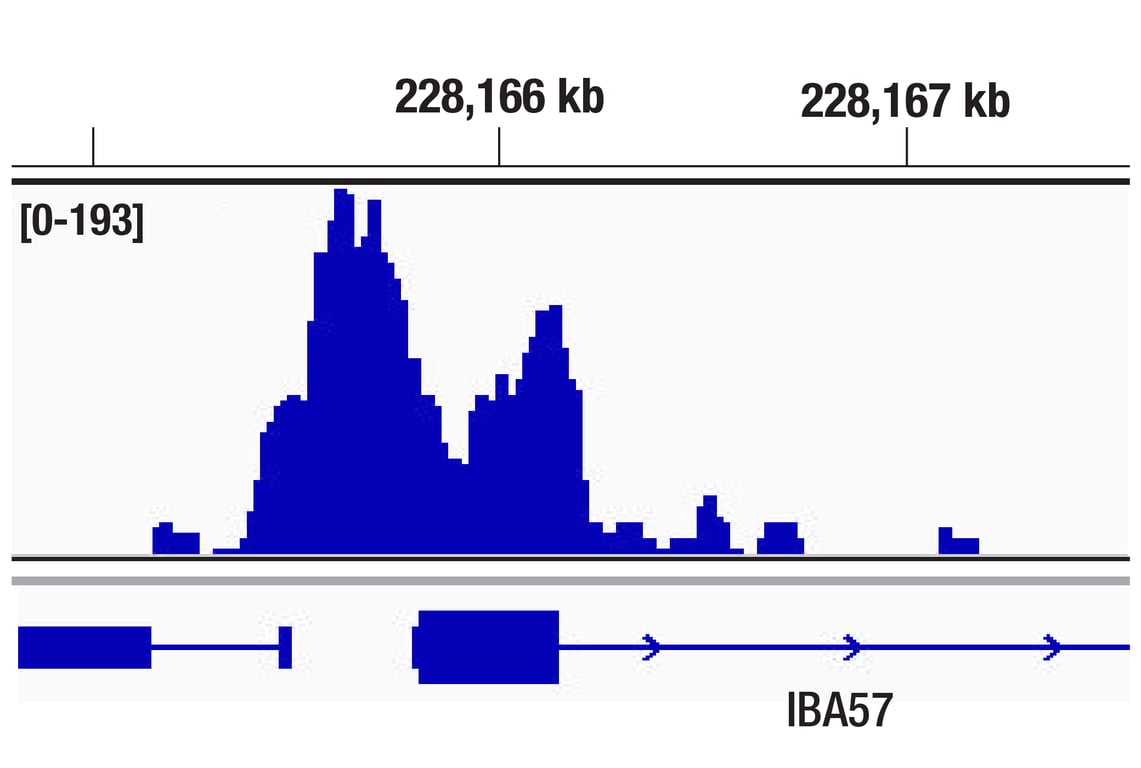

CUT&Tag was performed with 293 cells and NRF1 (D9K6P) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figure shows binding across the IBA57 gene.
CUT & Tag Image 1: NRF1 (D9K6P) Rabbit mAb

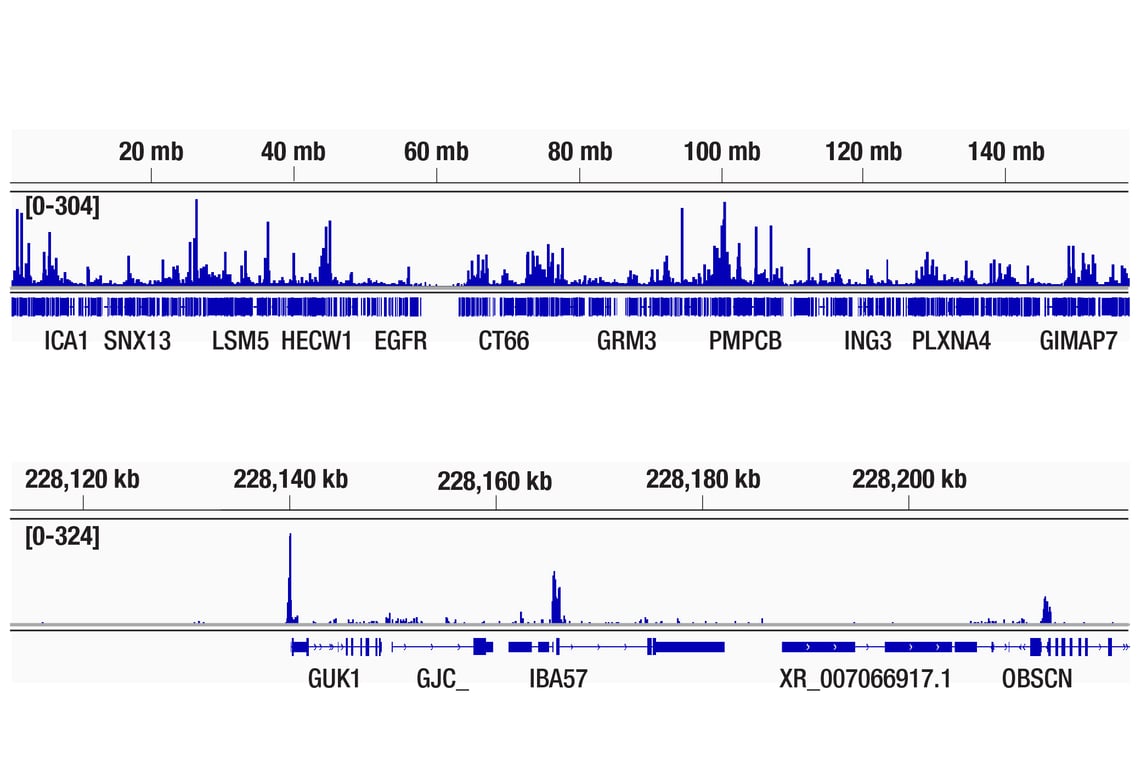

CUT&Tag was performed with 293 cells and NRF1 (D9K6P) Rabbit mAb, using CUT&Tag Assay Kit #77552. DNA library was prepared using CUT&Tag Dual Index Primers and PCR Master Mix for Illumina Systems #47415. The figures show binding across chromosome 7 (upper), including the IBA57 gene (lower).
CUT & Tag Image 2: NRF1 (D9K6P) Rabbit mAb
