Revision 12

#39197

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
IHC-Bond, IHC-P, IF-F, FC-L

Reactivity:
M

Sensitivity:
Endogenous

Source/Isotype:
Rabbit IgG

UniProt ID:
#P27814

Entrez-Gene Id:
17059

Product Usage Information

Application Dilution
IHC Leica Bond 1:50
Immunohistochemistry (Paraffin) 1:50 - 1:200
Immunofluorescence (Frozen) 1:100 - 1:400
Flow Cytometry (Live) 1:50 - 1:100

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/ml BSA, 50% glycerol and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

For a carrier free (BSA and azide free) version of this product see product #24395.

Specificity/Sensitivity

NK1.1/CD161 (E6Y9G) Rabbit mAb recognizes endogenous levels of total CD161c protein from C57BL/6, SJL, and NZW mice, but not from BALB/c and 129S6 mice. Mice from other strains have not been tested. This antibody is predicted to cross-react with CD161b and may cross-react with CD161a protein in some mouse strains.

Source / Purification

Monoclonal antibody is produced by immunizing animals with a synthetic peptide corresponding to residues near the carboxy terminus of mouse NK1.1/CD161 protein.

Background

CD161/KLRB1 (Killer cell lectin-like receptor subfamily B member 1, also known as CLEC5B and NKR-P1A) is a type II transmembrane protein that is expressed on the majority of Natural Killer (NK) cells, NK T cells, and some T lymphocytes (1). CD161/KLRB1 is also expressed on Th17 cells, promotes their generation, and modulates their function (2). Engagement with its ligand lectin-like transcript 1 (LLT1) inhibits NK cell function, while LLT1 and CD161/KLRB1 interaction in the presence of a TCR signal enhances IFN-gamma production by T cells (3,4). There are several different CD161 isoforms in rodents and some function as activating receptors as well (5,6).

There is a family of Klrb1 genes in rodents (7). PK136 antibody recognizes a specific epitope on mouse KLRB1b/c, also referred to as NK1.1, and is commonly used for detection of mouse NK cells in certain mouse strains (CE, B6, NZB, C58, Ma/My, ST, SJL, FVB). However, the epitope is absent in other mouse strains (BALB/c, AKR, CBA, C3H, DBA, 129) (8).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

IHC-Bond: IHC Leica Bond IHC-P: Immunohistochemistry (Paraffin) IF-F: Immunofluorescence (Frozen) FC-L: Flow Cytometry (Live)

Cross-Reactivity Key

M: Mouse

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

Alexa Fluor is a registered trademark of Life Technologies Corporation.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 12

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded C57BL/6 mouse thymus using NK1.1/CD161 (E6Y9G) Rabbit mAb performed on the Leica® BOND™ Rx.
Immunohistochemistry Image 1: NK1.1/CD161 (E6Y9G) Rabbit mAb
Immunohistochemical analysis of paraffin-embedded C57BL/6 mouse small intestine using NK1.1/CD161 (E6Y9G) Rabbit mAb performed on the Leica® BOND™ Rx.
Immunohistochemistry Image 2: NK1.1/CD161 (E6Y9G) Rabbit mAb
Immunohistochemical analysis of paraffin-embedded C57BL/6 mouse spleen using NK1.1/CD161 (E6Y9G) Rabbit mAb (left) compared to concentration-matched Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (right).
Immunohistochemistry Image 1: NK1.1/CD161 (E6Y9G) Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 12

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded SJL mouse lung using NK1.1/CD161 (E6Y9G) Rabbit mAb.
Immunohistochemistry Image 2: NK1.1/CD161 (E6Y9G) Rabbit mAb
Immunohistochemical analysis of paraffin-embedded SJL mouse endometrium using NK1.1/CD161 (E6Y9G) Rabbit mAb.
Immunohistochemistry Image 3: NK1.1/CD161 (E6Y9G) Rabbit mAb
Immunohistochemical analysis of paraffin-embedded NZW mouse spleen using NK1.1/CD161 (E6Y9G) Rabbit mAb.
Immunohistochemistry Image 4: NK1.1/CD161 (E6Y9G) Rabbit mAb
Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 12

Cell Signaling Technology Logo
Immunohistochemical analysis of paraffin-embedded 293T cell pellet, untransfected (left) or C57BL/6 mouse Klrb1c-transfected (right) using NK1.1/CD161 (E6Y9G) Rabbit mAb.
Immunohistochemistry Image 5: NK1.1/CD161 (E6Y9G) Rabbit mAb
Confocal immunofluorescent analysis of C57BL/6 mouse spleen using NK1.1/CD161 (E6Y9G) Rabbit mAb (green) and CD45R/B220 (RA3-6B2) Rat mAb (redFluor™ 710 Conjugate) #82984 (red). Samples were mounted in ProLong® Gold Antifade Reagent with DAPI #8961 (blue).
Immunofluorescence Image 1: NK1.1/CD161 (E6Y9G) Rabbit mAb

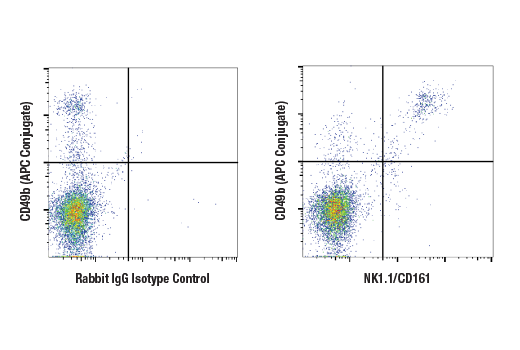

Flow cytometric analysis of live mouse C57BL/6 splenocytes stained with CD49b-APC and either Rabbit (DA1E) mAb IgG XP® Isotype Control #3900 (left) or NK1.1/CD161 (E6Y9G) Rabbit mAb (right). Anti-rabbit IgG (H+L), F(ab')2 Fragment (Alexa Fluor® 488 Conjugate) #4412 was used as a secondary antibody.
Flow Cytometry Image 1: NK1.1/CD161 (E6Y9G) Rabbit mAb
