Revision 1

#37739

Store at -20C

CST Logo
Orders:

877-616-CELL (2355)

[email protected]

Support:

877-678-TECH (8324)

3 Trask Lane | Danvers | Massachusetts | 01923 | USA

For Research Use Only. Not for Use in Diagnostic Procedures.

Applications:
R Dot Blot

Reactivity:
All

Sensitivity:
Endogenous

Source/Isotype:
Rabbit IgG

Product Usage Information

Application Dilution
RNA Dot Blot 1:1000

Storage

Supplied in 10 mM sodium HEPES (pH 7.5), 150 mM NaCl, 100 µg/mL BSA, 50% glycerol, and less than 0.02% sodium azide. Store at –20°C. Do not aliquot the antibody.

Specificity/Sensitivity

N1-Methyladenosine (m1A) (E8S7H) Rabbit mAb recognizes endogenous levels of N1-methyladenosine (m1A) protein. This antibody has been validated using ELISA and dot blot assays and shows high specificity for m1A. This antibody does not cross-react with unmodified adenosine, N6-methyladenosine, or 2'-O-methyladenosine.

Source / Purification

Monoclonal antibody is produced by immunizing animals with N1-methyladenosine protein.

Background

N1-methyladenosine (m1A) is a post-transcriptional modification found in various RNA subtypes. Even though m1A was first isolated in the 1960s, lack of tools and reagents have made interrogating the epitranscriptomic landscape challenging (1,2). Most tRNAs are modified at the A58 position, which is conserved across species. Methylation at the N1 position of A58 confers a positive charge at the elbow region of the tRNA tertiary structure and does so without disrupting hydrogen bond interactions, ultimately stabilizing it (3). The enzyme complex responsible for deposition of the m1A mark on tRNA is conserved from yeast to humans. It consists of the enzymatic protein TRM61 and the substrate recognition protein TRM6 (4,5) N1-methyladenosine is also found on rRNA, and is deposited by Rrp8 in yeast and NML in mammals (6,7). The 28S rRNA undergoes methylation at position 645 in Helix 25.1, promoting 60S subunit formation (6). In mRNA, m1A modification is also present, but the relative abundance is still being quantified through various sequencing techniques (8-10). It seems most mRNA m1A sites are catalyzed by TRM6/61 and results in transcriptional repression due to the disruption of base pairing (9).

m1A, much like m6A, can be erased by various enzymes. ALKBH1 has been shown to erase the m1A mark on tRNAs, resulting in reduced translational initiation, which responds to the availability of glucose (11). ALKBH3 has also been shown to erase m1A marks from mRNA transcripts (8).

Species Reactivity

Species reactivity is determined by testing in at least one approved application (e.g., western blot).

Applications Key

R Dot Blot: RNA Dot Blot

Cross-Reactivity Key

All: All Species Expected

Trademarks and Patents

Cell Signaling Technology is a trademark of Cell Signaling Technology, Inc.

All other trademarks are the property of their respective owners. Visit cellsignal.com/trademarks for more information.

限制使用

除非 CST 的合法授书代表以书面形式书行明确同意,否书以下条款适用于 CST、其关书方或分书商提供的书品。 任何书充本条款或与本条款不同的客书条款和条件,除非书 CST 的合法授书代表以书面形式书独接受, 否书均被拒书,并且无效。

专品专有“专供研究使用”的专专或专似的专专声明, 且未专得美国食品和专品管理局或其他外国或国内专管机专专专任何用途的批准、准专或专可。客专不得将任何专品用于任何专断或治专目的, 或以任何不符合专专声明的方式使用专品。CST 专售或专可的专品提供专作专最专用专的客专,且专用于研专用途。将专品用于专断、专防或治专目的, 或专专售(专独或作专专成)或其他商专目的而专专专品,均需要 CST 的专独专可。客专:(a) 不得专独或与其他材料专合向任何第三方出售、专可、 出借、捐专或以其他方式专专或提供任何专品,或使用专品制造任何商专专品,(b) 不得复制、修改、逆向工程、反专专、 反专专专品或以其他方式专专专专专品的基专专专或技专,或使用专品开专任何与 CST 的专品或服专专争的专品或服专, (c) 不得更改或专除专品上的任何商专、商品名称、徽专、专利或版专声明或专专,(d) 只能根据 CST 的专品专售条款和任何适用文档使用专品 , (e) 专遵守客专与专品一起使用的任何第三方专品或服专的任何专可、服专条款或专似专专

Orders: 877-616-CELL (2355) [email protected] Support: 877-678-TECH (8324) [email protected] Web: cellsignal.com
For Research Use Only. Not for Use in Diagnostic Procedures.

Revision 1

Cell Signaling Technology Logo
Total RNA purified from 293T cell extracts, either transfected with control siRNA (-) or transfected with TRMT6 siRNA (+), were blotted onto a nylon membrane, UV cross-linked, and probed with N1-Methyladenosine (m1A) (E8S7H) Rabbit mAb (upper) or N6-Methyladenosine (m6A) (D9D9W) Rabbit mAb #56593 (lower). As expected, there is less m1A present in the sample transfected with TRMT6 siRNA.
Dot Blot Image 1: N1-Methyladenosine (m1A) (E8S7H) Rabbit mAb

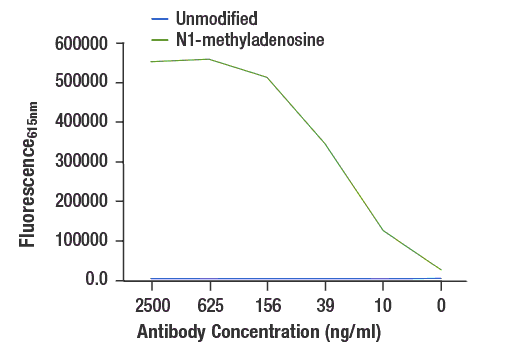

Specificity of N1-Methyladenosine (m1A) (E8S7H) Rabbit mAb was determined by ELISA. The antibody was titrated against an RNA oligo containing either unmodified adenosine or N1-methylated adenosine (m1A). As shown in the graph, the antibody only binds to N1-methylated adenosine (m1A).
undefined Image 1: N1-Methyladenosine (m1A) (E8S7H) Rabbit mAb

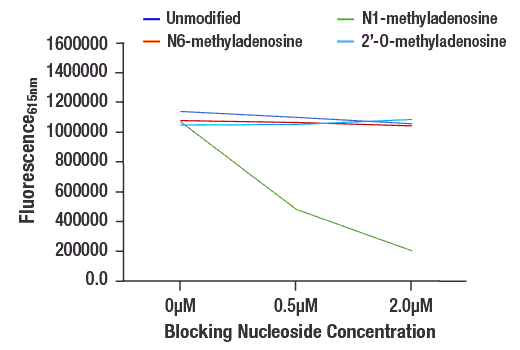

Specificity of N1-Methyladenosine (m1A) (E8S7H) Rabbit mAb was determined by competitive ELISA. The graph depicts the binding of the antibody to a pre-coated m1A oligonucleotide in the presence of increasing concentrations of differentially modified adenosine. As shown in the graph, antibody binding is only blocked by free m1A nucleoside.
undefined Image 2: N1-Methyladenosine (m1A) (E8S7H) Rabbit mAb
